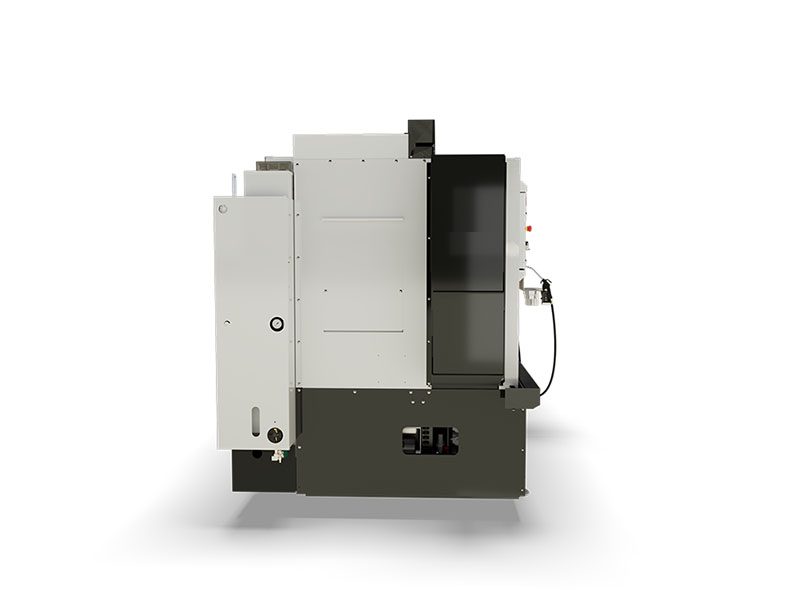

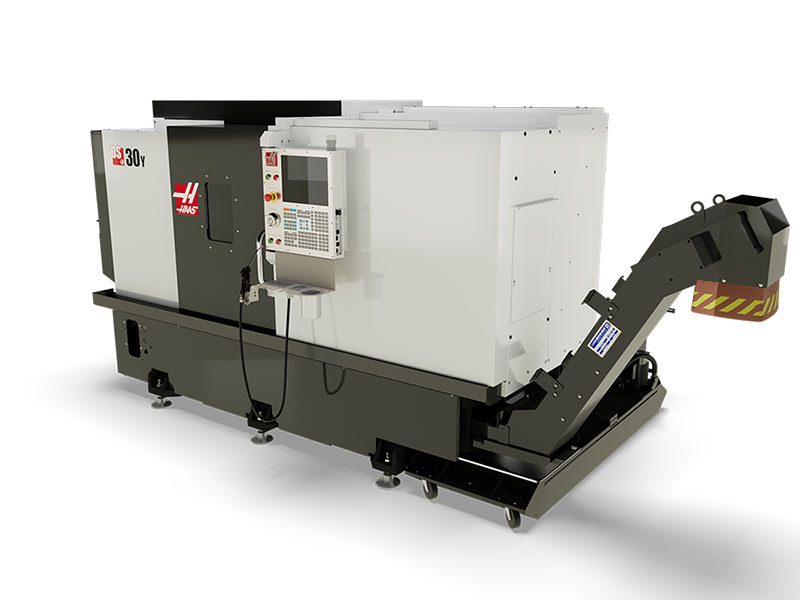

DS-30Y

For the best pricing in your area, contact your local Haas Factory Outlet.

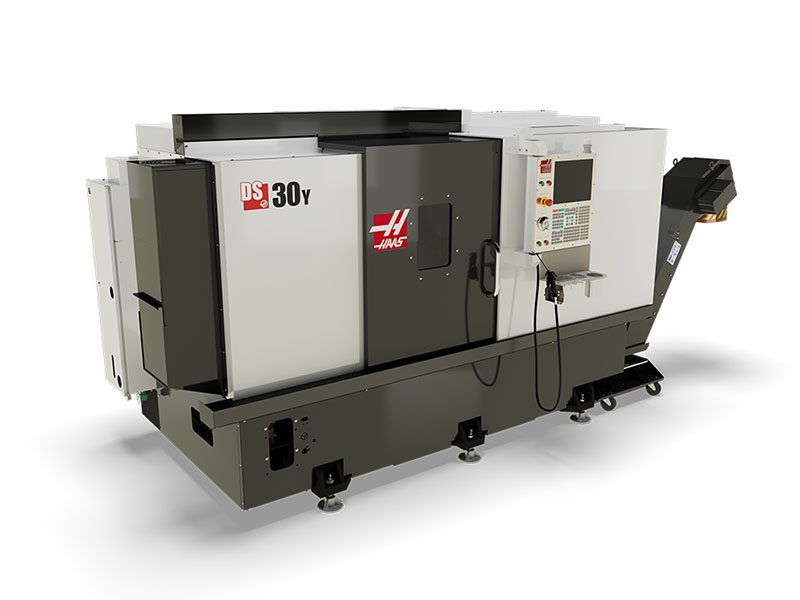

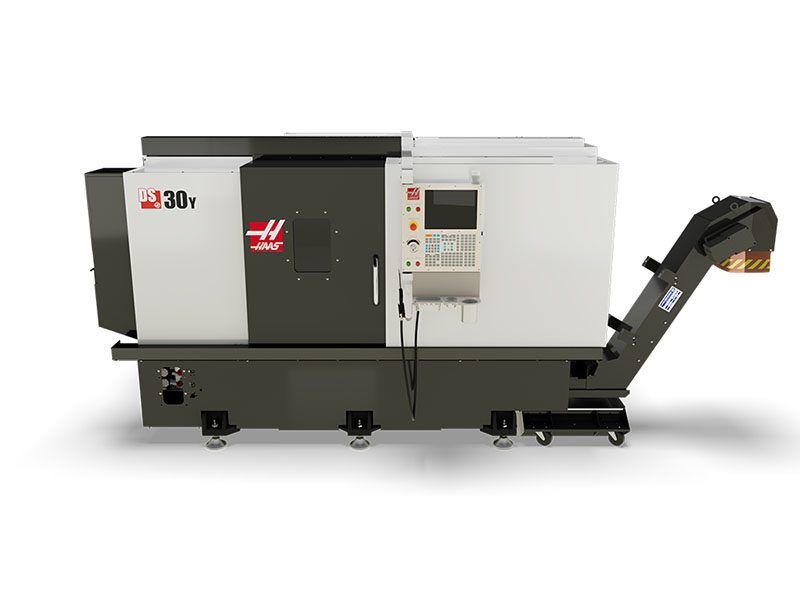

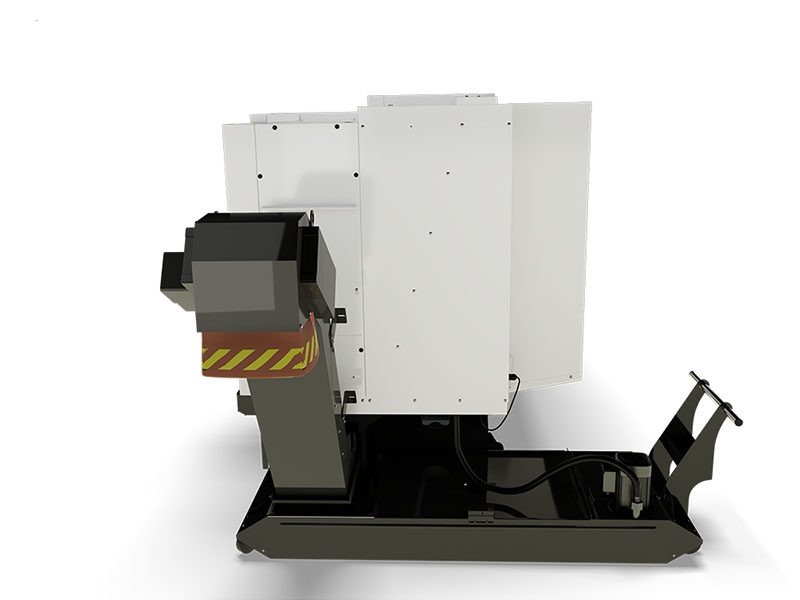

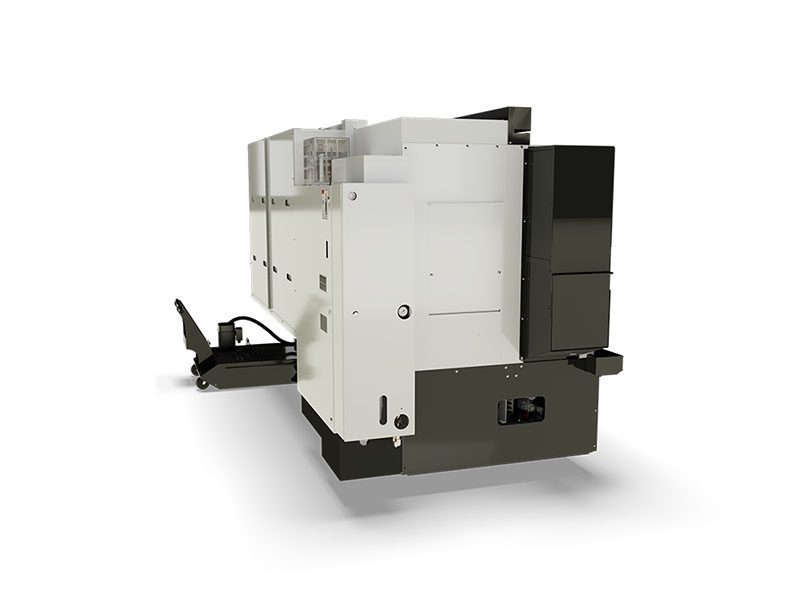

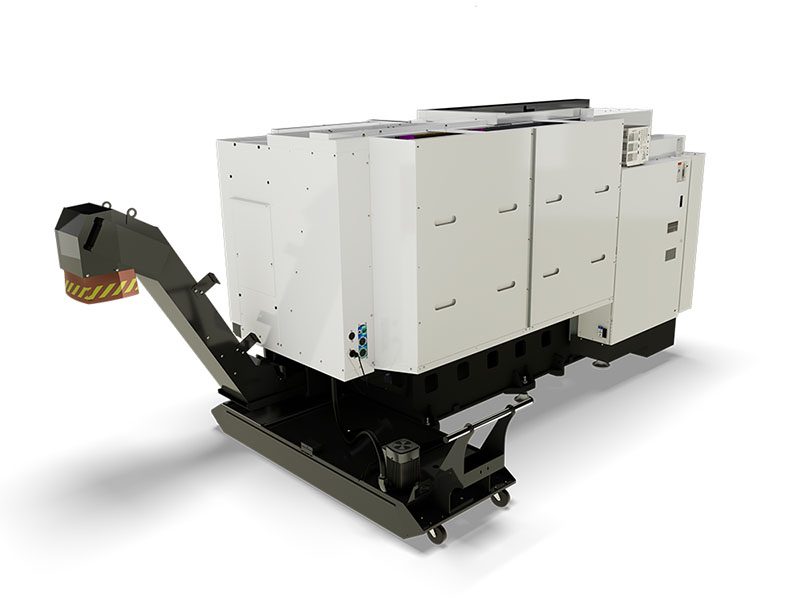

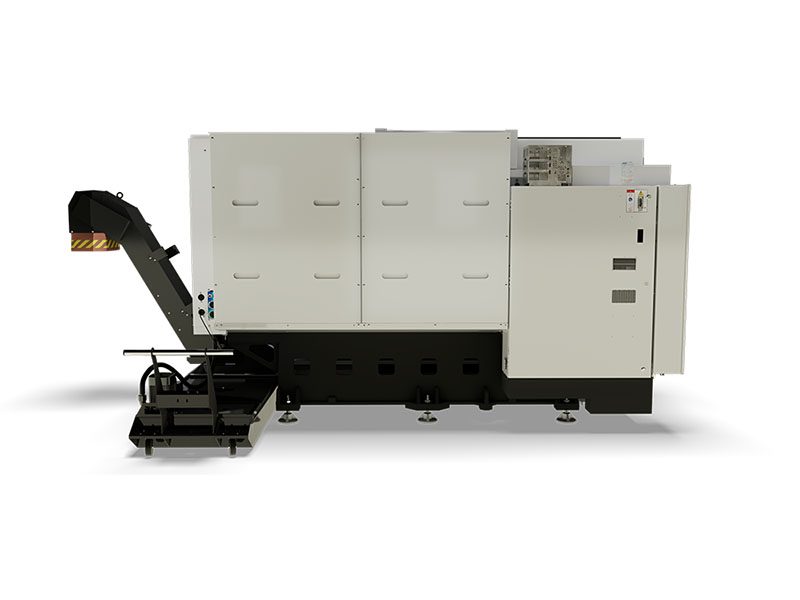

Dual-Spindle CNC Lathe with Y Axis and 13.75" x 32.5" max capacity

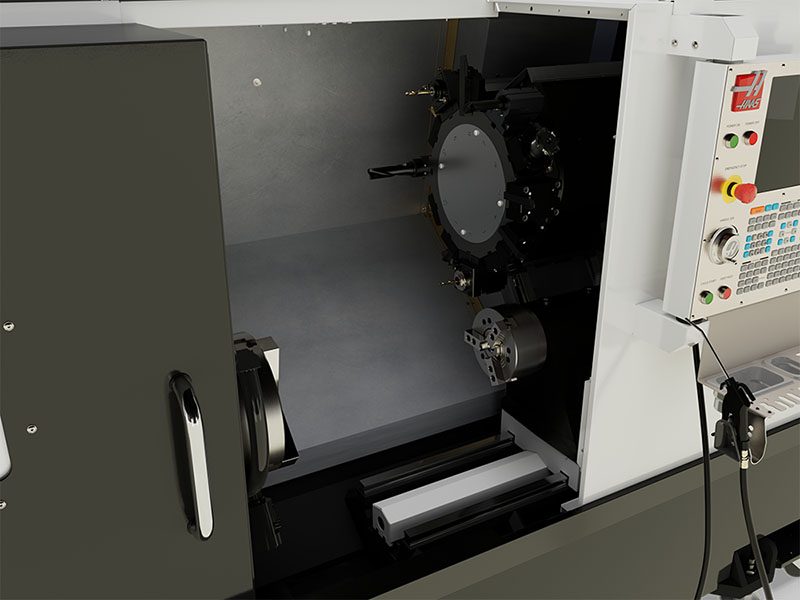

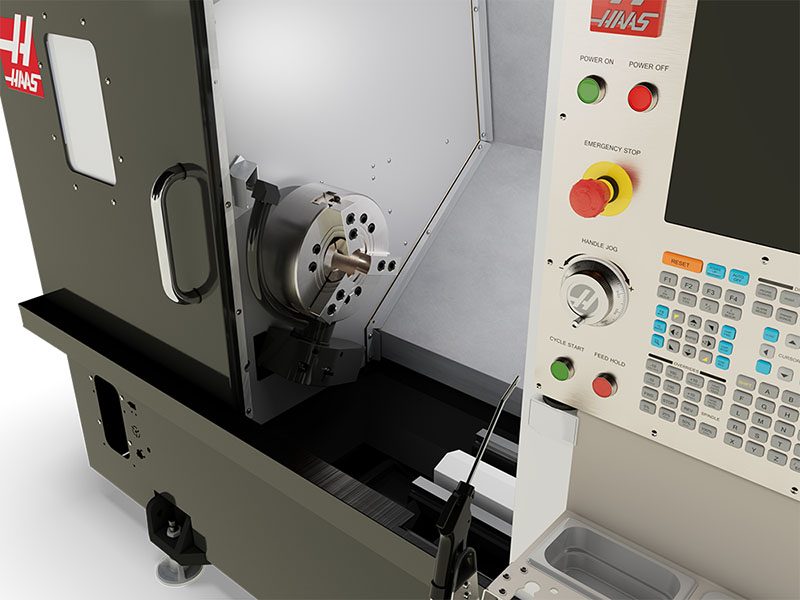

The DS-30Y Y-axis turning center combines dual-spindle turning with Y axis, C axis, and live tooling to create a powerful “done-in-one” machining solution for any shop. Off-center milling, drilling, and tapping operations are possible for increased machining capabilities. It comes standard with a 12-station BMT65 turret and synchronized C axis for versatile 4-axis capability. The opposed spindles support fully synchronized turning, and allow on-the-fly part pass-off to reduce cycle times.

The DS-30Y has a medium footprint, yet provides a generous work envelope. The sub-spindle has a full C-axis for accurate positioning and interpolated live-tooling operations, and a mechanical brake that provides 140 ft-lb (190 Nm) of holding torque for off center milling and drilling.

Dual-spindle design for done-in-one operations
Y-axis milling, drilling, and tapping
Fully interpolated sub-spindle C-axis with mechanical brake
Fully synchronized part pass-off (up to 4000 rpm)
Ideal for high-volume, high-production environments

{{=tableHeader}}
Model	Serial#	Options

10" Chuck Size
3.0" Bar Capacity
4.5k RPM
30 hp Power

HAAS DS SERIES

DOWNLOAD BROCHURE

HAAS JOURNAL

Compare Machines

BUILD & PRICE

Contact Distributor

Build-&-Price
Specs
Automation
Machine Info

Capacities	S.A.E	METRIC
Chuck Size	10.0 in	254 mm
Max Part Swing	21.0 in	533 mm
Max Cutting Diameter (with BMT65 turret)	13.75 in	349 mm
Max Cutting Length (varies with workholding)	32.5 in	826 mm
Bar Capacity	3.00 in	76 mm
Between Centers (max)	32.5 in	826 mm

Travels	S.A.E	METRIC
X Axis	9.40 in	239 mm
Y Axis	± 2.0 in	± 51 mm
Z Axis	32.50 in	826 mm

Feedrates	S.A.E	METRIC
Rapids on X	472 ipm	12.0 m/min
Rapids on Y	472 ipm	12.0 m/min
Rapids on Z	945 ipm	24.0 m/min

Axis Motors	S.A.E	METRIC
Max Thrust X	4100 lbf	18238 N
Max Thrust Y	2300 lbf	10231 N
Max Thrust Z	5100 lbf	22686 N

Spindle	S.A.E	METRIC
Spindle Nose	A2-6	A2-6
Drive System	Direct Speed, Belt Drive	Direct Speed, Belt Drive
Max Rating	30.0 hp	22.4 kW
Max Speed	4500 rpm	4500 rpm
Max Torque	275.0 ft-lbf @ 500 rpm	373.0 Nm @ 500 rpm
Spindle Bore ø	3.50 in	88.9 mm

Main Spindle C Axis	S.A.E	METRIC
Max Speed	60 rpm	60 rpm
Max Rating	5.0 hp	3.7 kW
Positioning (±)	0.01 °	0.01 °
Brake Diameter	13.9 in	353 mm
Brake Holding Torque	250 ft-lbf	339 Nm
Control Type	Interpolated Motion and Positioning	Interpolated Motion and Positioning

Secondary Spindle	S.A.E	METRIC
Chuck Size	8.3 in	210 mm
Spindle Nose	A2-5	A2-5
Drive System	Direct Speed, Belt Drive	Direct Speed, Belt Drive
Max Rating	15.0 hp	11.2 kW
Max Speed	4000 rpm	4000 rpm
Max Sync Speed w/Main Spindle	4000 rpm	4000 rpm
Max Torque	100.0 ft-lbf @ 870 rpm	135.6 Nm @ 870 rpm
Chuck Throat	Ø 2.00 in x 1.95 in DEEP	Ø 50.8 mm x 49.5 mm DEEP
Drawbar Adapter Bore	Ø 1.81 in x 4.52 in DEEP	Ø 46.0 mm x 114.8 mm DEEP
Drawbar Bore (NON-THROUGH)	Ø 1.03 in x 5.00 in DEEP	Ø 26.2 mm x 127.0 mm DEEP
Spindle Bore (without chuck and drawbar installed)	2.31 in	58.7 mm

Secondary Spindle C Axis	S.A.E	METRIC
Max Rating	5.0 hp	3.7 kW
Max Speed	60 rpm	60 rpm
Positioning (±)	0.01 °	0.01 °
Brake Diameter	8.5 in	216 mm
Brake Holding Torque	140 ft-lbf	190 Nm
Control Type	Interpolated Motion and Positioning	Interpolated Motion and Positioning

Secondary Spindle Positioning (M119)	S.A.E	METRIC
Positioning (±)	0.02 °	0.02 °
Brake Diameter	8.5 in	216 mm
Control Type	Positioning Only	Positioning Only

Turret	S.A.E	METRIC
Number of Tools	12 Stations	12 Stations
OD vs ID Tools	Any Combination (will vary with turret)	Any Combination (will vary with turret)
Boring Bar Rear Clearance (from back of turret )	4.00 in	102.0 mm

Live Tooling	S.A.E	METRIC
Max Speed	4000 rpm	4000 rpm
Drive Ratio	1:1	1:1
Tooling	BMT65	BMT65

General	S.A.E	METRIC
Coolant Capacity	55 gal	208 L

Air Requirements	S.A.E	METRIC
Air Required†	4 scfm @ 100 psi	113 L/min @ 6.9 bar
Inline Air Hose	3/8 in	3/8 in
Coupler (Air)	3/8 in	3/8 in
Air Pressure Min	80 psi	5.5 bar

Electrical Specification	S.A.E	METRIC
Spindle Speed	4500 rpm	4500 rpm
Drive System	Direct Speed, Belt Drive	Direct Speed, Belt Drive
Spindle Power	30.0 hp	22.4 kW
Input AC Voltage (3 Phase) - Low	220 VAC	220 VAC
Full Load Amps (3 Phase) - Low	70 A	70 A
Input AC Voltage (3 Phase) - High*	440 VAC	440 VAC
Full Load Amps (3 Phase) - High*	35 A	35 A

Dimensions - Shipping	S.A.E	METRIC
Domestic Pallet	171.0 in x 90.0 in x 98.0 in	434 cm x 229 cm x 249 cm
Export Pallet	171.0 in x 90.0 in x 98.0 in	434 cm x 229 cm x 249 cm
Weight	12200 lb	5533.9 kg

NOTE: All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications.

*Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

**Optional tool changers may have a different max tool size than the standard tool changer. Extra-large tools may require two adjacent pockets empty between tools. Click here for toolholder specifications.

ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

† Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.
