ST-45Y with BMT75




For the best pricing in your area, contact your local Haas Factory Outlet.

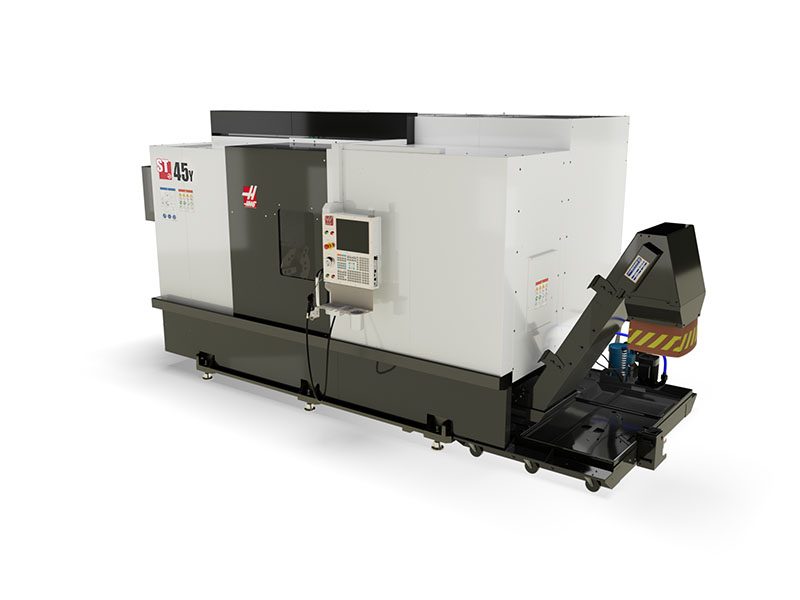

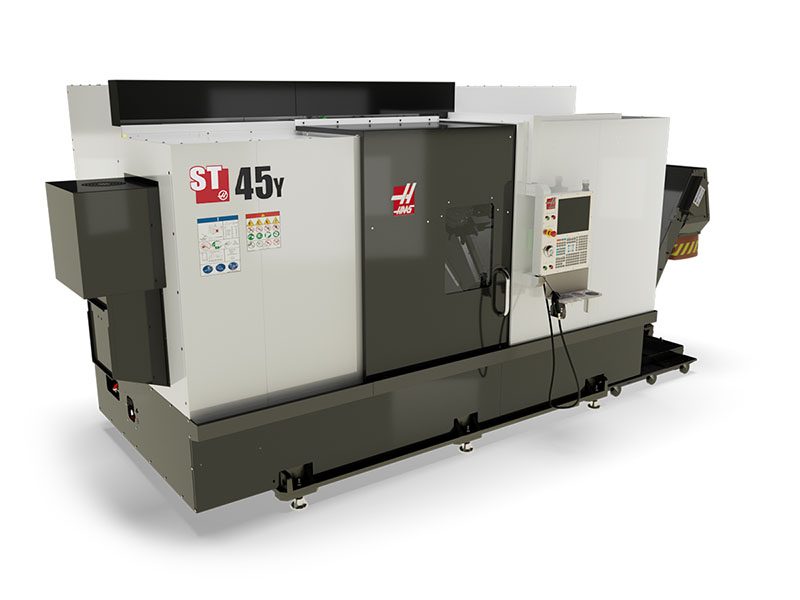

Y-Axis CNC Lathe with 27.5" x 44" max capacity and 7.0" bore

The ST-45Y adds Y-axis motion to our large-bore ST-45 to create a large-frame turning center with a generous work envelope and secondary milling capabilities. The addition of Y-axis motion, C-axis interpolation, and live tooling allows milling, drilling, and tapping for increased machine capabilities. This machine offers an excellent combination of performance, capacity, and value.

  • 12-station base mount turret (BMT75)
  • A2-11 spindle nose with 7.0" (178 mm) bore
  • Y-axis milling, drilling, and tapping
  • ± 3.0" (76 mm) Y-axis travel
  • Fully interpolated C-axis
  • 18" (opt) Chuck Size
  • 7.0" Bar Capacity
  • 1.4k RPM
  • 40 hp Power
Compare Machines
BUILD & PRICE
Contact Distributor
Capacities S.A.E METRIC
Chuck (optional) 18.0 in 457 mm
Max Part Swing 35.5 in 902 mm
Max Cutting Diameter (with BMT75 turret) 27.50 in 699 mm
Max Cutting Length (varies with workholding) 44.0 in 1118 mm
Bar Capacity w/ Opt. Workholding 6.50 in 165 mm
Travels S.A.E METRIC
X Axis 20.00 in 508 mm
Y Axis ± 3.0 in ± 76 mm
Z Axis 44.00 in 1118 mm
Feedrates S.A.E METRIC
Rapids on X 472 ipm 12.0 m/min
Rapids on Y 472 ipm 12.0 m/min
Rapids on Z 710 ipm 18.0 m/min
Axis Motors S.A.E METRIC
Max Thrust X 5500 lbf 24465 N
Max Thrust Y 2300 lbf 10231 N
Max Thrust Z 9000 lbf 40034 N
Spindle S.A.E METRIC
Spindle Nose A2-11 A2-11
Drive System 2-Speed Gearbox 2-Speed Gearbox
Max Rating 40.0 hp 29.8 kW
Max Speed 1400 rpm 1400 rpm
Max Torque 1400.0 ft-lbf @ 150 rpm 1898.0 Nm @ 150 rpm
Spindle Bore ø 7.00 in 177.8 mm
XP Option S.A.E METRIC
Drive System 2-Speed Gearbox 2-Speed Gearbox
Max Rating 55.0 hp 41.0 kW
Max Speed 1400 rpm 1400 rpm
Max Torque 2100.0 ft-lbf @ 150 rpm 2847.0 Nm @ 150 rpm
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 105 A 105 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 53 A 53 A
Main Spindle C Axis S.A.E METRIC
Max Rating 5.0 hp 3.7 kW
Max Speed 49 rpm 49 rpm
Positioning (±) 0.01 ° 0.01 °
Brake Diameter 21.5 in 546 mm
Brake Holding Torque 450 ft-lbf 610 Nm
Control Type Interpolated Motion and Positioning Interpolated Motion and Positioning
Tailstock S.A.E METRIC
Taper MT5 MT5
Travel 42.0 in 1,067 mm
Max Thrust (Acme) 3,000 lbf 13,345 N
Min Thrust (Acme) 200 lbf 890 N
Turret S.A.E METRIC
Number of Tools 12 Stations 12 Stations
OD vs ID Tools Any Combination (will vary with turret) Any Combination (will vary with turret)
Index Time (one tool) 2 s 2 s
Boring Bar Rear Clearance (from turret face) 4.50 in 114.0 mm
Tooling BMT75 BMT75
Live Tooling S.A.E METRIC
Max Speed 4000 rpm 4000 rpm
Tooling BMT75 BMT75
General S.A.E METRIC
Coolant Capacity 95 gal 360 L
Coolant Flow Rate
Air Requirements S.A.E METRIC
Air Required† 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
Electrical Specification S.A.E METRIC
Spindle Speed 1400 rpm 1400 rpm
Drive System 2-Speed Gearbox 2-Speed Gearbox
Spindle Power 40.0 hp 29.8 kW
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 70 A 70 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 35 A 35 A
Dimensions - Shipping S.A.E METRIC
Domestic Pallet 216.5 in x 94.3 in x 110.0 in 550 cm x 239 cm x 279 cm
Export Pallet 216.5 in x 98.0 in x 120.0 in 550 cm x 249 cm x 305 cm

NOTE: All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications.

*Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

**Optional tool changers may have a different max tool size than the standard tool changer. Extra-large tools may require two adjacent pockets empty between tools. Click here for toolholder specifications.

ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

† Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.



Overview

The ST-45Y is a complete redesign of our large-frame, big-bore ST-45 turning center, with the addition of Y-axis motion and full C-axis interpolation. Using the BMT75 mounting configuration for the live tooling, the ST-45Y is now capable of handling milling, drilling, and tapping features – eliminating the need to transfer parts to another machine to perform second ops.

  • ±3.0" (76 mm) Y-axis travel
  • A2-11 spindle nose with 7.0" (178 mm) bore
  • 12-station BMT75 turret (24-station half-index optional)
  • 4000-rpm live tooling
  • Full C-axis interpolation
  • New castings – FEA optimized
  • Improved ergonomics for everyday operation
  • Improved chip evacuation
  • Increased wedge stance for heavy-duty performance
  • WiFi standard
  • HaasDrop wireless file transfer standard
  • Safe Run standard
  • HaasConnect remote monitoring standard
  • Auto Door (optional)

Specification Comparison (Inch)

       NEW MODEL     PREVIOUS MODEL
Footprint (Length, Depth, Height) without conveyor

168" x 91" x 98"

183" x 91" x 89"
Maximum Part Swing 35.5" 34.5"
Spindle Bore, Maximum Spindle Speed 7.0", 1400-rpm 7.0", 1400-rpm
Maximum Power Rating, Drive System 40 hp, 2-Speed Gearbox 40 hp, 2-Speed Gearbox
Spindle Nose, Chuck Size A2-11, 18.0" (optional) A2-11, 18.0" (optional)
Maximum Cutting Diameter (with BMT75 turret) 27.5" 25.5"
Maximum Cutting Length (varies with workholding)  44" 44"
Axis Travels (X,Y,Z) 20", ±3.0", 44.0" 17.0", 44.0"

Specification Comparison (Metric)

  NEW MODEL PREVIOUS MODEL
Footprint (Length, Depth, Height) without conveyor

4267 x 2311 x 2489 mm

4648 x 2311 x 2261 mm
Maximum Part Swing 902 mm 876 mm
Spindle Bore, Maximum speed 178 mm, 1400-rpm 178 mm, 1400-rpm
Maximum Power Rating, Drive System 29.9kW, 2-Speed Gearbox 29.9kW, 2-Speed Gearbox
Spindle Nose, Chuck Size A2-11, 457 mm A2-11, 457 mm
Maximum Cutting Diameter (with BMT75 turret) 699 mm 648 mm
Maximum Cutting Length (varies with workholding) 1118 mm 1118 mm
Axis Travels (X,Y,Z) 508 mm, ±76 mm, 1118 mm 432 mm, 1118 mm

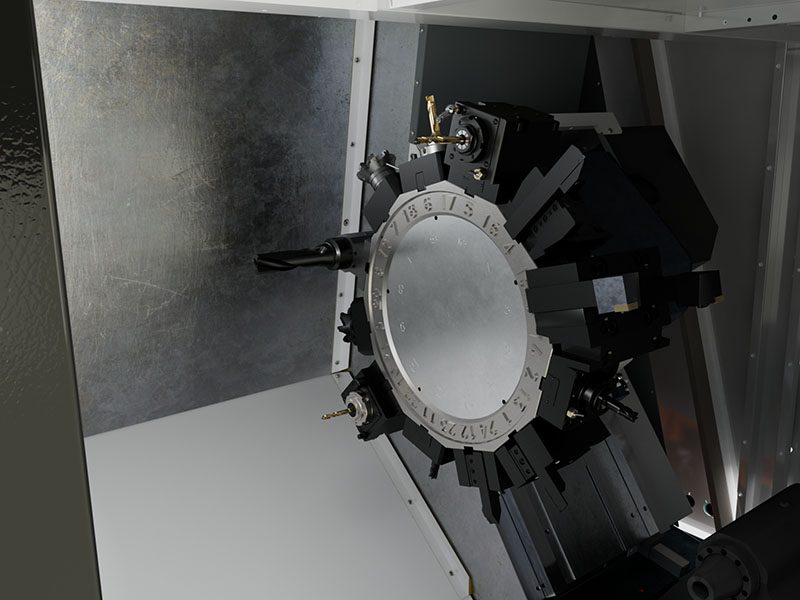

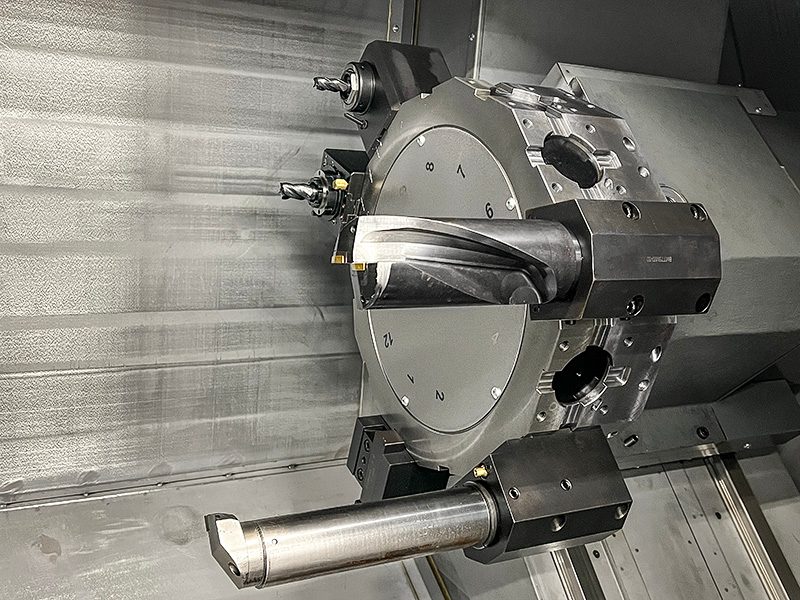

BMT75 Turret

The Haas 12-station BMT75 turret provides extra-rigid mounting for turning and boring tools to improve cutting performance, and offers additional tool clearance when working with a tailstock. Industry-standard toolholders install easily, without additional alignment, to reduce setup times. The turret is available in both static and driven-tool versions.

The BMT75 turret with live tooling allows secondary operations – milling, drilling, slotting, and tapping – on the face of the part and around the diameter. The ability to turn and mill complex parts and perform multiple operations on one machine increases throughput, reduces handling, and improves accuracy.

A 24-station (half-index) BMT75 turret is available, which provides twice the number of programmed tool stations, for better use of tooling, increasing your available tool stations to 24, with 12 stations able to accept driven tools.

  • Better tool clearance for tailstock work
  • More rigid tool connection
  • More tool choices and versatility
  • Fully synchronized multi-axis interpolation
  • C-axis provides precise and repeatable bidirectional motion
  • Clamp-style C-axis brake for powerful stationary grip

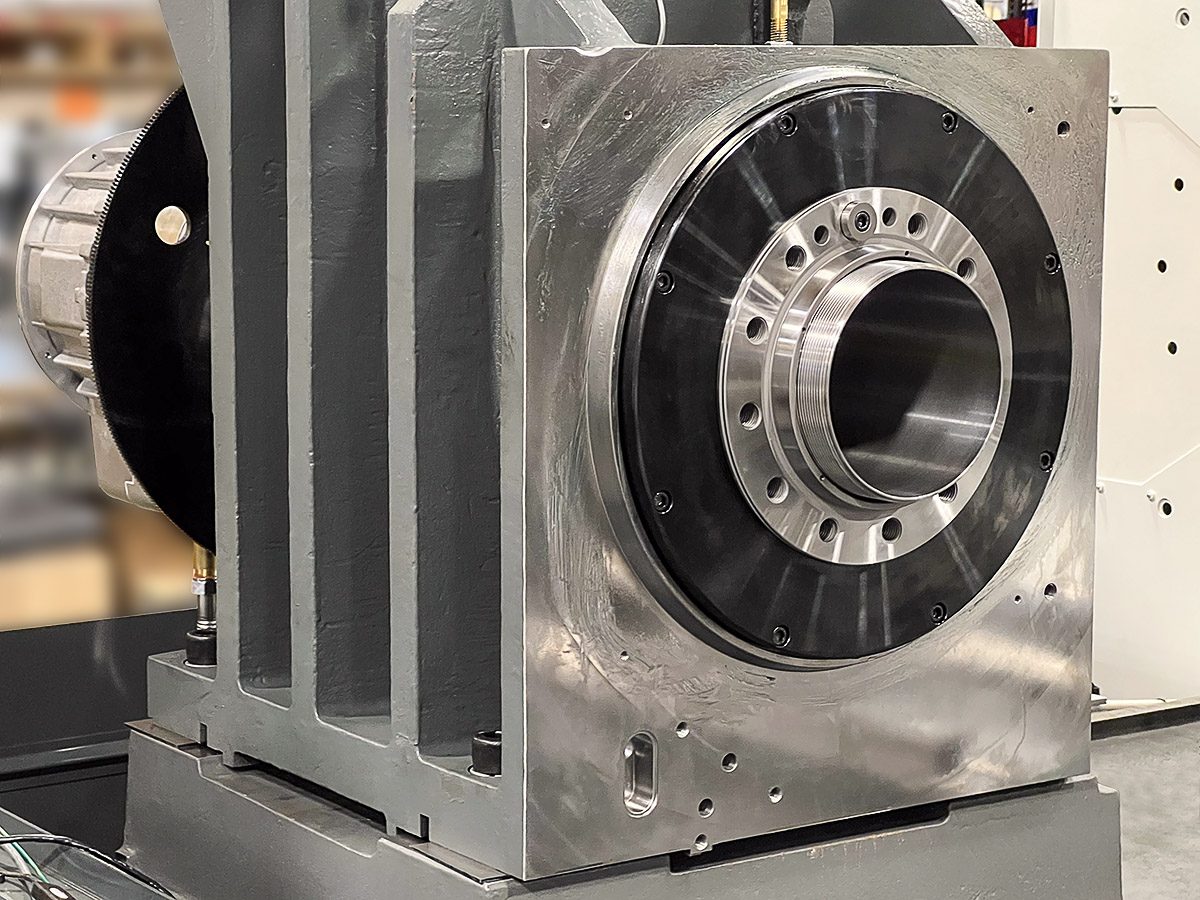

Large-Bore Spindle

The ST-45Y features an A2-11 spindle nose with a 7.0" (178 mm) through-bore. The machine does not include a chuck or hydraulic union standard; however, an 18" (457 mm) 3-jaw chuck kit is available that includes the draw tube, rotating union, and adapter. With the chuck and draw tube, the through-bore is reduced to 6.5" (165mm).

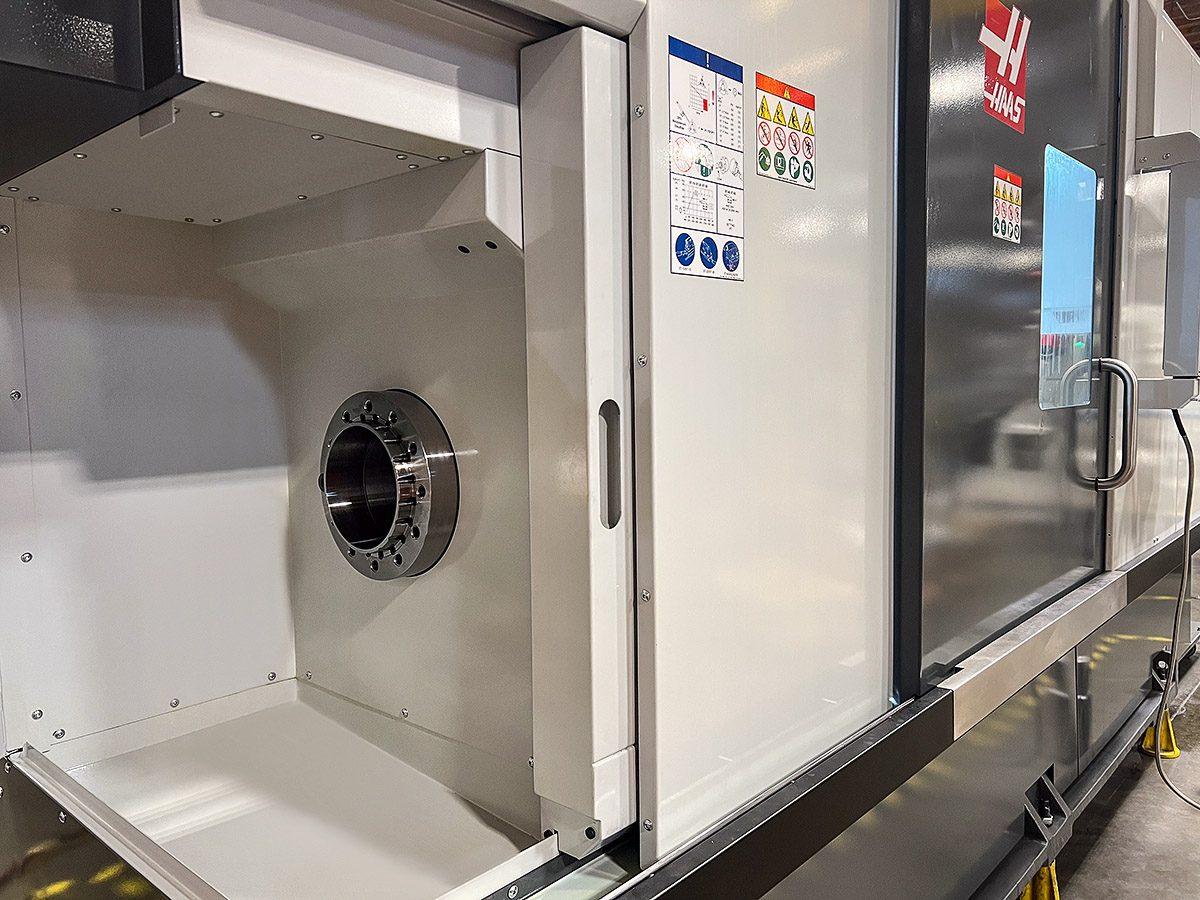

A rear spindle nose option (A2-11) is also available, which provides dual-chuck capability for machining long shafts and rollers.

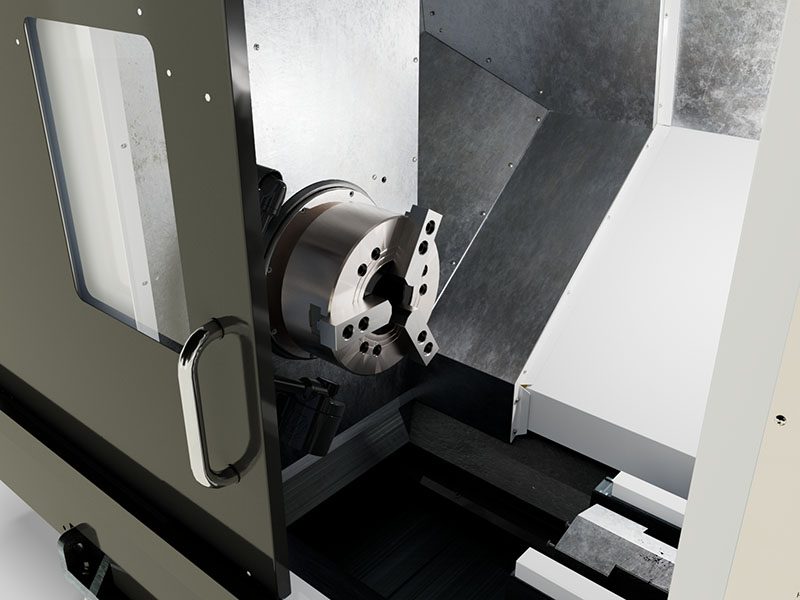

Increased Wedge Angle

We’ve increased the angle of the wedge from 45 degrees to 55 degrees, which improves the overall chip flow inside the work envelope. This steeper inclination contributes to faster chip evacuation when using a chip conveyor (optional).

WiFi Connectivity Standard

All Haas machines come standard with built-in WiFi for fast, wireless connectivity between the Haas control and a local area network. Use WiFi to easily share and transfer files wirelessly, and monitor your machine remotely via HaasConnect mobile machine monitoring. It is easily set up through the Haas control, and supports Netshare capabilities.

  • No cables required
  • Ideal for large shops with many machines
  • Ideal for shops where the machine is far from the network router
  • Easily transfer and share files

Automatic Door (Optional)

The Haas Auto Door is available on the redesigned machines, reducing operator fatigue, and simplifying automation. The Auto Door opens the machine doors automatically via an M-code, or can open them manually via a button on the control pendant. This reduces operator fatigue during repetitive machining operations, and allows for unattended operation when used with a robotic loader or our optional APL. The doors close automatically at Cycle Start, and can be controlled via settings to open at the end of a cycle, or at an Optional Stop.

NOTE: M-code activation requires the machine to receive a cell-safe signal from a robot, or for a light curtain to be installed. Availability my vary by region. Not available in Europe, except with robot and APL installations.

  • Improves machine ergonomics
  • Reduces operator fatigue during repetitive machining operations
  • Operates automatically via M-code, or manually via a button on the control pendant
  • Allows for unattended operation when used in conjunction with a robotic loader or APL
  • Closes automatically at Cycle Start, and can open automatically at cycle end or an Optional Stop
