TL-1

For the best pricing in your area, contact your local Haas Factory Outlet.

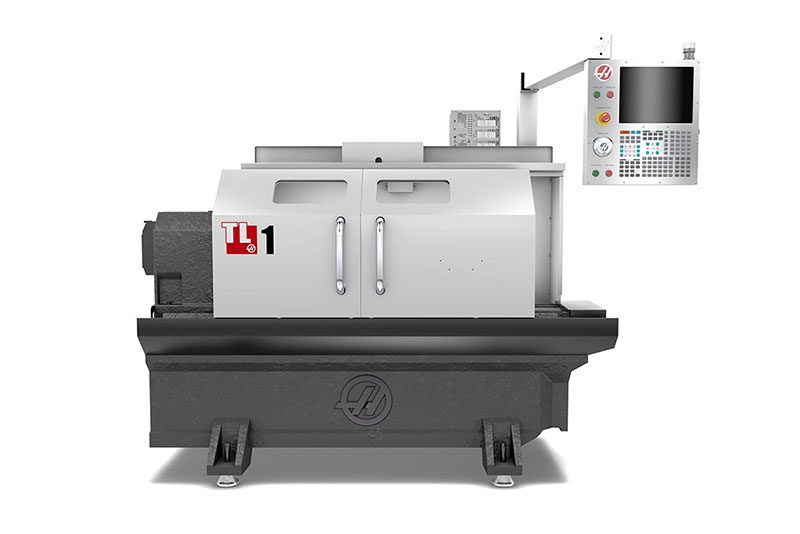

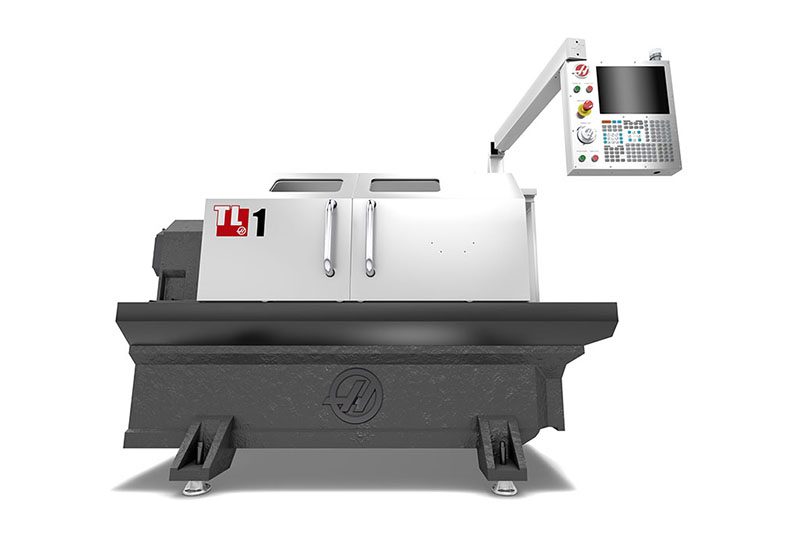

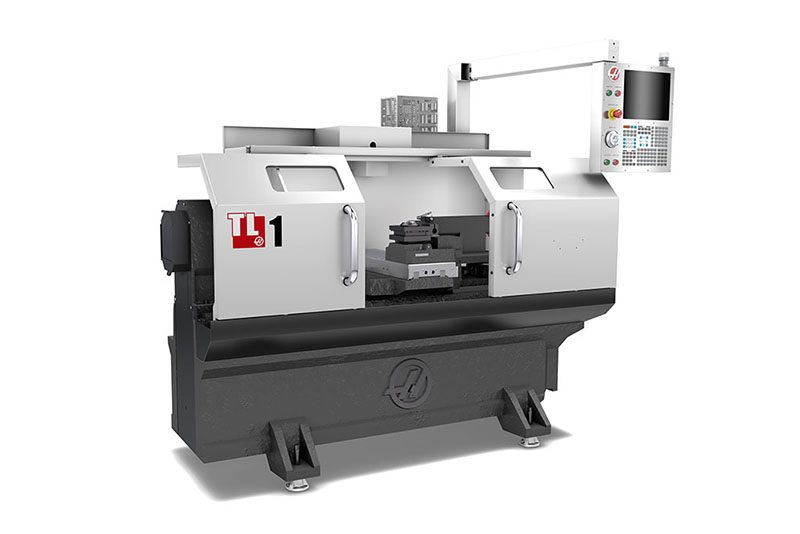

CNC Toolroom Lathe with 16" x 30" max capacity

The TL Series Toolroom Lathes are affordable, easy to use, and offer the precision control and flexibility of the Haas CNC system. The TL-1 is very easy to learn and operate – even without knowing G-code. It is the perfect machine for start-up shops, or as a first step into CNC machining.

Operates on single- or three-phase power
An affordable alternative to conventional lathes

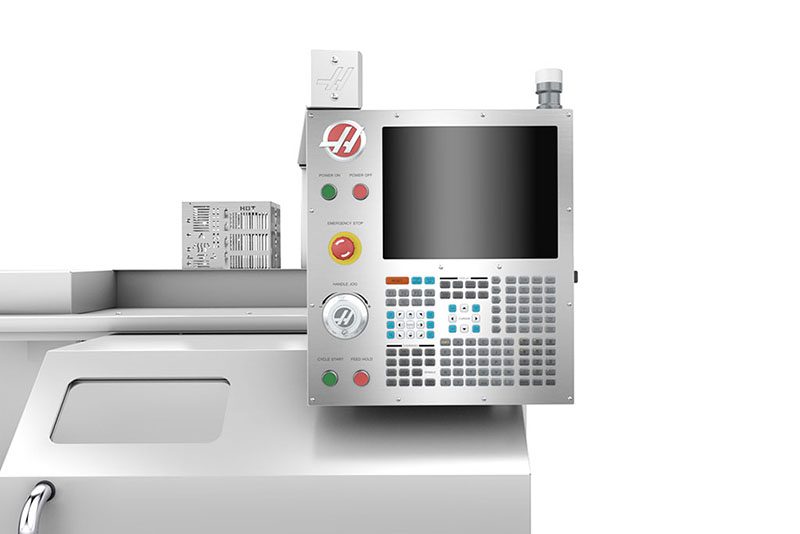

Includes conversational programming system – no G-code knowledge required
An ideal machine for start-up shops, or as a first step into CNC machining

NOTE: Single-phase operation is not available in Europe.

{{=tableHeader}}
Model	Serial#	Options

A2-5 Nose Chuck Size
2.3" Bar Capacity
1.8k RPM
10 hp Power

Compare Machines

BUILD & PRICE

Contact Distributor

Build-&-Price
Specs
Machine Info

Swing Diameter	S.A.E	METRIC
Over Front Apron	20.0 in	508 mm
Over Cross Slide	11.0 in	279 mm

Capacities	S.A.E	METRIC
Chuck (optional)	8.0 in	203 mm
Max Cutting Diameter (with tool post)	16.0 in	406 mm

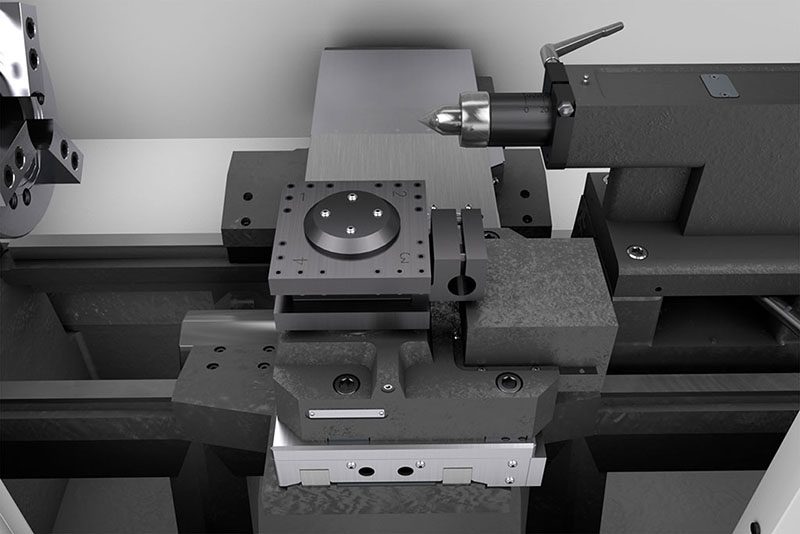

Max Cutting Diameter (with 4-station turret)	8.0 in	203.0 mm
Max Cutting Length (with tool post)	30.0 in	762 mm
Max Cutting Length (with 8-station turret)	1.65 in	42.0 mm
Between Centers (max)	30.0 in	762 mm

Travels	S.A.E	METRIC
X Axis	8.00 in	203 mm
Z Axis	30.00 in	762 mm

Feedrates	S.A.E	METRIC
Rapids on X	450 ipm	11.4 m/min
Rapids on Z	450 ipm	11.4 m/min

Axis Motors	S.A.E	METRIC
Max Thrust X	3894 lbf	17321 N
Max Thrust Z	1947 lbf	8661 N

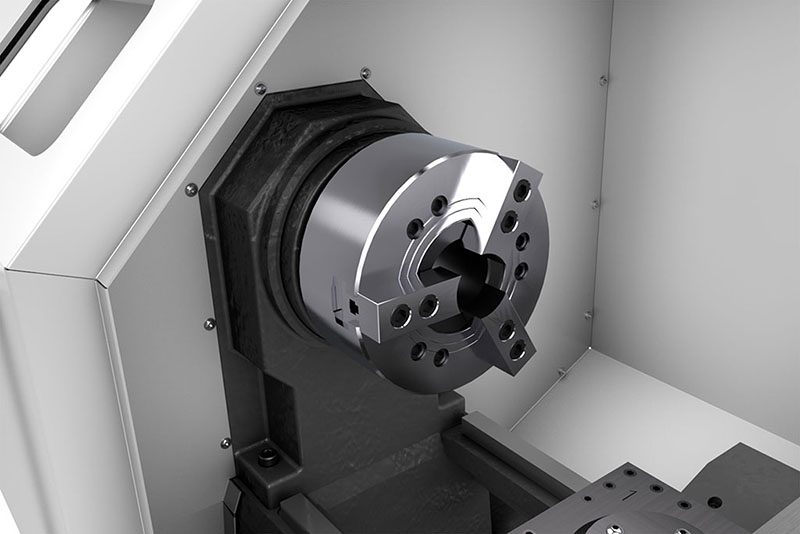

Spindle	S.A.E	METRIC
Spindle Nose	A2-5	A2-5
Max Rating	10.0 hp	7.5 kW
Max Speed	1800 rpm	1800 rpm
Max Torque	108.0 ft-lbf @ 355 rpm	146.0 Nm @ 355 rpm
Spindle Bore ø	2.30 in	58.0 mm

Air Requirements	S.A.E	METRIC
Inline Air Hose	3/8 in	3/8 in
Coupler (Air)	3/8 in	3/8 in
Air Pressure Min	80 psi	5.5 bar

Electrical Specification	S.A.E	METRIC
Spindle Speed	1800 rpm	1800 rpm
Drive System	Direct Speed, Belt Drive	Direct Speed, Belt Drive
Spindle Power	10.0 hp	7.5 kW
Input AC Voltage (1 Phase)	220 VAC	220 VAC
Full Load Amps (1 Phase)	40 A	40 A
Input AC Voltage (3 Phase) - Low	220 VAC	220 VAC
Full Load Amps (3 Phase) - Low	25 A	25 A
Input AC Voltage (3 Phase) - High*	440 VAC	440 VAC
Full Load Amps (3 Phase) - High*	13 A	13 A

Dimensions - Shipping	S.A.E	METRIC
Domestic Pallet	100.0 in x 69.0 in x 83.0 in	254 cm x 175 cm x 211 cm
Export Pallet	100.0 in x 69.0 in x 83.0 in	254 cm x 175 cm x 211 cm
Weight	4200 lb	2223.0 kg
Domestic Pallet w/Conveyor	121 in x 70 in x 83 in	307 cm x 178 cm x 211 cm
Export Pallet w/Conveyor	121 in x 70 in x 83 in	307 cm x 178 cm x 211 cm
Weight w/Conveyor	4620 lb	4620 lb

NOTE: All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications.

*Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

**Optional tool changers may have a different max tool size than the standard tool changer. Extra-large tools may require two adjacent pockets empty between tools. Click here for toolholder specifications.

ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

† Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.
