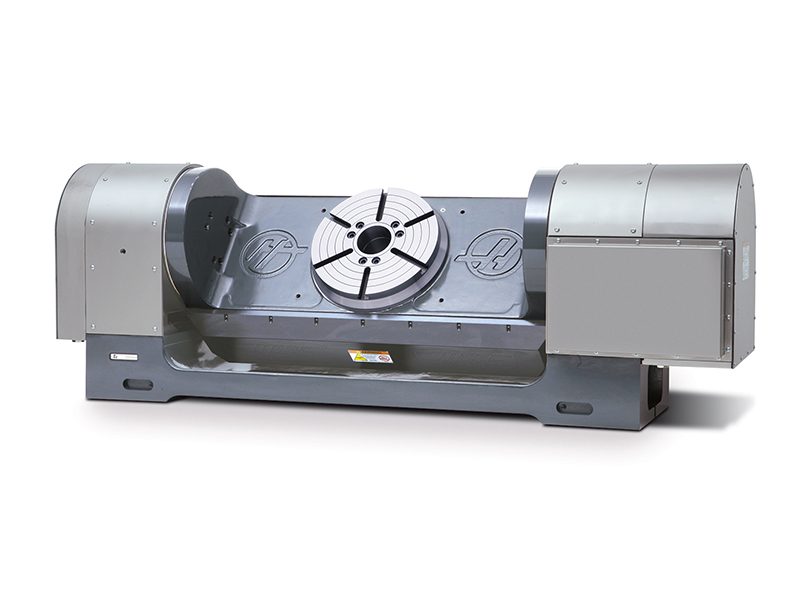

310 mm (12.2") Tilting 2-Axis Trunnion Rotary Table

The TR310 is a dual-axis trunnion rotary table that offers maximum rigidity and accurate performance for 3+2 and full 5-axis machining of medium to large parts. Scale feedback on the A (tilting) axis increases positioning accuracy and repeatability. The TR310 fits into VF-6 and larger VF Series machines (extended Z-axis clearance option highly recommended).

Note: Requires a Haas mill with 4th- and 5-axis drive and NGC software version 100.21.000.1130 or later for full 4th- and 5th-axis operation.

Add 4- and 5-axis capabilities to your machine
Easy plug-and-play connection to Haas machines
Industry-leading performance and capabilities
Heavy-duty design

1 Spindles
310 mm Platter Size
300 ft-lb Max Torque
50 °/sec Max Speed

Compare Machines

BUILD & PRICE

Contact Distributor

Build-&-Price
Specs
Machine Info
Rotary Fit chart

Platter	S.A.E	METRIC
Platter Diameter	12.20 in	310 mm
Max Weight on Platter	500 lb	227.0 kg
Part Swing Max	31.0 in	787 mm
Number of Std T-Slots	6 @ 60°	6 @ 60°

Spindle - A (tilt)	S.A.E	METRIC
Max Speed	50 °/sec	50 °/sec
Torque (Continuous)	300 ft-lbf	407 Nm
Backlash	30 arc-sec	30 arc-sec
Gear Ratio	72:1	72:1
Timing	3:1	3:1
Brake Torque @ 100 psi/6.9 bar	1000 ft-lbf	1356 Nm

Spindle - B (rotary)	S.A.E	METRIC
Max Speed	50 °/sec	50 °/sec
Torque (Continuous)	300 ft-lbf	407 Nm
Runout Max	0.0010 in	0.025 mm
Backlash	30 arc-sec	30 arc-sec
Gear Ratio	72:1	72:1
Timing	3:1	3:1
Brake Torque @ 100 psi/6.9 bar	500 ft-lbf	678 Nm

Indexing - A (tilt)	S.A.E	METRIC
Max Rotation/Step	± 120 °	± 120 °
Resolution	0.001 °	0.001 °
Accuracy (±)	± 15 arc-sec	± 15 arc-sec
Repeatability	10 arc-sec	10 arc-sec

Indexing - B (rotary)	S.A.E	METRIC
Max Rotation/Step (with rotary control)	999.999 °	999.999 °
Resolution	0.001 °	0.001 °
Repeatability	10 arc-sec	10 arc-sec

General	S.A.E	METRIC
Operating Temp (max ambient)	100 °F	38 °C

Air Requirements	S.A.E	METRIC
Air Pressure Max	150 psi	10.3 bar

Dimensions - Shipping	S.A.E	METRIC
Export Crate	70.0 in x 30.0 in x 34.0 in	178 cm x 77 cm x 87 cm
Weight	2105 lb	955.0 kg

AVAILABLE OPTIONS

TECHNICAL DOCUMENTS

VIDEOS

Trunnion Rotary Table Model Guide

Don’t know where to start? Check out this video model guide to find the best one for your needs!

CYLINDRICAL ENGRAVING USING G47/G107

Easily hand-program 4th-axis engraving on your Haas mill – without a CAM system. With G47 and G107, engraving on a cylindrical part couldn’t be easier.

UNWIND YOUR HAAS ROTARY QUICKLY

Today, Mark solves an issue every Haas Rotary user faces at some point: How do I get my rotary back to zero quickly?

How to Program a SAFE TOOL CHANGE POSITION

Mark shows how to command a safe tool change position to avoid crashing a tool into your fixture or rotary. It’s all done with a simple program, and referenced with an M-code.

Your new 5-axis compact rotary

If you make small parts and have multiple setups, this rotary is the perfect solution. Lightning fast and accurate, the TRT100 fits in nearly every Haas mill, and will help you cut cycle times and boost your shops efficiency.

SMALLER WORK ENVELOPE

TR210

210 mm Dual-Axis Trunnion Table

1 Spindles
210 mm Platter Size
210 ft-lb Max Torque
60 °/sec Max Speed

Learn More Build & Price

DIFFERENT APPROACH

TR200Y

Compact 200 mm Dual-Axis Trunnion Table

1 Spindles
200 mm Platter Size
150 ft-lb Max Torque
130 °/sec Max Speed

Learn More Build & Price

TILTING ROTARY TABLE

TRT310

310 mm Tilting Rotary Table

1 Spindles
310 mm Platter Size
300 ft-lb Max Torque
75 °/sec Max Speed

Learn More Build & Price

HAAS ROTARY	HAAS MACHINE	ROTARY FIT TYPE	WARNING
TR310	EC-1600	POSITIVE FIT
TR310	EC-1600ZT	POSITIVE FIT
TR310	VF-10/40	POSITIVE FIT
TR310	VF-10/50	POSITIVE FIT
TR310	VF-11/40	POSITIVE FIT
TR310	VF-11/50	POSITIVE FIT
TR310	VF-12/40	POSITIVE FIT
TR310	VF-12/50	POSITIVE FIT
TR310	VF-3SSYT	POSITIVE FIT
TR310	VF-3YT	POSITIVE FIT
TR310	VF-3YT/50	POSITIVE FIT
TR310	VF-5/40	POSITIVE FIT
TR310	VF-5/40XT	POSITIVE FIT
TR310	VF-5/50	POSITIVE FIT
TR310	VF-5/50XT	POSITIVE FIT
TR310	VF-5SS	POSITIVE FIT
TR310	VF-6/40	POSITIVE FIT
TR310	VF-6/50	POSITIVE FIT
TR310	VF-6SS	POSITIVE FIT
TR310	VF-7/40	POSITIVE FIT
TR310	VF-7/50	POSITIVE FIT
TR310	VF-8/40	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TR310	VF-8/50	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TR310	VF-9/40	POSITIVE FIT
TR310	VF-9/50	POSITIVE FIT
TR310	VM-3	POSITIVE FIT
TR310	VM-6	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TR310	VF-6SS-V	POSITIVE FIT
TR310	VF-5/40-I	POSITIVE FIT
TR310	VF-14/40	POSITIVE FIT
TR310	VF-14/50	POSITIVE FIT
TR310	VS-3	POSITIVE FIT
TR310	VS-3-5AX	POSITIVE FIT
TR310	VS-1	POSITIVE FIT
TR310	VF-5SS-V	POSITIVE FIT
TR310	VF-5/40-V	POSITIVE FIT
TR310	VF-5SS-I	POSITIVE FIT
TR310	VF-7SS	POSITIVE FIT
TR310	VF-8SS	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TR310	VM-8	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TR310	VM-9	POSITIVE FIT
TR310	VF-9SS	POSITIVE FIT
TR310	VM-5	POSITIVE FIT
TR310	VM-5/50	POSITIVE FIT
TR310	VM-6/50	POSITIVE FIT
TR310	VM-8/50	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TR310	VM-9/50	POSITIVE FIT
TR310	VM-3/50	POSITIVE FIT
