TRT160




For the best pricing in your area, contact your local Haas Factory Outlet.

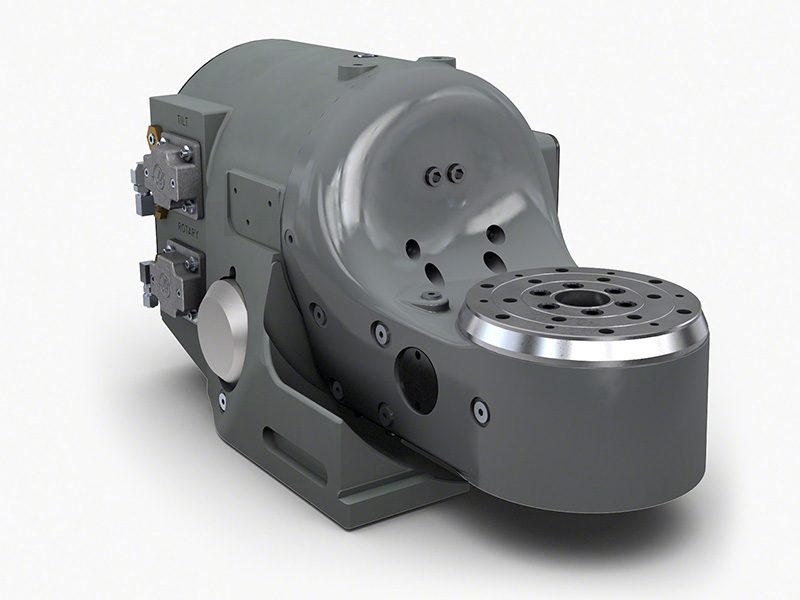

160 mm Tilting Rotary Table

Our redesigned TRT160 tilting rotary table not only puts 5-axis capabilities well within reach of the average job shop, but its new smaller size also provides greater mounting flexibility than its predecessor. We’ve completely redesigned the TRT160 to create a much more compact and versatile 5-axis solution for smaller mills, including Haas Mini Mills and Toolroom Mills. The new unit easily fits on one end of a machine’s table, leaving the remainder open for additional fixtures or vises.

Note: Requires a Haas mill with 4th- and 5-axis drive and NGC software version 100.21.000.1130 or later for full 4th- and 5th-axis operation.

  • Add 4- and 5-axis capabilities to your machine
  • Compact size fits easily into smaller mills
  • Easy plug-and-play connection to Haas machines
  • Industry-leading performance and capabilities
  • 1 Spindles
  • 160 mm Platter Size
  • 112 ft-lb Max Torque
  • 104 °/sec Max Speed
Compare Machines
BUILD & PRICE
Contact Distributor
Platter S.A.E METRIC
Platter Diameter 6.30 in 160 mm
Max Weight on Platter 55 lb 24.9 kg
Part Swing Max 10.5 in 267 mm
Hole Pattern (3) 6-bolt patterns (3) 6-bolt patterns
Spindle - A (tilt) S.A.E METRIC
Max Speed 104 °/sec 104 °/sec
Torque (Continuous) 210 ft-lbf 285 Nm
Runout Max 0.013 mm
Backlash 30 arc-sec 30 arc-sec
Center Height 6.900 in 175.26 mm
Gear Ratio 90:1 90:1
Timing 2:1  2:1
Brake Torque @ 100 psi/6.9 bar 200 ft-lbf 271 Nm
Spindle - B (rotary) S.A.E METRIC
Max Speed 104 °/sec 104 °/sec
Torque (Continuous) 112 ft-lbf 151 Nm
Runout Max 0.0005 in 0.013 mm
Backlash 30 arc-sec 30 arc-sec
Center Height 6.900 in 175.26 mm
Gear Ratio 63:1 63:1
Timing 1.5:1 1.5:1
Brake Torque @ 100 psi/6.9 bar 100 ft-lbf 136 Nm
Indexing - A (tilt) S.A.E METRIC
Max Rotation/Step ± 120 ° ± 120 °
Resolution 0.001 ° 0.001 °
Accuracy (±) ± 25 arc-sec ± 25 arc-sec
Repeatability 10 arc-sec 10 arc-sec
Indexing - B (rotary) S.A.E METRIC
Max Rotation/Step (with rotary control) 999.999 ° 999.999 °
Resolution 0.001 ° 0.001 °
Accuracy (±) ± 15 arc-sec ± 15 arc-sec
Repeatability 10 arc-sec 10 arc-sec
General S.A.E METRIC
Operating Temp (max ambient) 100 °F 38 °C

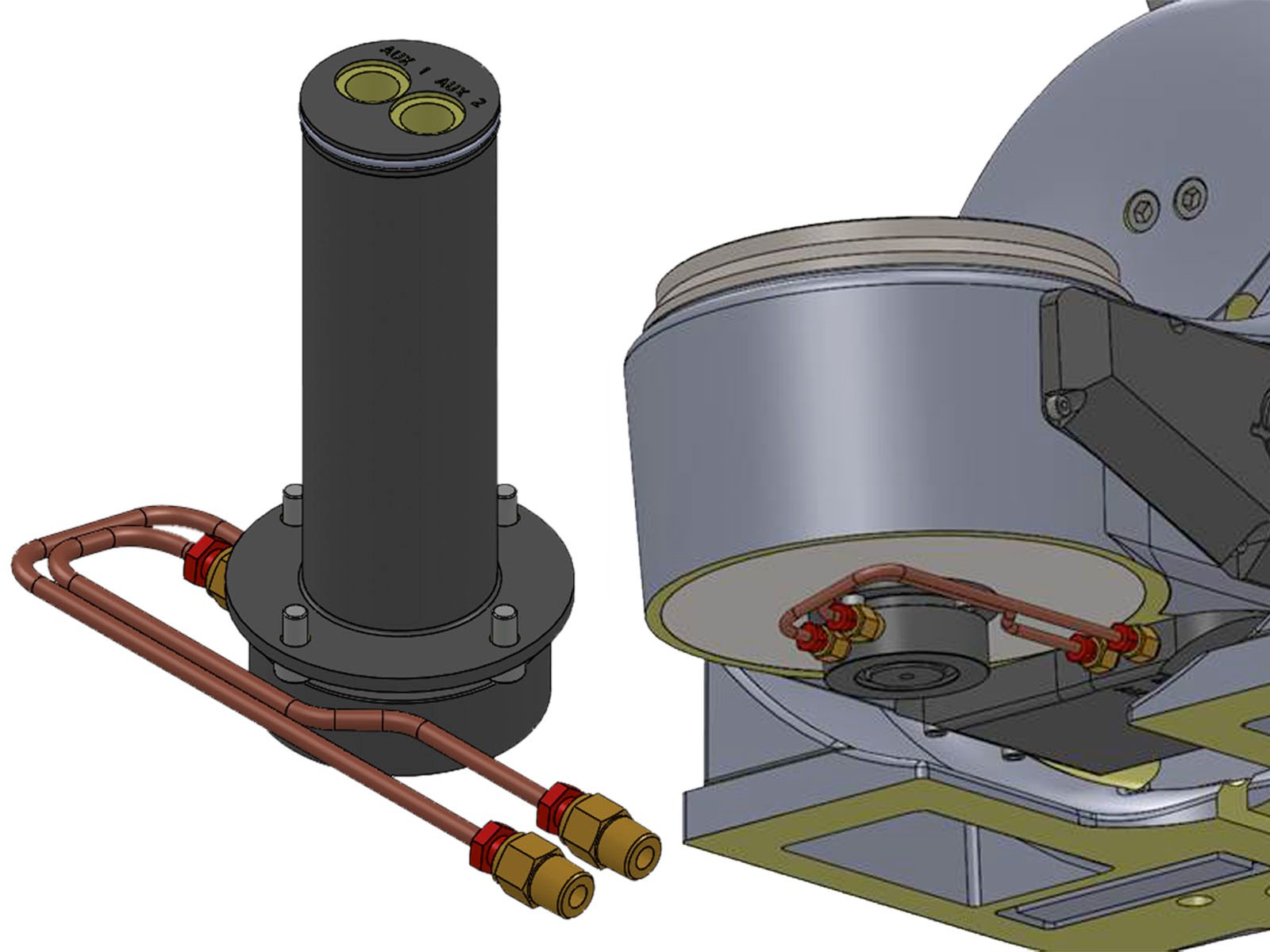

Air Requirements S.A.E METRIC
Air Pressure Max 150 psi 10.3 bar
Dimensions - Shipping S.A.E METRIC
Export Crate 28.0 in x 17.0 in x 19.0 in 71 cm x 43 cm x 48 cm
Weight 302 lb 137.0 kg
