HA2TS

For the best pricing in your area, contact your local Haas Factory Outlet.

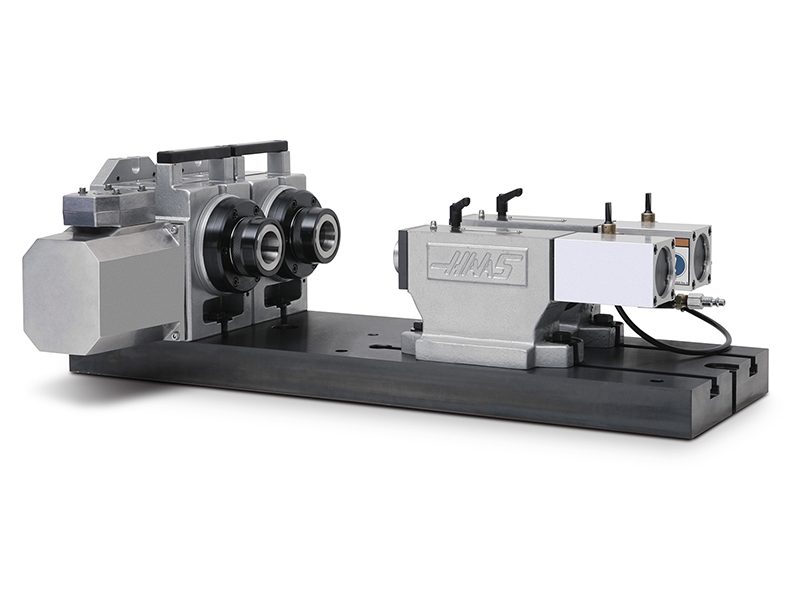

2-Head 5C Indexer with Tailstocks

The HA2TS is a dual-spindle 5C system mounted on a plate with pneumatic tailstocks. Tailstock thrust must not exceed 800 lb (3559 N). Clamp your parts using standard 5C collets, or chuck them by threading 3-jaw chucks to the spindle noses. This unit has no collet closing capability as standard. Optional pneumatic collet closers are available.

Note: Requires a Haas mill with 4th-axis drive and NGC software version 100.21.000.1130 or later for full 4th-axis operation. Stand-alone operation requires a Haas rotary control box shipped after November 10, 2021, with software version 26.38 or newer.

Add 4-axis capabilities to your machine
Increased productivity with multiple rotary spindles
Easy plug-and-play connection to Haas machines
Industry-leading performance and capabilities

2 Spindles
5C Collet Size
25 ft-lb Max Torque
200 °/sec Max Speed

Compare Machines

BUILD & PRICE

Contact Distributor

Build-&-Price
Specs
Machine Info
Rotary Fit chart

Spindle	S.A.E	METRIC
Number	2	2
Max Speed	200 °/sec	200 °/sec
Torque (Continuous)	25 ft-lbf	34 Nm
Nose Thread	2 3/16 in - 10	2 3/16 in - 10
Runout Max	0.0004 in	0.010 mm
Center Height	5.875 in	149.23 mm
Collet Size	5C	5C
Gear Ratio	60:1	60:1

Indexing	S.A.E	METRIC
Accuracy (±)	± 60 arc-sec	± 60 arc-sec
Repeatability	10 arc-sec	10 arc-sec
Backlash	50 arc-sec	50 arc-sec
Worm Gear Dia	2.8 in	71 mm
Max Rotation/Step (with rotary control)	999.999 °	999.999 °

General	S.A.E	METRIC
Power Requirement	115 VAC ±10% @ 15 A	115 VAC ±10% @ 15 A
Operating Temp (max ambient)	100 °F	38 °C

Air Requirements	S.A.E	METRIC
Air Pressure Max	150 psi	10.3 bar

Tailstock	S.A.E	METRIC
Number	2	2
Type	Pneumatic	Pneumatic
Taper	MT3	MT3

Dimensions - Shipping	S.A.E	METRIC
Export Crate	44.0 in x 23.0 in x 19.0 in	112 cm x 59 cm x 49 cm
Weight	420 lb	191.0 kg

AVAILABLE OPTIONS

TECHNICAL DOCUMENTS

VIDEOS

VERSATILE PART LENGTH

HA5C-T

5C Indexer with Thrust Bearings, for use with tailstocks

1 Spindles
5C Collet Size
60 ft-lb Max Torque
410 °/sec Max Speed

Learn More Build & Price

VERSATILE PART LENGTH, for use with tailstocks

HA5C2-T

2-Head 5C Indexer with Thrust Bearings, for use with tailstocks

2 Spindles
5C Collet Size
25 ft-lb Max Torque
200 °/sec Max Speed

Learn More Build & Price

TWO SPINDLE noses

HA5C2

2-Head 5C Indexer

2 Spindles
5C Collet Size
25 ft-lb Max Torque
200 °/sec Max Speed

Learn More Build & Price

HAAS ROTARY	HAAS MACHINE	ROTARY FIT TYPE	WARNING
HA2TS	DM-1	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	DM-2	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	DT-1	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	DT-2	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	EC-1600	POSITIVE FIT
HA2TS	EC-1600ZT	POSITIVE FIT
HA2TS	GR-510	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	GR-712	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	MINIMILL	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	MINIMILL2	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	SMINIMILL	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	SMINIMILL2	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	TM-1	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	TM-1P	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	TM-2	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	TM-2P	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	TM-3	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	TM-3P	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-1	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-1YT-EU	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-10/40	POSITIVE FIT
HA2TS	VF-10/50	POSITIVE FIT
HA2TS	VF-11/40	POSITIVE FIT
HA2TS	VF-11/50	POSITIVE FIT
HA2TS	VF-12/40	POSITIVE FIT
HA2TS	VF-12/50	POSITIVE FIT
HA2TS	VF-1YT	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-2	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-2SS	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-2SSYT	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-2YT	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-3	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-3SS	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-3SSYT	POSITIVE FIT
HA2TS	VF-3YT	POSITIVE FIT
HA2TS	VF-3YT/50	POSITIVE FIT
HA2TS	VF-4	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-4SS	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-5/40	POSITIVE FIT
HA2TS	VF-5/40XT	POSITIVE FIT
HA2TS	VF-5/50	POSITIVE FIT
HA2TS	VF-5/50XT	POSITIVE FIT
HA2TS	VF-5SS	POSITIVE FIT
HA2TS	VF-6/40	POSITIVE FIT
HA2TS	VF-6/50	POSITIVE FIT
HA2TS	VF-6SS	POSITIVE FIT
HA2TS	VF-7/40	POSITIVE FIT
HA2TS	VF-7/50	POSITIVE FIT
HA2TS	VF-8/40	POSITIVE FIT
HA2TS	VF-8/50	POSITIVE FIT
HA2TS	VF-9/40	POSITIVE FIT
HA2TS	VF-9/50	POSITIVE FIT
HA2TS	VM-2	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VM-3	POSITIVE FIT
HA2TS	VM-6	POSITIVE FIT
HA2TS	DT-1-I	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	DT-2-I	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-2-I	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-2-V	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-2-EU	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-2-SE	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-4-I	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-4-V	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-4-EU	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-4-SE	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-4SS-V	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-2SS-V	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-6SS-V	POSITIVE FIT
HA2TS	VF-5/40-I	POSITIVE FIT
HA2TS	VF-3-V	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-3SS-V	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	MINIMILL-UK	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	TM-0	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-1SSYT-EU	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-2YT-EU	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-2SSYT-EU	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-14/40	POSITIVE FIT
HA2TS	VF-14/50	POSITIVE FIT
HA2TS	TM-0P	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-2SSYT-UK	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-4SS-UK	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-4SS-EU	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-2YT-V	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-2SSYT-V	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-5SS-V	POSITIVE FIT
HA2TS	VF-5/40-V	POSITIVE FIT
HA2TS	MINIMILL-EDU	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-2YT-I	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	DC-2	POSITIVE FIT
HA2TS	VF-2SS-I	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-2SSYT-I	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-4SS-I	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-5SS-I	POSITIVE FIT
HA2TS	DC-2/40	POSITIVE FIT
HA2TS	DC-3/40	POSITIVE FIT
HA2TS	DC-4/40	POSITIVE FIT
HA2TS	DM-3	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	DT-3	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA2TS	VF-7SS	POSITIVE FIT
HA2TS	VF-8SS	POSITIVE FIT
HA2TS	VM-8	POSITIVE FIT
HA2TS	VP-5	POSITIVE FIT
HA2TS	VM-9	POSITIVE FIT
HA2TS	VF-9SS	POSITIVE FIT
HA2TS	VM-5	POSITIVE FIT
HA2TS	VM-5/50	POSITIVE FIT
HA2TS	VM-6/50	POSITIVE FIT
HA2TS	VM-8/50	POSITIVE FIT
HA2TS	VM-9/50	POSITIVE FIT
HA2TS	VM-3/50	POSITIVE FIT
