TH240




For the best pricing in your area, contact your local Haas Factory Outlet.

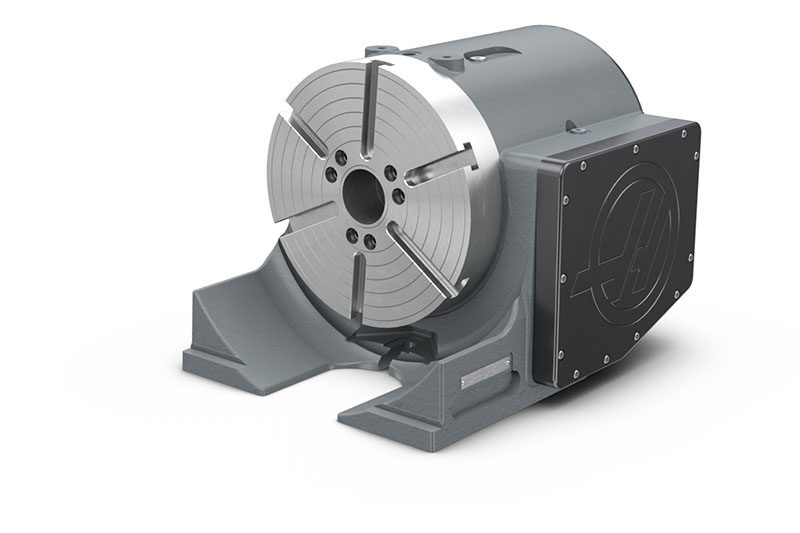

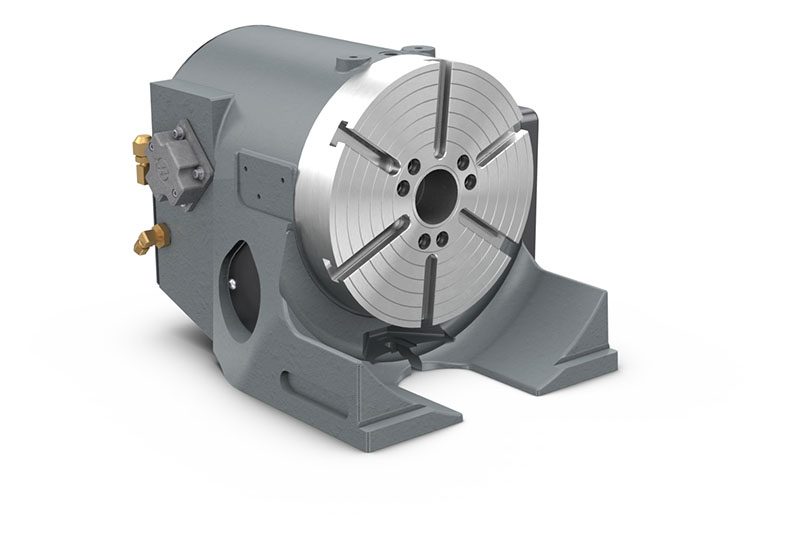

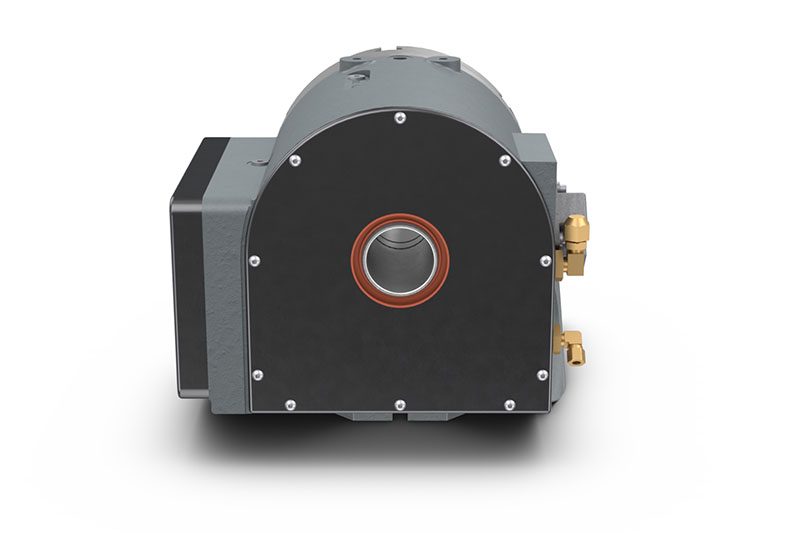

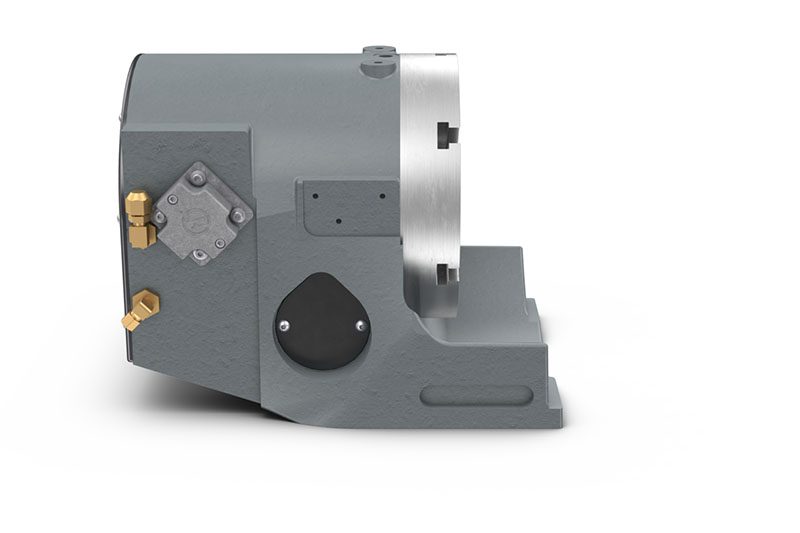

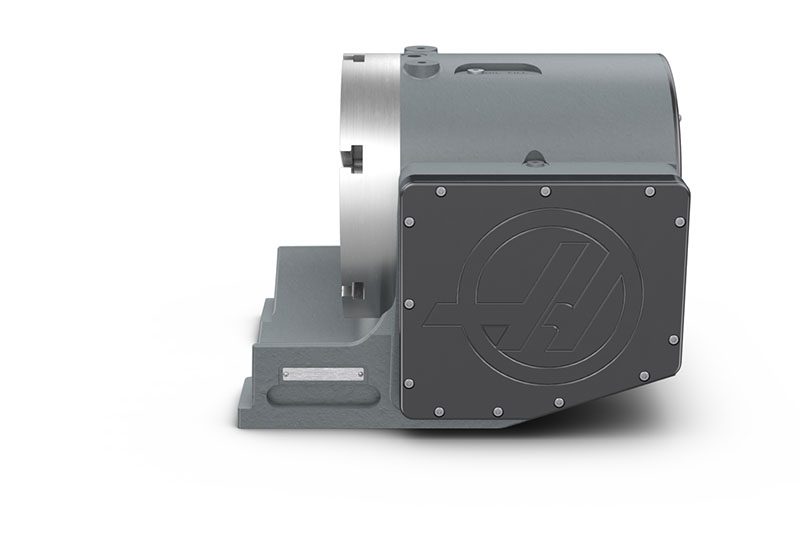

240 mm Rotary Table w/2.0" Through-Hole

Our TH Series of compact rotary tables provide the same features and benefits as our standard HRT Series, but they feature compact enclosure designs and versatile mounting options that allow you to fit a lot of rotary table into a small work envelope. You can even hang them off the end of the table to free up even more space.

Note: Requires a Haas mill with 4th-axis drive and NGC software version 100.21.000.1130 or later for full 4th-axis operation. Stand-alone operation requires a Haas rotary control box shipped after November 10, 2021, with software version 26.38 or newer.

  • Compact footprint, with versatile mounting options
  • 2.0" (50.8 mm) diameter through-hole
  • Optional bolt-pattern platter available
  • Add 4-axis capabilities to your machine
  • Easy plug-and-play connection to Haas machines
  • 1 Spindles
  • 240 mm Platter Size
  • 210 ft-lb Max Torque
  • 100 °/sec Max Speed
Compare Machines
BUILD & PRICE
Contact Distributor
Platter S.A.E METRIC
Platter Diameter 9.45 in 240 mm
Max Weight on Platter (w/support) 165 lb 74.8 kg
Max Weight on Platter (unsupported) 83 lb 37.4 kg
Part Swing Max 13.4 in 340 mm
Number of Std T-Slots 6 @ 60° 6 @ 60°
Spindle S.A.E METRIC
Max Speed 100 °/sec 100 °/sec
Torque (Continuous) 210 ft-lbf 285 Nm
Runout Max 0.0005 in 0.013 mm
Center Height 6.900 in 175.26 mm
Through-Bore Diameter 2.0000 in 50.800 mm
Backlash 30 arc-sec 30 arc-sec
Brake Torque @ 100 psi/6.9 bar 200 ft-lbf 271 Nm
Gear Ratio 90:1 90:1
Timing 2:1  2:1
Indexing S.A.E METRIC
Accuracy (±) ± 15 arc-sec ± 15 arc-sec
Repeatability 10 arc-sec 10 arc-sec
Resolution 0.001 ° 0.001 °
Max Rotation/Step (with rotary control) 999.999 ° 999.999 °
General S.A.E METRIC
Power Requirement 115 VAC ±10% @ 15 A 115 VAC ±10% @ 15 A
Operating Temp (max ambient) 100 °F 38 °C
Air Requirements S.A.E METRIC
Air Pressure Max 150 psi 10.3 bar
Dimensions - Shipping S.A.E METRIC
Export Crate 21.0 in x 22.0 in x 20.3 in 53 cm x 56 cm x 51 cm
Weight 264 lb 120.0 kg

AVAILABLE OPTIONS

TECHNICAL DOCUMENTS

VIDEOS

RELATED PRODUCTS

HAAS ROTARY HAAS MACHINE ROTARY FIT TYPE WARNING
TH240 DM-1 POSITIVE FIT
TH240 DM-2 POSITIVE FIT
TH240 DT-1 POSITIVE FIT
TH240 DT-2 POSITIVE FIT
TH240 EC-1600 POSITIVE FIT
TH240 EC-1600ZT POSITIVE FIT
TH240 GR-510 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TH240 GR-712 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TH240 MINIMILL POSITIVE FIT
TH240 MINIMILL2 POSITIVE FIT
TH240 SMINIMILL POSITIVE FIT
TH240 SMINIMILL2 POSITIVE FIT
TH240 TM-1 POSITIVE FIT
TH240 TM-1P POSITIVE FIT
TH240 TM-2 POSITIVE FIT
TH240 TM-2P POSITIVE FIT
TH240 TM-3 POSITIVE FIT
TH240 TM-3P POSITIVE FIT
TH240 VF-1 POSITIVE FIT
TH240 VF-10/40 POSITIVE FIT
TH240 VF-10/50 POSITIVE FIT
TH240 VF-11/40 POSITIVE FIT
TH240 VF-11/50 POSITIVE FIT
TH240 VF-12/40 POSITIVE FIT
TH240 VF-12/50 POSITIVE FIT
TH240 VF-1YT POSITIVE FIT
TH240 VF-2 POSITIVE FIT
TH240 VF-2SS POSITIVE FIT
TH240 VF-2SSYT POSITIVE FIT
TH240 VF-2YT POSITIVE FIT
TH240 VF-3 POSITIVE FIT
TH240 VF-3SS POSITIVE FIT
TH240 VF-3SSYT POSITIVE FIT
TH240 VF-3YT POSITIVE FIT
TH240 VF-3YT/50 POSITIVE FIT
TH240 VF-4 POSITIVE FIT
TH240 VF-4SS POSITIVE FIT
TH240 VF-5/40 POSITIVE FIT
TH240 VF-5/40XT POSITIVE FIT
TH240 VF-5/50 POSITIVE FIT
TH240 VF-5/50XT POSITIVE FIT
TH240 VF-5SS POSITIVE FIT
TH240 VF-6/40 POSITIVE FIT
TH240 VF-6/50 POSITIVE FIT
TH240 VF-6SS POSITIVE FIT
TH240 VF-7/40 POSITIVE FIT
TH240 VF-7/50 POSITIVE FIT
TH240 VF-8/40 POSITIVE FIT
TH240 VF-8/50 POSITIVE FIT
TH240 VF-9/40 POSITIVE FIT
TH240 VF-9/50 POSITIVE FIT
TH240 VM-2 POSITIVE FIT
TH240 VM-3 POSITIVE FIT
TH240 VM-6 POSITIVE FIT
TH240 DT-1-I POSITIVE FIT
TH240 DT-2-I POSITIVE FIT
TH240 VF-2-I POSITIVE FIT
TH240 VF-2-V POSITIVE FIT
TH240 VF-2-EU POSITIVE FIT
TH240 VF-2-SE POSITIVE FIT
TH240 VF-4-I POSITIVE FIT
TH240 VF-4-V POSITIVE FIT
TH240 VF-4-EU POSITIVE FIT
TH240 VF-4-SE POSITIVE FIT
TH240 VF-4SS-V POSITIVE FIT
TH240 VF-2SS-V POSITIVE FIT
TH240 VF-6SS-V POSITIVE FIT
TH240 VF-5/40-I POSITIVE FIT
TH240 VF-3-V POSITIVE FIT
TH240 VF-3SS-V POSITIVE FIT
TH240 MINIMILL-UK POSITIVE FIT
TH240 EC-500/50 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TH240 VF-1YT-EU POSITIVE FIT
TH240 VF-1SSYT-EU POSITIVE FIT
TH240 VF-2YT-EU POSITIVE FIT
TH240 VF-2SSYT-EU POSITIVE FIT
TH240 VF-14/40 POSITIVE FIT
TH240 VF-14/50 POSITIVE FIT
TH240 TM-0P POSITIVE FIT
TH240 VF-2SSYT-UK POSITIVE FIT
TH240 VF-4SS-UK POSITIVE FIT
TH240 VF-4SS-EU POSITIVE FIT
TH240 VF-2YT-V POSITIVE FIT
TH240 VF-2SSYT-V POSITIVE FIT
TH240 VF-5SS-V POSITIVE FIT
TH240 VF-5/40-V POSITIVE FIT
TH240 MINIMILL-EDU POSITIVE FIT
TH240 VF-2YT-I POSITIVE FIT
TH240 DC-1 POSITIVE FIT
TH240 DC-2 POSITIVE FIT
TH240 VF-2SS-I POSITIVE FIT
TH240 VF-2SSYT-I POSITIVE FIT
TH240 VF-4SS-I POSITIVE FIT
TH240 VF-5SS-I POSITIVE FIT
TH240 DC-1/40 POSITIVE FIT
TH240 DC-2/40 POSITIVE FIT
TH240 DC-3/40 POSITIVE FIT
TH240 DC-4/40 POSITIVE FIT
TH240 DM-3 POSITIVE FIT
TH240 DT-3 POSITIVE FIT
TH240 VF-7SS POSITIVE FIT
TH240 VF-8SS POSITIVE FIT
TH240 VM-8 POSITIVE FIT
TH240 VP-5 POSITIVE FIT
TH240 POCKET MILL POSITIVE FIT
TH240 VM-9 POSITIVE FIT
TH240 VF-9SS POSITIVE FIT
TH240 VM-5 POSITIVE FIT
TH240 VM-5/50 POSITIVE FIT
TH240 VM-6/50 POSITIVE FIT
TH240 VM-8/50 POSITIVE FIT
TH240 VM-9/50 POSITIVE FIT
TH240 VM-3/50 POSITIVE FIT
