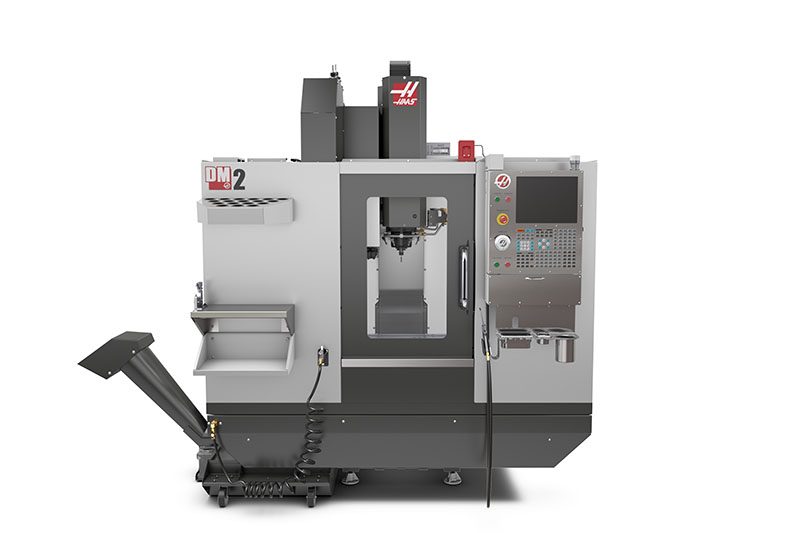

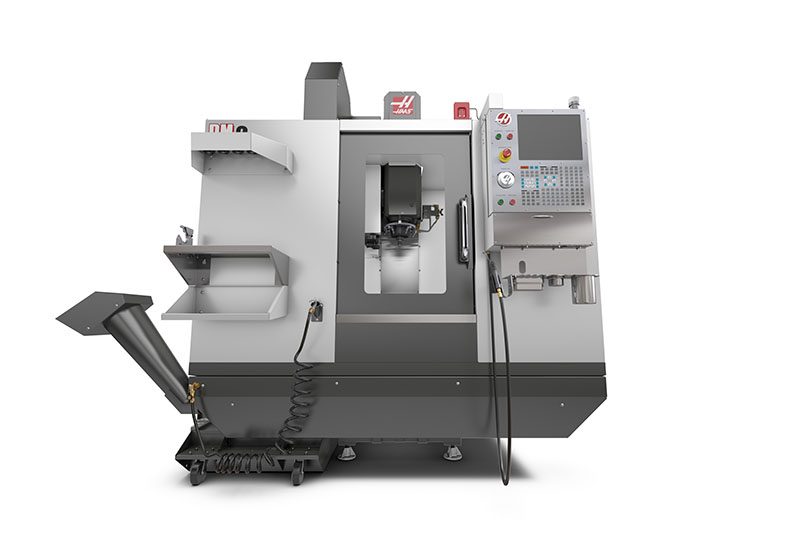

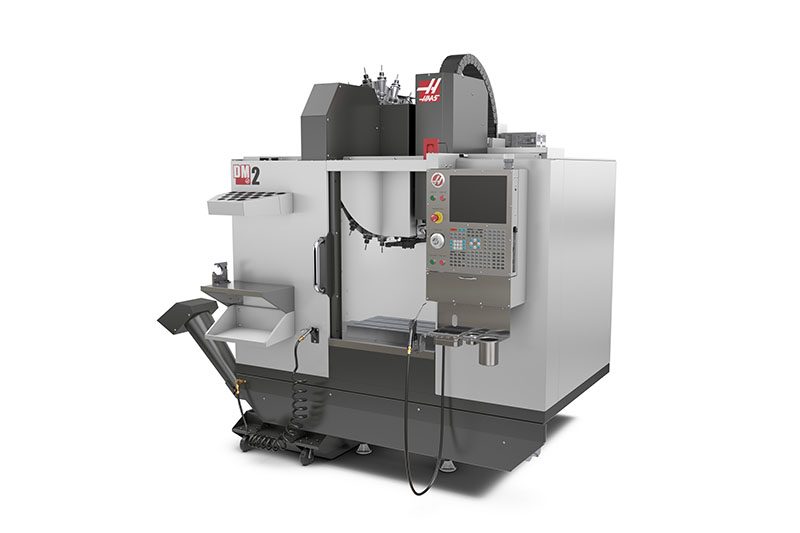

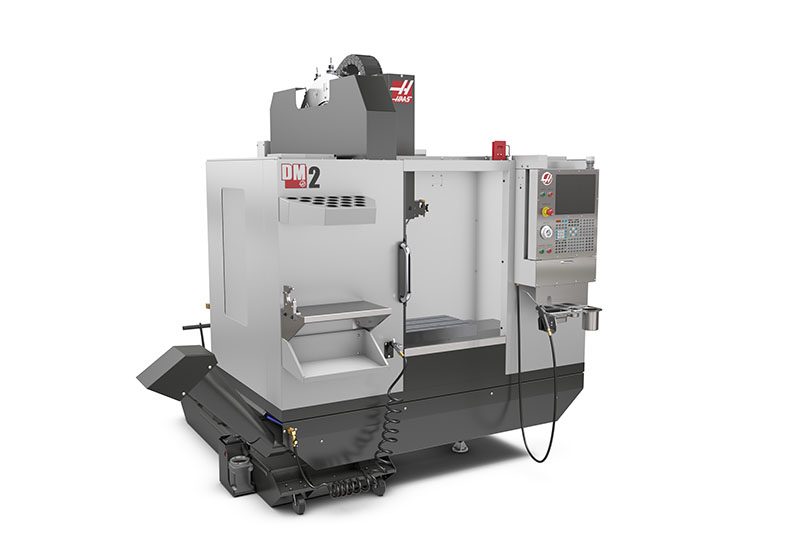

DM-2

For the best pricing in your area, contact your local Haas Factory Outlet.

CNC Drill/Mill Center with 28" x 16" x 15.5" travels

The DM-2 is a compact, high-speed machining center built with proven Haas components and sub-assemblies. It is identical in construction and specifications to the DM-1, with the addition of 8" of X-axis travel and table length. The machine’s shop-proven 40-taper inline spindle, 18+1 tool changer, high acceleration rates, fast rapids, and impressive short tool-change times make the DM-2 an attractive high-productivity machining center.

The DM-2 allows shops to use their existing 40T tooling and enjoy the benefits of a larger spindle, and its lean-style, compact footprint makes very efficient use of valuable shop floor space.

More X-axis travel and longer table than the DM-1

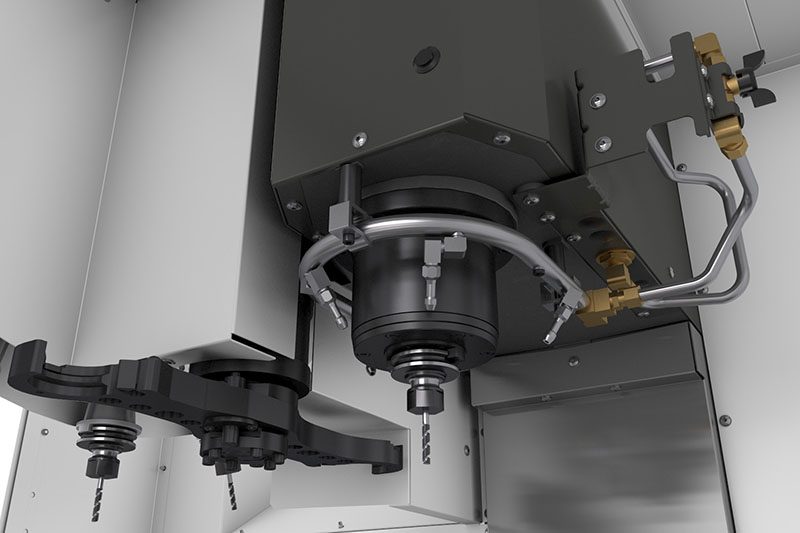

Powerful 40-taper inline direct-drive spindle
High-productivity machining center with a compact footprint

{{=tableHeader}}
Model	Serial#	Options

40 Taper
3 Axis
10k RPM
18+1 Tool Capacity

Compare Machines

BUILD & PRICE

Contact Distributor

Build-&-Price
Specs
Automation
Machine Info
Rotary Fit chart

Travels	S.A.E	METRIC
X Axis	28.00 in	711 mm
Y Axis	16.00 in	406 mm
Z Axis	15.50 in	394 mm
Spindle Nose to Table (~ max)	21.5 in	546 mm
Spindle Nose to Table (~ min)	6.0 in	152 mm

Spindle	S.A.E	METRIC
Max Rating	15.0 hp	11.2 kW
Max Speed	10000 rpm	10000 rpm
Max Torque	46.0 ft-lbf @ 1700 rpm	62.0 Nm @ 1700 rpm
Drive System	Inline Direct-Drive	Inline Direct-Drive
Taper	CT or BT 40	CT or BT 40
Bearing Lubrication	Air / Oil Injection	Air / Oil Injection
Cooling	Air Cooled	Air Cooled

Table	S.A.E	METRIC
Length	34.0 in	864 mm
Width	15.0 in	381 mm
T-Slot Width	0.626 in to 0.630 in	15.90 mm to 16.00 mm
T-Slot Center Distance	4.92 in	125 mm
Number of Std T-Slots	3	3
Max Weight on Table-100% Rapids (evenly dist.)	250 lb	113.4 kg
Max Weight on Table-50% Rapids (evenly dist.)	500 lb	226.8 kg

Feedrates	S.A.E	METRIC
Max Cutting	1200 ipm	30.5 m/min
Rapids on X	2400 ipm	61.0 m/min
Rapids on Y	2400 ipm	61.0 m/min
Rapids on Z	2400 ipm	61.0 m/min

Axis Motors	S.A.E	METRIC
Max Thrust X	2550 lbf	11343 N
Max Thrust Y	2550 lbf	11343 N
Max Thrust Z	4200 lbf	18683 N

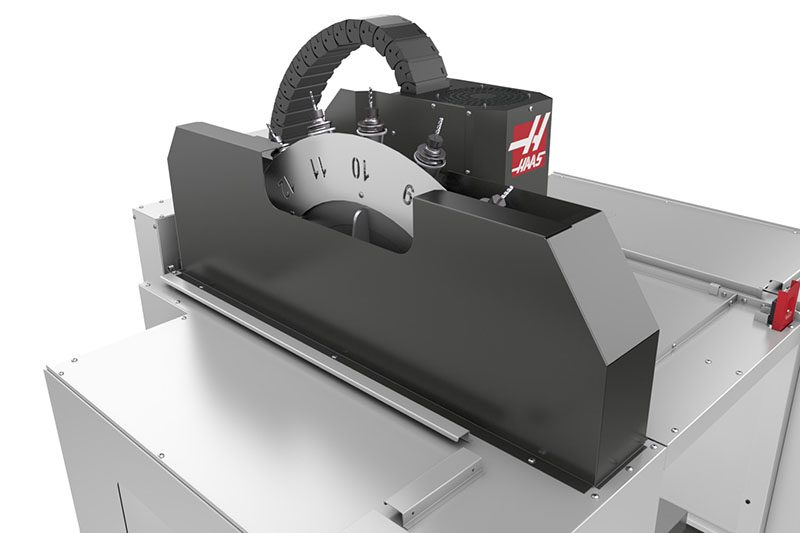

Tool Changer	S.A.E	METRIC
Type	SMTC	SMTC
Capacity	18+1	18+1
Max Tool Diameter (full)**	2.5 in	64 mm
Max Tool Length (from gage line)	7.00 in	178 mm
Max Tool Weight	12.0 lb	5.4 kg
Tool-to-Tool (avg)	1.75 s	1.75 s
Chip-to-Chip (avg)	2.00 s	2.00 s

Tapping	S.A.E	METRIC
Max Tapping Speed	5000 rpm	5000 rpm

General	S.A.E	METRIC
Coolant Capacity	55 gal	208 L

Air Requirements	S.A.E	METRIC
Air Required†	4 scfm @ 100 psi	113 L/min @ 6.9 bar
Inline Air Hose	3/8 in	3/8 in
Coupler (Air)	3/8 in	3/8 in
Air Pressure Min	80 psi	5.5 bar

Electrical Specification	S.A.E	METRIC
Spindle Speed	10000 rpm	10000 rpm
Drive System	Inline Direct-Drive	Inline Direct-Drive
Spindle Power	15.0 hp	11.2 kW
Input AC Voltage (3 Phase) - Low	220 VAC	220 VAC
Full Load Amps (3 Phase) - Low	40 A	40 A
Input AC Voltage (3 Phase) - High*	440 VAC	440 VAC
Full Load Amps (3 Phase) - High*	20 A	20 A

Dimensions - Shipping	S.A.E	METRIC
Domestic Pallet	91.0 in x 100.0 in x 98.0 in	231 cm x 254 cm x 249 cm
Export Pallet	91.0 in x 100.0 in x 98.0 in	231 cm x 254 cm x 249 cm
Weight	5350 lb	2427.0 kg

NOTE: All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications.

*Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

**Optional tool changers may have a different max tool size than the standard tool changer. Extra-large tools may require two adjacent pockets empty between tools. Click here for toolholder specifications.

ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

† Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.

Standard Features

* Not all options are compatible with each other. Some options may require the purchase of additional options, or may include additional options at no charge. Please use our Build-&-Price tool to determine option compatibility, and configure your machine.

ANSWERS TO YOUR CONCERNS ABOUT ADDING A HAAS ROBOT: It won’t take up much space, cost a ton of money, or take weeks to integrate.

SPACE EFFICIENT

COST EFFECTIVE

EASY TO INTEGRATE

EASY TO LEARN

AVAILABLE OPTIONS

TECHNICAL DOCUMENTS

VIDEOS

CUSTOMER TESTIMONIALS

HAAS VISE OPTIONS AND CONFIGURATIONS CHART

AIR VISES | HYDRAULIC VISES

VIDEOS

VMC Comparison

Watch as we show three of the most popular Haas mills run the same part, and see which machine finishes first.

Introducing the DM-1

The DM-1 Drill/Mill Center provides the same high speed and performance as our shop-proven DT-1 Drill/Tap Center, but with a larger 40-taper inline spindle and 18+1 tool changer.

Meet your new compact 5-axis

If you make small parts and have multiple setups, this rotary is the perfect solution. Lightning fast and accurate, the TRT100 fits in nearly every Haas mill, and will help you cut cycle times and boost your shop’s efficiency.

The DM-2 and DT-2

Bob and Bryan talk about the DM-2 and DT-2 Drill/Tap/Mill Centers, and show a great cutting demo that highlights the machines’ features, like 2400 ipm rapids and ultra-fast tool changes.

Customer Testimonials

MAJOR U.S. FIREARMS MANUFACTURER

“When we purchased our DM-2s, we thought we would decrease our cycle times by at least 25%, with the increased spindle speeds and rapids over our older box way machines. But in reality, with the faster rapids and spindle speeds, the decreased tool change and chip-to-chip times, and the speed and accuracy of the control, we have seen a decrease in cycle times by an average of 60%. With the repeatability of the machine and our setups, the amount of time it takes to get a first-piece approval has been reduced, resulting in an even greater percentage of gains in throughput. Thank you for an incredible machine!”

– A Major Southeast Firearms Manufacturer

MORE POWER

VF-1

CNC Vertical Mill with 20" x 16" x 20" travels

40 Taper
3 Axis
8.1k RPM
20 Tool Capacity

Learn More Build & Price

SMALLER SPINDLE TAPER

DT-2

CNC Drill/Tap Center with 28" x 16" x 15.5" travels

30 Taper
3 Axis
10k RPM
20+1 Tool Capacity

Learn More Build & Price

FASTER SPINDLE

VF-2SS

Super-Speed CNC Vertical Mill with 30" x 16" x 20" travels

40 Taper
3 Axis
12k RPM
30+1 Tool Capacity

Learn More Build & Price

HAAS ROTARY	HAAS MACHINE	ROTARY FIT TYPE	WARNING
HA2TS	DM-2	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA5C	DM-2	POSITIVE FIT
HA5C2	DM-2	POSITIVE FIT
HA5C3	DM-2	POSITIVE FIT
HA5C4	DM-2	POSITIVE FIT
HA5CS	DM-2	POSITIVE FIT
HRC160	DM-2	POSITIVE FIT
HRC210	DM-2	POSITIVE FIT
HRT160	DM-2	POSITIVE FIT
HRT160-2	DM-2	POSITIVE FIT
HRT160SP	DM-2	POSITIVE FIT
HRT160SS	DM-2	POSITIVE FIT
HRT210	DM-2	POSITIVE FIT
HRT210-2	DM-2	POSITIVE FIT
HRT210SP	DM-2	POSITIVE FIT
HRTA5	DM-2	POSITIVE FIT
HRTA6	DM-2	POSITIVE FIT
T5C	DM-2	POSITIVE FIT
TRT100	DM-2	POSITIVE FIT
TRT70	DM-2	POSITIVE FIT
HRT210HT	DM-2	POSITIVE FIT
HRT100	DM-2	POSITIVE FIT
TH240	DM-2	POSITIVE FIT
HRT210SS	DM-2	POSITIVE FIT
HA5C2-T	DM-2	POSITIVE FIT
HA5C-T	DM-2	POSITIVE FIT
HA5C3-T	DM-2	POSITIVE FIT
HA5C4-T	DM-2	POSITIVE FIT
LT260	DM-2	POSITIVE FIT
HRT200HS	DM-2	POSITIVE FIT
HQDA5	DM-2	POSITIVE FIT
