GR-510

For the best pricing in your area, contact your local Haas Factory Outlet.

CNC Gantry Router with 121" x 61" x 11" travels

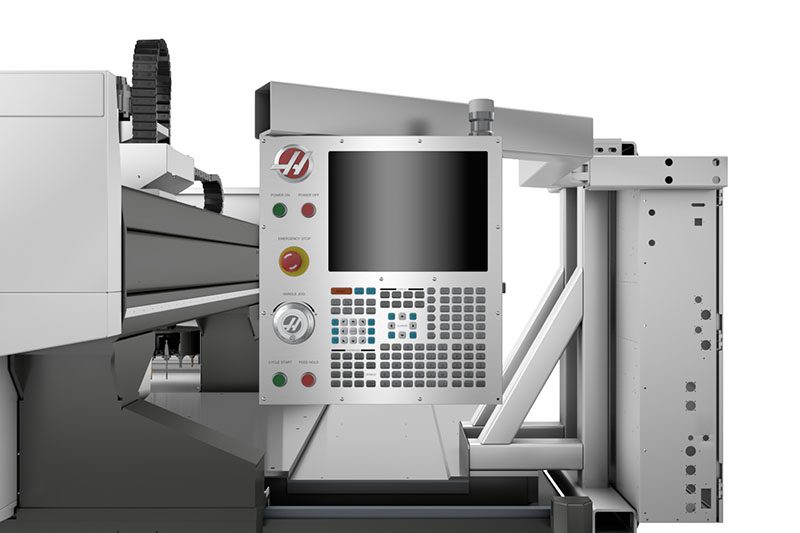

The Haas GR Series gantry routers have the power to cut aluminum and other metals, as well as the speed to cut plastics and other light materials. These machines easily handle large sheets of material, or can machine small parts by the thousand. The rigid steel construction of the GR Series provides a very stable cutting platform, and a 1" thick aluminum table is standard. A traveling guard protects the operator from chips and coolant, and keeps the workspace clean.

Rigid-steel construction
Traveling guard for chip and coolant containment

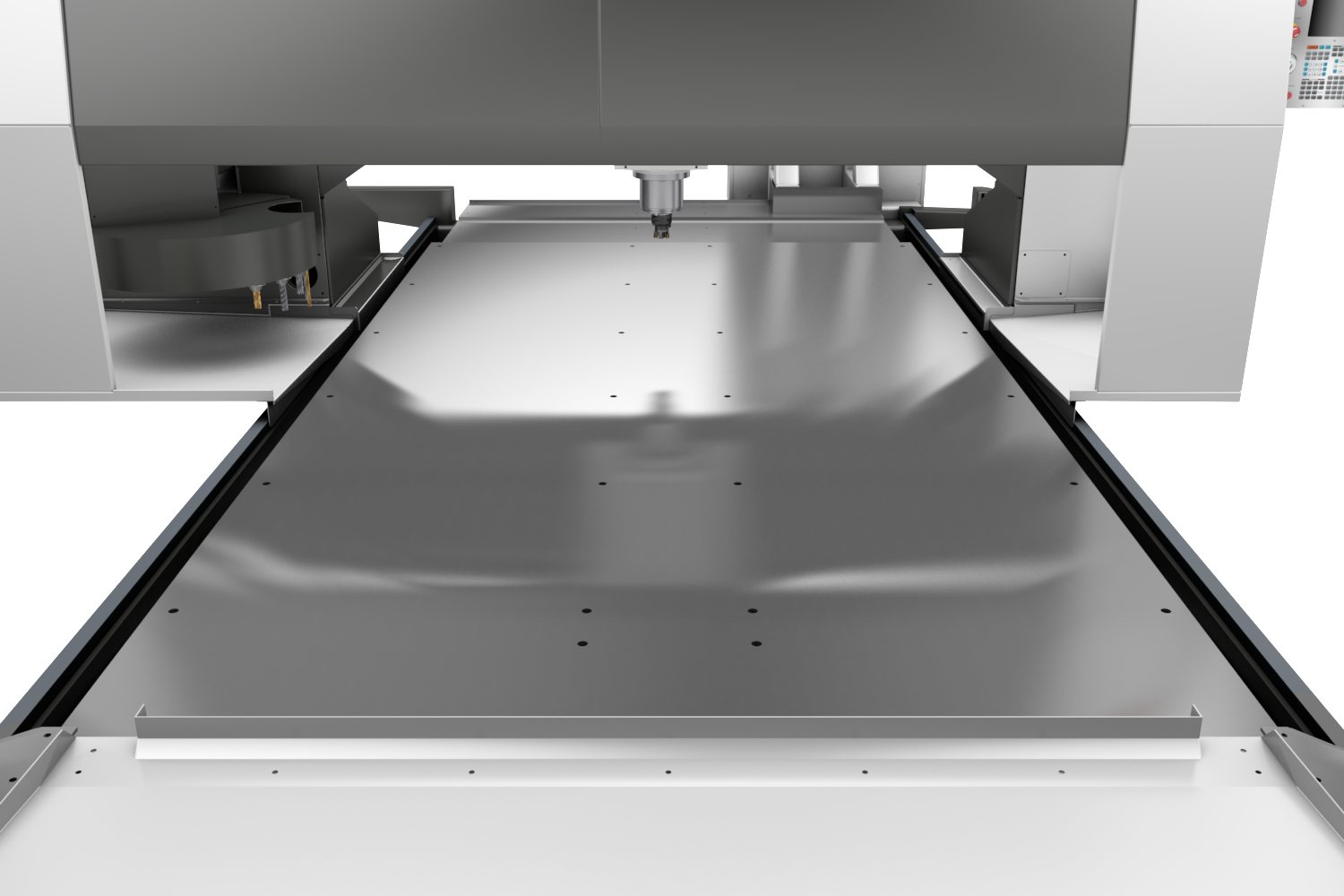

1" thick aluminum table

{{=tableHeader}}
Model	Serial#	Options

40 Taper
3 Axis
8.1k RPM
10 Tool Capacity

Compare Machines

BUILD & PRICE

Contact Distributor

Build-&-Price
Specs
Machine Info

Travels	S.A.E	METRIC
X Axis	121.00 in	3073 mm
Y Axis	61.00 in	1549 mm
Z Axis	11.00 in	279 mm
Spindle Nose to Table (~ max)	13.5 in	343 mm
Spindle Nose to Table (~ min)	2.5 in	64 mm

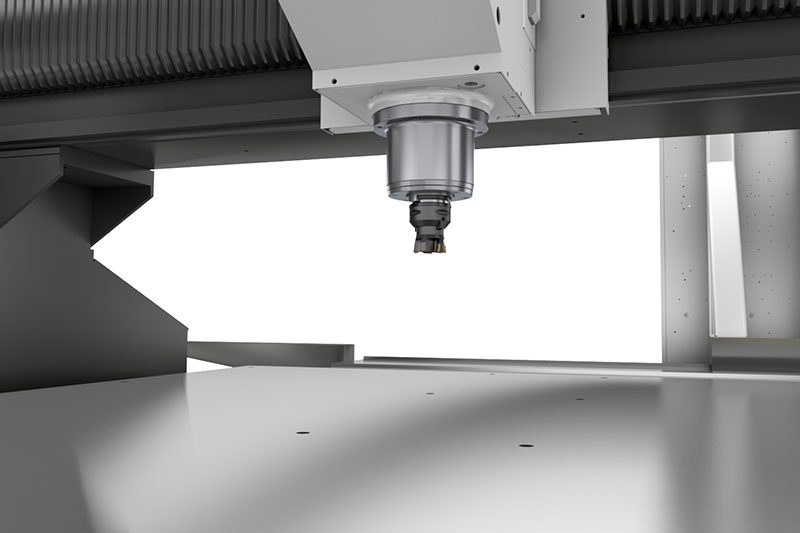

Spindle	S.A.E	METRIC
Max Rating	15.0 hp	11.2 kW
Max Speed	8100 rpm	8100 rpm
Max Torque	48.0 ft-lbf @ 1500 rpm	65.0 Nm @ 1500 rpm
Drive System	Direct Speed, Belt Drive	Direct Speed, Belt Drive
Taper	CT or BT 40	CT or BT 40

Table	S.A.E	METRIC
Length	122.0 in	3099 mm
Width	53.0 in	1346 mm
Max Weight on Table (evenly distributed)	6000 lb	2722 kg
Between Columns	62.0 in	1575 mm

Feedrates	S.A.E	METRIC
Max Cutting	800 ipm	20.3 m/min
Rapids on X	800 ipm	20.3 m/min
Rapids on Y	2100 ipm	53.3 m/min
Rapids on Z	1100 ipm	27.9 m/min

Axis Motors	S.A.E	METRIC
Max Thrust X	2520 lbf	11210 N
Max Thrust Y	1020 lbf	4537 N
Max Thrust Z	2050 lbf	9119 N

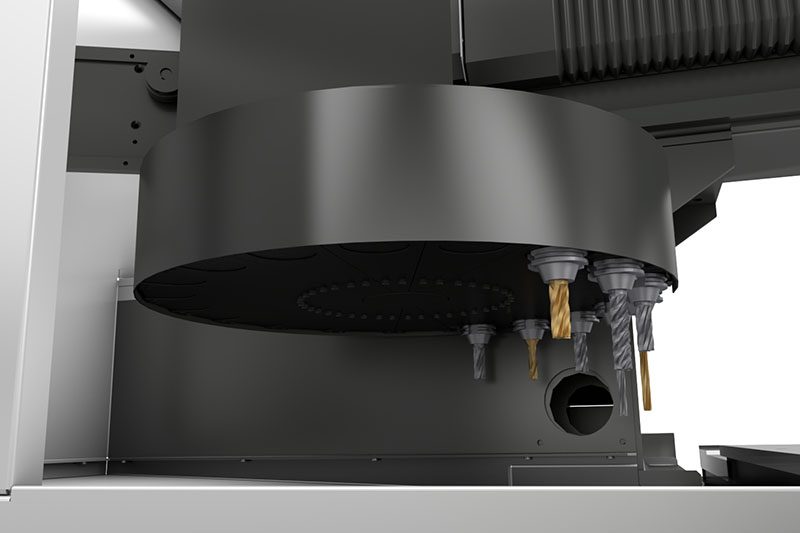

Tool Changer	S.A.E	METRIC
Type	Carousel	Carousel
Capacity	10	10
Max Tool Diameter (full)**	3.5 in	89 mm
Max Tool Weight	12.0 lb	5.4 kg

General	S.A.E	METRIC
Coolant Capacity	95 gal	360 L

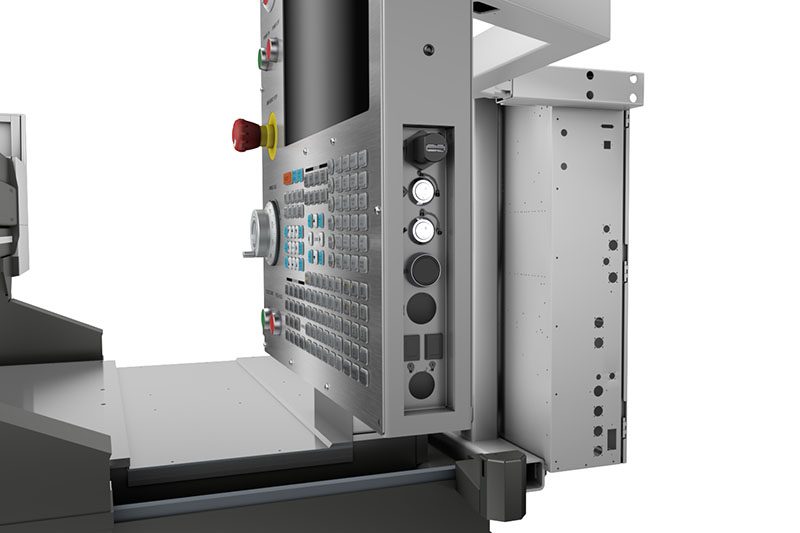

Air Requirements	S.A.E	METRIC
Air Required†	4 scfm @ 100 psi	113 L/min @ 6.9 bar
Inline Air Hose	3/8 in	3/8 in
Coupler (Air)	3/8 in	3/8 in
Air Pressure Min	80 psi	5.5 bar

Electrical Specification	S.A.E	METRIC
Spindle Speed	8100 rpm	8100 rpm
Drive System	Direct Speed, Belt Drive	Direct Speed, Belt Drive
Spindle Power	15.0 hp	11.2 kW
Input AC Voltage (3 Phase) - Low	220 VAC	220 VAC
Full Load Amps (3 Phase) - Low	40 A	40 A
Input AC Voltage (3 Phase) - High*	440 VAC	440 VAC
Full Load Amps (3 Phase) - High*	20 A	20 A

Dimensions - Shipping	S.A.E	METRIC
Domestic Pallet	206.0 in x 111.0 in x 108.0 in	524 cm x 282 cm x 274 cm
Export Crate	206.0 in x 111.0 in x 111.0 in	524 cm x 282 cm x 282 cm
Weight	19400 lb	8800.0 kg
Domestic Pallet w/EC Option	206 in x 111 in x 114 in	524 cm x 282 cm x 290 cm
Export Crate w/EC Option	206 in x 111 in x 118 in	524 cm x 282 cm x 300 cm
Weight w/EC Option	19600 lb	8891 kg
Domestic Pallet w/EZ24 Option	206 in x 111 in x 125 in	524 cm x 282 cm x 318 cm
Export Crate w/EZ24 Option	206 in x 111 in x 127 in	524 cm x 282 cm x 321 cm
Weight w/EZ24 Option	20000 lb	9072 kg

NOTE: All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications.

*Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

**Optional tool changers may have a different max tool size than the standard tool changer. Extra-large tools may require two adjacent pockets empty between tools. Click here for toolholder specifications.

ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

† Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.
