Mini Mill




For the best pricing in your area, contact your local Haas Factory Outlet.

Mini CNC Vertical Mill with 16" x 14" x 15" travels

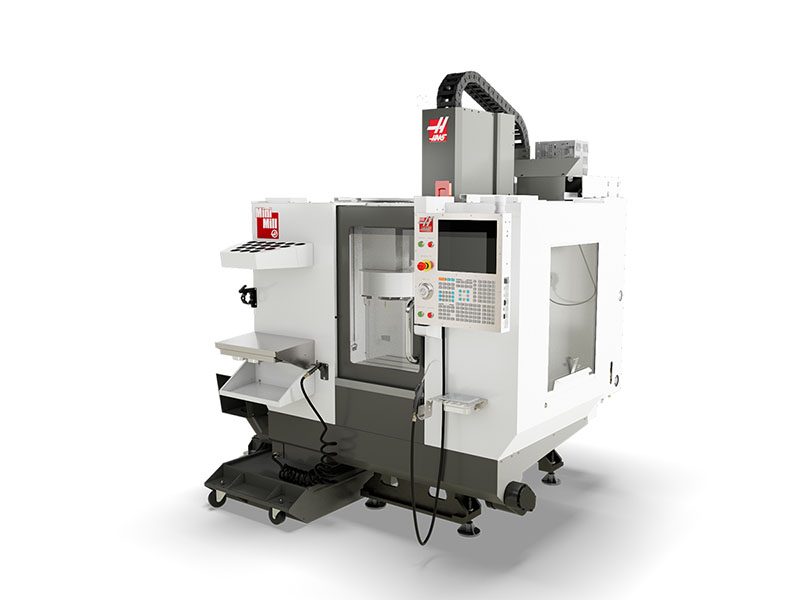

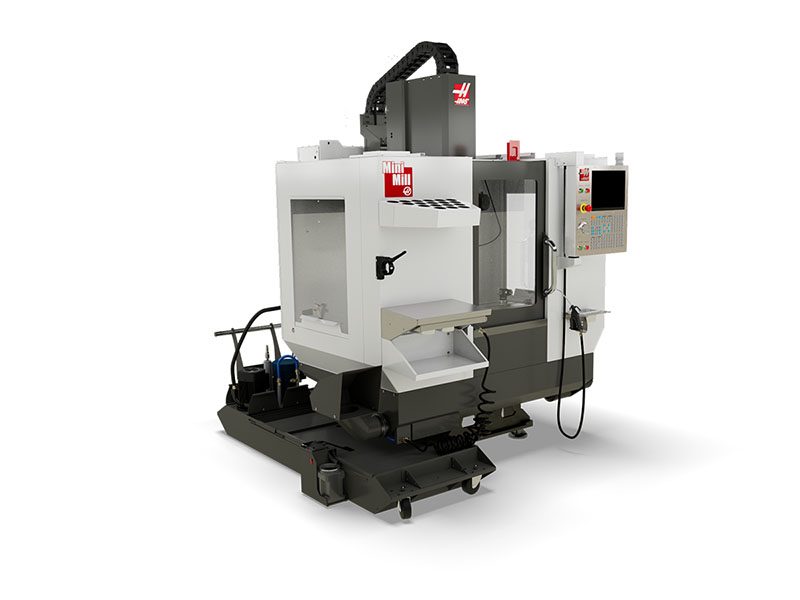

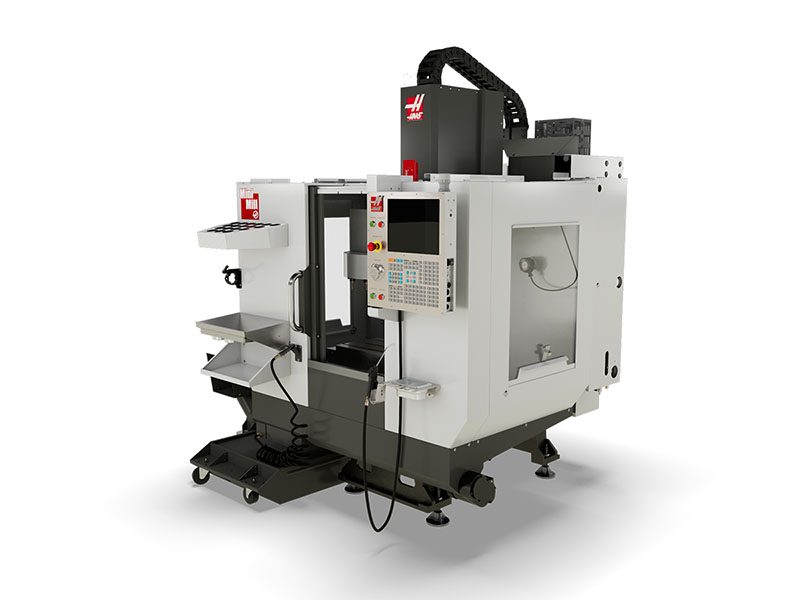

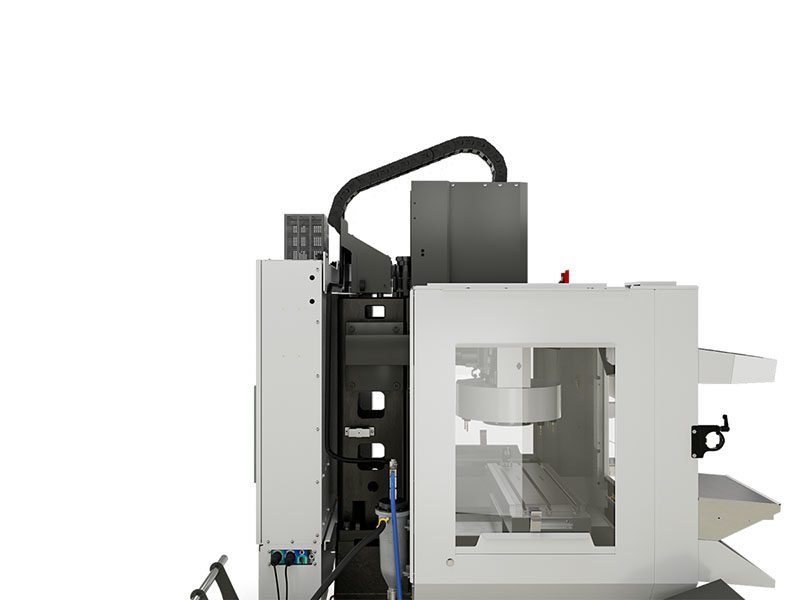

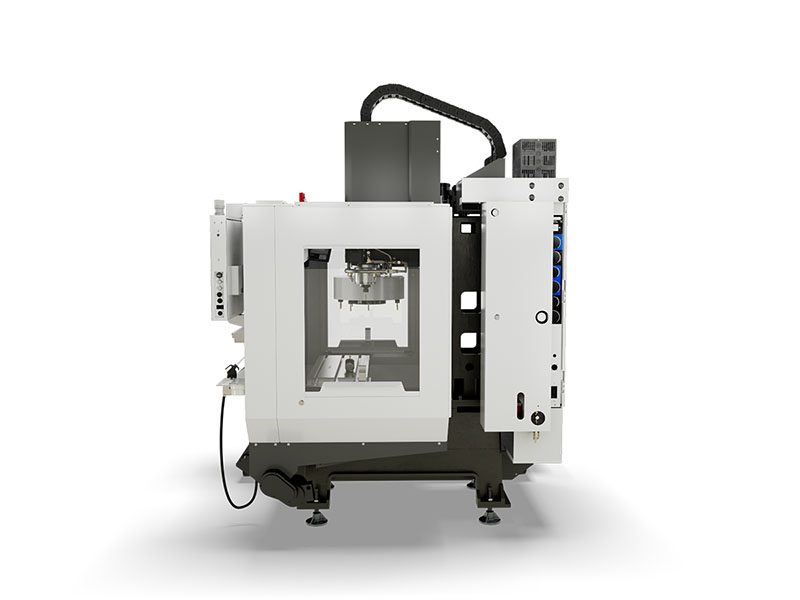

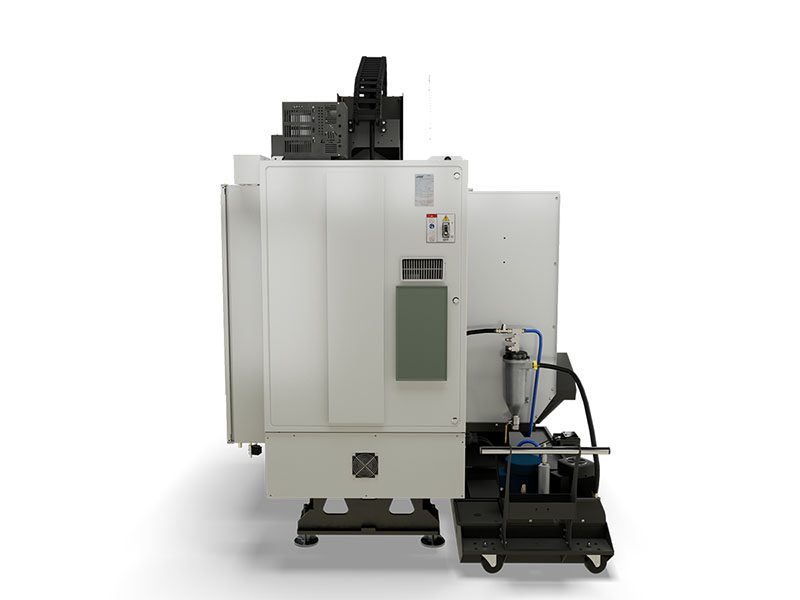

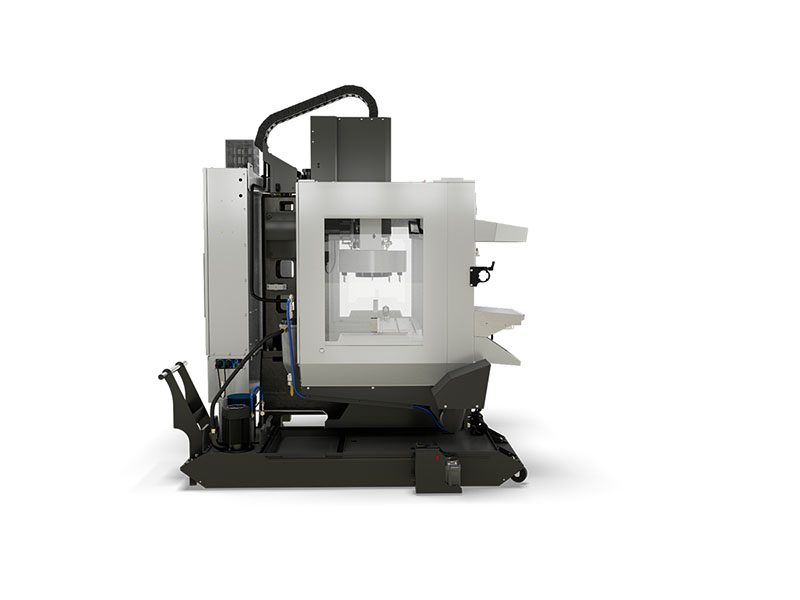

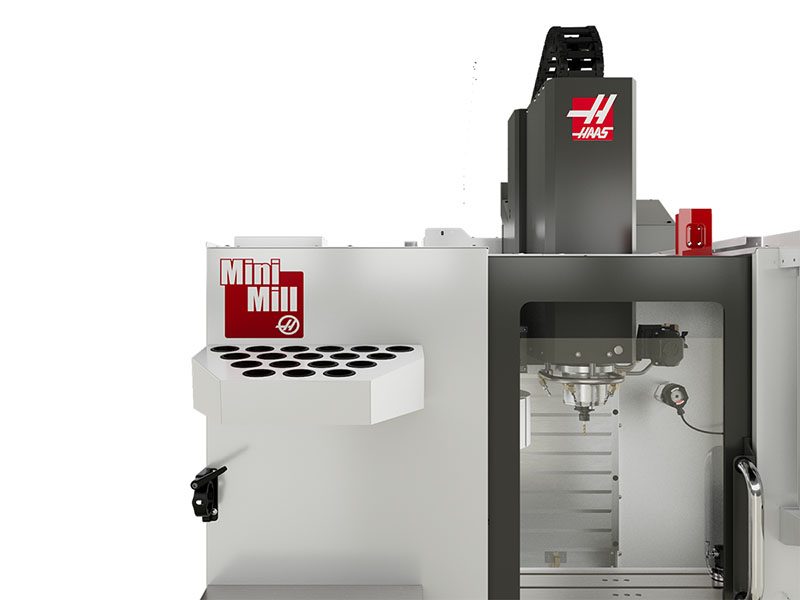

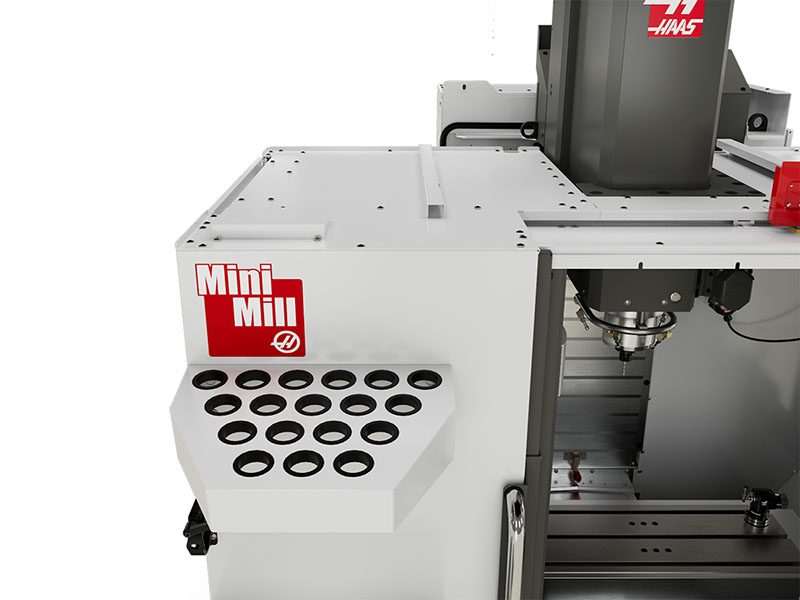

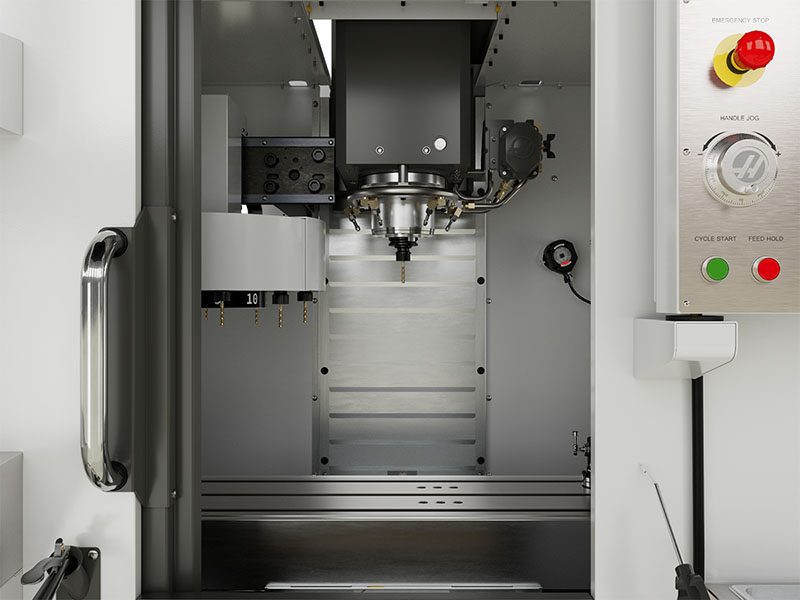

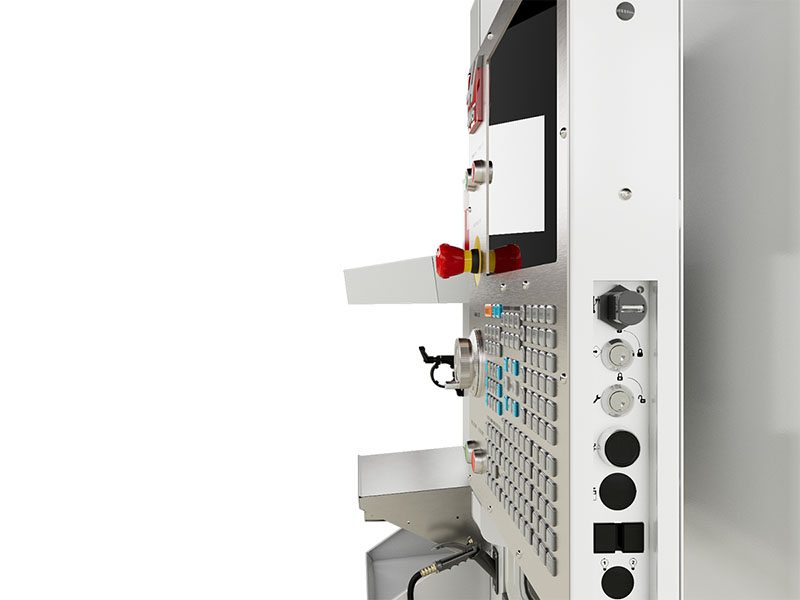

The completely redesigned Mini Mill is enhanced with all-new FEA-optimized base and column castings, larger travels, and faster spindle speeds and rapids for increased production output. An all-new Y-axis washdown nozzle improves chip flow inside the machine, and a new 45-gallon (170-liter) external coolant tank simplifies maintenance. The new Mini Mill is perfect for high-production shops where space is limited, and easily interfaces with Haas robot packages or the Compact APL for fast, easy automation.

NOTE: Single-phase operation is not available in Europe. The Through-Spindle Coolant option requires 3-Phase power.

  • 40 Taper
  • 3 Axis
  • 8k RPM
  • 10 or 20 Tool Capacity
Compare Machines
BUILD & PRICE
Contact Distributor
Travels S.A.E METRIC
X Axis 16.00 in 406 mm
Y Axis 14.00 in 356 mm
Z Axis 15.00 in 381 mm
Spindle Nose to Table (~ max) 19.0 in 483 mm
Spindle Nose to Table (~ min) 4.0 in 102 mm
Spindle S.A.E METRIC
Max Rating 10.0 hp 7.5 kW
Max Speed 8000 rpm 8000 rpm
Max Torque 45.0 ft-lbf @ 500 rpm 61.0 Nm @ 500 rpm
Drive System Direct Speed, Belt Drive Direct Speed, Belt Drive
Taper CT or BT 40 CT or BT 40
Bearing Lubrication Grease Packed Grease Packed
Cooling Air Cooled Air Cooled

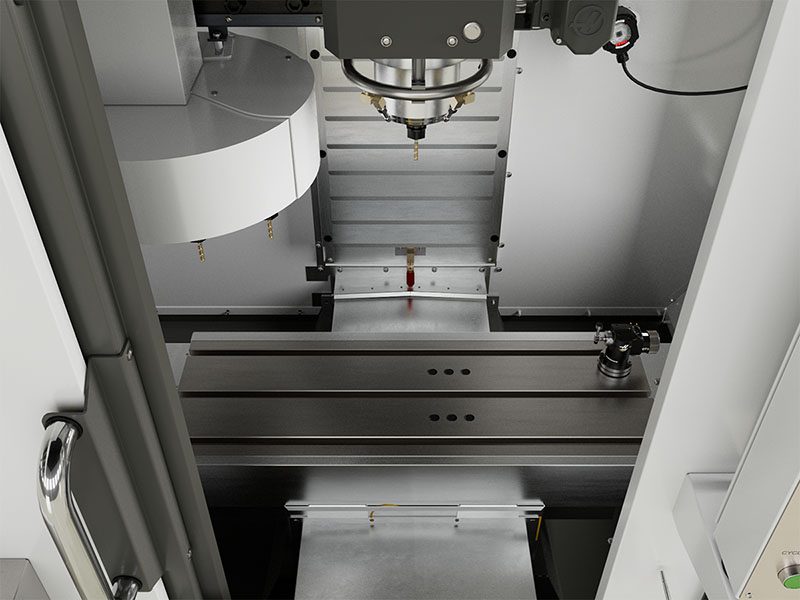

Table S.A.E METRIC
Length 36.0 in 914 mm
Width 12.0 in 305 mm
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
T-Slot Center Distance 4.33 in 110 mm
Number of Std T-Slots 3 3
Max Weight on Table (evenly distributed) 500 lb 227 kg
Feedrates S.A.E METRIC
Max Cutting 650 ipm 6.5 m/min
Rapids on X 800 ipm 20.3 m/min
Rapids on Y 800 ipm 20.3 m/min
Rapids on Z 800 ipm 20.3 m/min
Axis Motors S.A.E METRIC
Max Thrust X 2000 lbf 8896 N
Max Thrust Y 2000 lbf 8896 N
Max Thrust Z 2000 lbf 8896 N
Tool Changer S.A.E METRIC
Type Carousel Carousel
Capacity 10 or 20 10 or 20
Max Tool Diameter (full)** 3.5 in 89 mm
Max Tool Length (from gage line) 12.00 in 305 mm
Max Tool Weight 12.0 lb 5.4 kg
Tool-to-Tool (avg) 4.20 s 4.20 s
Chip-to-Chip (avg) 5.00 s 5.00 s
General S.A.E METRIC
Coolant Capacity 45 gal 170 L
Air Requirements S.A.E METRIC
Air Required† 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
Electrical Specification S.A.E METRIC
Spindle Speed 8000 rpm 8000 rpm
Spindle Power 10.0 hp 7.5 kW
Input AC Voltage (1 Phase) 220 VAC 220 VAC
Full Load Amps (1 Phase) 40 A 40 A
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 25 A 25 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 13 A 13 A
Dimensions - Shipping S.A.E METRIC
Domestic Pallet 90.0 in x 80.0 in x 92.0 in 229 cm x 203 cm x 234 cm
Export Pallet 90.0 in x 80.0 in x 92.0 in 229 cm x 203 cm x 234 cm
Weight 4450 lb 2018.5 kg

NOTE: All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications.

*Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

**Optional tool changers may have a different max tool size than the standard tool changer. Extra-large tools may require two adjacent pockets empty between tools. Click here for toolholder specifications.

ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

† Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.



* Not all options are compatible with each other. Some options may require the purchase of additional options, or may include additional options at no charge. Please use our Build-&-Price tool to determine option compatibility, and configure your machine.
