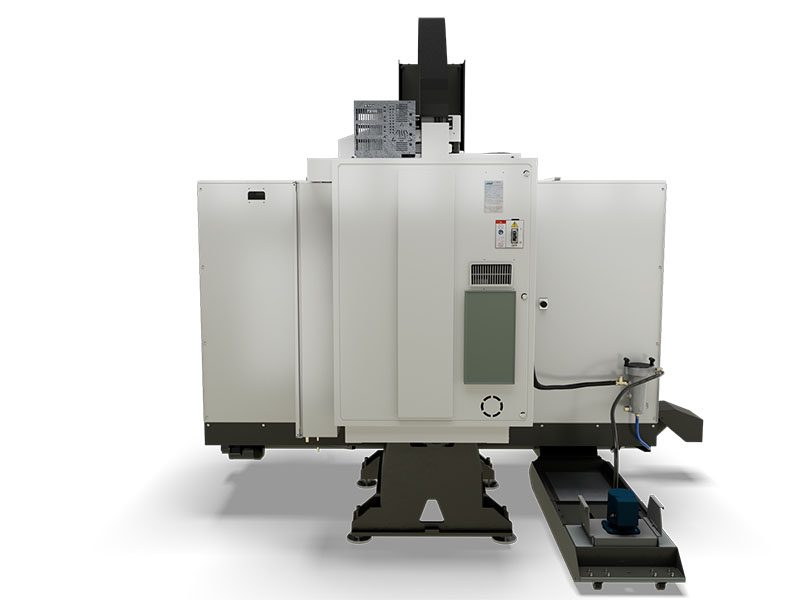

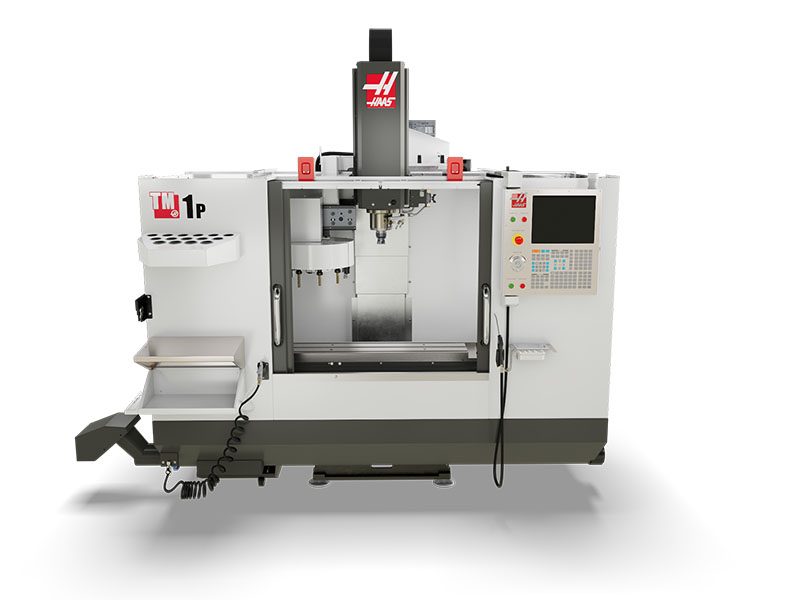

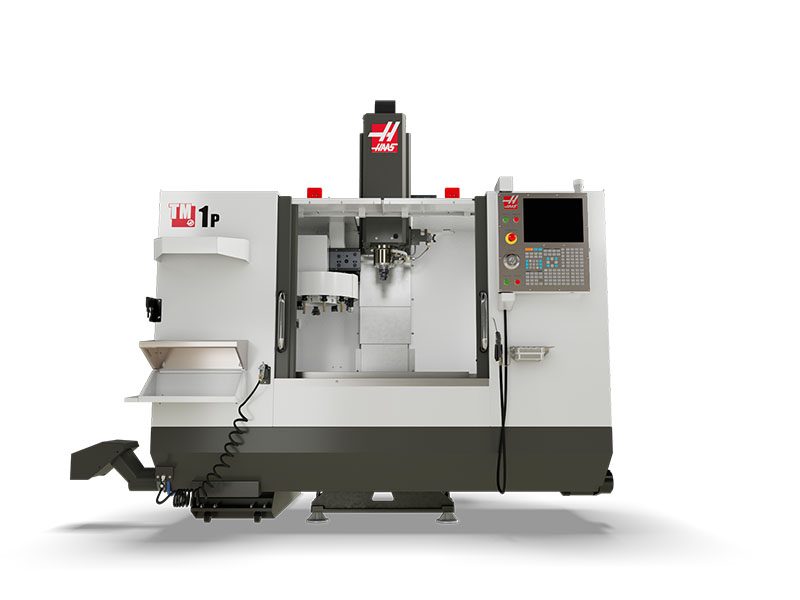

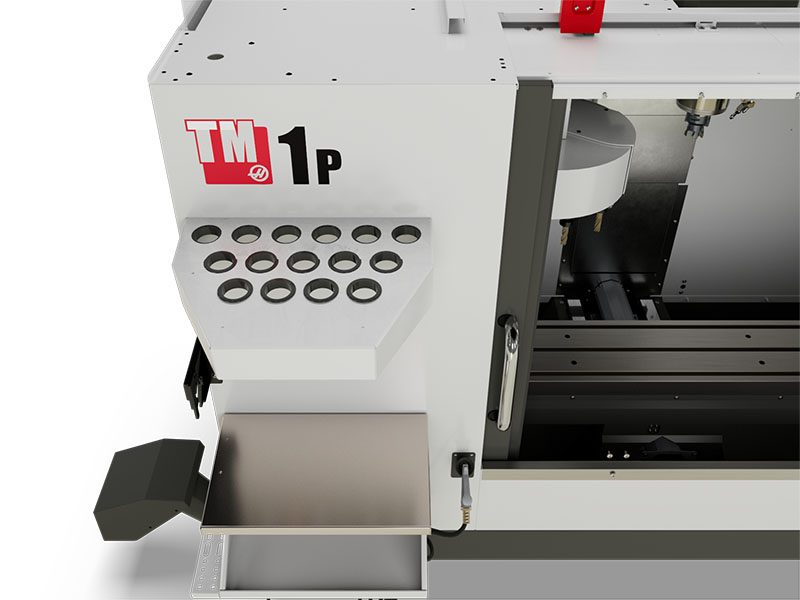

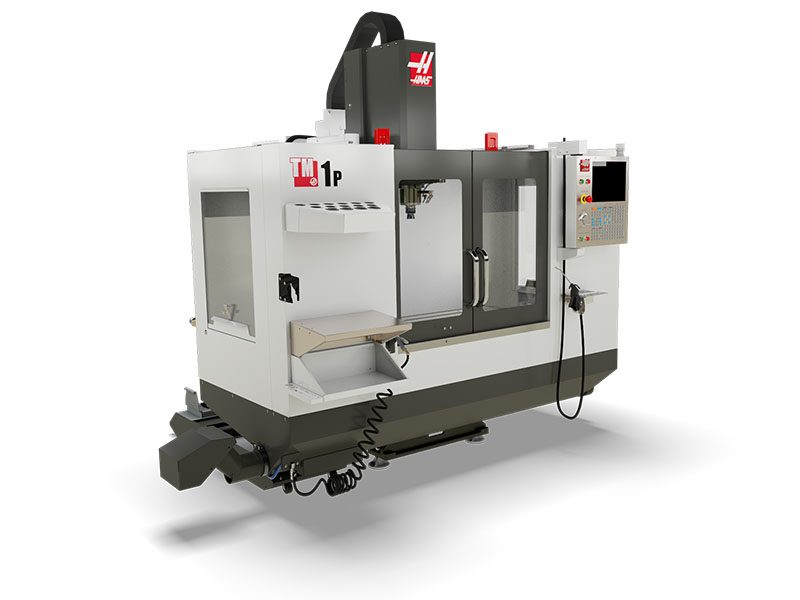

TM-1P

For the best pricing in your area, contact your local Haas Factory Outlet.

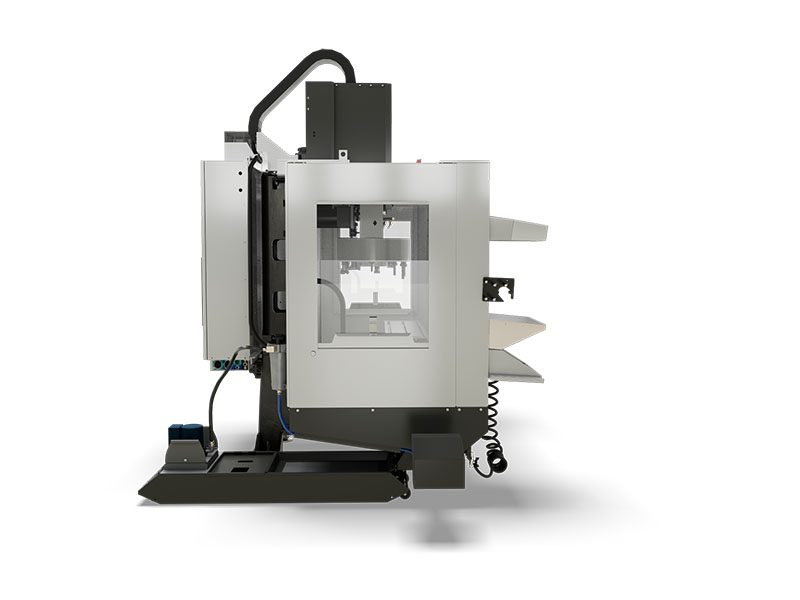

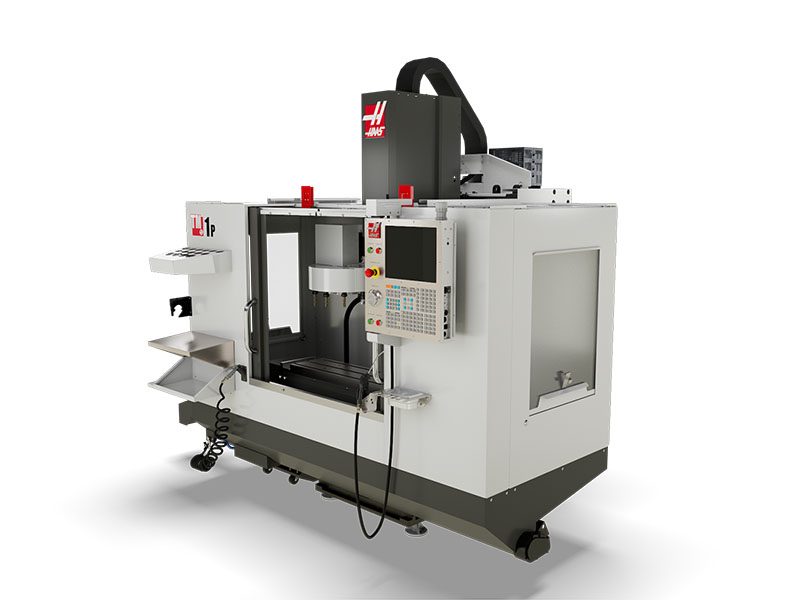

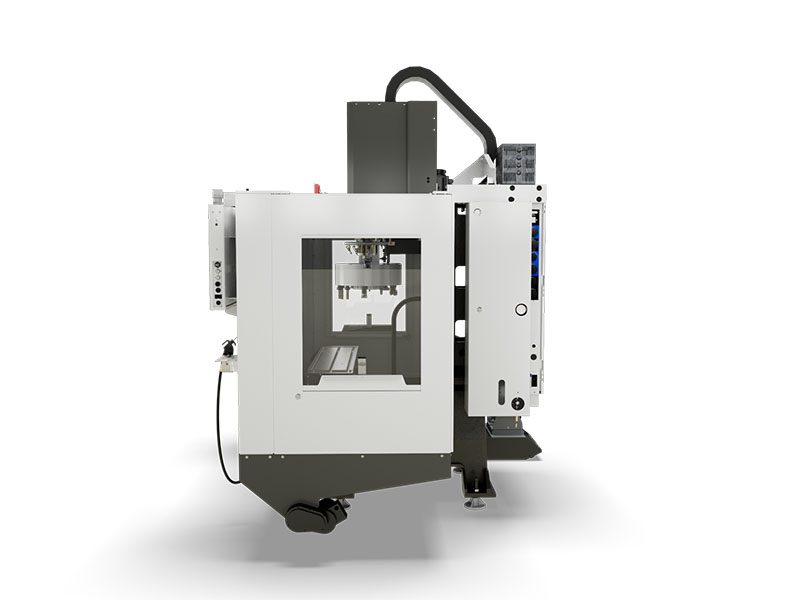

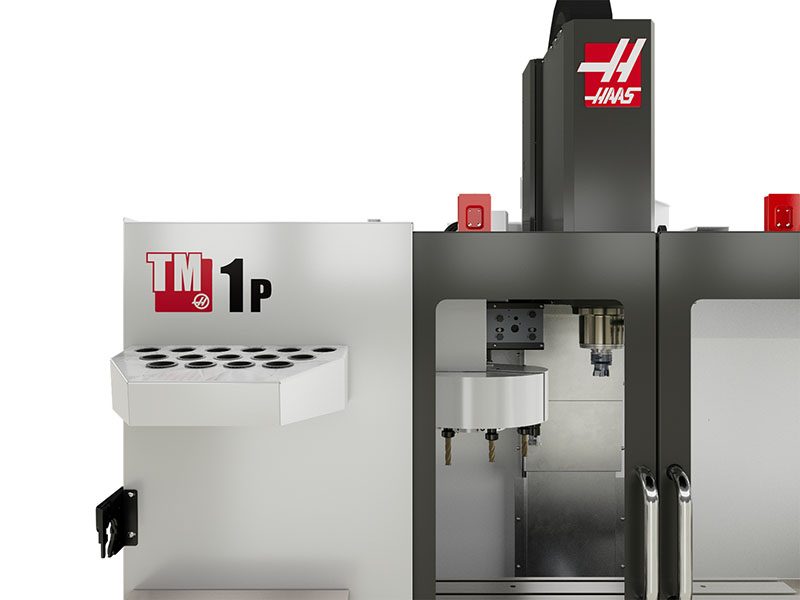

CNC Toolroom Mill with 30" x 16" x 16" travels and ATC

The TM-P Series Toolroom Mills are affordable, easy to use, and offer the precision control of the Haas CNC system. They use standard 40-taper tooling, and are very easy to learn and operate – even without knowing G-code. They are the perfect option for schools and companies transitioning to CNC, or for anyone looking for a large-travel machine on a budget.

The TM-P models include a 10-pocket automatic tool changer, a faster spindle, and higher rapids.

Operates on single- or three-phase power

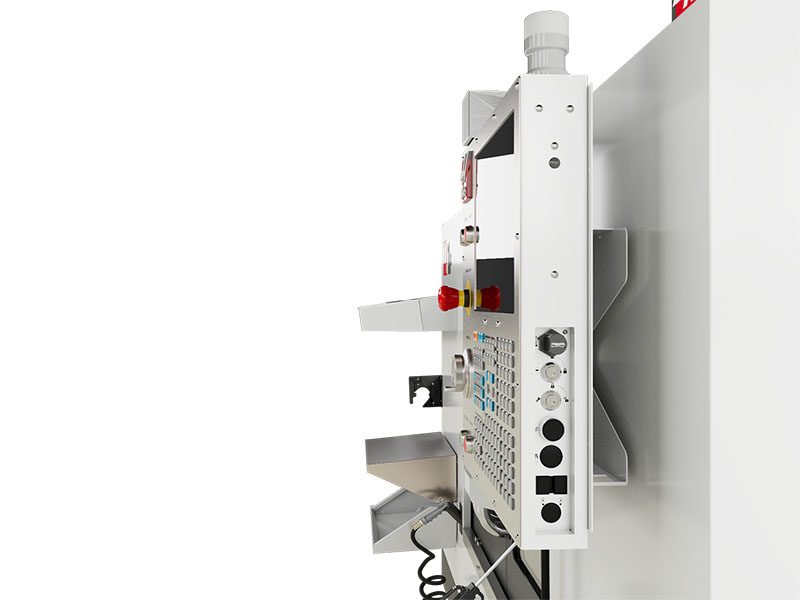

Conversational programming system
Affordable full CNC capabilities
HaasConnect remote monitoring

NOTE: Single-phase operation is not available in Europe.

{{=tableHeader}}
Model	Serial#	Options

40 Taper
3 Axis
6k RPM
10 Tool Capacity

Compare Machines

BUILD & PRICE

Contact Distributor

Build-&-Price
Specs
Machine Info
Rotary Fit chart

Travels	S.A.E	METRIC
X Axis	30.00 in	762 mm
Y Axis	16.00 in	406 mm
Z Axis	16.00 in	406 mm
Spindle Nose to Table (~ max)	20.0 in	508 mm
Spindle Nose to Table (~ min)	4.0 in	102 mm

Spindle	S.A.E	METRIC
Max Rating	7.5 hp	5.6 kW
Max Speed	6000 rpm	6000 rpm
Max Torque	33.0 ft-lbf @ 1200 rpm	45.0 Nm @ 1200 rpm
Drive System	Direct Speed, Belt Drive	Direct Speed, Belt Drive
Taper	CT or BT 40	CT or BT 40
Bearing Lubrication	Grease Packed	Grease Packed
Cooling	Air Cooled	Air Cooled

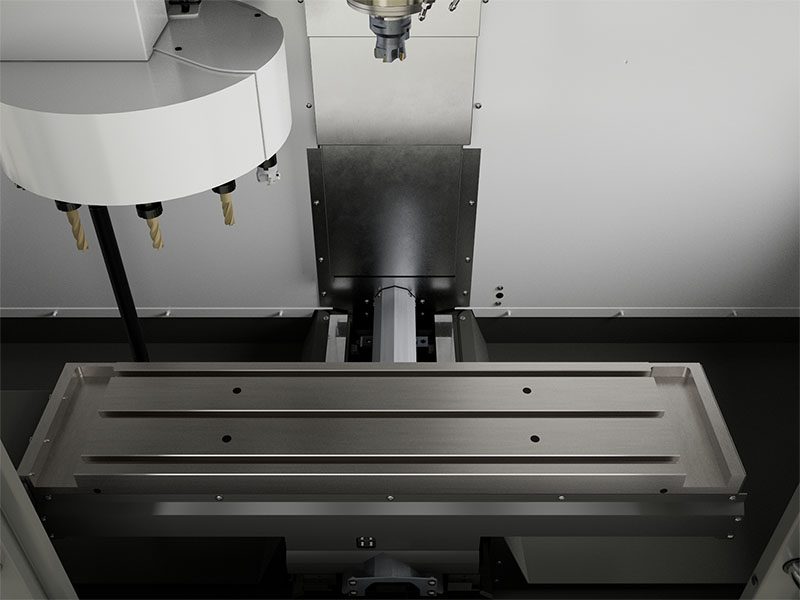

Table	S.A.E	METRIC
Length	47.8 in	1213 mm
Width	10.5 in	267 mm
T-Slot Width	0.626 in to 0.630 in	15.90 mm to 16.00 mm
T-Slot Center Distance	4.00 in	102 mm
Number of Std T-Slots	3	3
Max Weight on Table (evenly distributed)	350 lb	159 kg

Feedrates	S.A.E	METRIC
Max Cutting	400 ipm	10.2 m/min
Rapids on X	400 ipm	10.2 m/min
Rapids on Y	400 ipm	10.2 m/min
Rapids on Z	400 ipm	10.2 m/min

Axis Motors	S.A.E	METRIC
Max Thrust X	2000 lbf	8896 N
Max Thrust Y	2000 lbf	8896 N
Max Thrust Z	2000 lbf	8896 N

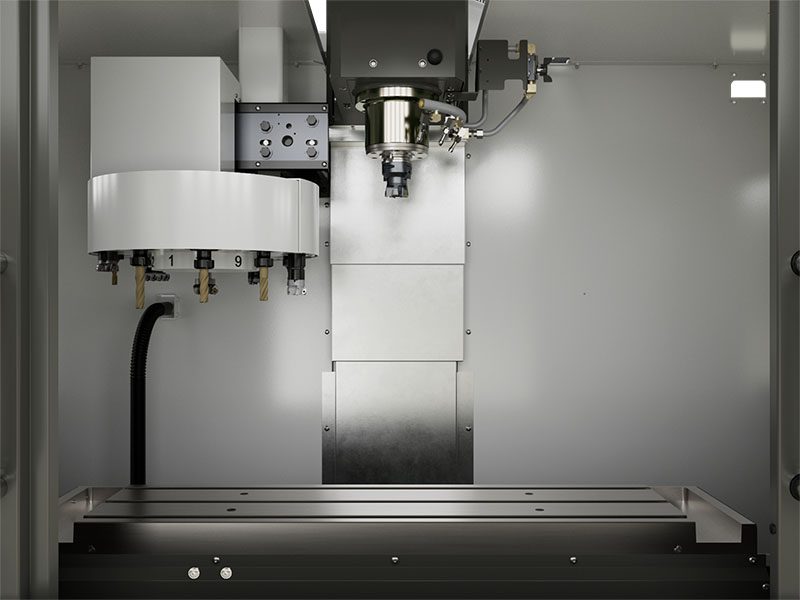

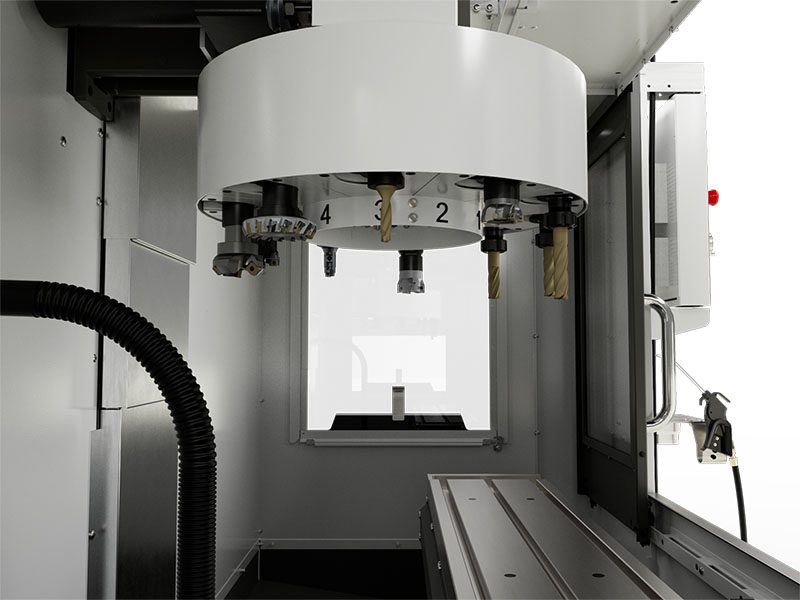

Tool Changer	S.A.E	METRIC
Type	Carousel	Carousel
Capacity	10	10
Max Tool Diameter (full)**	3.5 in	89 mm
Max Tool Weight	12.0 lb	5.4 kg
Tool-to-Tool (avg)	5.70 s	5.70 s
Chip-to-Chip (avg)	6.50 s	6.50 s

Air Requirements	S.A.E	METRIC
Air Required†	4 scfm @ 100 psi	113 L/min @ 6.9 bar
Inline Air Hose	3/8 in	3/8 in
Coupler (Air)	3/8 in	3/8 in
Air Pressure Min	80 psi	5.5 bar

Electrical Specification	S.A.E	METRIC
Spindle Speed	6000 rpm	6000 rpm
Drive System	Direct Speed, Belt Drive	Direct Speed, Belt Drive
Spindle Power	7.5 hp	5.6 kW
Input AC Voltage (1 Phase)	220 VAC	220 VAC
Full Load Amps (1 Phase)	40 A	40 A
Input AC Voltage (3 Phase) - Low	220 VAC	220 VAC
Full Load Amps (3 Phase) - Low	25 A	25 A
Input AC Voltage (3 Phase) - High*	440 VAC	440 VAC
Full Load Amps (3 Phase) - High*	13 A	13 A

Dimensions - Shipping	S.A.E	METRIC
Domestic Pallet	112.0 in x 80.0 in x 100.0 in	284 cm x 203 cm x 254 cm
Export Pallet	112.0 in x 80.0 in x 100.0 in	284 cm x 203 cm x 254 cm
Weight	4440 lb	2014.0 kg

NOTE: All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications.

*Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

**Optional tool changers may have a different max tool size than the standard tool changer. Extra-large tools may require two adjacent pockets empty between tools. Click here for toolholder specifications.

ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

† Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.

AVAILABLE OPTIONS

TECHNICAL DOCUMENTS

VIDEOS

CUSTOMER TESTIMONIALS

The Haas TM-1

Haas Toolroom Mills are the true definition of value, providing full CNC capabilities – including available 4th- and 5th-axis functionality – at affordable prices. They offer the perfect combination of value, reliability, and performance for any shop – from schools to high-end manufacturers.

HaasBuilt - TM-1

Take a closer look at how your TM-1 is built and assembled from the ground up, straight from our factory in Oxnard, California!

How to Square and Indicate a Vise

If you’ve ever struggled to set up a vise, or are not sure of the correct way to do it, this video is for you. Tip-of-the-Day expert Mark Terryberry shows you how.

Haas Wireless Intuitive Probing System

With the Haas Wireless Intuitive Probing System (WIPS), you can set tool and work offsets in a fraction of the time. No more edge finders or slips of paper under the tool needed.

How to Correctly Pick Up a Bore

In this video, Haas Tip-of-the-Day expert Mark Terryberry covers a topic that every machinist needs to know. Whether you are a beginner or an experienced pro, you will benefit from this video.

Use G53 Instead of G28 to Send Your Haas Mill to Home Position

Are you using a G28 command to send your machine table or tools to home position? In this Tip-of-the-Day, Mark demonstrates how using a G53 command instead not only saves valuable cycle time, but also reduces the risk of crashing your machine.

CUSTOMER TESTIMONIALS

Customer Spotlight - MF Tool and Design

Matt Formicola decided to start his own job shop with a brand-new Haas TM-1P CNC toolroom mill, which quickly grew his business from zero to more than $100,000 in revenue. He was only 19 years old at the time, and has since added two more Haas CNCs, a TM-0P CNC toolroom mill, and a TL-2 CNC toolroom lathe.

affordable alternative

TM-1

CNC Toolroom Mill with 30" x 16" x 16" travels

40 Taper
3 Axis
4k RPM
1 Tool Capacity

Learn More Build & Price

LARGER WORK ENVELOPE

TM-2P

CNC Toolroom Mill with 40" x 16" x 16" travels and ATC

40 Taper
3 Axis
6k RPM
10 Tool Capacity

Learn More Build & Price

HIGHER PRODUCTION

VF-1

CNC Vertical Mill with 20" x 16" x 20" travels

40 Taper
3 Axis
8.1k RPM
20 Tool Capacity

Learn More Build & Price

HAAS ROTARY	HAAS MACHINE	ROTARY FIT TYPE	WARNING
HA2TS	TM-1P	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA5C	TM-1P	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HA5CS	TM-1P	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HRT160-2	TM-1P	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HRT160SP	TM-1P	POSITIVE FIT
HRT210SP	TM-1P	POSITIVE FIT
TRT100	TM-1P	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT160	TM-1P	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	TM-1P	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HRT100	TM-1P	POSITIVE FIT
TH240	TM-1P	POSITIVE FIT
HA5C-T	TM-1P	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HRT160	TM-1P	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HRT200HS	TM-1P	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
