Wireless Intuitive Probing System for Lathes

Complete probing system for locating and measuring workpieces

Option Info
DETAILS

OVERVIEW

DOCUMENTS

VIDEOS

AVAILABLE ON THESE MACHINES

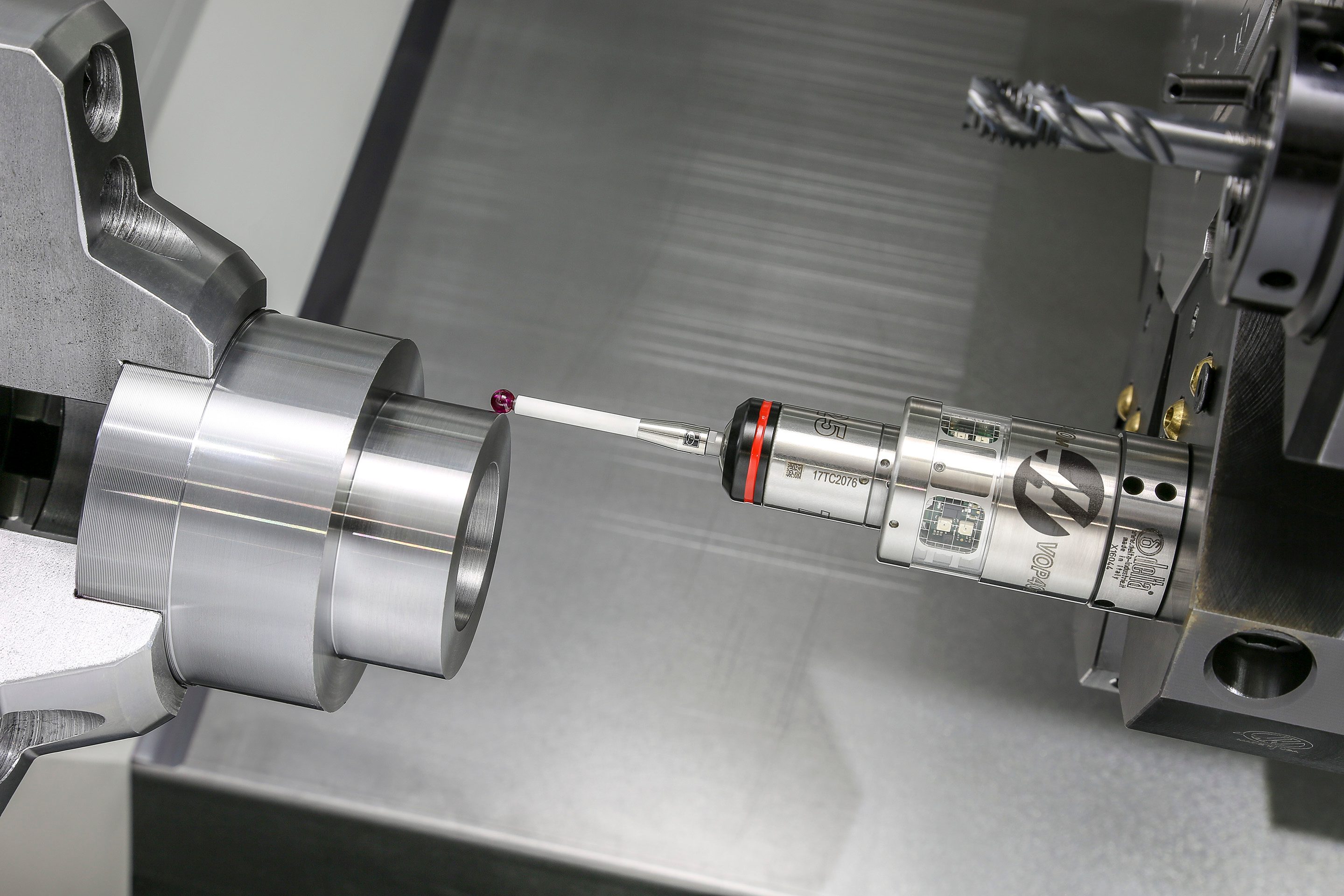

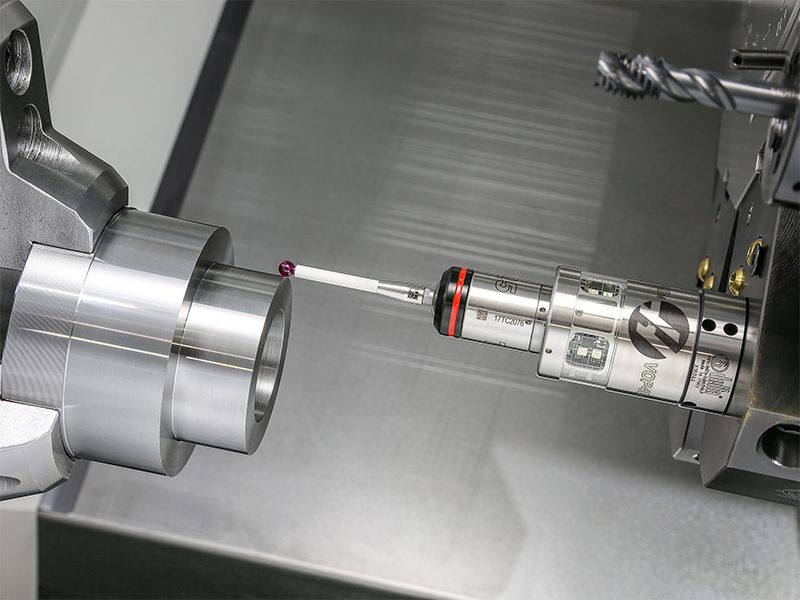

The Haas Wireless Intuitive Probing System for lathes (WIPS-L) is a complete probing package that includes a turret-mounted probe and optical machine interface, along with powerful software that guides the operator through the probing process with intuitive, easy-to-use templates. WIPS can be used for rapid first-off part inspection, in-process reporting, and monitoring unattended machining operations. It can also be used to update work offsets to account for tool wear for ultimate part accuracy. The system includes the Haas Visual Programming System, macros, and spindle orientation. NOTE: Requires the purchase of a 25 mm ID toolholder.

Complete probing package
Intuitive, easy-to-use probing templates
Perform in-process part inspection to hold tight tolerances and improve part consistency
Update work offsets to account for tool wear
Includes the Haas Visual Programming System
Occupies one tool station

SERVICE DOCUMENTS

VIDEOS

Haas WIPS for Lathes

Anyone who has run a machine knows how long it takes to set your work offsets. What if you could do it in a fraction of the time? It turns out you can, and it’s easier than you think!

AVAILABLE ON THE FOLLOWING MACHINES

Why WIPS-L ?

WIPS-L Benefits:

Increases productivity
Improves part quality
Reduces scrap by monitoring tool wear and automatically adjusting wear offsets
Reduces operator intervention, and allows the operator to multitask while the probe routines are running
Less part handling or program interruptions for part inspections
No knowledge of G-code or macro programming needed for basic functions
Easy-to-learn conversational programming
In-process part inspection reporting via macros (requires third-party software)
Allows for lights-out operation on robotically tended machines
Fully automatic part probing cycles
Minimizes secondary operations

Field-Install Kits

Field-install kits are available through your local HFO

WIPS-L minimum requirements:

●    NGC control required
●   Includes VPS templates
●   Requires purchase of a 25 mm ID holder
●   Takes up one station on the lathe turret

Find Your Local HFO

Dedicated and Custom Templates for Each Operation

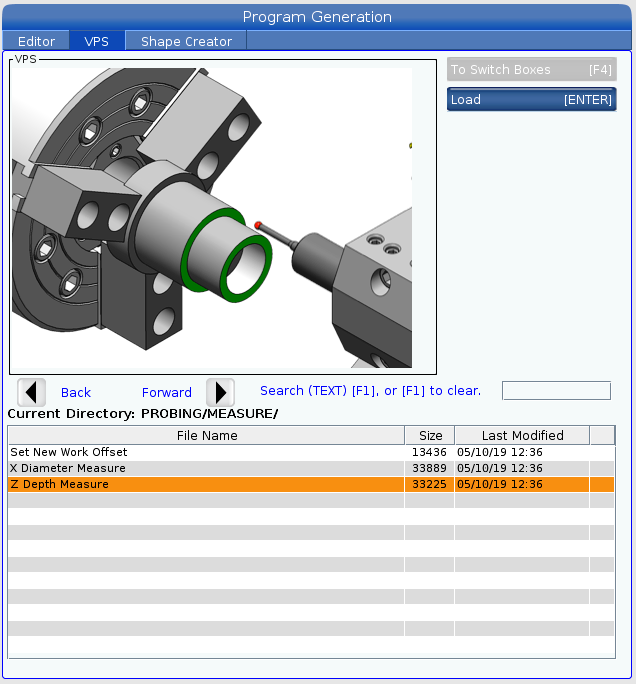

The Haas Wireless Intuitive Probing System for lathes (WIPS-L) includes the powerful Haas Visual Programming System (VPS), which uses easy-to-follow conversational templates to program common probing operations. Haas continues to expand the template library to include all of the common operations that job shops perform.

Additionally, the templates are customizable by the user, providing the flexibility to adapt the probing cycles to each customer’s parts and needs.

WIPS-L is Easy to Program and Learn

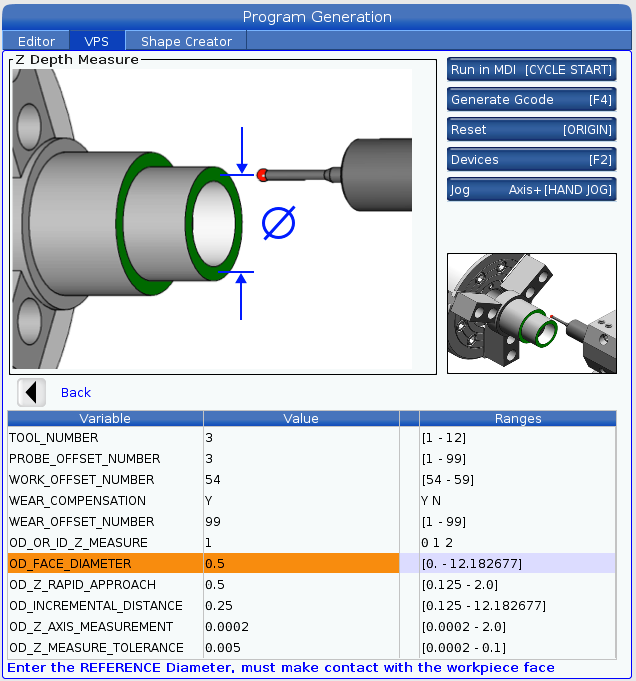

WIPS-L uses a fully conversational programming system based on simple dialog in the Haas control. The operator / programmer simply follows step-by-step visual and text instructions for each probing operation. There are no mathematical calculations required, and programming at the control is fast and efficient. The Haas control will generate an error-free CNC program based on the answers provided.

Quickly program probing routines at the control
Minimizes programming errors
No G-code knowledge needed
Step-by-step visual and text instructions
Individual VPS templates for each probing operation
Add probe cycles to existing programs using copy-and-paste capabilities
Check for correct part loading and positioning
Measure multiple features in a single cycle (Advanced Users)
Flexible cycles for single or multiple-point probing (Advanced Users)
In-process tool offset compensation (Advanced Users)
In-process reporting via DPRNT (Advanced Users)

Easy Step-by-Step Calibration for Optimal Performance

The WIPS-L system must be calibrated at the initial machine setup to ensure high-accuracy probing. While this process only needs to be done once, in cases where high-precision feature measurements are required, it is recommended to perform the calibration process at the beginning of the production run. It is also recommended to perform the calibration process once every few months, to ensure continued high-precision probing.

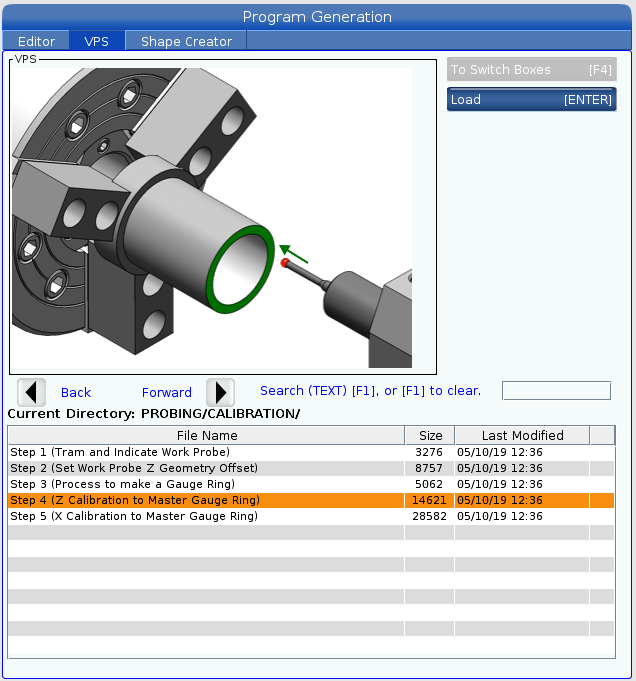

The calibration process consists of 5 easy steps, which are explained in detail on the control. The 5 steps continue to be conversational, where permitted.

Step 1 – Tram and Indicate Work Probe
Step 2 – Set Work Probe Z Geometry Offset
Step 3 – Make a Master Gauge Ring
Step 4 – Z Calibration to Master Gauge Ring
Step 5 – X Calibration to Master Gauge Ring

What Does WIPS-L Include?

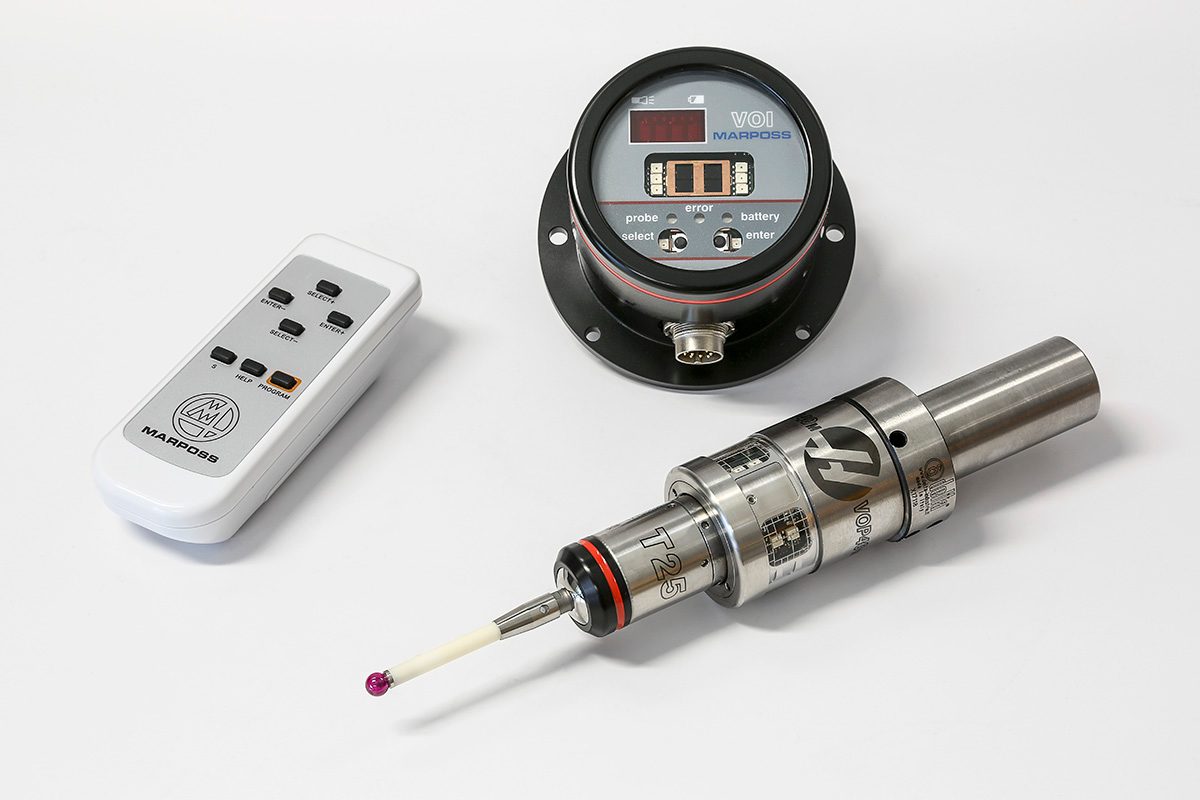

WIPS-L includes:

Wireless Turret-Mounted Probe (Requires a 25 mm ID Holder)
Optical Machine Interface (OMI) for Communication
Haas Visual Part Programming System (VPS)
User-Definable Macros
Spindle Orientation
Advanced Programming Software from the Manufacturer
All necessary cables and mounting hardware

Need More Information?
