High-Speed 120+1 Side-Mount Tool Changer, HSK

High-speed tool changer for HSK-taper mills

HSK-A63 taper
Remote load station with automatic lockout
Bi-directional servo-driven positioning for fast tool staging
Mounts to the machine’s bridge and base for stability
High-speed tool changes reduce non-cutting time
Tool Table allows complete control over the tool changer
Identify tools as LARGE to leave adjacent pockets empty
Identify tools as HEAVY to slow tool changer motion

120+1 Tools
HSK-A63 Taper
Side-Mount Type

Estimated delivery for VF-3SS and VF-4SS: April 2026.
Estimated delivery for UMC-1000SS: Q2 2026.

120+1 Side-Mount Tool Changer

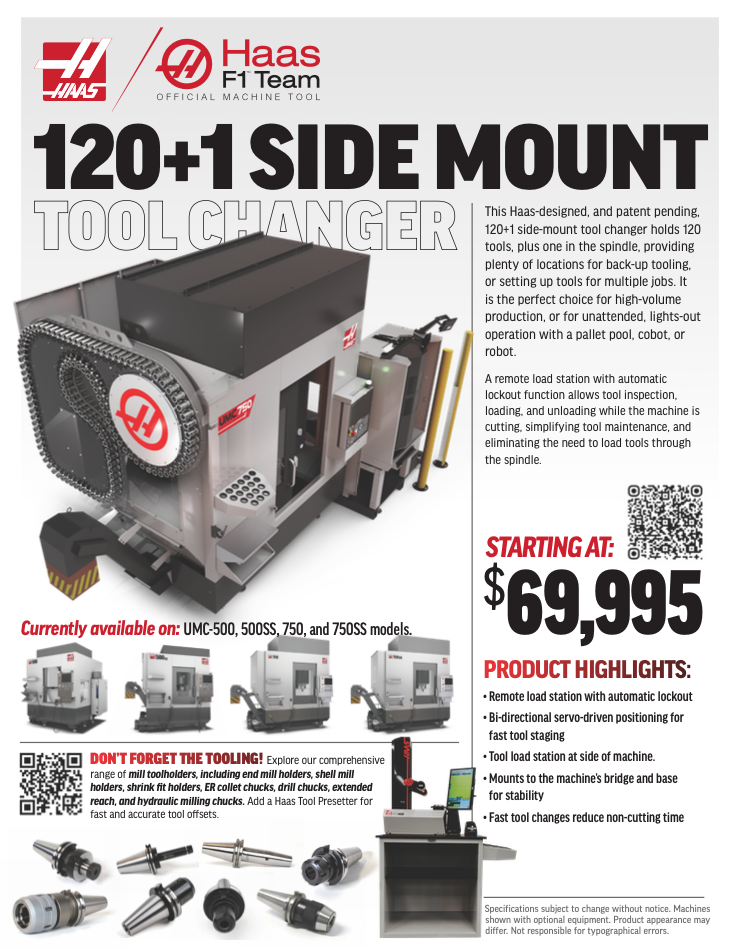

DOWNLOAD BROCHURE

OVERVIEW

DOCUMENTS

AVAILABLE ON THESE MACHINES

This Haas-designed 120+1 side-mount tool changer holds 120 tools, plus one in the spindle, providing plenty of locations for back-up tooling, or setting up tools for multiple jobs. It is the perfect choice for high-volume production, or for unattended, lights-out operation with a pallet pool, cobot, or robot.

The tool changer features a high-speed double-arm gripper that swaps tools quickly to minimize non-cutting time, and a bi-directional servo-drive system allows direct positioning to any tool in the carousel. Faster positioning reduces cycle times during short machining operations, or when the carousel is not pre-staged for the next tool. A remote load station with automatic lockout function allows tool inspection, loading, and unloading while the machine is cutting, simplifying tool maintenance, and eliminating the need to load tools through the spindle.

With adjacent pockets empty, the tool changer will accept oversize tooling, and there’s a built-in automatic recovery process, should a tool change be interrupted for any reason.

Currently available for these models: UMC-500SS, UMC-750SS, VF-3SS, and VF-4SS.

TECHNICAL DOCUMENTS

*NOTE: Due to continual design improvements, 3D models and layout drawings may not be accurate to the latest production model.

SERVICE DOCUMENTS

Tool Changer	S.A.E	METRIC
Type	SMTC	SMTC
Capacity	120+1	120+1
Max Tool Diameter (full)	2.5 in	64 mm
Max Tool Diameter (adjacent empty)	5.0 in	127 mm
Max Tool Length (from gage line) VF-3/VF-4	12.00 in	305 mm
Max Tool Length (from gage line) UMC	13.00 in	330 mm
Max Tool Weight	12.0 lb	5.4 kg
