1.1 Introduction

Overview

This operator’s manual supplement describes the unique features and functions of the Haas Bar Feeder. Refer to your Lathe Operator’s Manual for control operation, programming, and other general lathe information.

Specific details about the Haas Bar Feeder itself, including information that is beyond the scope of this document, can be found at www.HaasCNC.com.

The Haas Bar Feeder 12 is a hydrodynamic bar feeder designed for continuous processing of bar stock up to 12' (3.6 m) long on Haas ST-10 through ST-30 and DS-20Y through DS-30Y turning centers. It is a high-performance automation solution that provides superior bar support and vibration control for high-speed turning applications

Built for modern CNC lathe environments, the Haas Bar Feeder 12 uses a hydrodynamic oil bath system to stabilize bars throughout the feeding process – delivering quieter operation, smoother feeding, and improved part finish.

1.2 Features

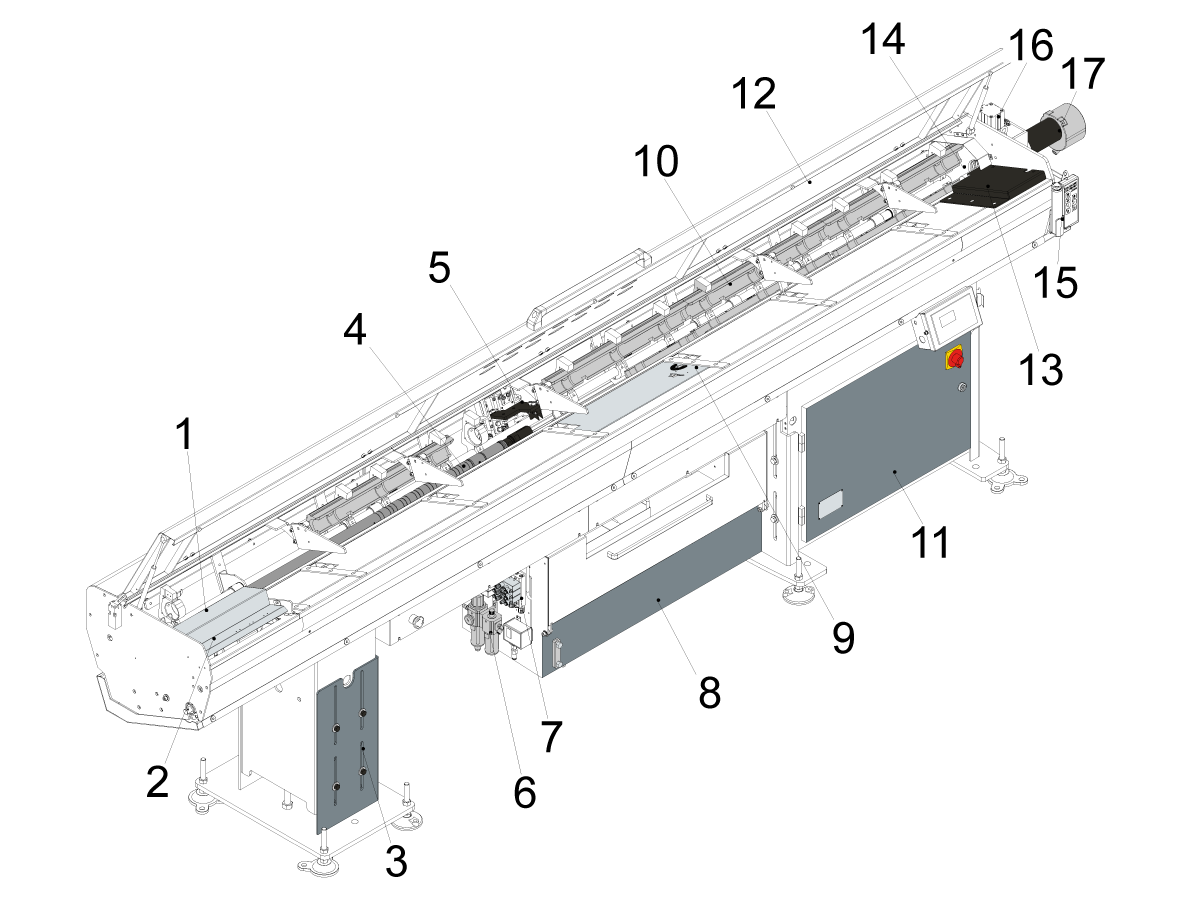

HBF - 12 - Features

  1. Trolley Servo motor
  2. Shuttling AC motor
  3. Adjustable/lockable height slots
  4. Push rod with quick change collet system
  5. Material clamping and centering device
  6.  Air regulator
  7. Solenoids
  8. Oil tank
  9. Bar diameter adjustment panel
  10. Rubber guide channel
  11. Electrical cabinet
  12. Barfeeder hood
  13. Clutch assembly
  14. Bar end detection device
  15. Barfeeder controller
  16. Anti-vibration device (AVD)
  17. Oil overflow cover

1.3 How To Use This Manual

How to Use This Manual

To get the maximum benefit of your new Haas machine, read this manual thoroughly and refer to it often.

IMPORTANT:  Before you operate the machine, read and understand the Operator’s Manual Safety chapter.

DECLARATION OF WARNINGS

Throughout this manual, important statements are set off from the main text with an icon and an associated signal word: “Danger,” “Warning,” “Caution,” or “Note.” The icon and signal word indicate the severity of the condition or situation. Be sure to read these statements and take special care to follow the instructions.



Description Example
Danger means that there is a condition or situation that will cause death or severe injury if you do not follow the instructions given.  DANGER: No step. Risk of electrocution, bodily injury, or machine damage. Do not climb or stand on this area.
Warning means that there is a condition or situation that will cause moderate injury if you do not follow the instructions given.  WARNING:  Never put your hands between the tool changer and the spindle head.
Caution means that minor injury or machine damage could occur if you do not follow the instructions given. You may also have to start a procedure over if you do not follow the instructions in a caution statement. CAUTION: Power down the machine before you do maintenance tasks.
Note means that the text gives additional information, clarification, or helpful hints. NOTE:  Follow these guidelines if the machine is equipped with the optional extended Z-clearance table.
Description Text Example
Code Block text gives program examples. G00 G90 G54 X0. Y0.;
A Control Button Reference gives the name of a control key or button that you are to press.  Press [CYCLE START].
A File Path describes a sequence of file system directories.  Service > Documents and Software >...
A Mode Reference describes a machine mode.  MDI
A Screen Element describes an object on the machine’s display that you interact with.  Select the SYSTEM tab.
System Output describes text that the machine control displays in response to your actions.  PROGRAM END
User Input describes text that you should enter into the machine control.  G04 P1.;
Variable n indicates a range of non-negative integers from 0 to 9. Dnn represents D00 through D99.
