EC-400




For the best pricing in your area, contact your local Haas Factory Outlet.

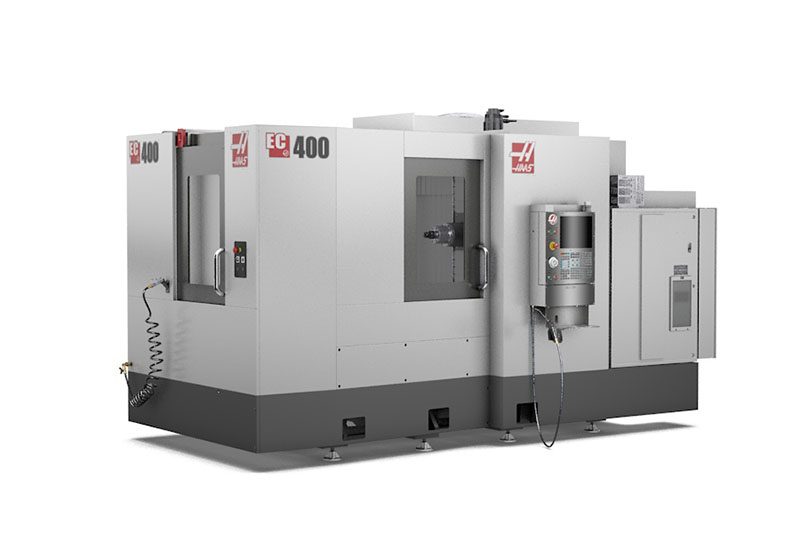

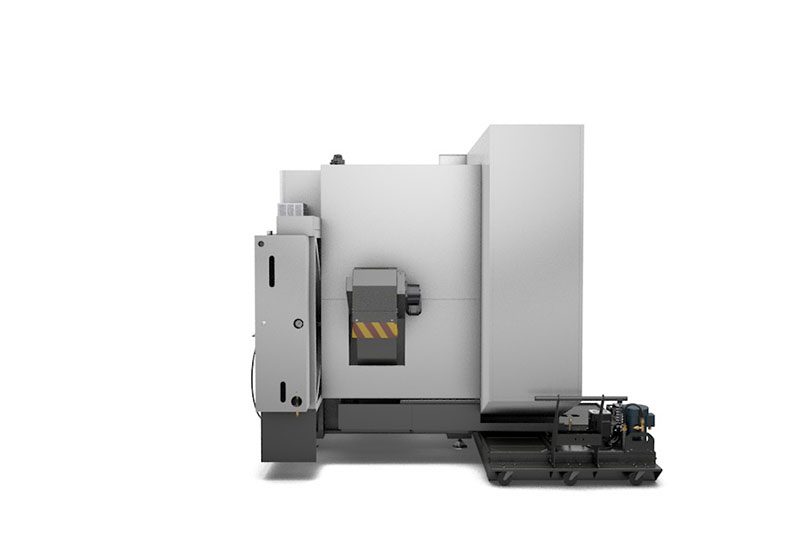

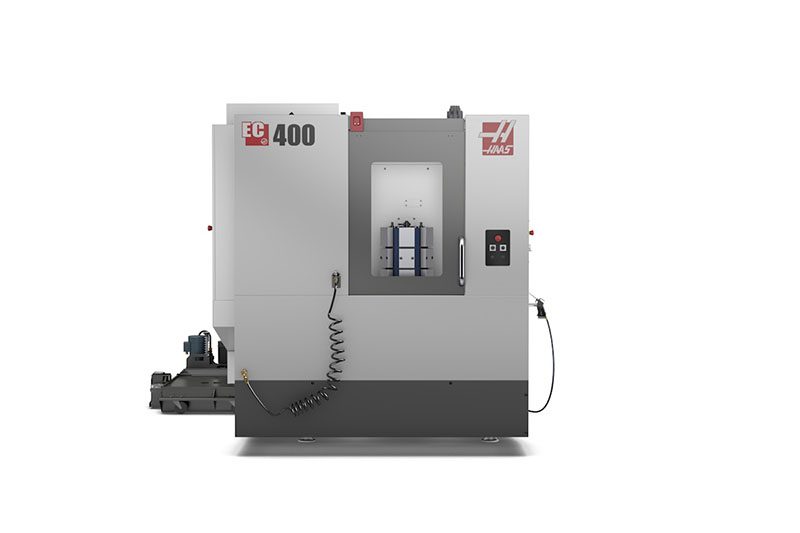

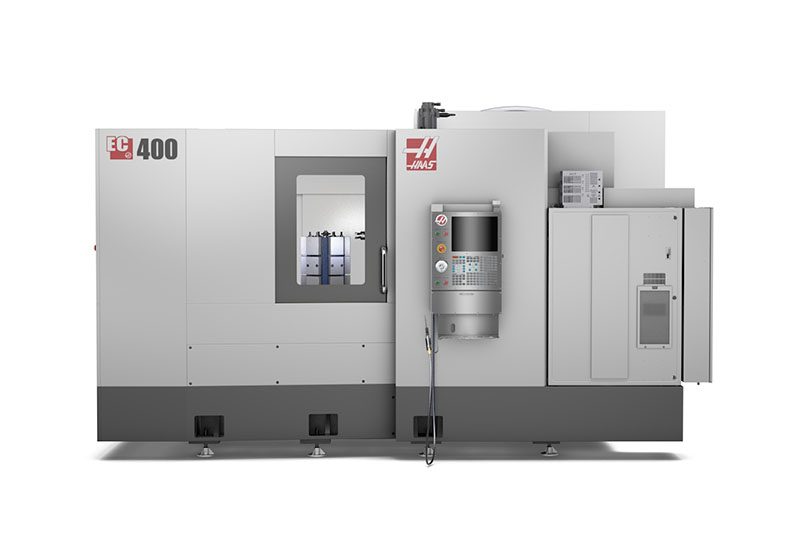

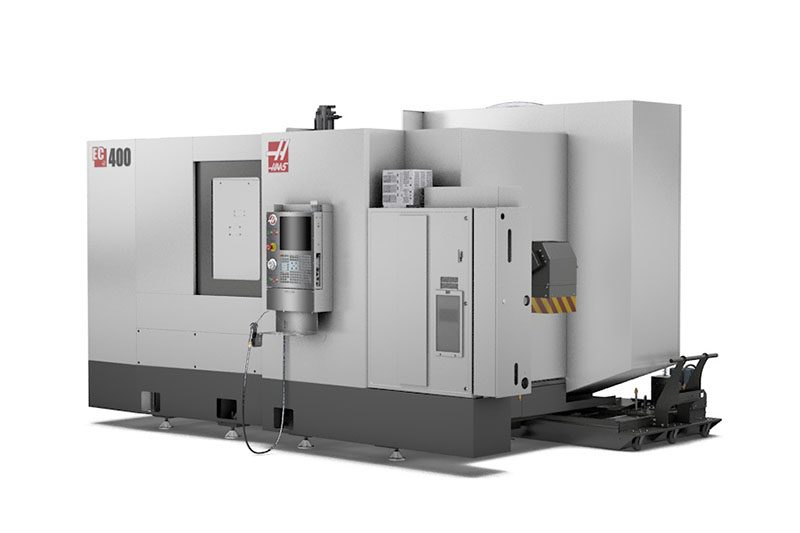

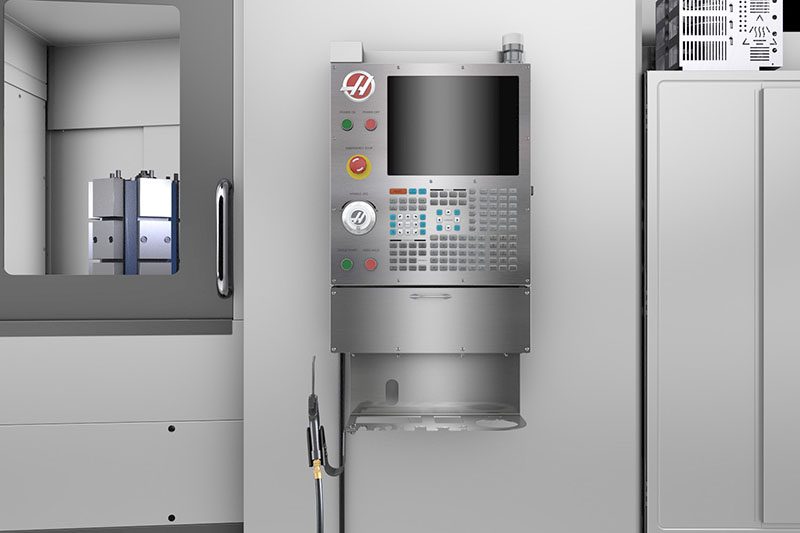

400 mm Twin-Pallet HMC with 22" x 25" x 22" travels

Designed for high-volume production and unattended operation, the all-new EC-400 is faster, more compact, more rigid, and more capable than ever before. It features a larger work envelope, faster rapids, a full 4th-axis rotary system for synchronous motion, and much better chip management. For extended production and true “lights out” capability, a 6-station pallet pool and high-capacity tool changer are available. NOTE: The Pallet Pool requires the optional 50+1 or 100+1 side-mount tool changer.

  • Standard 30+1 tool side-mount tool changer,  with options for 50+1 or 100+1
  • Built-in pallet changer with 400 mm pallets

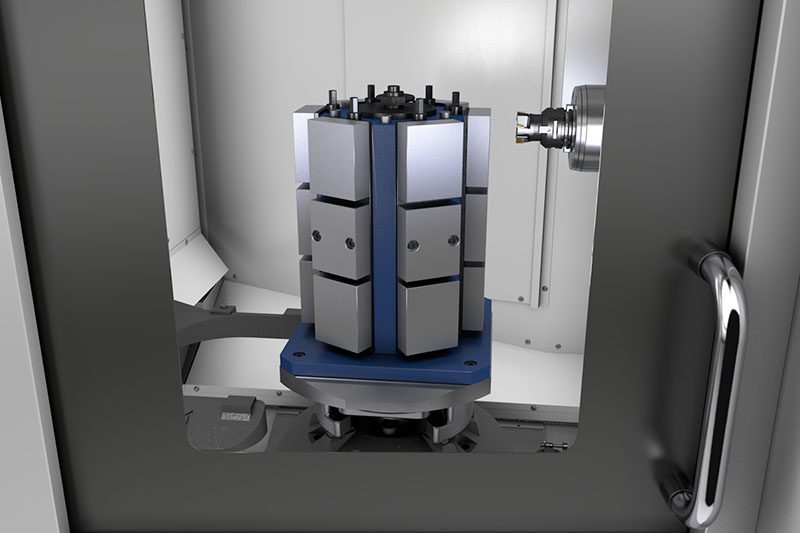

  • Full 4th-axis rotary system

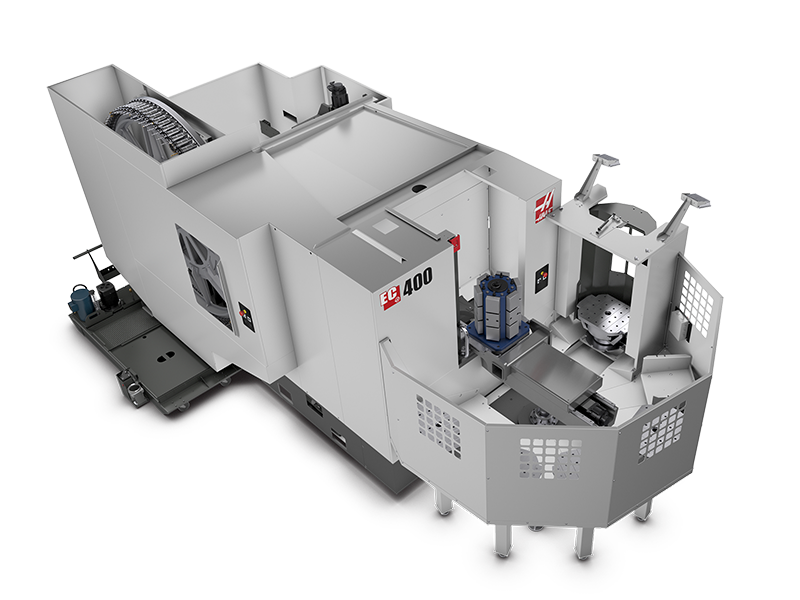

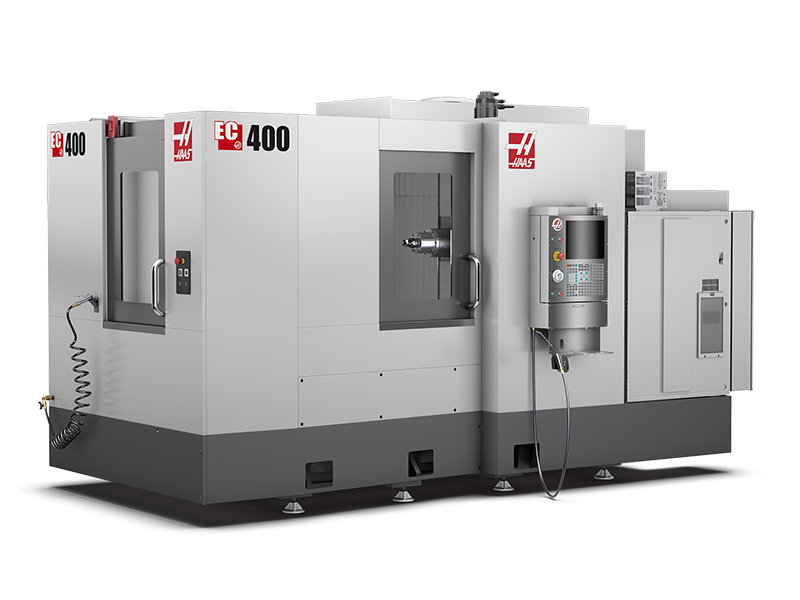

  • Available 6-station pallet pool

Note: Pallets are not interchangeable with the previous generation EC-400.

  • 40 Taper
  • 4 Axis
  • 8.1k RPM
  • 30+1 Tool Capacity

160+1 SIDE-MOUNT TOOL CHANGER

DOWNLOAD BROCHURE

HAAS JOURNAL

    Compare Machines
    BUILD & PRICE
    Contact Distributor
    Travels S.A.E METRIC
    X Axis 22.00 in 559 mm
    Y Axis 25.00 in 635 mm
    Z Axis 22.00 in 559 mm
    Spindle S.A.E METRIC
    Max Rating 30.0 hp 22.4 kW
    Max Speed 8100 rpm 8100 rpm
    Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm
    Drive System Inline Direct-Drive Inline Direct-Drive
    Taper CT40 | BT40 | HSK-A63 CT40 | BT40 | HSK-A63
    Bearing Lubrication Air / Oil Injection Air / Oil Injection
    Cooling Air Cooled Air Cooled
    Integrated 4th Axis (B Axis) S.A.E METRIC
    90° Rotation Time (full 4th) 3.0 s 3.0 s
    Max Weight on Platter 880 lb 400.0 kg
    Rotational Torque (continuous) 424 ft-lbf 575 Nm
    Backlash 30 arc-sec 30 arc-sec
    Gear Ratio 106:1 106:1
    Brake Torque 2500 ft-lbf 3390 Nm
    Min Resolution 0.001 ° 0.001 °
    Indexing Accuracy ± 15 arc-sec ± 15 arc-sec
    Repeatability 10 arc-sec 10 arc-sec
    Rapids on B 150 °/sec 150 °/sec
    Feedrates S.A.E METRIC
    Max Cutting 833 ipm 21.2 m/min
    Rapids on X 1400 ipm 35.6 m/min
    Rapids on Y 1400 ipm 35.6 m/min
    Rapids on Z 1400 ipm 35.6 m/min
    Axis Motors S.A.E METRIC
    Max Thrust X 3380 lbf 15035 N
    Max Thrust Y 2810 lbf 12500 N
    Max Thrust Z 3380 lbf 15035 N
    Pallet Changer S.A.E METRIC
    Pallet Quantity 2 2
    Pallet Length 15.75 in 400 mm
    Pallet Width 15.75 in 400 mm
    Max Pallet Load 880 lb 400.0 kg
    Max Pallet Load (w/Pallet Pool) 500 lb 227 kg
    Pallet Change Time 15 s 15 s
    General S.A.E METRIC
    Coolant Capacity 95 gal 360 L
    Tool Changer S.A.E METRIC
    Type SMTC SMTC
    Capacity 30+1 30+1
    Max Tool Diameter (full)** 2.5 in 64 mm
    Max Tool Diameter, Large (adjacent empty)** 5.0 in 127 mm
    Max Tool Length (from gage line) 12.00 in 305 mm
    Max Tool Weight 12.0 lb 5.4 kg
    Tool-to-Tool (avg) 2.80 s 2.80 s
    Chip-to-Chip (avg) 3.60 s 3.60 s
    Air Requirements S.A.E METRIC
    Air Required† 9 scfm @ 100 psi 255 L/min @ 6.9 bar
    Inline Air Hose 1/2 in 1/2 in
    Coupler (Air) 1/2 in 1/2 in
    Air Pressure Min 100 psi 6.9 bar
    Electrical Specification S.A.E METRIC
    Spindle Speed 8100 rpm 8100 rpm
    Drive System Inline Direct-Drive Inline Direct-Drive
    Spindle Power 30.0 hp 22.4 kW
    Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
    Full Load Amps (3 Phase) - Low 70 A 70 A
    Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
    Full Load Amps (3 Phase) - High* 35 A 35 A
    Dimensions - Shipping S.A.E METRIC
    Domestic Pallet 202.0 in x 100.0 in x 112.0 in 513 cm x 254 cm x 284 cm
    Export Crate 176.0 in x 92.0 in x 101.0 in 447 cm x 234 cm x 257 cm
    Weight 17520 lb 7947.0 kg

    Overview

    When Haas Automation set out to improve our already-popular 400 mm pallet-changing horizontal machining center, we analyzed customer feedback, and the result is a fantastic machine tool that has even the most skeptical machinists singing its praises.

    Making a Great Machine Tool Even Better

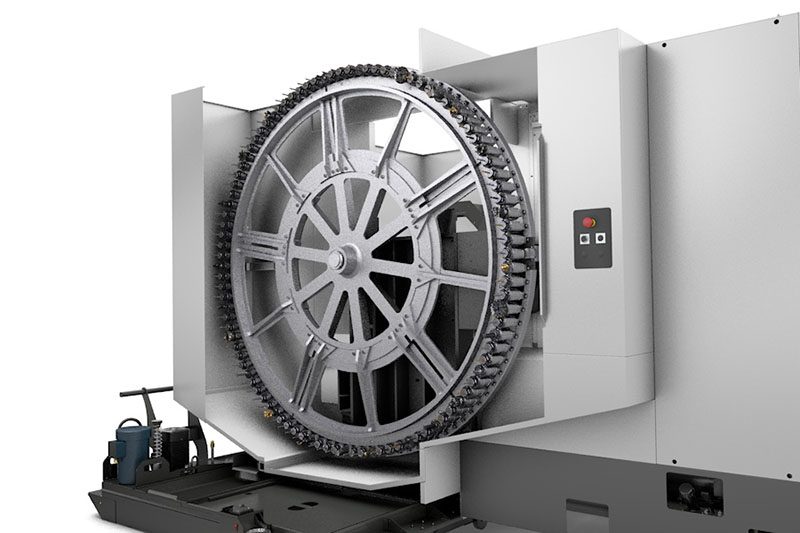

    • Available 100-Pocket Tool Changer for High-Volume Production
    • Increased Y-Axis Travel for More Capacity
    • Stepped Casting for Greater Stability

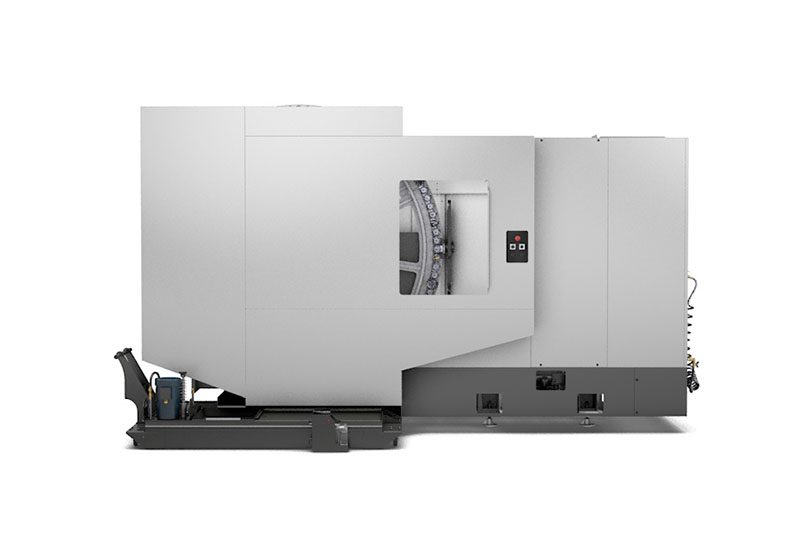

    • Rear Chip Discharge Saves Valuable Shop Floor Space

    Specification Comparison (Inch)

      NEW MODEL PREVIOUS MODEL
    Axis Travels (X, Y, Z) 22" x 25" x 22" 20" x 20" x 20"
    Maximum Optional Spindle Speed 15,000 rpm 12,000 rpm
    Tool Changer Capacity 30+1 24+1
    Optional Tool Changer Capacity 50+1, 100+1 40+1, 70+1
    Rapids (X, Y, Z) 1400 in/min 1000 in/min
    Maximum Feedrate 833 in/min 500 in/min
    90° Rotation Time 3 sec 5.5 sec
    Maximum Weight on Pallet 880 lb 660 lb
    Rotational Torque (Continuous) 424 ft-lb 300 ft-lb

    Specification Comparison (Metric)

      NEW MODEL PREVIOUS MODEL
    Axis Travels (X, Y, Z) 559 x 635 x 559 mm 508 x 508 x 508 mm
    Maximum Optional Spindle Speed 15,000 rpm 12,000 rpm
    Tool Changer Capacity 30+1 24+1
    Optional Tool Changer Capacity 50+1, 100+1 40+1, 70+1
    Rapids (X, Y, Z) 35.6 m/min 25.4 m/min
    Maximum Feedrate 21.2 m/min 12.7 m/min
    90° Rotation Time 3 sec 5.5 sec
    Maximum Weight on Pallet 400 kg 300 kg
    Rotational Torque (Continuous) 575 Nm 407 Nm

    EC-400 Chip Management

    The completely redesigned EC-400 has been improved from the ground up, with all new castings for increased rigidity and better cutting performance, 5 more inches of Y-axis travel, an available 100-pocket tool changer, and vastly improved chip evacuation.

    At the heart of the EC-400’s improved chip management system is a wider belt-type chip conveyor positioned in the center of the machine, directly under the spindle. The steep walls of the interior enclosure easily funnel chips to the conveyor.

    The conveyor discharges chips at the height of a full-size industrial barrel. Washdown nozzles mounted in the ceiling are fed by a separate coolant pump, and allow you to direct coolant flow to areas where chips may gather, to further enhance chip evacuation.

    EC-400 Coolant Ring

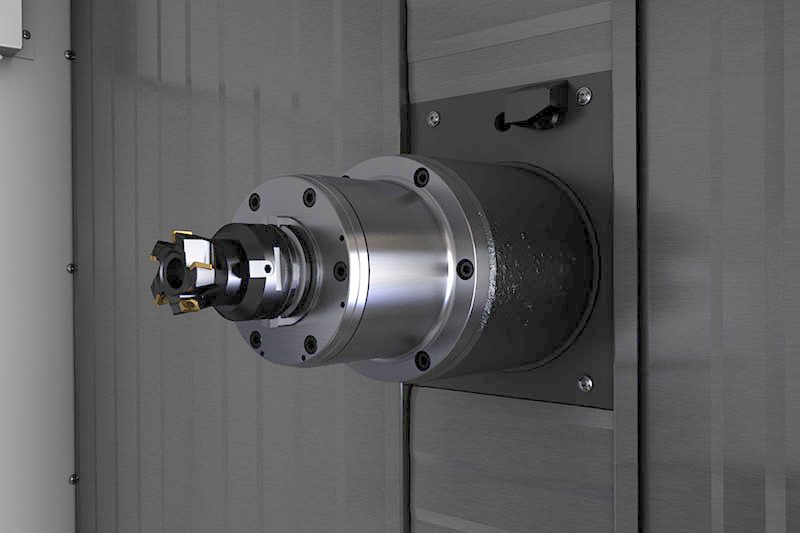

    The 4-nozzle coolant ring surrounding the spindle nose is perfectly positioned so that nozzles can be pointed at the shortest tools, and others can be positioned for longer tools. The compact, cylindrical design prevents chips from collecting on top. NOTE: The Haas Programmable Coolant Nozzle (P-COOL) is not available on the EC-400.

    EC-400 Pallet Schedule Table


    In previous Haas pallet-changing machines, the G188 code was used to call a part program from the Pallet Schedule Table (PST), based on which pallet was loaded. Continuous operation was achieved by running a main program that consisted of an M50 to perform a pallet change, the G188 to call the program for the loaded pallet, and an M99 to loop the whole process. The M50 loaded the next scheduled pallet, and the G188 called the program designated for that pallet.

    With the G188, however, if you restarted your machining process in the middle of one of the pallet programs, it didn’t allow you to get back to the main program to continue uninterrupted machining. You had to wait for your restarted program to finish, select your main program again, and then start your continuous cycle.

    We developed a new M-code to solve this problem. The M199 is used at the end of a program. When the program is started by pressing [CYCLE START] in Memory mode, the M199 acts exactly like an M30 (Program End and Reset). But if the program is started by pressing [INSERT] while the Pallet Schedule Table is displayed, the M199 will command a pallet change to load the next scheduled pallet, and then run the program associated with that pallet. This allows the user to start machining on any pallet, and continue uninterrupted machining, as long as pallets are scheduled.

    EC-400 Cycloidal Rotary Drive

    The cycloidal rotary drive system – designed for machine tools and robotics – provides a great combination of speed, accuracy, and durability to the B axis. The rugged design provides long service life, with little or no maintenance, and is especially durable in a crash. The cycloidal rotary drive can be back driven to absorb energy from an impact. The shock-load capacity is 5 times the rated torque of the gearbox, and the entire gearbox is a simple drop-in replacement, should damage occur.

    EC-400 Hydraulic Pallet-Clamping System

    The hydraulic power unit provides power to clamp the pallets to the pallet receiver, as well as raise and lower the pallet-changer mechanism.

    EC-400 Increased Axis Travels


    An extra 5" (127 mm) of Y-axis travel can make all the difference in the world. Now, the spindle centerline can get 27.13" (689 mm) above the surface of the pallet. We also increased the X- and Z-axis travels by 2" (51 mm) each.

    EC-400 Stepped Base and Column

    The stepped base and column design of the EC-400, where one X-axis linear guide rail is on a different horizontal plane than the other, increases the rigidity and stability of the spindle-head column assembly. With hydraulic pallet clamping and the stepped base/column design, the EC-400 is more rigid than ever, all the way to the top!

    EC-400 Automatic Probe Riser


    An automatic probe arm stores the tool setting probe in a protective compartment during machining operations. When the tool probe is needed, an M104 code activates the automatic probe arm to lift the probe and lock it into place. When probing is complete, an M105 retracts the probe to its protective compartment.

    AVAILABLE OPTIONS

    TECHNICAL DOCUMENTS

    VIDEOS

    CUSTOMER TESTIMONIALS

    RELATED PRODUCTS

    Need help finding the right machine?

    Build & Price

    Let us help you find the right one for your shop.

    Get Started

    Need More Information?

    If you would like more information about how a new Haas machine can bring your products to life, please share your contact information.

    NOTE: All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications.

    *Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

    Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

    **Optional tool changers may have a different max tool size than the standard tool changer. Extra-large tools may require two adjacent pockets empty between tools. Click here for toolholder specifications.

    ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

    † Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.



    All prices and specifications subject to change without notice. Freight, rigging, state & local taxes, and dealer installed accessories are not included. Not responsible for misprints or typographical errors. Machines shown with optional equipment. Actual product appearance may differ.
