EC-1600

For the best pricing in your area, contact your local Haas Factory Outlet.

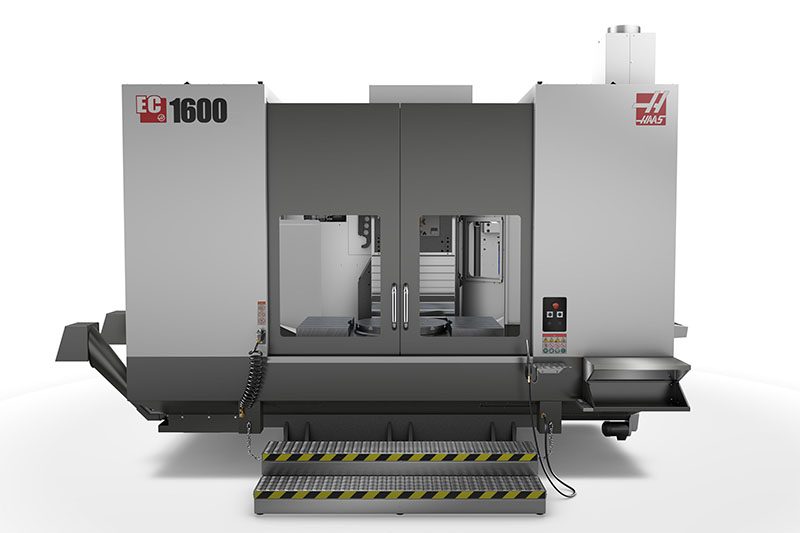

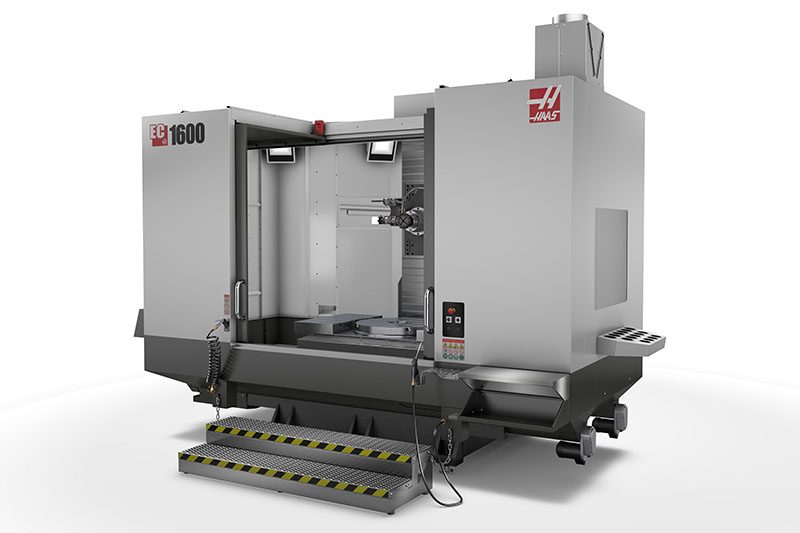

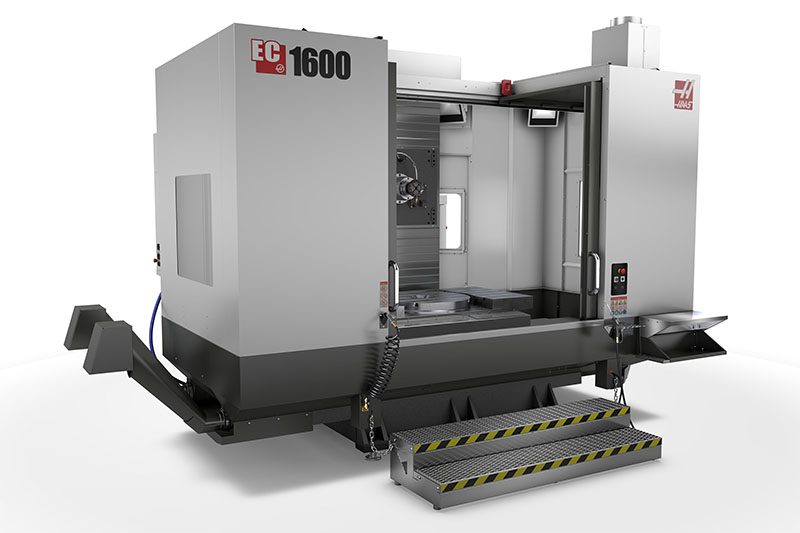

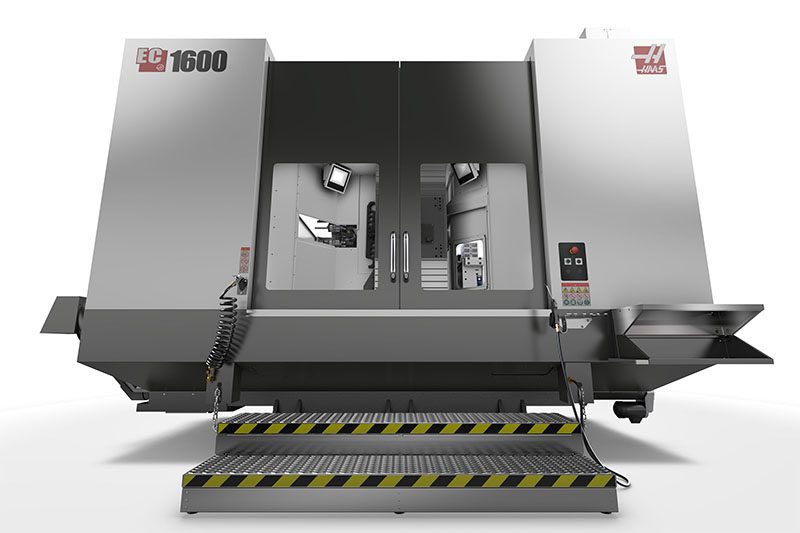

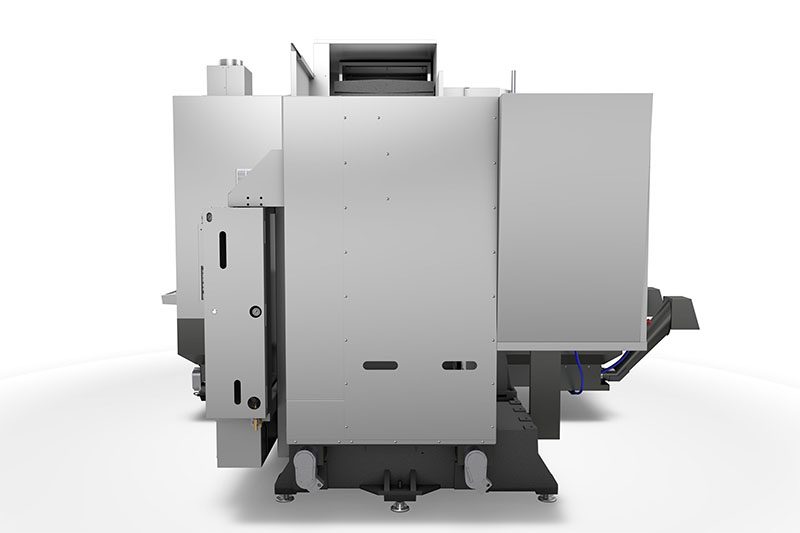

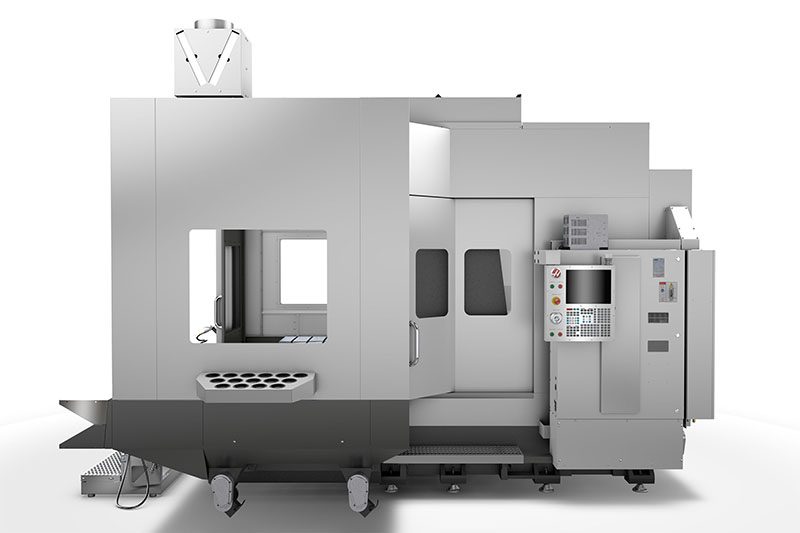

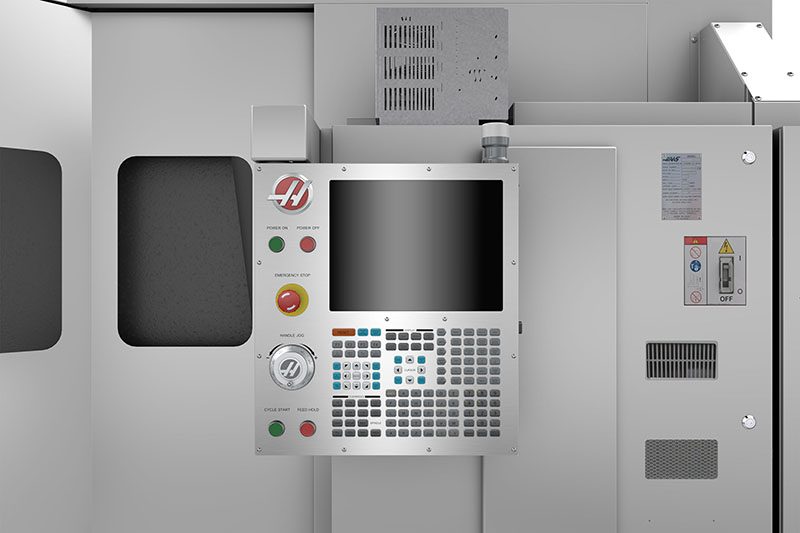

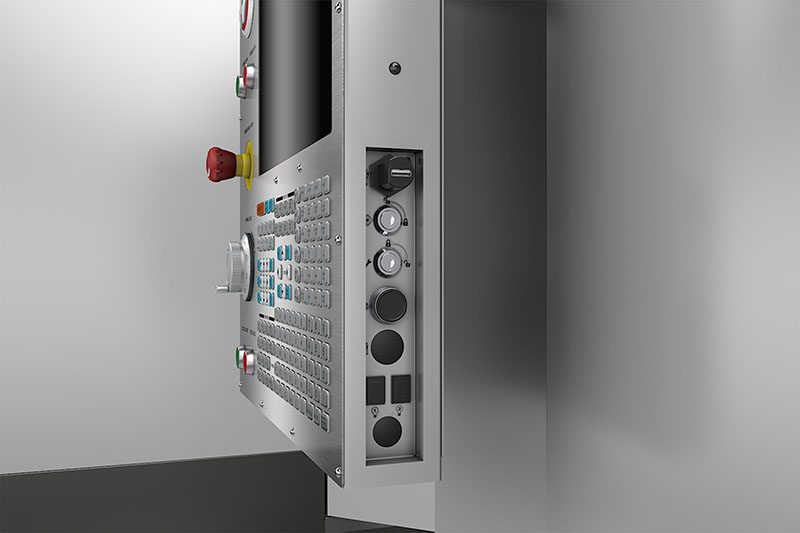

CNC Horizontal Mill with 64" x 50" x 32" travels

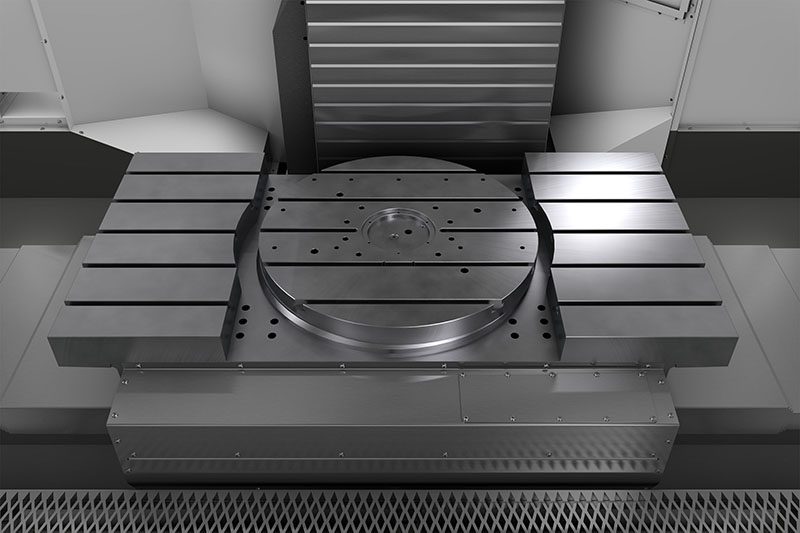

The highly popular Haas EC Series HMCs offer large work cubes and a maximum part capacity of 10,000 lb, making them perfect solutions for your large-part machining requirements. Models are available with a 4th-axis rotary platter integrated into the T-slot table to provide access to four sides of a part or tombstone, or simultaneous 4th-axis machining.

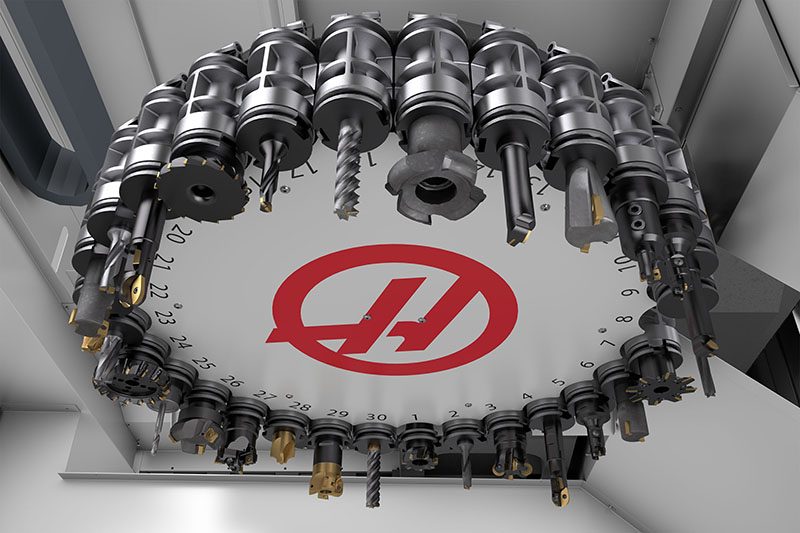

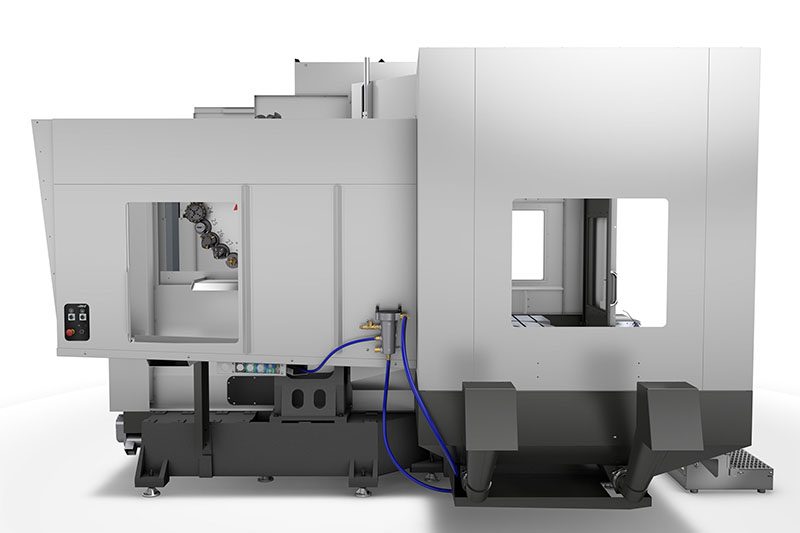

Standard side-mount tool changer, 50+1 tools

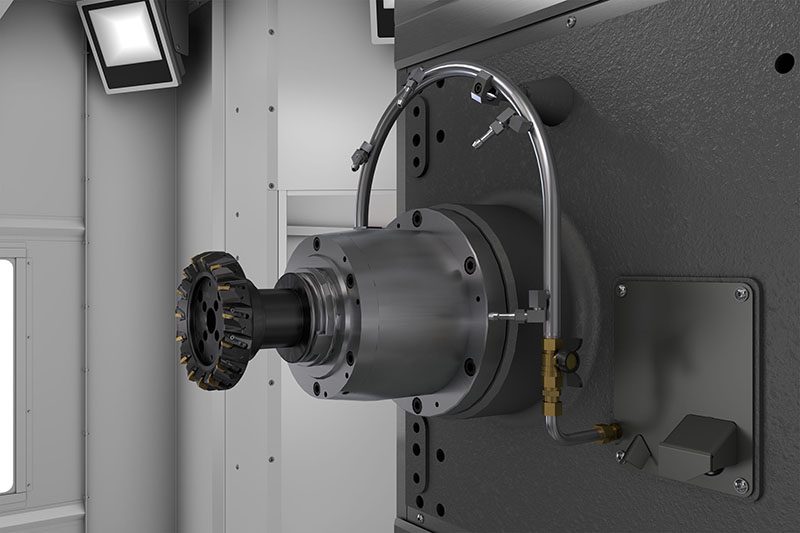

50-taper spindle with a 2-speed gearbox

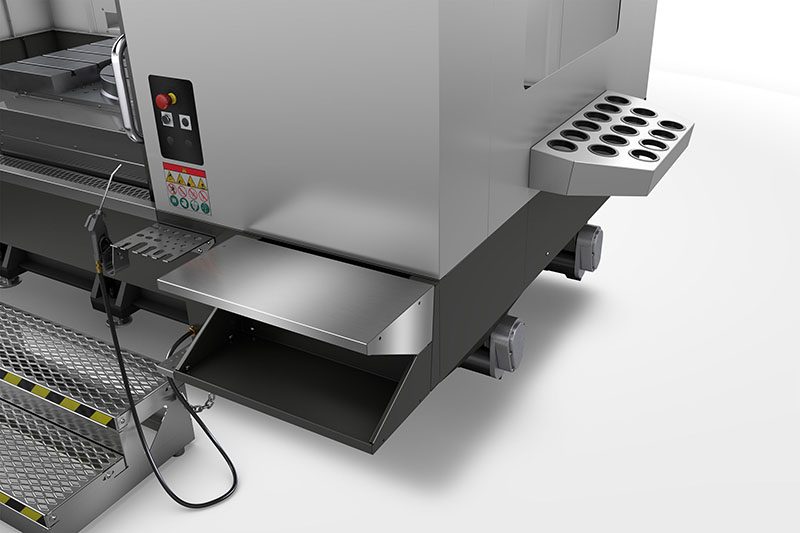

Extra-large work envelope
50" max part swing with integrated 4th axis (optional)

{{=tableHeader}}
Model	Serial#	Options

50 Taper
3 Axis
7.5k RPM
50+1 Tool Capacity

Compare Machines

BUILD & PRICE

Contact Distributor

Build-&-Price
Specs
Machine Info

Travels	S.A.E	METRIC
X Axis	64.00 in	1626 mm
Y Axis	50.00 in	1270 mm
Z Axis	32.00 in	813 mm
Spindle Centerline to Table	11.97 in	304 mm

Spindle	S.A.E	METRIC
Max Rating	30.0 hp	22.4 kW
Max Speed	7500 rpm	7500 rpm
Max Torque	340.0 ft-lbf @ 700 rpm	460.0 Nm @ 700 rpm
Drive System	2-Speed Gearbox	2-Speed Gearbox
Taper	CT or BT 50	CT or BT 50

Table	S.A.E	METRIC
Length	64.0 in	1626 mm
Width	36.0 in	914 mm
T-Slot Width	0.626 in to 0.630 in	15.90 mm to 16.00 mm
T-Slot Center Distance	4.92 in	125 mm
Number of Std T-Slots	7	7
Max Weight on Table (evenly distributed)	10000 lb	4536 kg

Integrated 4th Axis (B Axis)	S.A.E	METRIC
Table	64 in x 32 in	1626 mm x 813 mm
Platter Diameter	30.00 in	762 mm
Travel	360 °	360 °
Max Part Swing	50.0 in	1270 mm
Max Weight on Platter	10000 lb	4536.0 kg
Max Rating	5.0 hp	3.7 kW
Rotational Torque (continuous)	2000 ft-lbf	2712 Nm
Backlash	30 arc-sec	30 arc-sec
Gear Ratio	500:1	500:1
Brake Torque	4000 ft-lbf	5423 Nm
Min Resolution	0.001 °	0.001 °
Indexing Accuracy	± 30 arc-sec	± 30 arc-sec
Repeatability	15 arc-sec	15 arc-sec
Rapids on B	36 °/sec	36 °/sec
Max Cutting B	36 °/sec	36 °/sec
Spindle Centerline to Table	5.75 in	146 mm

Feedrates	S.A.E	METRIC
Max Cutting	500 ipm	12.7 m/min
Rapids on X	600 ipm	15.2 m/min
Rapids on Y	600 ipm	15.2 m/min
Rapids on Z	600 ipm	15.2 m/min

Axis Motors	S.A.E	METRIC
Max Thrust X	4000 lbf	17793 N
Max Thrust Y	8000 lbf	35586 N
Max Thrust Z	8000 lbf	35586 N

General	S.A.E	METRIC
Coolant Capacity	95 gal	360 L

Tool Changer	S.A.E	METRIC
Type	SMTC	SMTC
Capacity	50+1	50+1
Max Tool Diameter (full)**	4.0 in	102 mm
Max Tool Diameter, Large (adjacent empty)**	10.0 in	254 mm
Max Tool Length (from gage line)	20.00 in	508 mm
Max Tool Weight	30.0 lb	13.6 kg
Tool-to-Tool (avg)	8.00 s	8.00 s
Chip-to-Chip (avg)	12.60 s	12.60 s

Air Requirements	S.A.E	METRIC
Air Required†	9 scfm @ 100 psi	255 L/min @ 6.9 bar
Inline Air Hose	3/8 in	3/8 in
Coupler (Air)	3/8 in	3/8 in
Air Pressure Min	80 psi	5.5 bar

Electrical Specification	S.A.E	METRIC
Spindle Speed	7500 rpm	7500 rpm
Drive System	2-Speed Gearbox	2-Speed Gearbox
Spindle Power	30.0 hp	22.4 kW
Input AC Voltage (3 Phase) - Low	220 VAC	220 VAC
Full Load Amps (3 Phase) - Low	70 A	70 A
Input AC Voltage (3 Phase) - High*	440 VAC	440 VAC
Full Load Amps (3 Phase) - High*	35 A	35 A

Dimensions - Shipping	S.A.E	METRIC
Domestic Pallet	192.0 in x 144.0 in x 136.0 in	488 cm x 366 cm x 346 cm
Export Crate	192.0 in x 144.0 in x 137.0 in	488 cm x 366 cm x 348 cm
Weight	30000 lb	13608.0 kg
Export Crate w/Conveyor	127 in x 39 in x 86 in	323 cm x 100 cm x 219 cm
Weight w/Conveyor	900 lb	409 kg

NOTE: All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications.

*Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

**Optional tool changers may have a different max tool size than the standard tool changer. Extra-large tools may require two adjacent pockets empty between tools. Click here for toolholder specifications.

ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

† Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.
