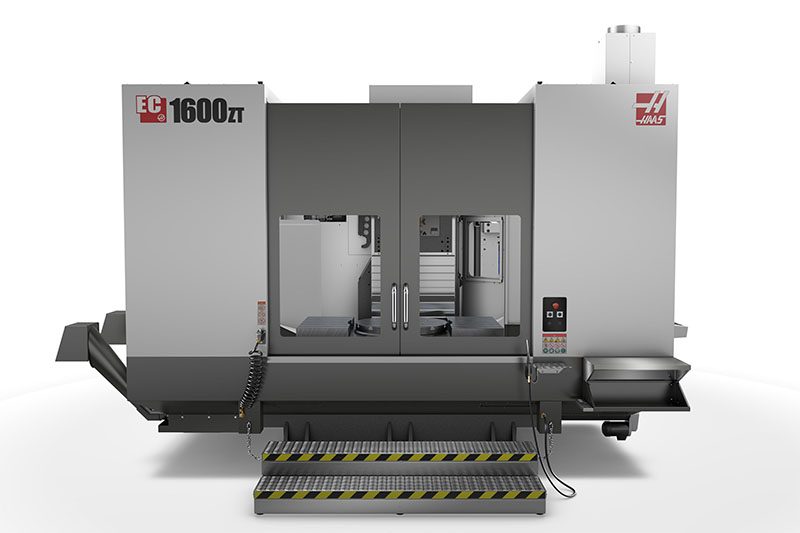

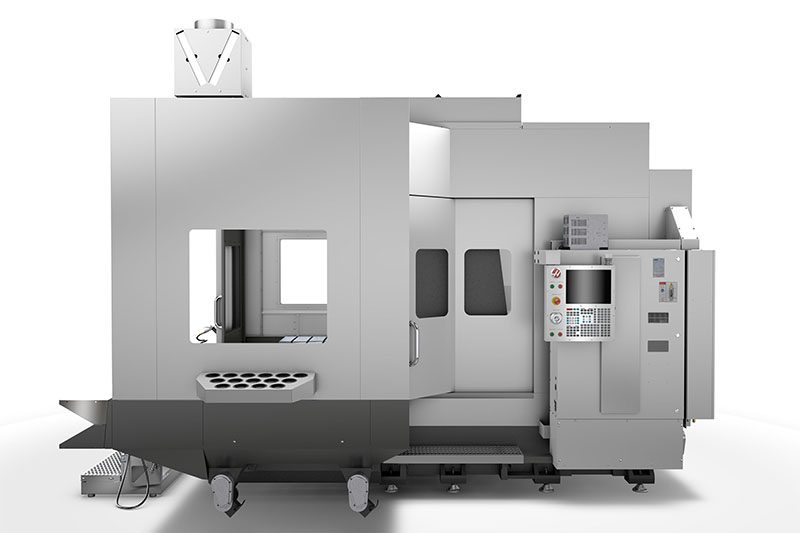

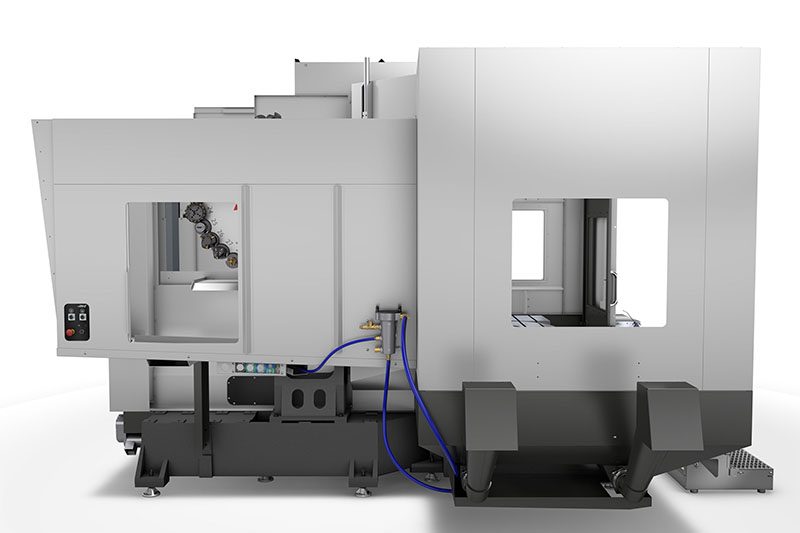

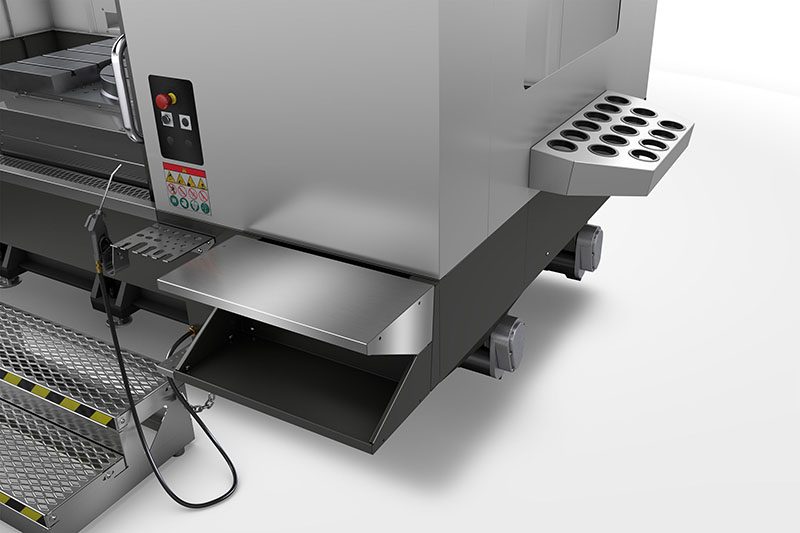

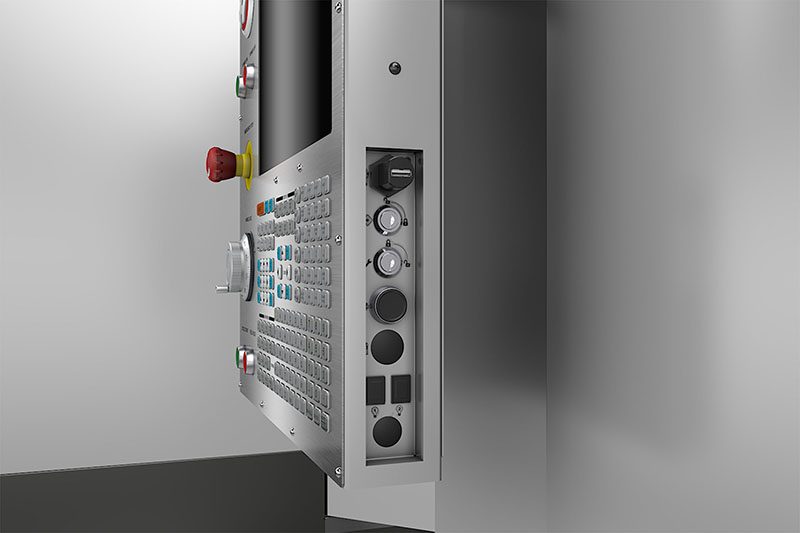

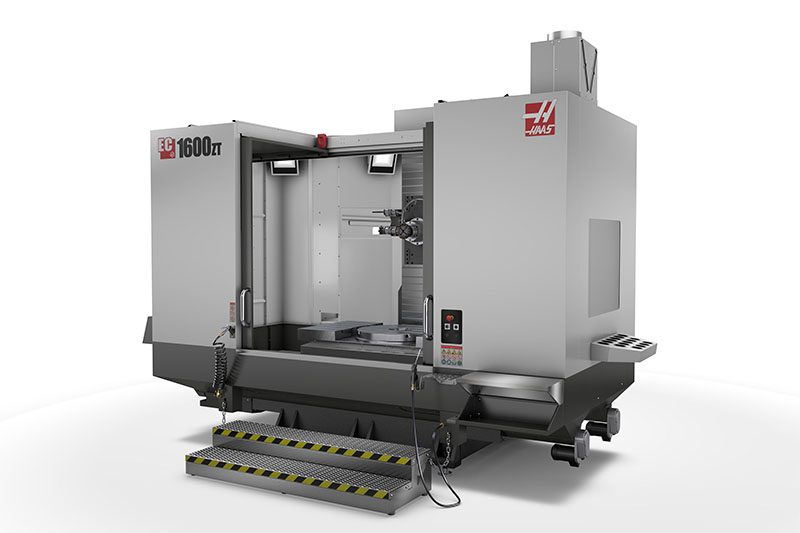

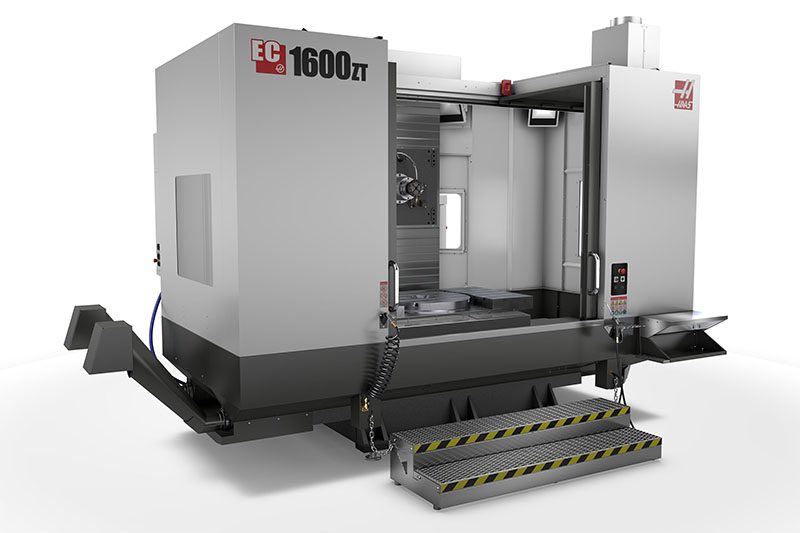

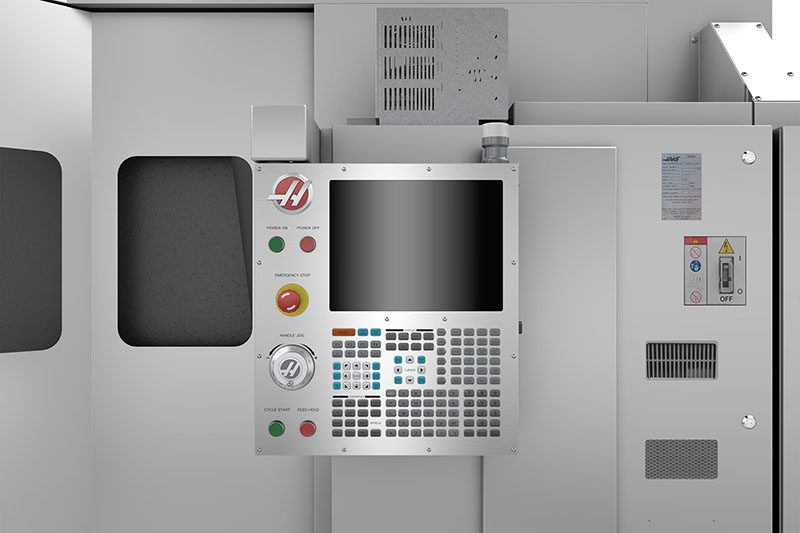

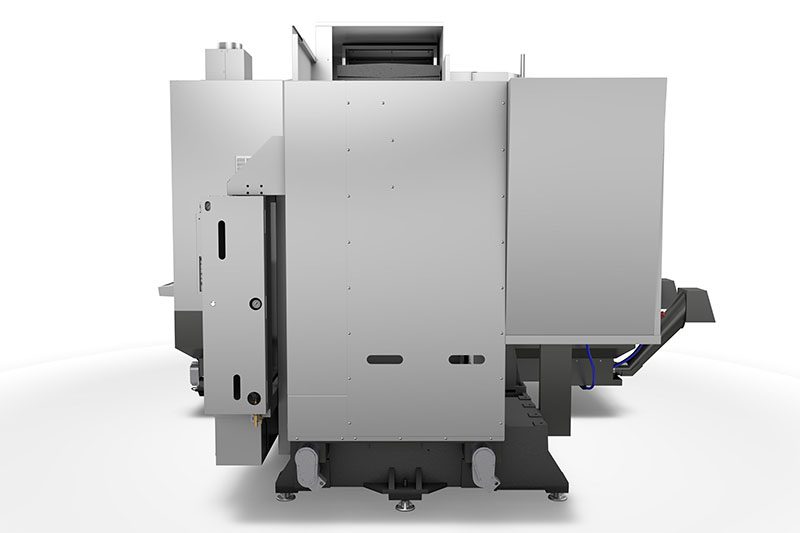

EC-1600ZT

For the best pricing in your area, contact your local Haas Factory Outlet.

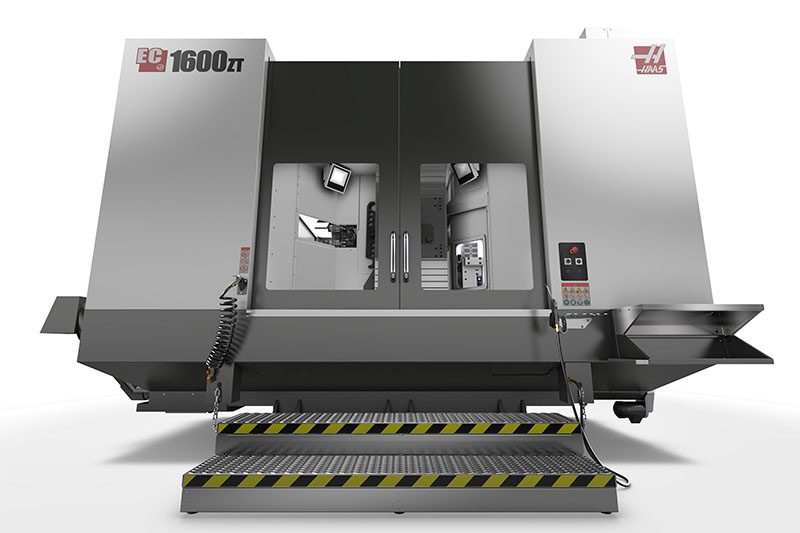

CNC Horizontal Mill with 64" x 50" x 40" travels

Extended Z-axis travel

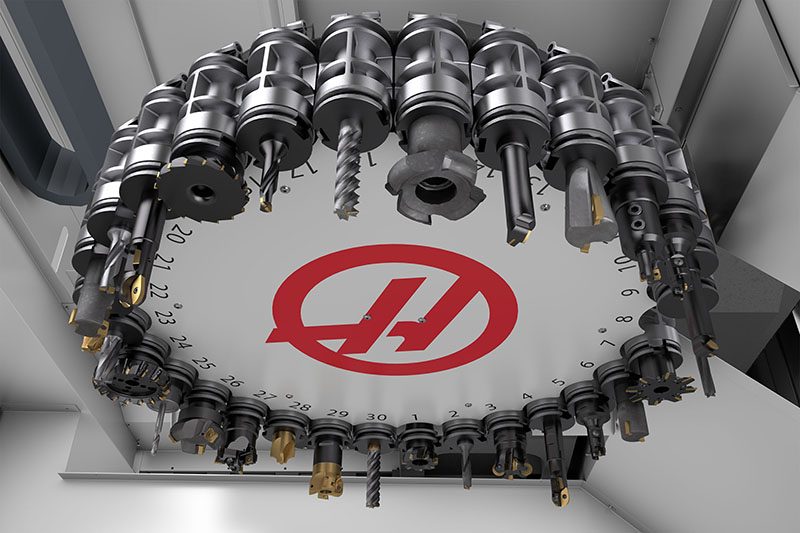

Standard side-mount tool changer, 50+1 tools

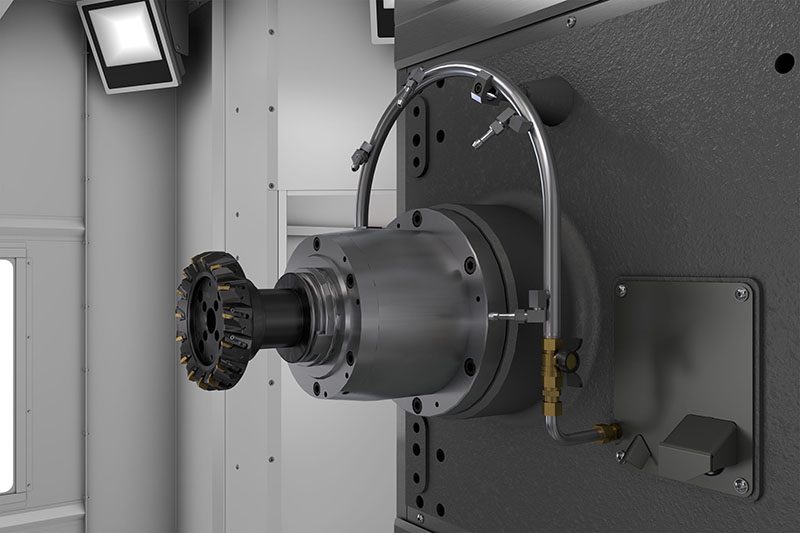

50-taper spindle with a 2-speed gearbox
Extra-large work envelope
78" max part swing with integrated 4th axis (optional)

The highly popular Haas EC Series HMCs offer large work cubes and a maximum part capacity of 10,000 lb, making them perfect solutions for your large-part machining requirements. Models are available with a 4th-axis rotary platter integrated into the T-slot table to provide access to four sides of a part or tombstone, or simultaneous 4th-axis machining. The EC-1600ZT offers more Z-axis travel than the standard EC-1600

{{=tableHeader}}
Model	Serial#	Options

50 Taper
3 Axis
7.5k RPM
50+1 Tool Capacity

EC-1600ZT Pallet Pool

DOWNLOAD BROCHURE

HAAS JOURNAL

Compare Machines

BUILD & PRICE

Contact Distributor

Build-&-Price
Specs
Machine Info
Rotary Fit Chart

Travels	S.A.E	METRIC
X Axis	64.00 in	1626 mm
Y Axis	50.00 in	1270 mm
Z Axis	40.00 in	1016 mm
Spindle Centerline to Table	11.97 in	304 mm

Spindle	S.A.E	METRIC
Max Rating	30.0 hp	22.4 kW
Max Speed	7500 rpm	7500 rpm
Max Torque	340.0 ft-lbf @ 700 rpm	460.0 Nm @ 700 rpm
Drive System	2-Speed Gearbox	2-Speed Gearbox
Taper	CT or BT 50	CT or BT 50

Table	S.A.E	METRIC
Length	64.0 in	1626 mm
Width	36.0 in	914 mm
T-Slot Width	0.626 in to 0.630 in	15.90 mm to 16.00 mm
T-Slot Center Distance	4.92 in	125 mm
Number of Std T-Slots	7	7
Max Weight on Table (evenly distributed)	10000 lb	4536 kg

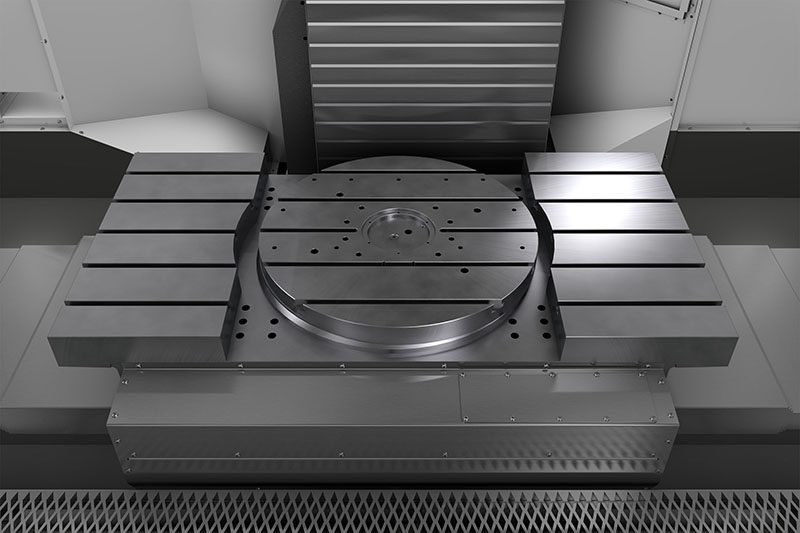

Integrated 4th Axis (B Axis)	S.A.E	METRIC
Table	64 in x 32 in	1626 mm x 813 mm
Platter Diameter	30.00 in	762 mm
Travel	360 °	360 °
Max Part Swing	78.0 in	1981 mm
Max Weight on Platter	10000 lb	4536.0 kg
Max Rating	5.0 hp	3.7 kW
Rotational Torque (continuous)	2000 ft-lbf	2712 Nm
Backlash	30 arc-sec	30 arc-sec
Brake Torque	4000 ft-lbf	5423 Nm
Min Resolution	0.001 °	0.001 °
Indexing Accuracy	± 30 arc-sec	± 30 arc-sec
Repeatability	15 arc-sec	15 arc-sec
Rapids on B	36 °/sec	36 °/sec
Max Cutting B	36 °/sec	36 °/sec
Spindle Centerline to Table	5.75 in	146 mm

Feedrates	S.A.E	METRIC
Max Cutting	500 ipm	12.7 m/min
Rapids on X	600 ipm	15.2 m/min
Rapids on Y	600 ipm	15.2 m/min
Rapids on Z	600 ipm	15.2 m/min

Axis Motors	S.A.E	METRIC
Max Thrust X	4000 lbf	17793 N
Max Thrust Y	8000 lbf	35586 N
Max Thrust Z	8000 lbf	35586 N

General	S.A.E	METRIC
Coolant Capacity	95 gal	360 L

Tool Changer	S.A.E	METRIC
Type	SMTC	SMTC
Capacity	50+1	50+1
Max Tool Diameter (full)**	4.0 in	102 mm
Max Tool Diameter, Large (adjacent empty)**	10.0 in	254 mm
Max Tool Length (from gage line)	20.00 in	508 mm
Max Tool Weight	30.0 lb	13.6 kg
Tool-to-Tool (avg)	8.00 s	8.00 s
Chip-to-Chip (avg)	12.60 s	12.60 s

Air Requirements	S.A.E	METRIC
Air Required†	9 scfm @ 100 psi	255 L/min @ 6.9 bar
Inline Air Hose	3/8 in	3/8 in
Coupler (Air)	3/8 in	3/8 in
Air Pressure Min	80 psi	5.5 bar

Electrical Specification	S.A.E	METRIC
Spindle Speed	7500 rpm	7500 rpm
Drive System	2-Speed Gearbox	2-Speed Gearbox
Spindle Power	30.0 hp	22.4 kW
Input AC Voltage (3 Phase) - Low	220 VAC	220 VAC
Full Load Amps (3 Phase) - Low	70 A	70 A
Input AC Voltage (3 Phase) - High*	440 VAC	440 VAC
Full Load Amps (3 Phase) - High*	35 A	35 A

Dimensions - Shipping	S.A.E	METRIC
Domestic Pallet	192.0 in x 166.0 in x 136.0 in	488 cm x 422 cm x 346 cm
Export Crate	192.0 in x 166.0 in x 140.0 in	488 cm x 422 cm x 356 cm
Weight	29700 lb	13472.0 kg
Weight, Export Crate	31,400 lb	14,243.0 kg
Domestic Pallet w/70+1 SMTC	207.5 in x 163.0 in x 140.0 in	527 cm x 414 cm x 356 cm
Weight w/70+1 SMTC	31,279 lb	14,188.0 kg
Domestic Pallet w/Conveyor & 70+1 SMTC	207.5 in x 163.0 in x 140.0 in	527 cm x 414 cm x 356 cm
Weight w/Conveyor & 70+1 SMTC	32,320 lb	14,660.0 kg

NOTE: All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications.

*Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

**Optional tool changers may have a different max tool size than the standard tool changer. Extra-large tools may require two adjacent pockets empty between tools. Click here for toolholder specifications.

ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

† Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.

AVAILABLE OPTIONS

TECHNICAL DOCUMENTS

VIDEOS

CUSTOMER TESTIMONIALS

Available 4+1 Pallet Pool

Our 4+1 pallet pool for the Haas EC-1600ZT HMC is the perfect solution for automated loading and unattended machining of large, heavy parts. It's also well suited for low-volume repeat jobs, where you want to keep the fixturing intact between runs.

4-STATION

TECHNICAL DOCUMENTS

*NOTE: Due to continual design improvements, 3D models and layout drawings may not be accurate to the latest production model.

VIDEOS

Horizontal Mill: A Quick Overview

Whether you need a horizontal machining center for high-volume production and unattended operation or really big work cubes and maximum weight capacity, Haas has an HMC that should fit the bill. This video gives an overview of our pallet changing mills, large-frame HMCs, and five-axis horizontal mills.

The Redesigned EC-1600

The popular EC-1600 has received a host of improvements, making it better than ever, like a faster spindle and tool changer, more rigid castings, and new operator-convenience features.

Wireless Intuitive Probing System

With the Haas Wireless Intuitive Probing System (WIPS), you can set tool and work offsets in a fraction of the time. No more edge finders or slips of paper under the tool needed.

The Haas EC-1600ZT-5AX

We took our tried-and-true EC-1600ZT, and added 4th- and 5th-axis capabilities to create an HMC capable of full 5-axis machining on large parts.

Display Pictures and Videos on Your Haas Control Using M130

Mark shows off the powerful Haas M130 Media Display feature. By commanding an M130, you can display setup sheets, tool lists, work instructions, and even videos – all from within your program.

CUSTOMER TESTIMONIALS

Actron Engineering

“The decision to buy an EC-1600ZT came about because we started getting some larger parts and that we felt we could hit from all four sides. We also felt that a lot of the fabrications we were doing required too much setup on the verticals, and we liked the ability to rotate on the C-axis to get all around the part to do different types of machining.”

– John Staszewski, President, Actron Engineering

Customer Spotlight - Straton Industries

Straton Industries has been using Haas CNC machine tools for the last 5 years to machine parts for aerospace and space exploration. They started with a UMC-750 5-axis universal machining center, and have since added five more Haas machines, including two UMC-500SS 5-axis universal machining centers, two EC-1600ZT horizontal machining centers, and an ST-20Y turning center.

SMALLER WORK ENVELOPE

EC-1600

CNC Horizontal Mill with 64" x 50" x 32" travels

50 Taper
3 Axis
7.5k RPM
50+1 Tool Capacity

Learn More Build & Price

VMC w/ SMALLER WORK ENVELOPE

VF-8/40

CNC Vertical Mill with 64" x 40" x 30" travels

40 Taper
3 Axis
8.1k RPM
30+1 Tool Capacity

Learn More Build & Price

Platter Diameter – Optional 4th Axis: 30" (762 mm)

Max Part Swing, EC-1600ZT: 78" (1981 mm)

All VF-2 columns are machined on EC-1600s

HAAS MACHINES MAKING HAAS MACHINES!

HAAS ROTARY	HAAS MACHINE	ROTARY FIT TYPE	WARNING
HA2TS	EC-1600ZT	POSITIVE FIT
HA5C	EC-1600ZT	POSITIVE FIT
HA5C2	EC-1600ZT	POSITIVE FIT
HA5C3	EC-1600ZT	POSITIVE FIT
HA5C4	EC-1600ZT	POSITIVE FIT
HA5CS	EC-1600ZT	POSITIVE FIT
HRC160	EC-1600ZT	POSITIVE FIT
HRC210	EC-1600ZT	POSITIVE FIT
HRT160	EC-1600ZT	POSITIVE FIT
HRT160-2	EC-1600ZT	POSITIVE FIT
HRT160SP	EC-1600ZT	POSITIVE FIT
HRT160SS	EC-1600ZT	POSITIVE FIT
HRT210	EC-1600ZT	POSITIVE FIT
HRT210-2	EC-1600ZT	POSITIVE FIT
HRT210M	EC-1600ZT	POSITIVE FIT
HRT210SP	EC-1600ZT	POSITIVE FIT
HRT310	EC-1600ZT	POSITIVE FIT
HRT310SP	EC-1600ZT	POSITIVE FIT
HRT450	EC-1600ZT	POSITIVE FIT
TH450	EC-1600ZT	POSITIVE FIT
HRTA5	EC-1600ZT	POSITIVE FIT
HRTA6	EC-1600ZT	POSITIVE FIT
T5C	EC-1600ZT	POSITIVE FIT
T5C2	EC-1600ZT	POSITIVE FIT
T5C3	EC-1600ZT	POSITIVE FIT
T5C4	EC-1600ZT	POSITIVE FIT
TR160	EC-1600ZT	POSITIVE FIT
TR160-2	EC-1600ZT	POSITIVE FIT
TR200Y	EC-1600ZT	POSITIVE FIT
TR210	EC-1600ZT	POSITIVE FIT
TR310	EC-1600ZT	POSITIVE FIT
TRT100	EC-1600ZT	POSITIVE FIT
TRT160	EC-1600ZT	POSITIVE FIT
TRT210	EC-1600ZT	POSITIVE FIT
TRT70	EC-1600ZT	POSITIVE FIT
HRT210HT	EC-1600ZT	POSITIVE FIT
TH240	EC-1600ZT	POSITIVE FIT
HA5C2-T	EC-1600ZT	POSITIVE FIT
HRT210SS	EC-1600ZT	POSITIVE FIT
HA5C-T	EC-1600ZT	POSITIVE FIT
HA5C3-T	EC-1600ZT	POSITIVE FIT
HA5C4-T	EC-1600ZT	POSITIVE FIT
TRT310	EC-1600ZT	POSITIVE FIT
HRT310SS	EC-1600ZT	POSITIVE FIT
HRT630	EC-1600ZT	POSITIVE FIT
LT350	EC-1600ZT	POSITIVE FIT
HRT210VM	EC-1600ZT	POSITIVE FIT
LT260	EC-1600ZT	POSITIVE FIT
HRT200HS	EC-1600ZT	POSITIVE FIT
HQDA5	EC-1600ZT	POSITIVE FIT
TR500SS	EC-1600ZT	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
