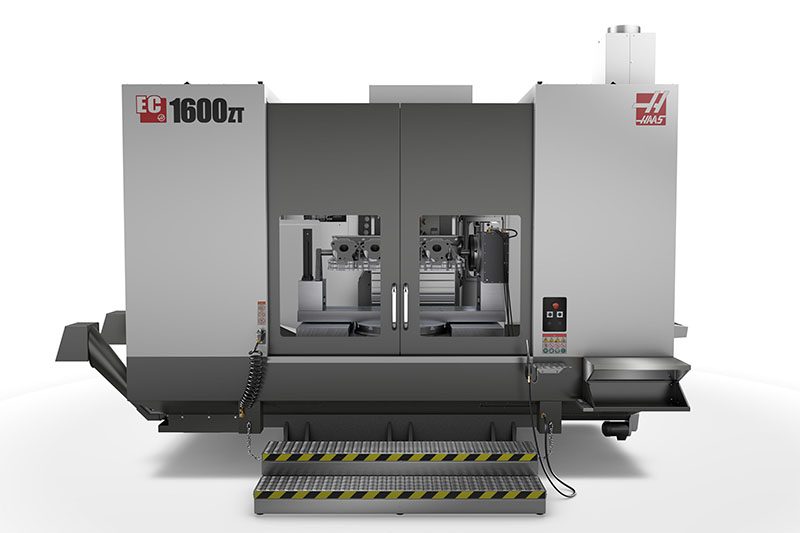

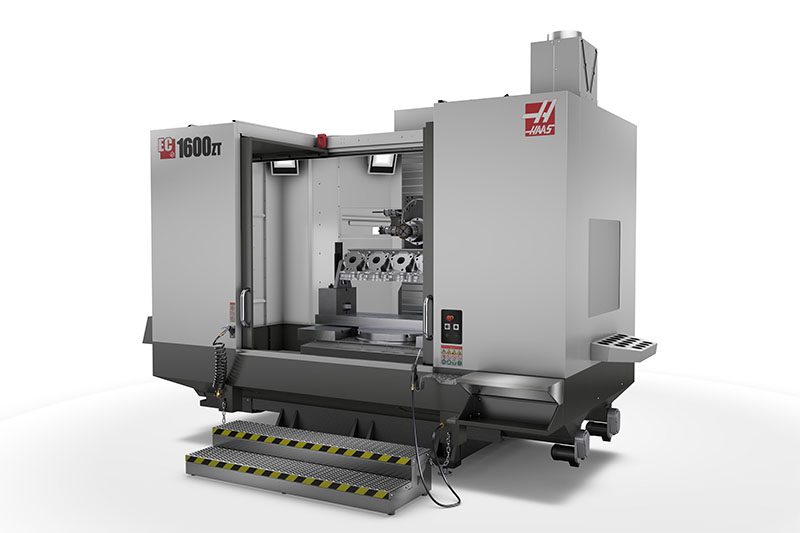

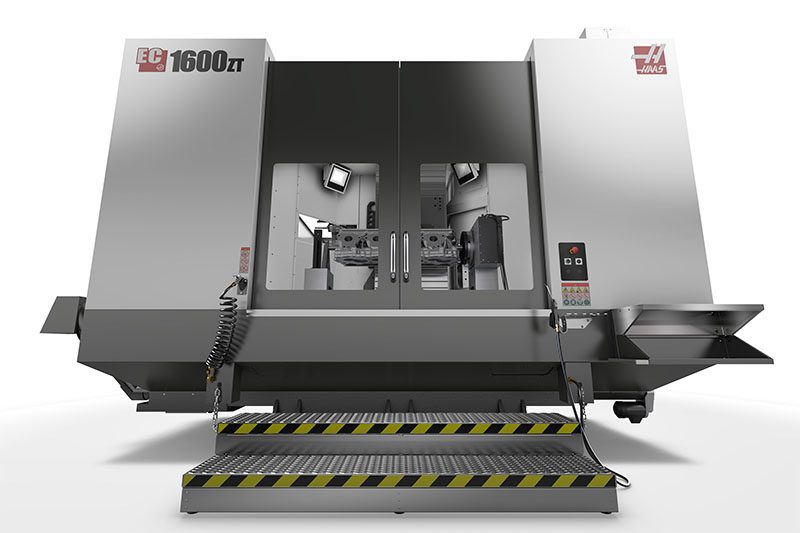

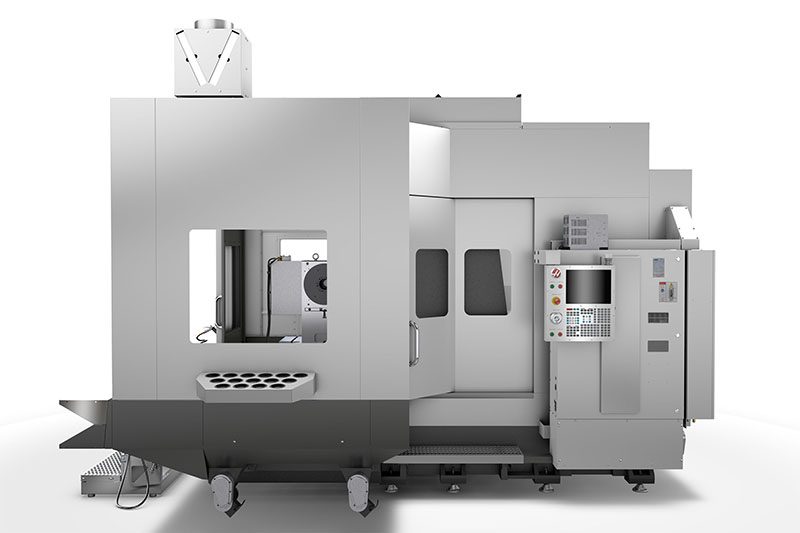

EC-1600ZT-5AX




For the best pricing in your area, contact your local Haas Factory Outlet.

5-Axis CNC Horizontal Mill with 64" x 50" x 40" travels
  • Extended Z-axis travel
  • 50-taper spindle with a 2-speed gearbox
  • Standard side-mount tool changer, 50+1 tools
  • Includes DWO/TCPC and Wireless Intuitive Probing System
  • 78" max part swing on integrated 4th axis

The highly popular Haas EC Series HMCs offer large work cubes and a maximum part capacity of 10,000 lb, making them perfect solutions for your large-part machining requirements.

The EC-1600ZT-5AX has a 4th-axis rotary platter integrated into the T-slot table that provides ± 30 degrees of tilt. The 5th-axis consists of an HRT310 with an A-frame support mounted on a removable riser block that can support a part up to 55.875" long.

  • 50 Taper
  • 5 Axis
  • 7.5k RPM
  • 50+1 Tool Capacity

EC-1600ZT

DOWNLOAD BROCHURE

HAAS JOURNAL

    Compare Machines
    BUILD & PRICE
    Contact Distributor
    Travels S.A.E METRIC
    X Axis 64.00 in 1626 mm
    Y Axis 50.00 in 1270 mm
    Z Axis 40.00 in 1016 mm
    Spindle S.A.E METRIC
    Max Rating 30.0 hp 22.4 kW
    Max Speed 7500 rpm 7500 rpm
    Max Torque 340.0 ft-lbf @ 700 rpm 460.0 Nm @ 700 rpm
    Drive System 2-Speed Gearbox 2-Speed Gearbox
    Taper CT or BT 50 CT or BT 50
    Table S.A.E METRIC
    Length 64.0 in 1626 mm
    Width 32.0 in 813 mm
    T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
    T-Slot Center Distance 5.70 in 145 mm
    Number of Std T-Slots 5 5
    Max Weight on Table (evenly distributed) 10000 lb 4536 kg
    Integrated 4th Axis (B Axis) S.A.E METRIC
    Table 64 in x 32 in 1626 mm x 813 mm
    Platter Diameter 30.00 in 762 mm
    Travel ± 30 ° to 30- ° 30 ° to 30- °
    Max Part Swing 78.0 in 1981 mm
    Max Weight on Platter 10000 lb 4536.0 kg
    Max Rating 5.0 hp 3.7 kW
    Rotational Torque (continuous) 2000 ft-lbf 2712 Nm
    Backlash 30 arc-sec 30 arc-sec
    Gear Ratio 500:1 500:1
    Brake Torque 4000 ft-lbf 5423 Nm
    Min Resolution 0.001 ° 0.001 °
    Indexing Accuracy ± 30 arc-sec ± 30 arc-sec
    Repeatability 15 arc-sec 15 arc-sec
    Rapids on B 36 °/sec 36 °/sec
    Max Cutting B 36 °/sec 36 °/sec
    Spindle Centerline to Table 5.75 in 146 mm
    5th Axis (HRT310) A Axis S.A.E METRIC
    Travel 360 ° 360 °
    Platter Diameter 12.20 in 310 mm
    Number of Std T-Slots 6 EA @ 60 ° 6 EA @ 60 °
    Max Speed 75 °/sec 75 °/sec
    Torque (Continuous) 300 ft-lbf 407 Nm
    Brake Torque 500 ft-lbf 678 Nm
    Center Height 9.000 in 228.60 mm
    Max Weight on Platter (unsupported) 218 lb 98.9 kg
    Max Weight on Platter (w/support) 435 lb 197.3 kg
    General S.A.E METRIC
    Coolant Capacity 95 gal 360 L
    Tool Changer S.A.E METRIC
    Type SMTC SMTC
    Capacity 50+1 50+1
    Max Tool Diameter (full)** 4.0 in 102 mm
    Max Tool Diameter, Large (adjacent empty)** 10.0 in 254 mm
    Max Tool Length (from gage line) 20.00 in 508 mm
    Max Tool Weight 30.0 lb 13.6 kg
    Tool-to-Tool (avg) 8.00 s 8.00 s
    Chip-to-Chip (avg) 12.60 s 12.60 s
    Air Requirements S.A.E METRIC
    Air Required† 9 scfm @ 100 psi 255 L/min @ 6.9 bar
    Electrical Specification S.A.E METRIC
    Spindle Speed 7500 rpm 7500 rpm
    Drive System 2-Speed Gearbox 2-Speed Gearbox
    Spindle Power 30.0 hp 22.4 kW
    Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
    Full Load Amps (3 Phase) - Low 70 A 70 A
    Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
    Full Load Amps (3 Phase) - High* 35 A 35 A

    NOTE: All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications.

    *Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

    Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

    **Optional tool changers may have a different max tool size than the standard tool changer. Extra-large tools may require two adjacent pockets empty between tools. Click here for toolholder specifications.

    ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

    † Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.
