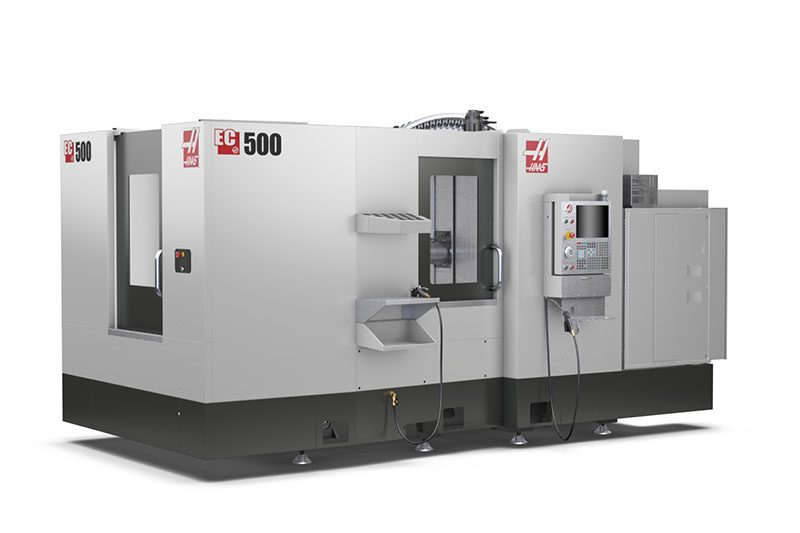

EC-500/50




For the best pricing in your area, contact your local Haas Factory Outlet.

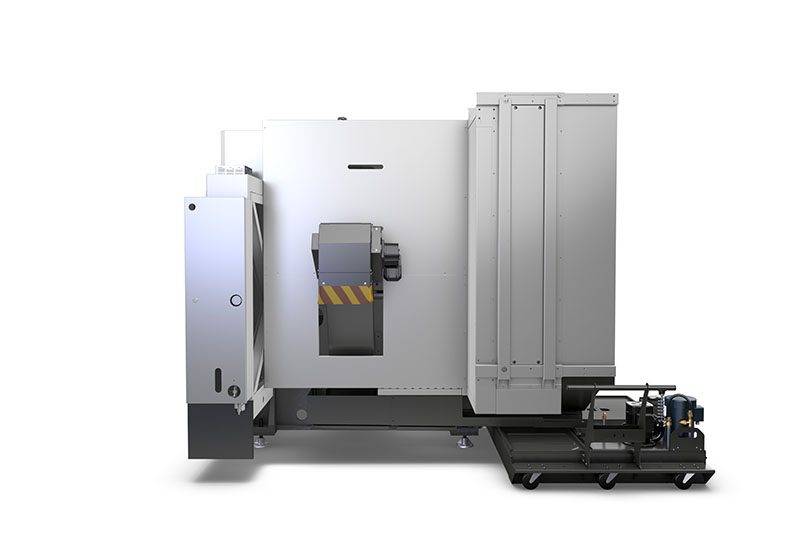

500 mm Twin-Pallet HMC, 50-Taper, 32" x 25" x 28" travels

Designed for high-volume production and unattended operation for larger parts and tombstones, the EC-500/50 offers 50-taper power and a large work envelope with the smaller footprint of a 40-taper pallet-changing machine. It features fast rapids, a full 4th-axis rotary system for synchronous motion, and a rear-exit chip conveyor for efficient chip management.

  • Powerful 50-taper spindle for heavy cutting
  • Standard 50+1 tool side-mount tool changer
  • Built-in pallet changer with 500 mm pallets
  • Full 4th-axis rotary system
  • 50 Taper
  • 4 Axis
  • 7.5k RPM
  • 50+1 Tool Capacity
Compare Machines
BUILD & PRICE
Contact Distributor
Travels S.A.E METRIC
X Axis 32.00 in 813 mm
Y Axis 25.00 in 635 mm
Z Axis 28.00 in 711 mm
Spindle Centerline to Pallet 1.10 in 28 mm
Spindle S.A.E METRIC
Max Rating 30.0 hp 22.4 kW
Max Speed 7500 rpm 7500 rpm
Max Torque 340.0 ft-lbf @ 700 rpm 460.0 Nm @ 700 rpm
Drive System 2-Speed Gearbox 2-Speed Gearbox
Taper CT or BT 50 CT or BT 50
Bearing Lubrication Air / Oil Injection Air / Oil Injection
Cooling Air Cooled Air Cooled
Integrated 4th Axis (B Axis) S.A.E METRIC
90° Rotation Time (full 4th) 3.0 s 3.0 s
Max Weight on Platter 880 lb 400.0 kg
Rotational Torque (continuous) 424 ft-lbf 575 Nm
Backlash 30 arc-sec 30 arc-sec
Gear Ratio 106:1 106:1
Brake Torque 2500 ft-lbf 3390 Nm
Min Resolution 0.001 ° 0.001 °
Indexing Accuracy ± 15 arc-sec ± 15 arc-sec
Repeatability 10 arc-sec 10 arc-sec
Rapids on B 150 °/sec 150 °/sec
Feedrates S.A.E METRIC
Max Cutting 500 ipm 12.7 m/min
Rapids on X 710 ipm 18.0 m/min
Rapids on Y 710 ipm 18.0 m/min
Rapids on Z 710 ipm 18.0 m/min
Axis Motors S.A.E METRIC
Max Thrust X 4054 lbf 18033 N
Max Thrust Y 2854 lbf 12695 N
Max Thrust Z 4054 lbf 18033 N
Pallet Changer S.A.E METRIC
Pallet Quantity 2 2
Pallet Length 19.69 in 500 mm
Pallet Width 19.69 in 500 mm
Max Pallet Load 880 lb 400.0 kg
Max Part Diameter 29.5 in 749 mm
Max Part Height 36.5 in 927 mm
Pallet Change Time 15 s 15 s
General S.A.E METRIC
Coolant Capacity 95 gal 360 L
Tool Changer S.A.E METRIC
Type SMTC SMTC
Capacity 50+1 50+1
Max Tool Diameter (full)** 4.0 in 102 mm
Max Tool Diameter, Large (adjacent empty)** 8.0 in 203 mm
Max Tool Length (from gage line) 16.00 in 406 mm
Max Tool Weight 30.0 lb 13.6 kg
Tool-to-Tool (avg) 4.20 s 4.20 s
Chip-to-Chip (avg) 6.30 s 6.30 s
Air Requirements S.A.E METRIC
Air Required† 9 scfm @ 100 psi 255 L/min @ 6.9 bar
Inline Air Hose 1/2 in 1/2 in
Coupler (Air) 1/2 in 1/2 in
Air Pressure Min 100 psi 6.9 bar
Electrical Specification S.A.E METRIC
Spindle Speed 7500 rpm 7500 rpm
Drive System 2-Speed Gearbox 2-Speed Gearbox
Spindle Power 30.0 hp 22.4 kW
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 70 A 70 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 35 A 35 A
Dimensions - Shipping S.A.E METRIC
Domestic Pallet 230.0 in x 126.0 in x 118.0 in 584 cm x 320 cm x 300 cm
Export Pallet 230.0 in x 126.0 in x 123.0 in 584 cm x 320 cm x 312 cm
Weight 26000 lb 11820.0 kg

Overview

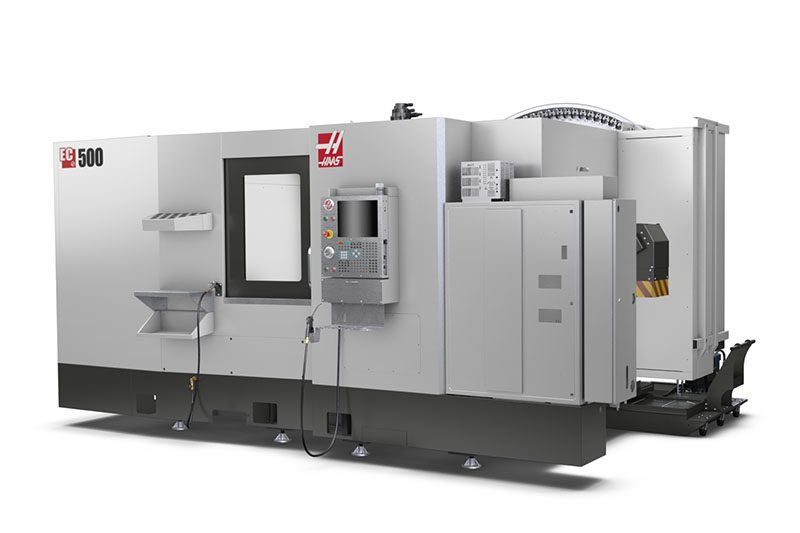

The EC-500/50 adds a robust 50-taper spindle to our popular 500 mm pallet-changing horizontal machining center to create a high-performance HMC with 50-taper cutting ability in a smaller footprint.

Specification Comparison (Inch)

NOTE: Pre-production specifications and dimensions; subject to change without notice. NEW MODEL PREVIOUS MODEL
Axis Travels (X, Y, Z) 32" x 25" x 28" 32" x 20" x 28"
Optional Spindle Specifications (speed, power, taper) 10,000 rpm, 60 hp, 50T 12,000 rpm, 30 hp, 40T
Tool Changer Capacity 50+1 40+1
Optional Tool Changer Capacity N/A 70+1
Rapids (X, Y, Z) 1000 in/min 1000 in/min
Maximum Feedrate 500 in/min 500 in/min
90° Rotation Time 3 sec 5.5 sec
Maximum Weight on Pallet 880 lb 660 lb
Rotational Torque (Continuous) 424 ft-lb 300 ft-lb

Specification Comparison (Metric)

NOTE: Pre-production specifications and dimensions; subject to change without notice. NEW MODEL PREVIOUS MODEL
Axis Travels (X, Y, Z) 813 x 635 x 711 mm 813 x 508 x 711 mm
Optional Spindle Specifications (RPM, Hp, Taper) 10,000 rpm, 44.7 kW, 50T 12,000 rpm, 22.4 kW, 40T
Tool Changer Capacity 50+1 40+1
Optional Tool Changer Capacity N/A 70+1
Rapids (X, Y, Z) 25.4m/min 25.4 m/min
Maximum Feedrate 12.7 m/min 12.7 m/min
90° Rotation Time 3 sec 5.5 sec
Maximum Weight on Pallet 400 kg 300 kg
Rotational Torque (Continuous) 575 Nm 407 Nm

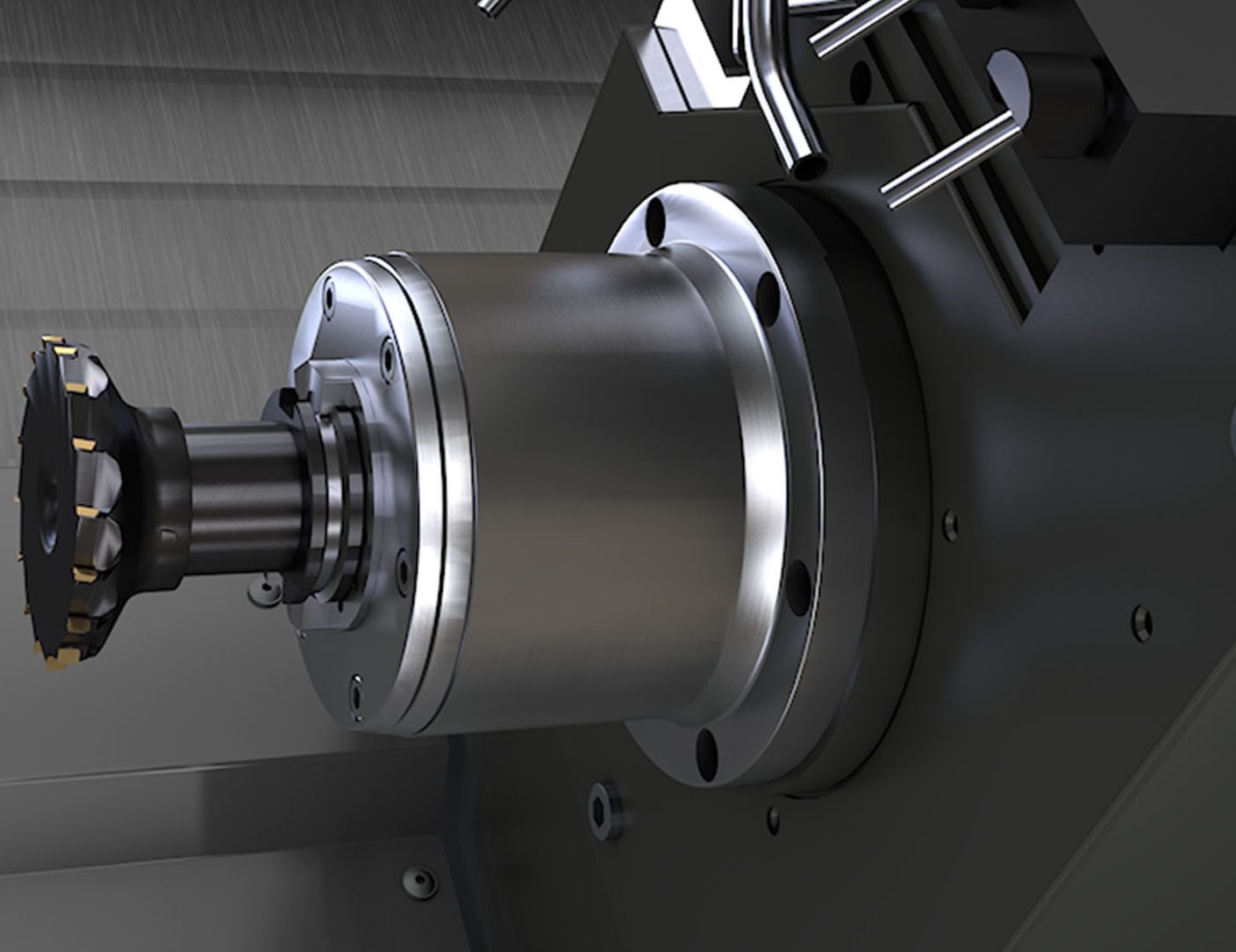

50-Taper Spindle

The EC-500/50 comes standard with our 7500-rpm 50-taper spindle, which uses a Haas-built two-speed gearbox to provide a wide constant horsepower band, good low-speed torque for heavy cuts, and higher torque throughout the range above 500 rpm.

For heavy cuts and high material-removal rates, a high-performance 7500-rpm spindle is also available. Powered by a 60 hp vector drive, this spindle provides higher power throughout the rpm range than the standard spindle. A 10,000-rpm, 60 hp spindle is also available.

  • 2-speed gearbox designed, manufactured, and built in-house
  • More power for larger diameter tools and tougher materials
  • Automatic High or Low gear selection, based on commanded rpm
  • User-programmable selection of High or Low gear via M-codes

Optional 7500-rpm, 60 Horsepower (44.7 kW) Peak Vector Drive Spindle CLICK HERE

Optional 10,000-rpm, 60 Horsepower (44.7 kW) Peak Vector Drive Spindle CLICK HERE

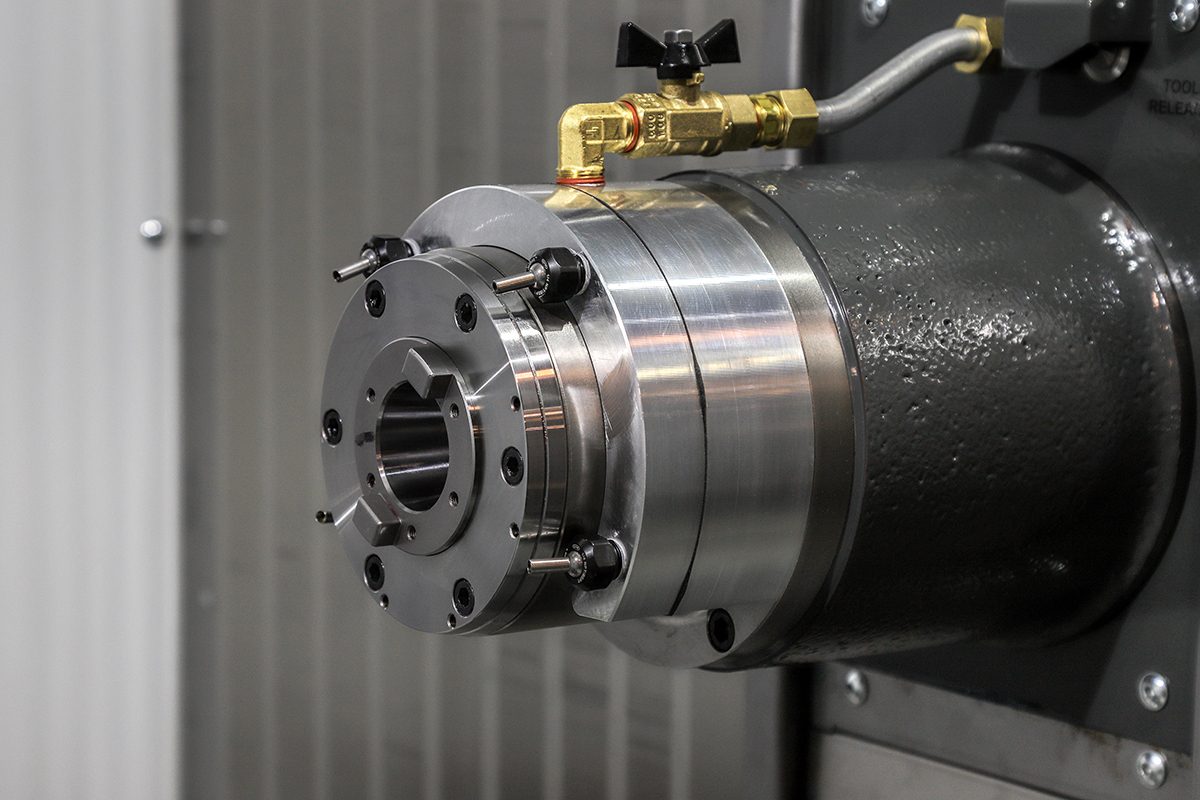

EC-500/50 Coolant Ring

The 4-nozzle coolant ring surrounding the spindle nose is perfectly positioned so that nozzles can be pointed at the shortest tools, and others can be positioned for longer tools. The compact, cylindrical design prevents chips from collecting on top. NOTE: The Haas Programmable Coolant Nozzle (P-COOL) is not available on the EC-500/50.

EC-500/50 Chip Management

The completely redesigned EC-500/50 has been improved from the ground up, with all new castings for increased rigidity, better cutting performance, 5 more inches of Y-axis travel, and vastly improved chip evacuation.

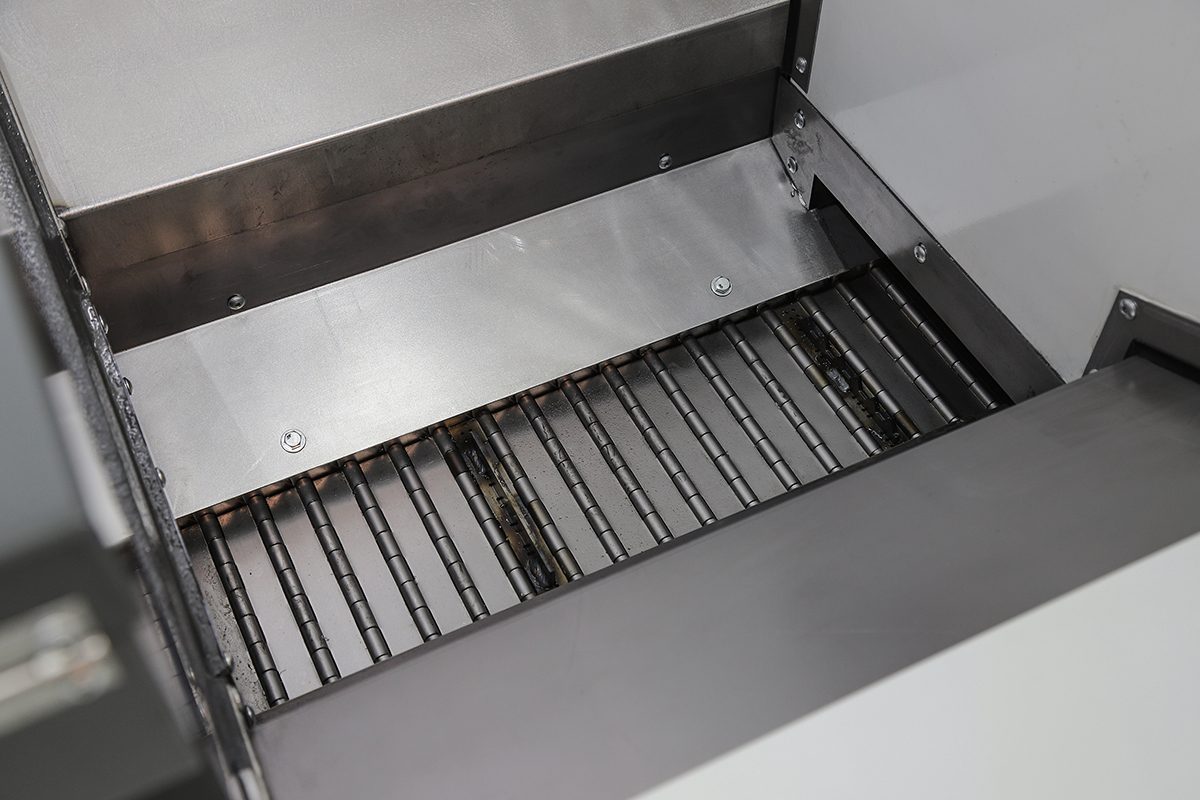

At the heart of the EC-500/50’s improved chip management system is a wider belt-type chip conveyor positioned in the center of the machine, directly under the spindle. The steep walls of the interior enclosure easily funnel chips to the conveyor.

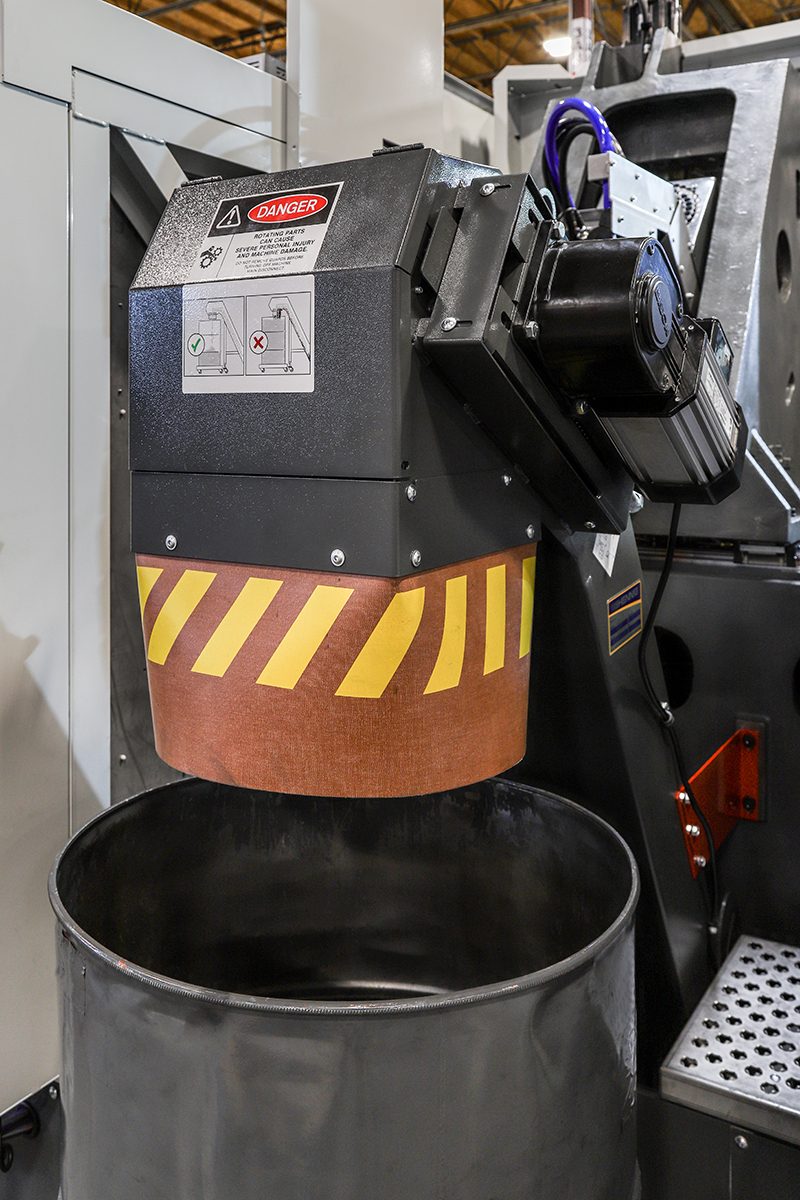

The conveyor discharges chips at the height of a full-size industrial barrel. Washdown nozzles mounted in the ceiling are fed by a separate coolant pump, and allow you to direct coolant flow to areas where chips may gather, to further enhance chip evacuation.

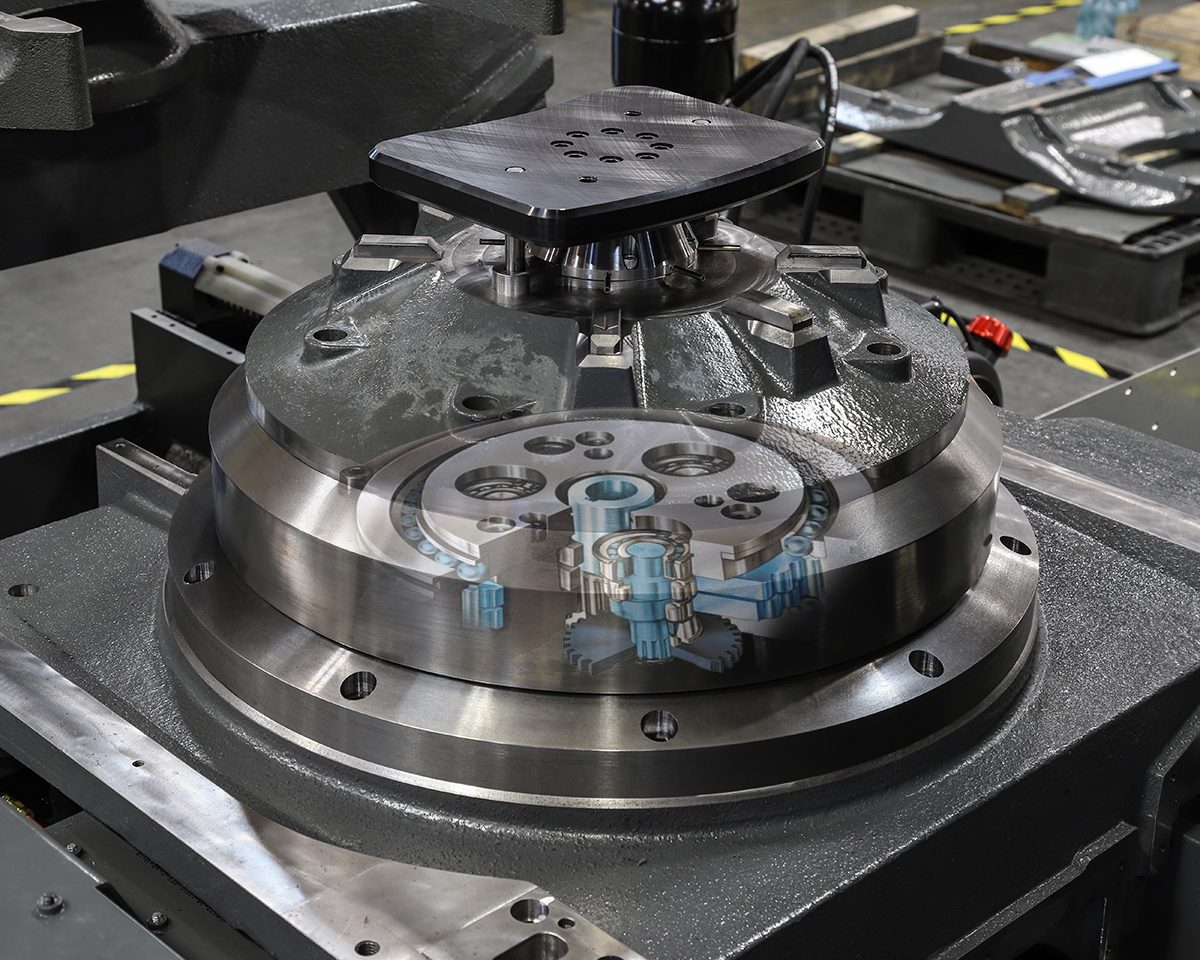

EC-500/50 Cycloidal Rotary Drive

The cycloidal rotary drive system – designed for machine tools and robotics – provides a great combination of speed, accuracy, and durability to the B axis. The rugged design provides long service life, with little or no maintenance, and is especially durable in a crash. The cycloidal rotary drive can be back driven to absorb energy from an impact. The shock-load capacity is 5 times the rated torque of the gearbox, and the entire gearbox is a simple drop-in replacement, should damage occur.

EC-500/50 Hydraulic Pallet-Clamping System

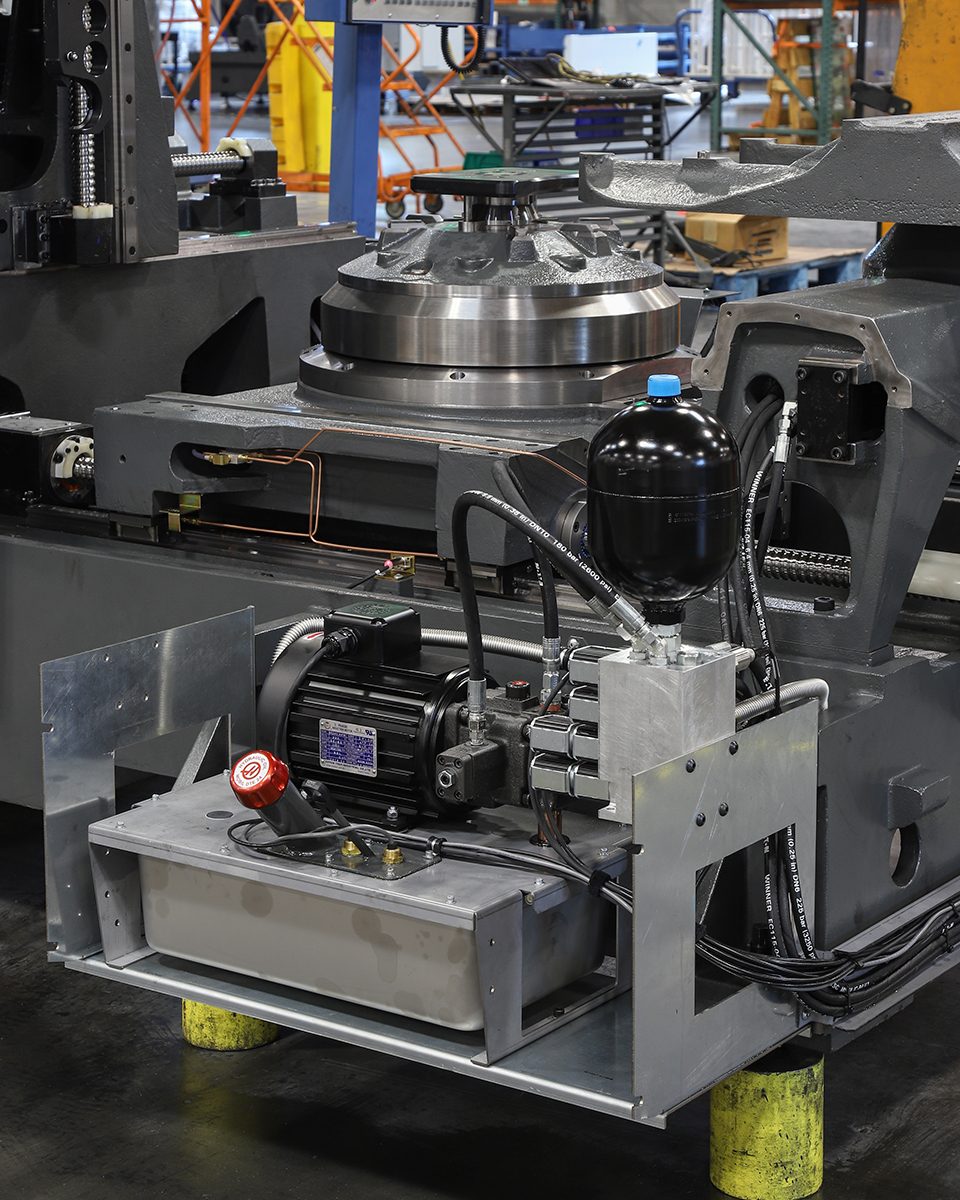

The hydraulic power unit provides power to clamp the pallets to the pallet receiver, as well as raise and lower the pallet-changer mechanism.

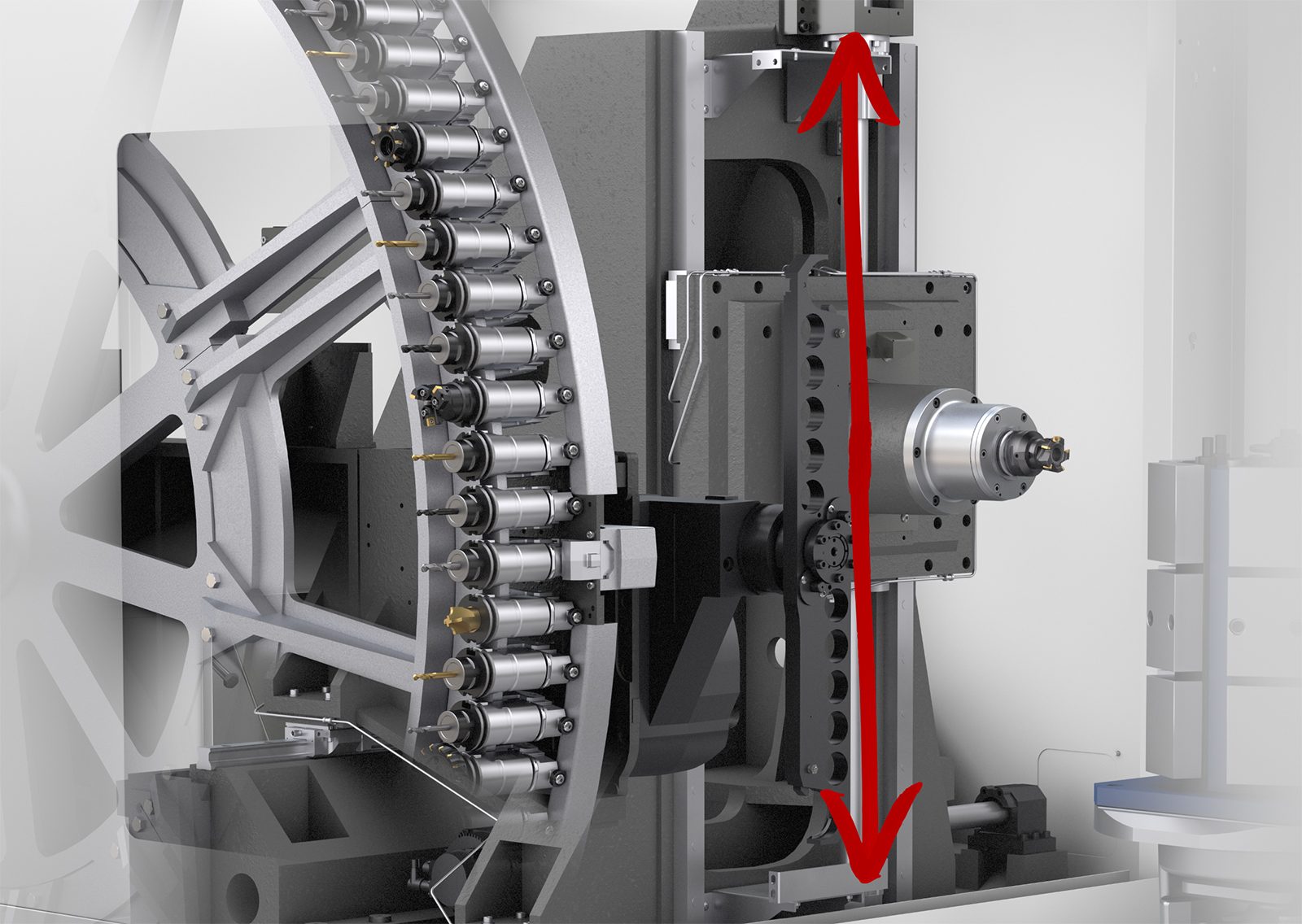

EC-500/50 Increased Axis Travels


An extra 5" (127 mm) of Y-axis travel can make all the difference in the world. Now, the spindle centerline can get 27.13" (689 mm) above the surface of the pallet.

EC-500/50 Stepped Base and Column

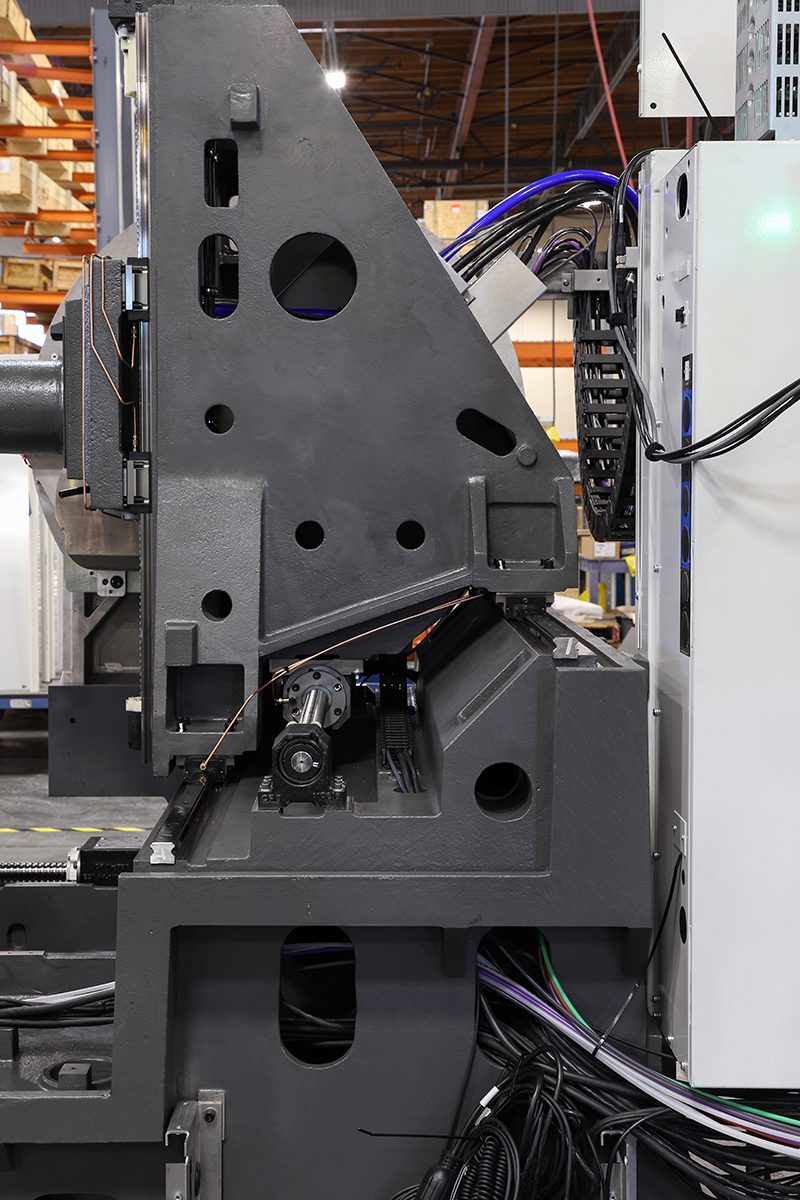

The stepped base and column design of the EC-500/50, where one X-axis linear guide rail is on a different horizontal plane than the other, increases the rigidity and stability of the spindle-head column assembly. With hydraulic pallet clamping and the stepped base/column design, the EC-500/50 is more rigid than ever, all the way to the top!

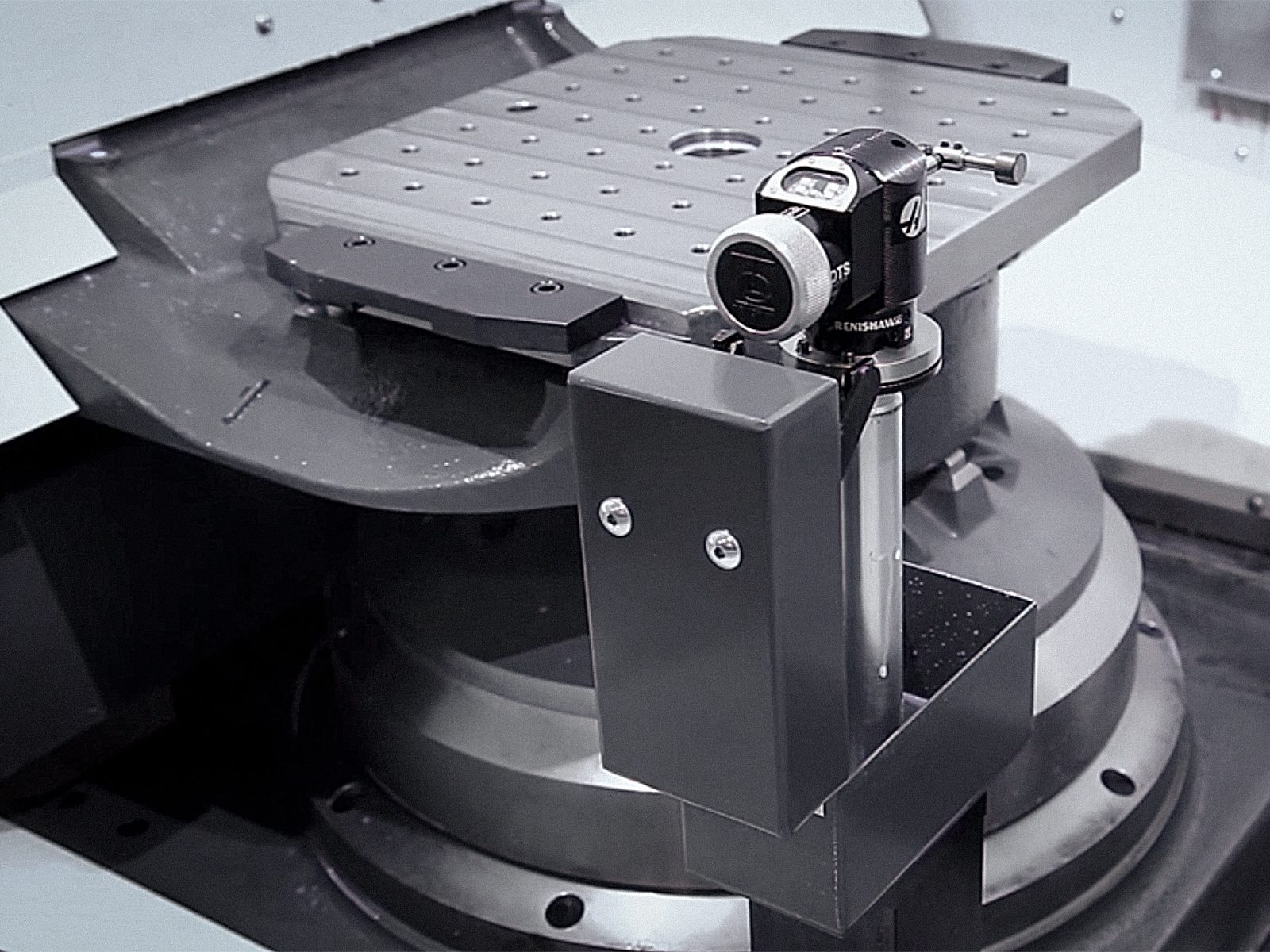

EC-500/50 Automatic Probe Riser


An automatic probe arm stores the tool setting probe in a protective compartment during machining operations. When the tool probe is needed, an M104 code activates the automatic probe arm to lift the probe and lock it into place. When probing is complete, an M105 retracts the probe to its protective compartment.

AVAILABLE OPTIONS

TECHNICAL DOCUMENTS

VIDEOS

RELATED PRODUCTS

NOTE: All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications.

*Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

**Optional tool changers may have a different max tool size than the standard tool changer. Extra-large tools may require two adjacent pockets empty between tools. Click here for toolholder specifications.

ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

† Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.
