CL-1

For the best pricing in your area, contact your local Haas Factory Outlet.

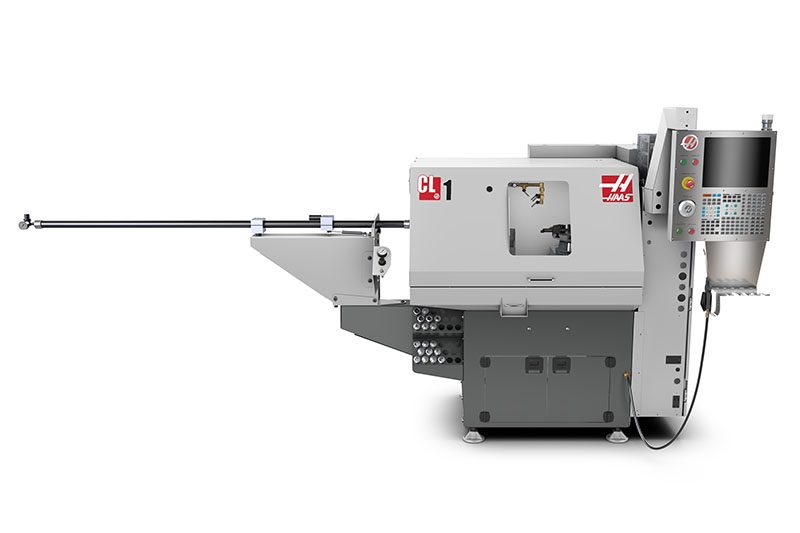

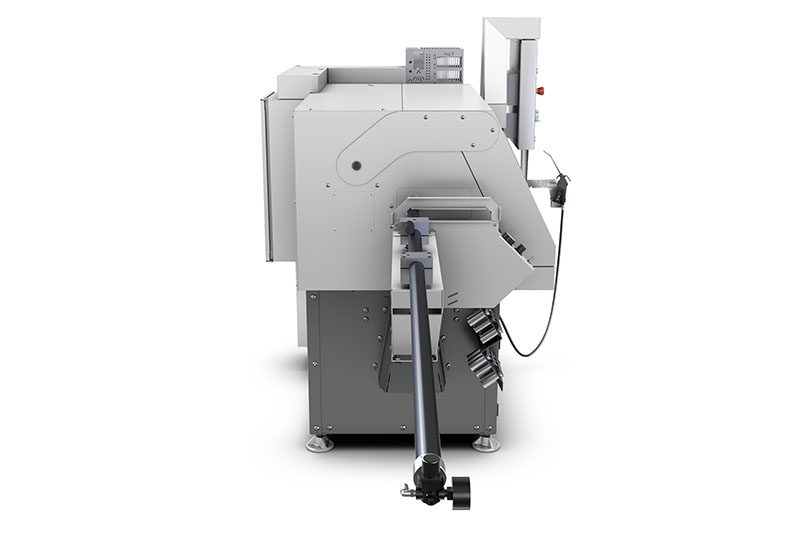

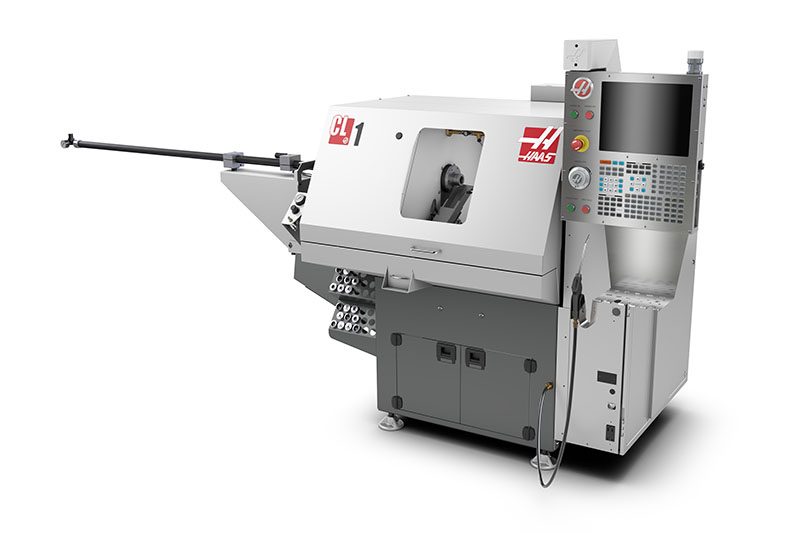

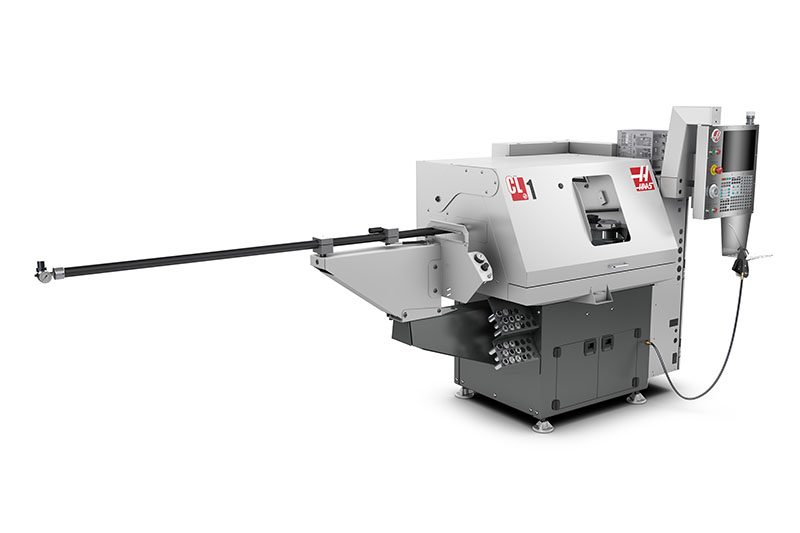

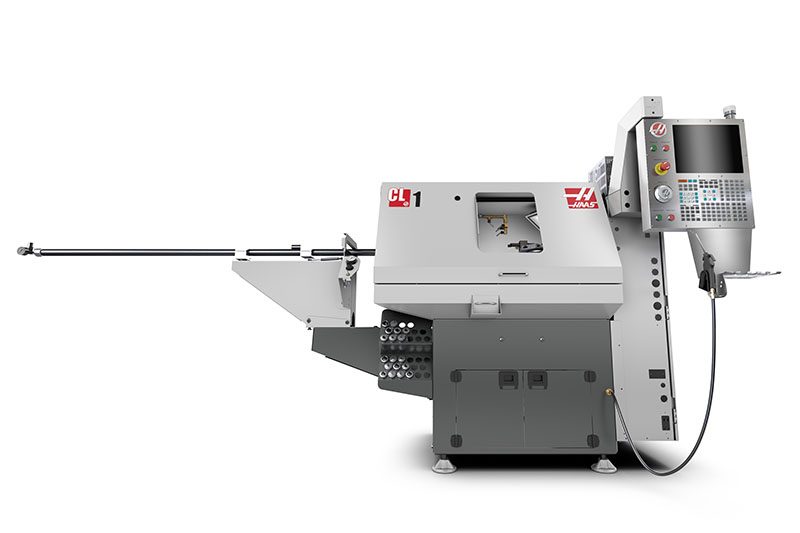

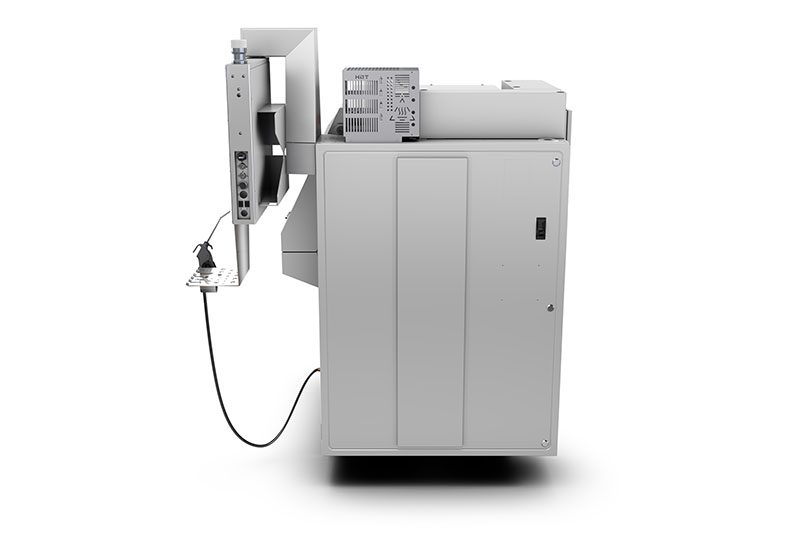

CNC Chucker Lathe with 1" bar capacity

The innovative CL-1 is an ultra-compact CNC chucker lathe that comes standard with an 8-station automatic turret, making it ideal for dedicated small-part production, second-op parts, or short runs and prototyping small parts, such as those found in the communications, aerospace, medical, and dental industries. The CL-1 can be moved easily with a pallet jack or equipment dolly, and is small enough to fit into most freight elevators.

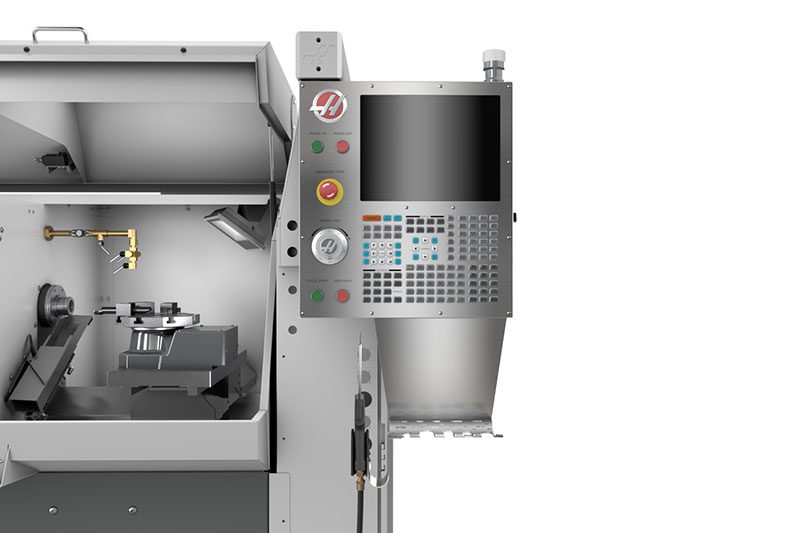

Ultra-compact chucker lathe

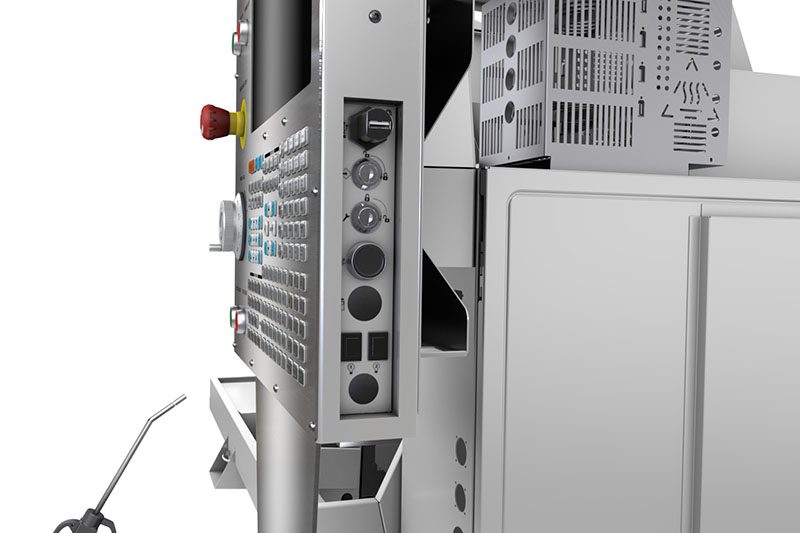

Operates on single- or three-phase power

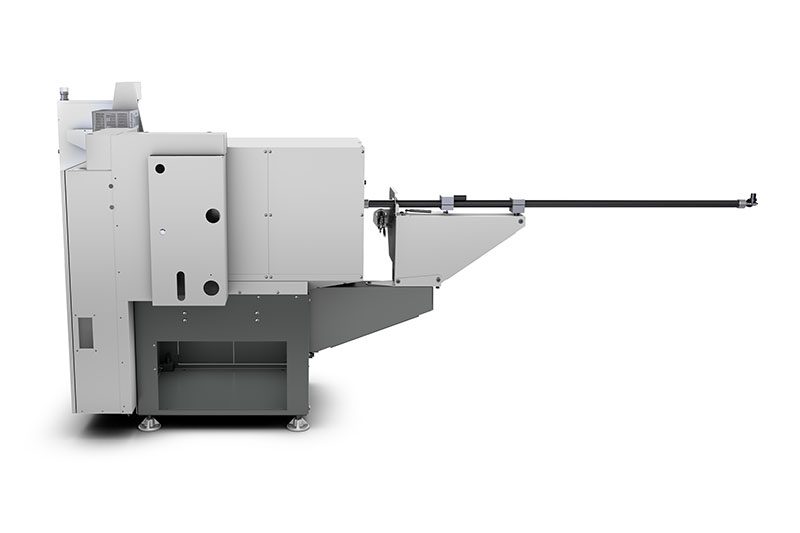

Can be moved easily with a pallet jack
Easy access to tank and pump for cleaning out chips

{{=tableHeader}}
Model	Serial#	Options

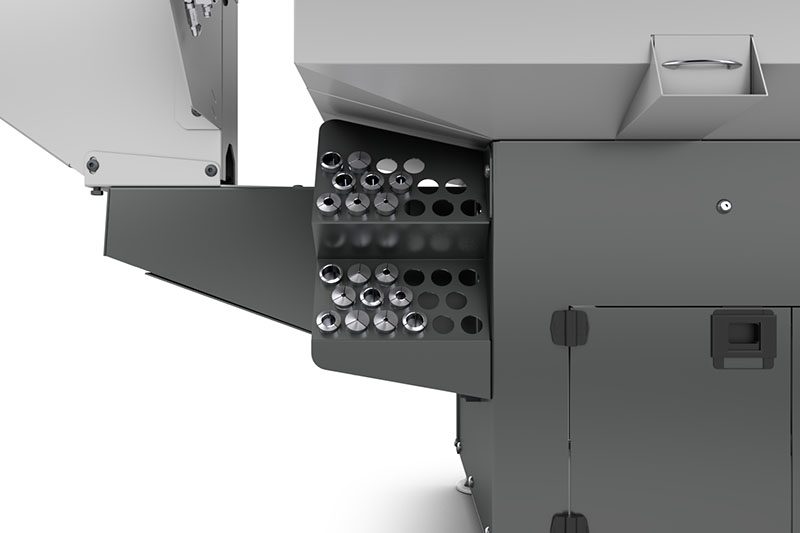

5C Nose Chuck Size
1.0" Bar Capacity
6k RPM
5 hp Power

Compare Machines

BUILD & PRICE

Contact Distributor

Build-&-Price
Specs
Machine Info

Swing Diameter	S.A.E	METRIC
Over Cross Slide	11.0 in	279 mm
Over Table	4.95 in	126 mm

Capacities	S.A.E	METRIC
Chuck Size (max)	4.0 in	102 mm
Max Cutting Diameter	4.95 in	126 mm
Bar Capacity	1.00 in	25 mm

Travels	S.A.E	METRIC
X Axis	12.00 in	305 mm
Z Axis	8.00 in	203 mm

Feedrates	S.A.E	METRIC
Max Cutting	500 ipm	12.7 m/min
Rapids on X	757 ipm	19.2 m/min
Rapids on Z	757 ipm	19.2 m/min

Axis Motors	S.A.E	METRIC
Max Thrust X	1149 lbf	5111 N
Max Thrust Z	1149 lbf	5111 N

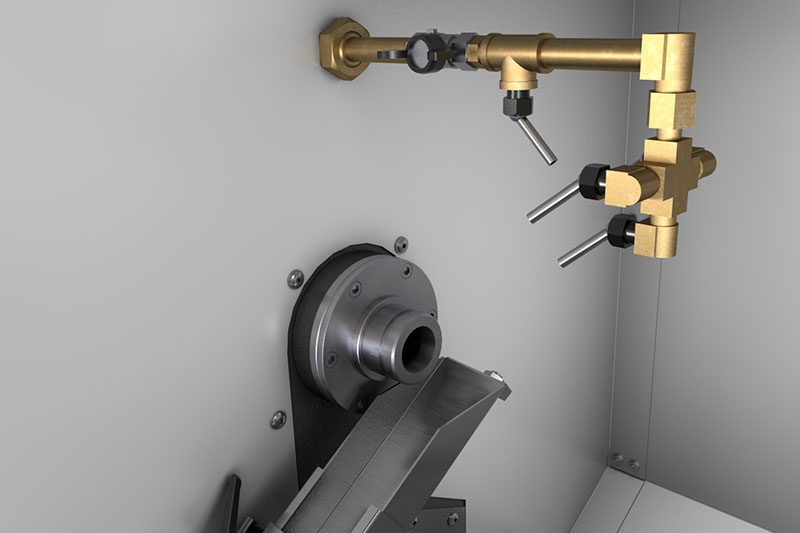

Spindle	S.A.E	METRIC
Spindle Nose	5C (collet) Type Nose	5C (collet) Type Nose
Nose Thread	2 3/16 in - 10	2 3/16 in - 10
Drive System	Direct Speed, Belt Drive	Direct Speed, Belt Drive
Max Rating	5.0 hp	3.7 kW
Max Speed	6000 rpm	6000 rpm
Spindle Bore ø	1.25 in	31.8 mm

Main Spindle C Axis	S.A.E	METRIC
Max Speed	160 rpm	160 rpm
Max Rating	5.0 hp	3.7 kW
Positioning (±)	0.01 °	0.01 °
Holding Torque	3.00 ft-lbf	4.1 Nm
Control Type	Interpolated Motion and Positioning	Interpolated Motion and Positioning

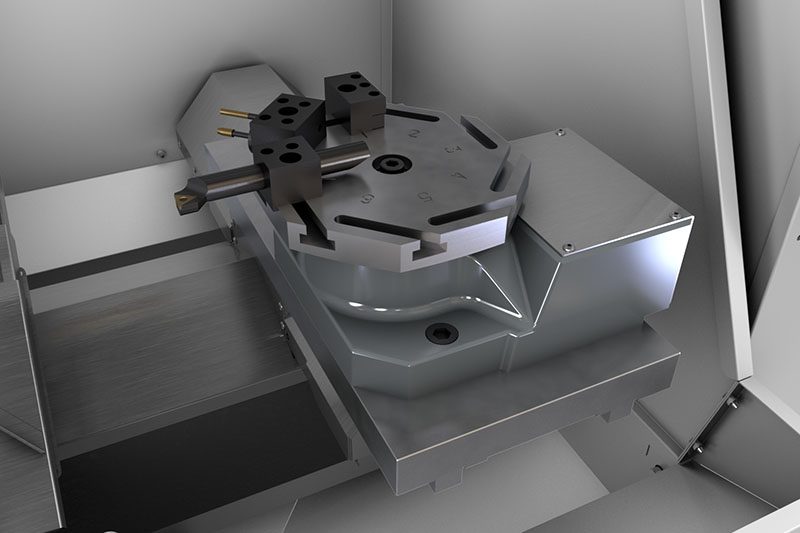

Tooling	S.A.E	METRIC
Tooling	Gang Style-Any Combination	Gang Style-Any Combination

General	S.A.E	METRIC
Coolant Capacity	13 gal	49 L

Air Requirements	S.A.E	METRIC
Air Required†	1 scfm @ 70 psi	28 L/min @ 4.8 bar
Inline Air Hose	3/8 in	3/8 in
Coupler (Air)	3/8 in	3/8 in
Air Pressure Min	70 psi	4.8 bar

Electrical Specification	S.A.E	METRIC
Spindle Speed	6000 rpm	6000 rpm
Drive System	Direct Speed, Belt Drive	Direct Speed, Belt Drive
Spindle Power	5.0 hp	3.7 kW
Input AC Voltage (1 Phase)	220 VAC	220 VAC
Full Load Amps (1 Phase)	16 A	16 A
Input AC Voltage (3 Phase) - Low	220 VAC	220 VAC
Full Load Amps (3 Phase) - Low	12 A	12 A

Dimensions - Shipping	S.A.E	METRIC
Domestic Pallet	78.0 in x 62.0 in x 80.0 in	199 cm x 157 cm x 204 cm
Export Pallet	78.0 in x 62.0 in x 80.0 in	199 cm x 157 cm x 204 cm
Weight	1940 lb	917.0 kg

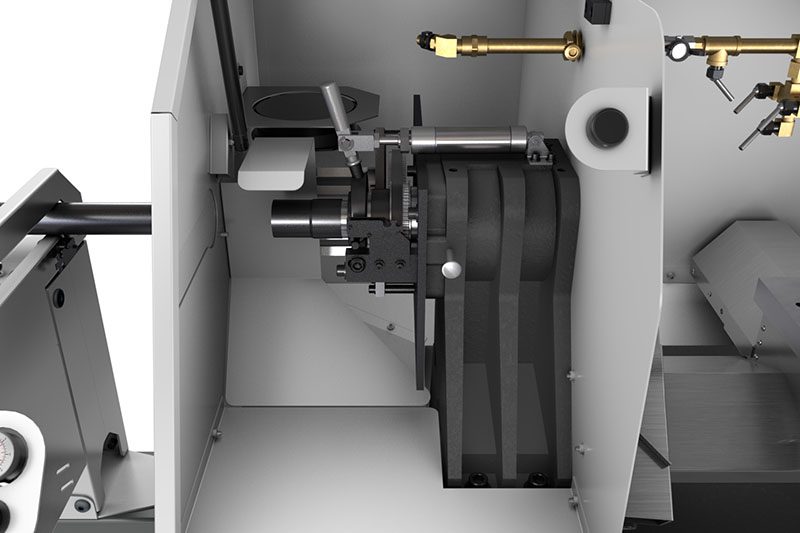

Domestic Pallet w/1 m Bar Feeder	99 in x 54 in x 82 in	252 cm x 137 cm x 208 cm
Export Pallet w/1 m Bar Feeder	99 in x 54 in x 82 in	252 cm x 137 cm x 208 cm
Weight w/1 m Bar Feeder	2060 lb	935 kg
Domestic Pallet w/6' Bar Feeder	120 in x 54 in x 82 in	305 cm x 137 cm x 208 cm
Export Pallet w/6' Bar Feeder	120 in x 54 in x 82 in	305 cm x 137 cm x 208 cm
Weight w/6' Bar Feeder	2240 lb	1017 kg

NOTE: All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications.

*Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

**Optional tool changers may have a different max tool size than the standard tool changer. Extra-large tools may require two adjacent pockets empty between tools. Click here for toolholder specifications.

ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

† Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.
