T5C2

For the best pricing in your area, contact your local Haas Factory Outlet.

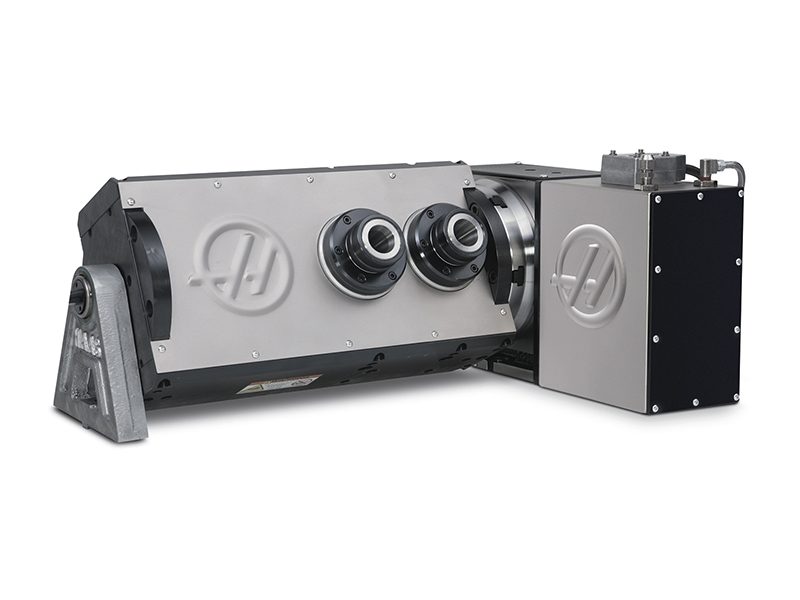

Tilting 2-Head 5C Indexer

The T5C2 is a dual-axis tilting rotary unit with two 5C collet rotary spindles. Clamp your parts using standard 5C collets, or chuck them by threading 3-jaw chucks to the spindle noses. This unit has no collet closing capability as standard. Optional collet closers are available.

Note: Requires a Haas mill with 4th- and 5-axis drive and NGC software version 100.21.000.1130 or later for full 4th- and 5th-axis operation.

Add 4- and 5-axis capabilities to your machine
Increased productivity with multiple rotary spindles
Easy plug-and-play connection to Haas machines
Industry-leading performance and capabilities

2 Spindles
5C Collet Size
25 ft-lb Max Torque
200 °/sec Max Speed

Compare Machines

BUILD & PRICE

Contact Distributor

Build-&-Price
Specs
Machine Info
Rotary Fit chart

Platter	S.A.E	METRIC
Max Weight on Platter	5 lb	2.3 kg

Spindle - A (tilt)	S.A.E	METRIC
Max Speed	60 °/sec	60 °/sec
Torque (Continuous)	210 ft-lbf	285 Nm
Runout Max	0.0005 in	0.013 mm
Backlash	30 arc-sec	30 arc-sec
Center Height	6.000 in	152.40 mm
Gear Ratio	90:1	90:1
Timing	2:1	2:1
Brake Torque @ 100 psi/6.9 bar	200 ft-lbf	271 Nm

Spindle - B (rotary)	S.A.E	METRIC
Number	2	2
Max Speed	200 °/sec	200 °/sec
Torque (Continuous)	25 ft-lbf	34 Nm
Nose Thread	2 3/16 in - 10	2 3/16 in - 10
Runout Max	0.0004 in	0.010 mm
Backlash	50 arc-sec	50 arc-sec
Center Height	6.000 in	152.40 mm
Gear Ratio	60:1	60:1
Collet Size	5C	5C

Indexing - A (tilt)	S.A.E	METRIC
Max Rotation/Step	± 120 °	± 120 °
Resolution	0.001 °	0.001 °
Accuracy (±)	± 15 arc-sec	± 15 arc-sec
Repeatability	10 arc-sec	10 arc-sec
Worm Gear Dia	6.3 in	160 mm

Indexing - B (rotary)	S.A.E	METRIC
Max Rotation/Step (with rotary control)	999.999 °	999.999 °
Resolution	0.001 °	0.001 °
Accuracy (±)	± 60 arc-sec	± 60 arc-sec
Repeatability	10 arc-sec	10 arc-sec
Worm Gear Dia	2.8 in	71 mm

General - A (tilt)	S.A.E	METRIC
Operating Temp (max ambient)	100 °F	38 °C

Air Requirements	S.A.E	METRIC
Air Pressure Max	150 psi	10.3 bar
Air Pressure Min	80 psi	5.5 bar

General - B (rotary)	S.A.E	METRIC
Operating Temp (max ambient)	100 °F	38 °C

Dimensions - Shipping	S.A.E	METRIC
Export Crate	47.0 in x 24.0 in x 19.0 in	119 cm x 61 cm x 48 cm
Weight	470 lb	214.0 kg

AVAILABLE OPTIONS

TECHNICAL DOCUMENTS

VIDEOS

CUSTOMER TESTIMONIALS

Tilting Indexers Model Guide

____________________________________________________

Don’t know where to start? Check out this video model guide to find the best one for your needs!

CYLINDRICAL ENGRAVING USING G47/G107

Your Haas mill plus G107 can have you engraving on a cylindrical part right away, and you don’t need an expensive CAM system to pull it off! In this third video in our 3-part series on engraving, Mark explains how to program cylindrical engraving in four easy steps.

UNWIND YOUR HAAS ROTARY QUICKLY

Today, Mark solves an issue every Haas Rotary user faces at some point: How do I get my rotary back to zero quickly?

How to Program a SAFE TOOL CHANGE POSITION

Mark shows you how to easily command a safe tool change position to avoid crashing a tool into your fixture or rotary. It’s all done with a simple program that you only need to write once, then you simply alias (reference) that program with a single M code!

Meet your new 5-axis compact machine

If you make small parts and have multiple setups, this rotary is probably right for you. Lightning fast and accurate, the TRT100 fits in nearly every Haas mill, and will help you cut cycle times and boost your shop’s efficiency.

CUSTOMER TESTIMONIALS

NEXXT SPINE LLC

“We’ve grown 30% every year since 2009,” says Nexxt President Andy Elsbury. He adds that the company produces about 800 PEEK spinal implants per year, but recent growth has been for titanium 3D-printed Matrixx implants. “That is where we are growing faster than 30%.”

Industry: Medical
Location: Noblesville, Indiana, USA
Number of Haas machines:

✔ (2) VM-3 Mold Machines with T5C2 tilting 2-head 5C indexers for 5-axis milling
✔ DM-2 Drill/Mill Center with T5C tilting 5C indexer for 5-axis milling
✔ DT-1 Drill/Tap Center with HA5C indexer for 4-axis work

Products they make on Haas machines: complex medical implants and instruments

ONE ROTARY SPINDLE

T5C

Tilting 5C Indexer

1 Spindles
5C Collet Size
60 ft-lb Max Torque
410 °/sec Max Speed

Learn More Build & Price

THREE ROTARY SPINDLES

T5C3

Tilting 3-Head 5C Indexer

3 Spindles
5C Collet Size
25 ft-lb Max Torque
200 °/sec Max Speed

Learn More Build & Price

FOUR ROTARY SPINDLES

T5C4

Tilting 4-Head 5C Indexer

4 Spindles
5C Collet Size
25 ft-lb Max Torque
200 °/sec Max Speed

Learn More Build & Price

HAAS ROTARY	HAAS MACHINE	ROTARY FIT TYPE	WARNING
T5C2	EC-1600	POSITIVE FIT
T5C2	EC-1600ZT	POSITIVE FIT
T5C2	GR-510	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
T5C2	GR-712	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
T5C2	MINIMILL	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
T5C2	MINIMILL2	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
T5C2	SMINIMILL	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
T5C2	SMINIMILL2	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
T5C2	TM-3	POSITIVE FIT
T5C2	TM-3P	POSITIVE FIT
T5C2	VF-10/40	POSITIVE FIT
T5C2	VF-10/50	POSITIVE FIT
T5C2	VF-11/40	POSITIVE FIT
T5C2	VF-11/50	POSITIVE FIT
T5C2	VF-12/40	POSITIVE FIT
T5C2	VF-12/50	POSITIVE FIT
T5C2	VF-2	POSITIVE FIT
T5C2	VF-2SS	POSITIVE FIT
T5C2	VF-2SSYT	POSITIVE FIT
T5C2	VF-2YT	POSITIVE FIT
T5C2	VF-3	POSITIVE FIT
T5C2	VF-3SS	POSITIVE FIT
T5C2	VF-3SSYT	POSITIVE FIT
T5C2	VF-3YT	POSITIVE FIT
T5C2	VF-3YT/50	POSITIVE FIT
T5C2	VF-4	POSITIVE FIT
T5C2	VF-4SS	POSITIVE FIT
T5C2	VF-5/40	POSITIVE FIT
T5C2	VF-5/40XT	POSITIVE FIT
T5C2	VF-5/50	POSITIVE FIT
T5C2	VF-5/50XT	POSITIVE FIT
T5C2	VF-5SS	POSITIVE FIT
T5C2	VF-6/40	POSITIVE FIT
T5C2	VF-6/50	POSITIVE FIT
T5C2	VF-6SS	POSITIVE FIT
T5C2	VF-7/40	POSITIVE FIT
T5C2	VF-7/50	POSITIVE FIT
T5C2	VF-8/40	POSITIVE FIT
T5C2	VF-8/50	POSITIVE FIT
T5C2	VF-9/40	POSITIVE FIT
T5C2	VF-9/50	POSITIVE FIT
T5C2	VM-2	POSITIVE FIT
T5C2	VM-3	POSITIVE FIT
T5C2	VM-6	POSITIVE FIT
T5C2	VF-2-I	POSITIVE FIT
T5C2	VF-2-V	POSITIVE FIT
T5C2	VF-2-EU	POSITIVE FIT
T5C2	VF-2-SE	POSITIVE FIT
T5C2	VF-4-I	POSITIVE FIT
T5C2	VF-4-V	POSITIVE FIT
T5C2	VF-4-EU	POSITIVE FIT
T5C2	VF-4-SE	POSITIVE FIT
T5C2	VF-4SS-V	POSITIVE FIT
T5C2	VF-2SS-V	POSITIVE FIT
T5C2	VF-6SS-V	POSITIVE FIT
T5C2	VF-5/40-I	POSITIVE FIT
T5C2	VF-3-V	POSITIVE FIT
T5C2	VF-3SS-V	POSITIVE FIT
T5C2	MINIMILL-UK	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
T5C2	VF-2YT-EU	POSITIVE FIT
T5C2	VF-2SSYT-EU	POSITIVE FIT
T5C2	VF-14/40	POSITIVE FIT
T5C2	VF-14/50	POSITIVE FIT
T5C2	VF-2SSYT-UK	POSITIVE FIT
T5C2	VF-4SS-UK	POSITIVE FIT
T5C2	VF-4SS-EU	POSITIVE FIT
T5C2	VF-2YT-V	POSITIVE FIT
T5C2	VF-2SSYT-V	POSITIVE FIT
T5C2	VF-5SS-V	POSITIVE FIT
T5C2	VF-5/40-V	POSITIVE FIT
T5C2	MINIMILL-EDU	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
T5C2	VF-2YT-I	POSITIVE FIT
T5C2	DC-2	POSITIVE FIT
T5C2	VF-2SS-I	POSITIVE FIT
T5C2	VF-2SSYT-I	POSITIVE FIT
T5C2	VF-4SS-I	POSITIVE FIT
T5C2	VF-5SS-I	POSITIVE FIT
T5C2	DC-2/40	POSITIVE FIT
T5C2	DC-3/40	POSITIVE FIT
T5C2	DC-4/40	POSITIVE FIT
T5C2	VF-7SS	POSITIVE FIT
T5C2	VF-8SS	POSITIVE FIT
T5C2	VM-8	POSITIVE FIT
T5C2	VM-9	POSITIVE FIT
T5C2	VF-9SS	POSITIVE FIT
T5C2	VM-5	POSITIVE FIT
T5C2	VM-5/50	POSITIVE FIT
T5C2	VM-6/50	POSITIVE FIT
T5C2	VM-8/50	POSITIVE FIT
T5C2	VM-9/50	POSITIVE FIT
T5C2	VM-3/50	POSITIVE FIT
