TRT70

For the best pricing in your area, contact your local Haas Factory Outlet.

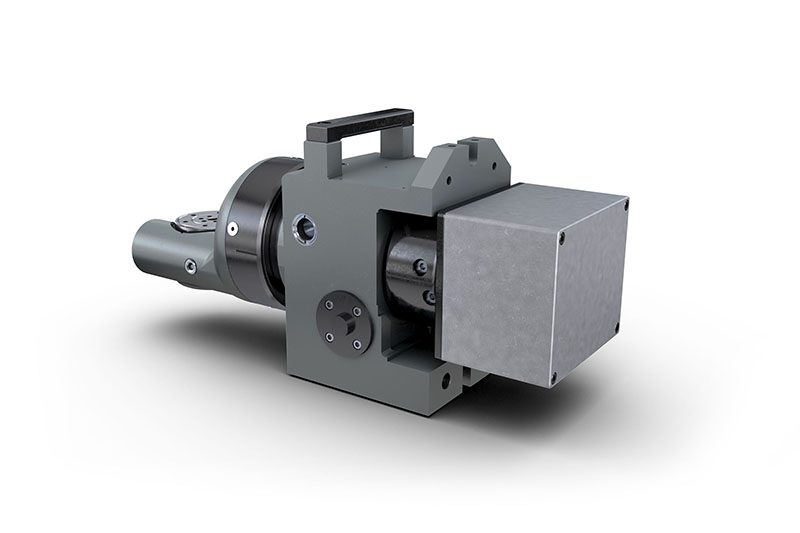

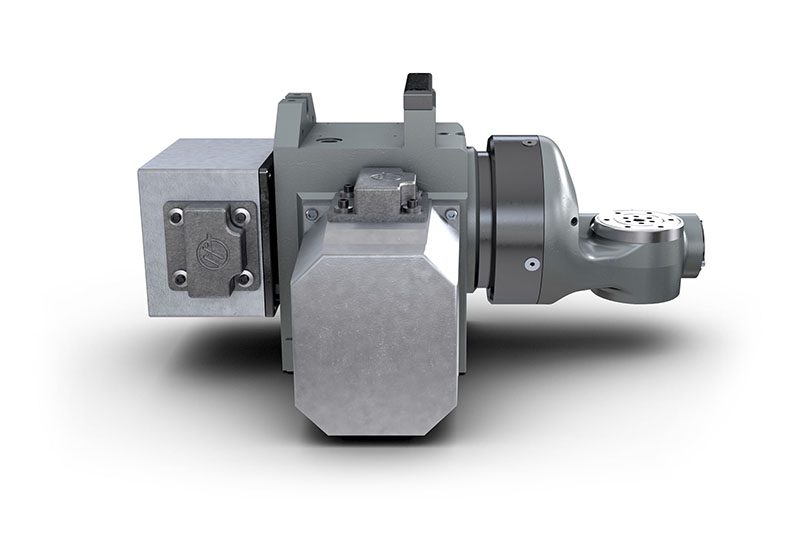

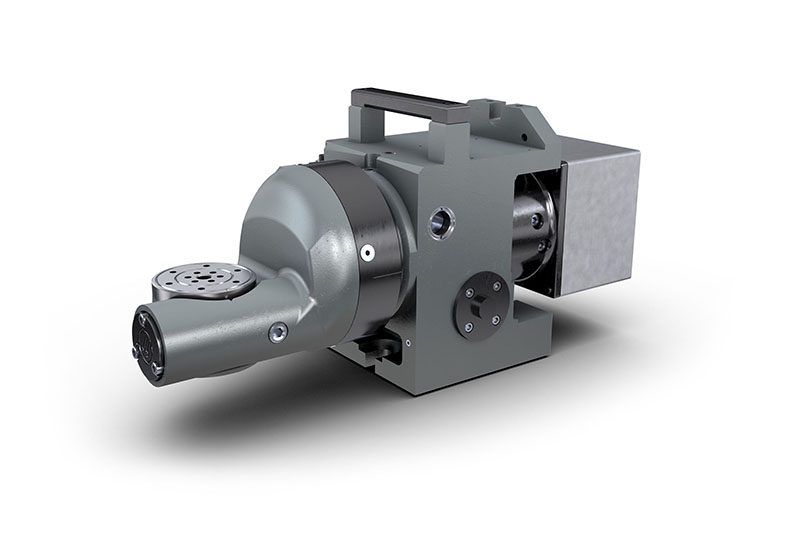

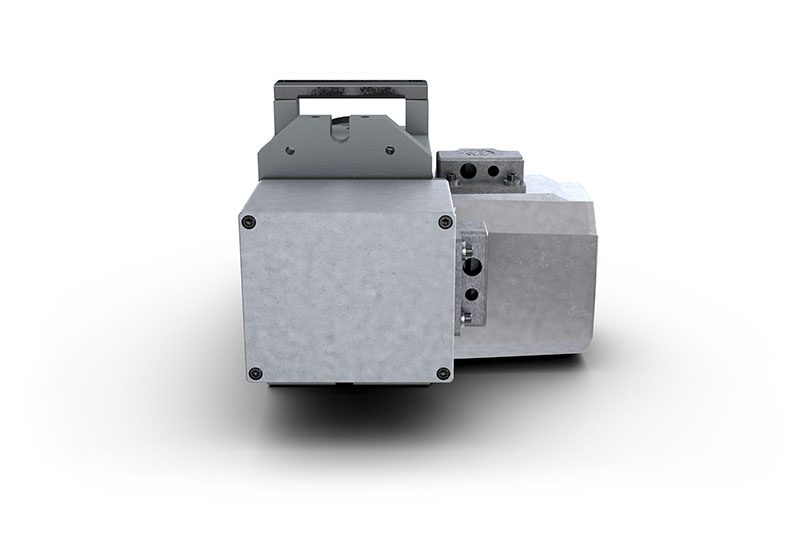

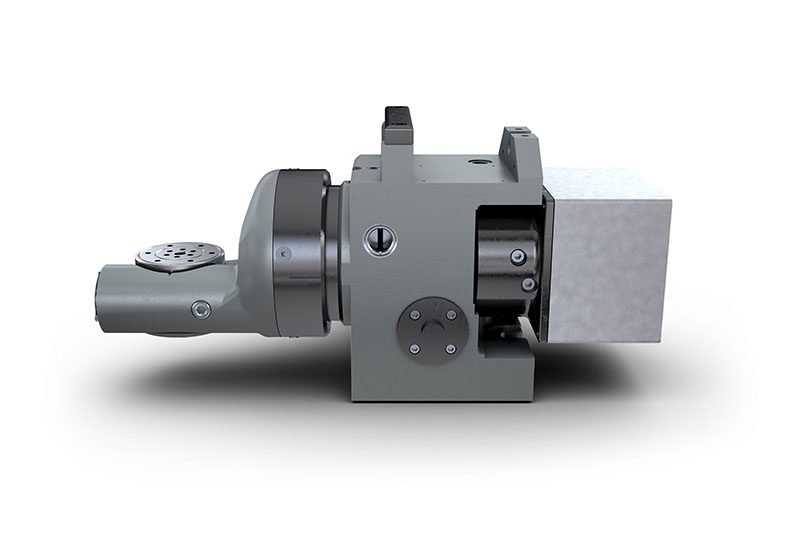

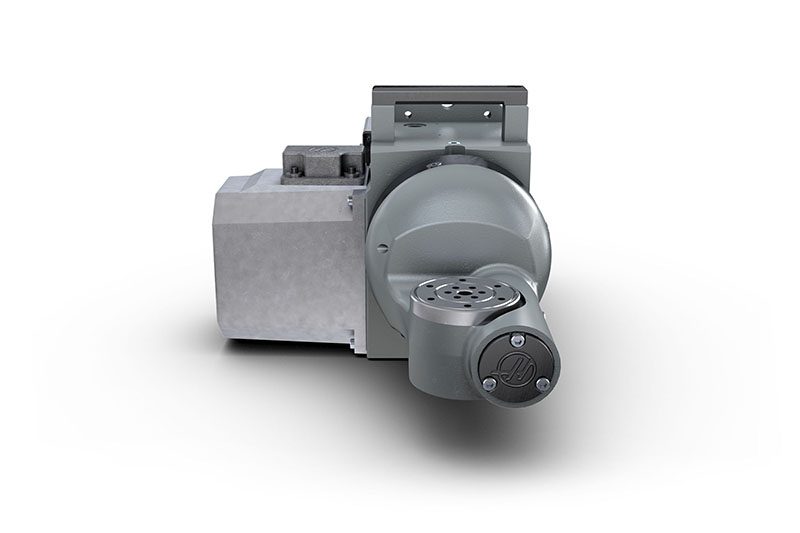

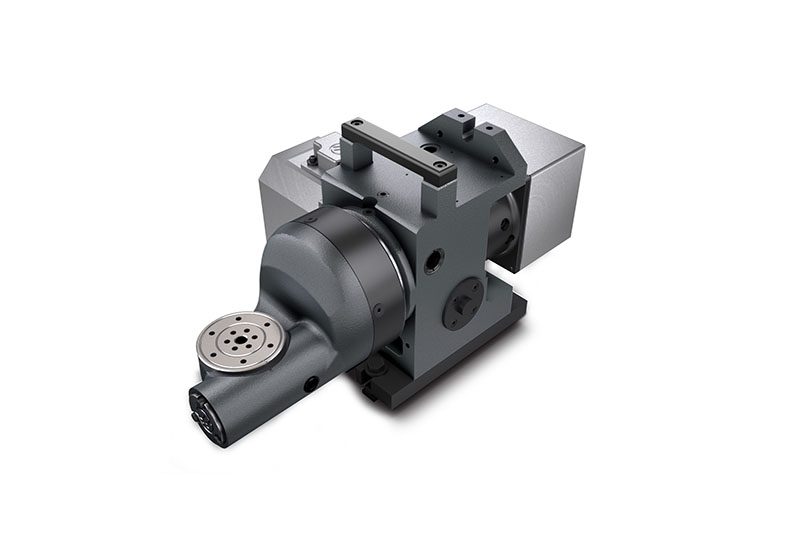

High-Speed 70 mm Tilting Rotary Table

The TRT70 is a dual-axis tilting rotary table that offers high-speed, accurate performance for 3+2 and full 5-axis machining of small parts. It fits into the CM-1 or larger machines. It is ideal for smaller parts – medical, dental, microwave housings, etc.

Note: Requires a Haas mill with 4th- and 5-axis drive and NGC software version 100.21.000.1130 or later for full 4th- and 5th-axis operation.

Compact, fast, and accurate
Reduces cycle times
Easy plug-and-play connection to Haas machines
Industry-leading performance and capabilities

1 Spindles
70 mm Platter Size
60 ft-lb Max Torque
410 °/sec Max Speed

Compare Machines

BUILD & PRICE

Contact Distributor

Build-&-Price
Specs
Machine Info
Rotary Fit chart

Platter	S.A.E	METRIC
Platter Diameter	2.76 in	70 mm
Max Weight on Platter	3 lb	1.4 kg
Part Swing Max	4.0 in	102 mm
Hole Pattern	(3) 6-bolt patterns	(3) 6-bolt patterns
Max Part Size - 5-Axis Machining	Ø 1 in x 1 in x 1 lb	Ø 25.4 mm x 25.4 mm x 0.5 kg

Spindle - A (tilt)	S.A.E	METRIC
Max Speed	410 °/sec	410 °/sec
Torque (Continuous)	60 ft-lbf	81 Nm
Gear Ratio	60:1	60:1

Spindle - B (rotary)	S.A.E	METRIC
Max Speed	410 °/sec	410 °/sec
Torque (Continuous)	40 ft-lbf	54 Nm
Gear Ratio	40:1	40:1

Indexing - A (tilt)	S.A.E	METRIC
Travel	120 ° to 95- °	120 ° to 95- °
Resolution	0.001 °	0.001 °
Accuracy (±)	± 30 arc-sec	± 30 arc-sec
Repeatability	10 arc-sec	10 arc-sec

Indexing - B (rotary)	S.A.E	METRIC
Travel	360 °	360 °
Resolution	0.001 °	0.001 °
Accuracy (±)	± 60 arc-sec	± 60 arc-sec
Repeatability	10 arc-sec	10 arc-sec

Dimensions - Shipping	S.A.E	METRIC
Export Crate	24.0 in x 17.0 in x 17.0 in	61 cm x 43 cm x 43 cm
Weight	105 lb	48.0 kg

AVAILABLE OPTIONS

TECHNICAL DOCUMENTS

VIDEOS

Trunnion Rotary Table Model Guide

Don’t know where to start? Check out this video model guide to find the best one for your needs!

CM-1 and TRT70 Cutting Demo

The Compact Mill is our small-footprint, high-accuracy solution for prototyping and producing small, high-precision, 2D and 3D parts, like those found in the communications, aerospace, medical, and dental industries.

CYLINDRICAL ENGRAVING USING G47/G107

Easily hand-program 4th-axis engraving on your Haas mill – without a CAM system. With G47 and G107, engraving on a cylindrical part couldn’t be easier.

UNWIND YOUR HAAS ROTARY QUICKLY

Today, Mark solves an issue every Haas Rotary user faces at some point: How do I get my rotary back to zero quickly?

How to Program a SAFE TOOL CHANGE POSITION

Mark shows how to command a safe tool change position to avoid crashing a tool into your fixture or rotary. It’s all done with a simple program, and referenced with an M-code.

Your new 5-axis compact rotary

If you make small parts and have multiple setups, this rotary is the perfect solution. Lightning fast and accurate, the TRT100 fits in nearly every Haas mill, and will help you cut cycle times and boost your shops efficiency.

LARGER WORK ENVELOPE

TRT100

High-Speed 100 mm Tilting Rotary Table

1 Spindles
100 mm Platter Size
16 ft-lb Max Torque
1000 °/sec Max Speed

Learn More Build & Price

DUAL-AXIS TRUNNION

TR160

160 mm Dual-Axis Trunnion Table

1 Spindles
160 mm Platter Size
100 ft-lb Max Torque
80 °/sec Max Speed

Learn More Build & Price

DIFFERENT APPROACH

TR200Y

Compact 200 mm Dual-Axis Trunnion Table

1 Spindles
200 mm Platter Size
150 ft-lb Max Torque
130 °/sec Max Speed

Learn More Build & Price

HAAS ROTARY	HAAS MACHINE	ROTARY FIT TYPE	WARNING
TRT70	CM-1	POSITIVE FIT
TRT70	EC-1600	POSITIVE FIT
TRT70	EC-1600ZT	POSITIVE FIT
TRT70	DM-1	POSITIVE FIT
TRT70	DM-2	POSITIVE FIT
TRT70	DT-1	POSITIVE FIT
TRT70	DT-1-V	POSITIVE FIT
TRT70	DT-2	POSITIVE FIT
TRT70	GM-2	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	GR-510	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	GR-712	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	MINIMILL	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	MINIMILL-EDU	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	MINIMILL-UK	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	MINIMILL2	POSITIVE FIT
TRT70	SMINIMILL	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	SMINIMILL2	POSITIVE FIT
TRT70	TM-1	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	TM-1P	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	TM-2	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	TM-2P	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	TM-3	POSITIVE FIT
TRT70	TM-3P	POSITIVE FIT
TRT70	VF-1	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	VF-10/40	POSITIVE FIT
TRT70	VF-10/50	POSITIVE FIT
TRT70	VF-11/40	POSITIVE FIT
TRT70	VF-11/50	POSITIVE FIT
TRT70	VF-12/40	POSITIVE FIT
TRT70	VF-12/50	POSITIVE FIT
TRT70	VF-1YT	POSITIVE FIT
TRT70	VF-2	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	VF-2-EU	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	VF-2-I	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	VF-2-SE	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	VF-2-V	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	VF-2SS	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	VF-2SS-EU	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	VF-2SS-V	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	VF-2SSYT	POSITIVE FIT
TRT70	VF-2YT	POSITIVE FIT
TRT70	VF-3	POSITIVE FIT
TRT70	VF-3-V	POSITIVE FIT
TRT70	VF-3SS	POSITIVE FIT
TRT70	VF-3SS-V	POSITIVE FIT
TRT70	VF-3SSYT	POSITIVE FIT
TRT70	VF-3YT	POSITIVE FIT
TRT70	VF-3YT/50	POSITIVE FIT
TRT70	VF-4	POSITIVE FIT
TRT70	VF-4-EU	POSITIVE FIT
TRT70	VF-4-I	POSITIVE FIT
TRT70	VF-4-SE	POSITIVE FIT
TRT70	VF-4-V	POSITIVE FIT
TRT70	VF-4SS	POSITIVE FIT
TRT70	VF-4SS-EU	POSITIVE FIT
TRT70	VF-4SS-V	POSITIVE FIT
TRT70	VF-5/40	POSITIVE FIT
TRT70	VF-5/40TR	POSITIVE FIT
TRT70	VF-5/40XT	POSITIVE FIT
TRT70	VF-5/50	POSITIVE FIT
TRT70	VF-5/50XT	POSITIVE FIT
TRT70	VF-5SS	POSITIVE FIT
TRT70	VF-6/40	POSITIVE FIT
TRT70	VF-6/50	POSITIVE FIT
TRT70	VF-6SS	POSITIVE FIT
TRT70	VF-6SS-V	POSITIVE FIT
TRT70	VF-7/40	POSITIVE FIT
TRT70	VF-7/50	POSITIVE FIT
TRT70	VF-8/40	POSITIVE FIT
TRT70	VF-8/50	POSITIVE FIT
TRT70	VF-9/40	POSITIVE FIT
TRT70	VF-9/50	POSITIVE FIT
TRT70	VM-2	POSITIVE FIT
TRT70	VM-3	POSITIVE FIT
TRT70	VM-6	POSITIVE FIT
TRT70	DT-1-I	POSITIVE FIT
TRT70	DT-2-I	POSITIVE FIT
TRT70	VF-5/40-I	POSITIVE FIT
TRT70	EC-500/50	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	VF-1YT-EU	POSITIVE FIT
TRT70	VF-1SSYT-EU	POSITIVE FIT
TRT70	VF-2YT-EU	POSITIVE FIT
TRT70	VF-2SSYT-EU	POSITIVE FIT
TRT70	VF-14/40	POSITIVE FIT
TRT70	VF-14/50	POSITIVE FIT
TRT70	TM-0	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	TM-0P	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	VF-2SSYT-UK	POSITIVE FIT
TRT70	VF-4SS-UK	POSITIVE FIT
TRT70	VF-2YT-V	POSITIVE FIT
TRT70	VF-2SSYT-V	POSITIVE FIT
TRT70	VF-5SS-V	POSITIVE FIT
TRT70	VF-5/40-V	POSITIVE FIT
TRT70	VF-2YT-I	POSITIVE FIT
TRT70	GM-1XT	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	DC-2	POSITIVE FIT
TRT70	VF-2SS-I	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	VF-2SSYT-I	POSITIVE FIT
TRT70	VF-4SS-I	POSITIVE FIT
TRT70	VF-5SS-I	POSITIVE FIT
TRT70	DC-1/40	POSITIVE FIT
TRT70	DC-2/40	POSITIVE FIT
TRT70	DC-3/40	POSITIVE FIT
TRT70	DC-4/40	POSITIVE FIT
TRT70	DM-3	POSITIVE FIT
TRT70	DT-3	POSITIVE FIT
TRT70	DC-1	POSITIVE FIT
TRT70	GM-1	ALTERNATIVE FIT: CAUTION	ALTERNATIVE FIT: CAUTION	This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT70	VF-7SS	POSITIVE FIT
TRT70	VF-8SS	POSITIVE FIT
TRT70	VM-8	POSITIVE FIT
TRT70	POCKET MILL	POSITIVE FIT
TRT70	VM-9	POSITIVE FIT
TRT70	VF-9SS	POSITIVE FIT
TRT70	VM-5	POSITIVE FIT
TRT70	VM-5/50	POSITIVE FIT
TRT70	VM-6/50	POSITIVE FIT
TRT70	VM-8/50	POSITIVE FIT
TRT70	VM-9/50	POSITIVE FIT
TRT70	VM-3/50	POSITIVE FIT
