TRT100




For the best pricing in your area, contact your local Haas Factory Outlet.

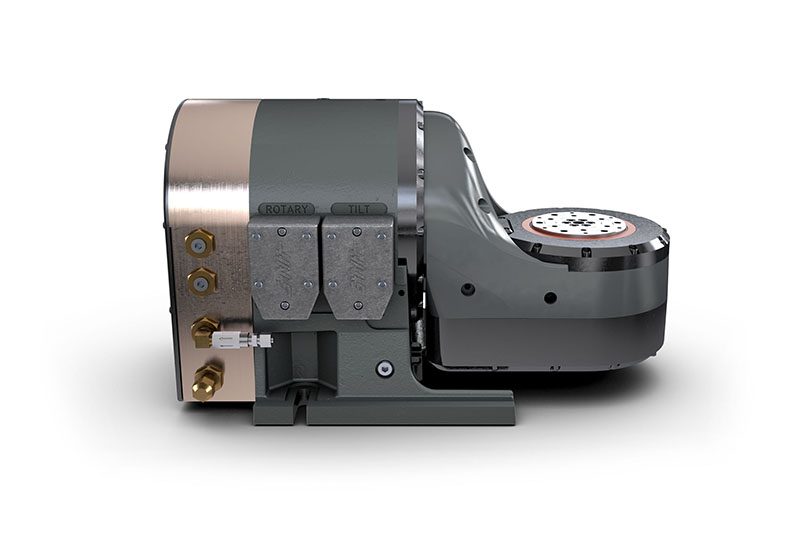

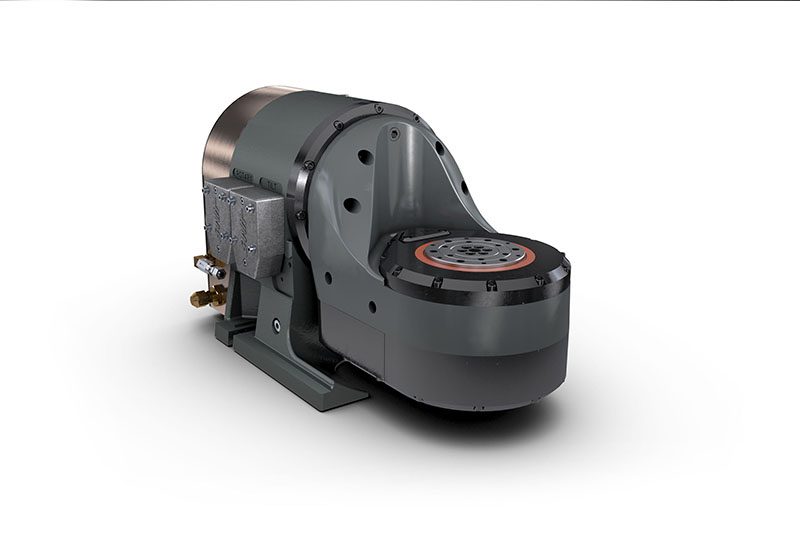

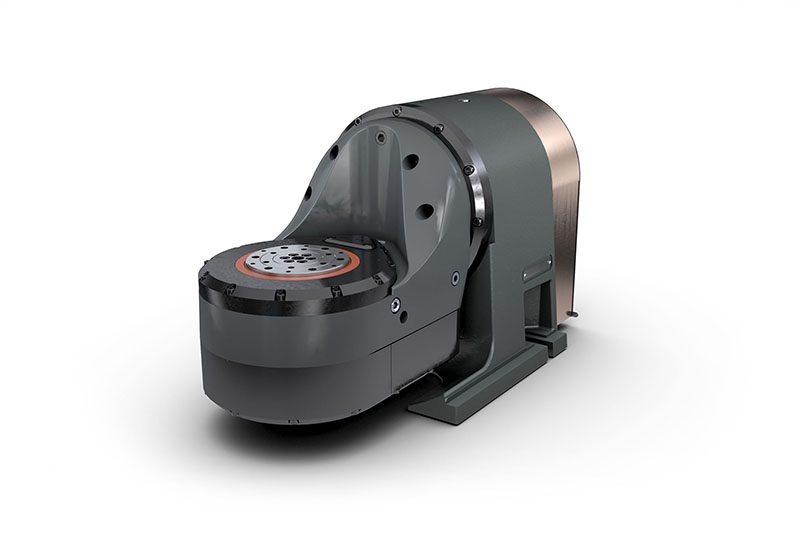

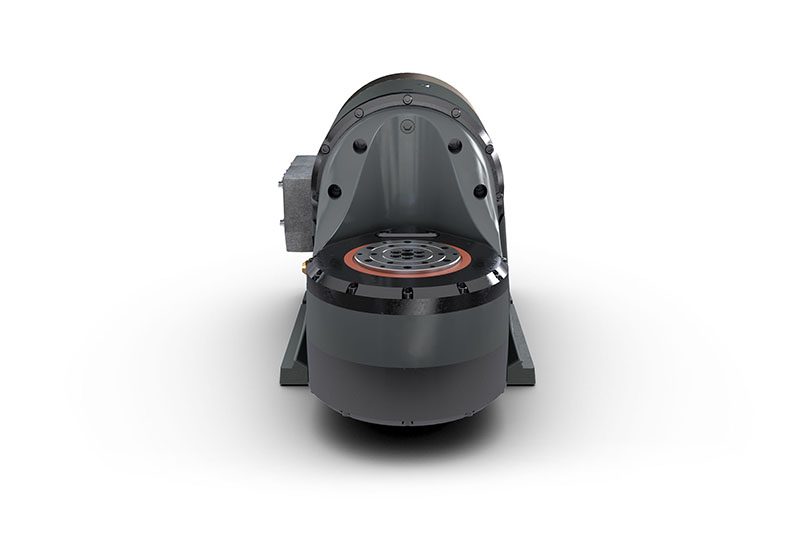

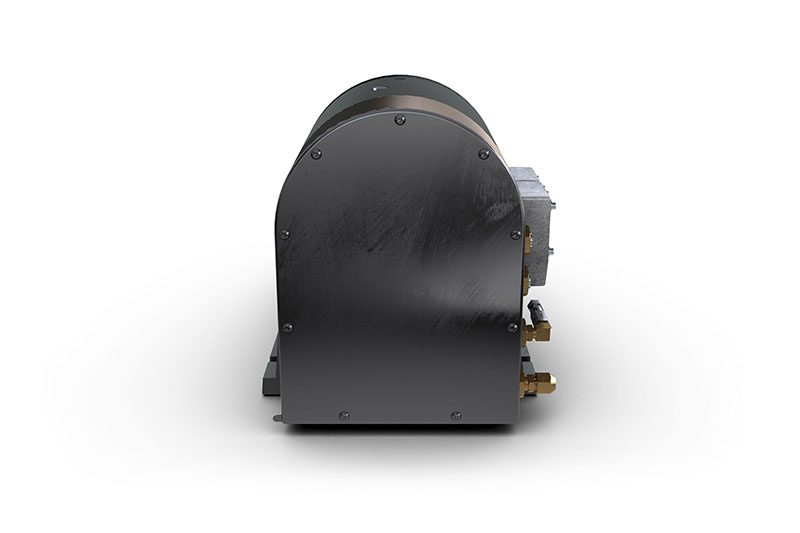

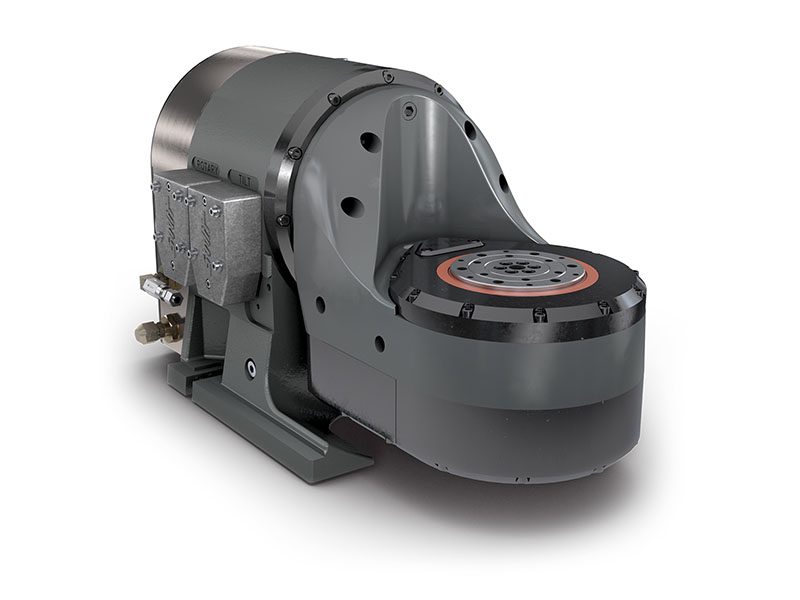

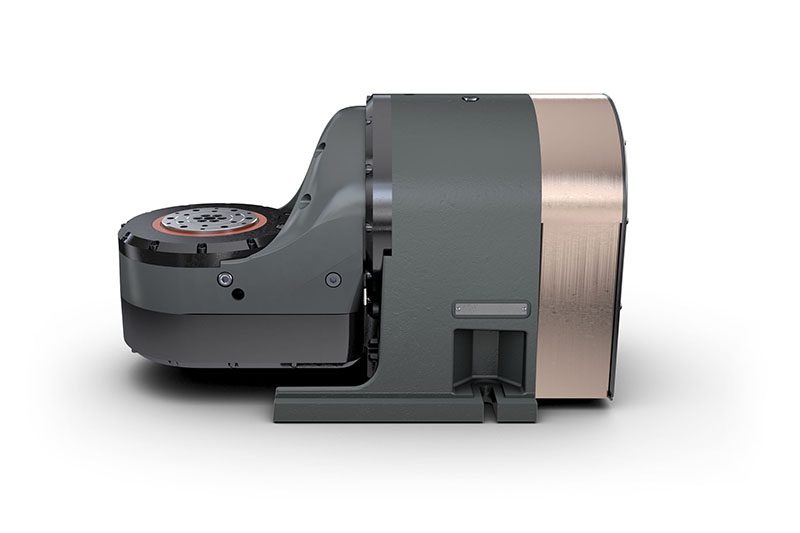

High-Speed 100 mm Tilting Rotary Table

The TRT100 is a dual-axis tilting rotary table that offers high-speed, accurate performance for 3+2 and full 5-axis machining of small parts. It fits into DM/DT Series or larger machines. It is ideal for smaller parts – medical, dental, microwave housings, etc.

Note: Requires a Haas mill with 4th- and 5-axis drive and NGC software version 100.21.000.1130 or later for full 4th- and 5th-axis operation.

Not available for stand-alone operation.

  • Compact, fast, and accurate
  • Reduces cycle times
  • Easy plug-and-play connection to Haas machines
  • Industry-leading performance and capabilities
  • 1 Spindles
  • 100 mm Platter Size
  • 16 ft-lb Max Torque
  • 1000 °/sec Max Speed
Compare Machines
BUILD & PRICE
Contact Distributor
Platter S.A.E METRIC
Platter Diameter 3.94 in 100 mm
Max Weight on Platter 15 lb 6.8 kg
Part Swing Max 8.4 in 214 mm
Hole Pattern (3) 6-bolt patterns (3) 6-bolt patterns
Max Part Size - 3+2 Indexing Ø 5 in x 5 in x 15 lb Ø 127 mm x 127 mm x 6.8 kg
Max Part Size - 5-Axis Machining Ø 3 in x 3 in x 5 lb Ø 76.0 mm x 76.0 mm x 2.3 kg
Spindle - A (tilt) S.A.E METRIC
Max Speed 1000 °/sec 1000 °/sec
Torque (Continuous) 105 ft-lbf 142 Nm
Gear Ratio 24:1 24:1
Brake Torque @ 100 psi/6.9 bar 100 ft-lbf 136 Nm
Accuracy (±) ± 50 arc-sec ± 50 arc-sec
Repeatability 30 arc-sec 30 arc-sec
Travel 120 ° 120 °
Spindle - B (rotary) S.A.E METRIC
Max Speed 1000 °/sec 1000 °/sec
Torque (Continuous) 16 ft-lbf 22 Nm
Gear Ratio 7:1 7:1
Accuracy (±) ± 45 arc-sec ± 45 arc-sec
Repeatability 30 arc-sec 30 arc-sec
Travel 360 ° 360 °
Brake Torque @ 100 psi/6.9 bar 40 ft-lbf 54 Nm
Indexing - A (tilt) S.A.E METRIC
Resolution 0.001 ° 0.001 °
Indexing - B (rotary) S.A.E METRIC
Resolution 0.001 ° 0.001 °
Air Requirements S.A.E METRIC
Air Pressure Max 150 psi 10.3 bar
Dimensions - Shipping S.A.E METRIC
Export Crate 27.0 in x 21.0 in x 23.0 in 69 cm x 54 cm x 59 cm
Weight 250 lb 114.0 kg

AVAILABLE OPTIONS

TECHNICAL DOCUMENTS

VIDEOS

CUSTOMER TESTIMONIALS

RELATED PRODUCTS

HAAS ROTARY HAAS MACHINE ROTARY FIT TYPE WARNING
TRT100 DM-1 POSITIVE FIT
TRT100 DM-2 POSITIVE FIT
TRT100 DT-1 POSITIVE FIT
TRT100 DT-2 POSITIVE FIT
TRT100 EC-1600 POSITIVE FIT
TRT100 EC-1600ZT POSITIVE FIT
TRT100 GR-510 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 GR-712 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 MINIMILL ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 MINIMILL2 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 SMINIMILL ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 SMINIMILL2 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 TM-1 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 TM-1P ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 TM-2 POSITIVE FIT
TRT100 TM-2P POSITIVE FIT
TRT100 TM-3 POSITIVE FIT
TRT100 TM-3P POSITIVE FIT
TRT100 VF-1 POSITIVE FIT
TRT100 VF-10/40 POSITIVE FIT
TRT100 VF-10/50 POSITIVE FIT
TRT100 VF-11/40 POSITIVE FIT
TRT100 VF-11/50 POSITIVE FIT
TRT100 VF-12/40 POSITIVE FIT
TRT100 VF-12/50 POSITIVE FIT
TRT100 VF-1YT POSITIVE FIT
TRT100 VF-2 POSITIVE FIT
TRT100 VF-2SS POSITIVE FIT
TRT100 VF-2SSYT POSITIVE FIT
TRT100 VF-2YT POSITIVE FIT
TRT100 VF-3 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-3SS ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-3SSYT ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-3YT ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-3YT/50 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-4 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-4SS ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-5/40 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-5/40XT ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-5/50 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-5/50XT ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-5SS ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-6/40 POSITIVE FIT
TRT100 VF-6/50 POSITIVE FIT
TRT100 VF-6SS POSITIVE FIT
TRT100 VF-7/40 POSITIVE FIT
TRT100 VF-7/50 POSITIVE FIT
TRT100 VF-8/40 POSITIVE FIT
TRT100 VF-8/50 POSITIVE FIT
TRT100 VF-9/40 POSITIVE FIT
TRT100 VF-9/50 POSITIVE FIT
TRT100 VM-2 POSITIVE FIT
TRT100 VM-3 POSITIVE FIT
TRT100 VM-6 POSITIVE FIT
TRT100 DT-1-I POSITIVE FIT
TRT100 DT-2-I POSITIVE FIT
TRT100 VF-2-I POSITIVE FIT
TRT100 VF-2-V POSITIVE FIT
TRT100 VF-2-EU POSITIVE FIT
TRT100 VF-2-SE POSITIVE FIT
TRT100 VF-4-I ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-4-V ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-4-EU ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-4-SE ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-4SS-V ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-2SS-V POSITIVE FIT
TRT100 VF-6SS-V POSITIVE FIT
TRT100 VF-5/40-I ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-3-V ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-3SS-V ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 MINIMILL-UK ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-1YT-EU POSITIVE FIT
TRT100 VF-1SSYT-EU POSITIVE FIT
TRT100 VF-2YT-EU POSITIVE FIT
TRT100 VF-2SSYT-EU POSITIVE FIT
TRT100 VF-14/40 POSITIVE FIT
TRT100 VF-14/50 POSITIVE FIT
TRT100 TM-0 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 TM-0P ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-2SSYT-UK POSITIVE FIT
TRT100 VF-4SS-UK ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-4SS-EU ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-2YT-V POSITIVE FIT
TRT100 VF-2SSYT-V POSITIVE FIT
TRT100 VF-5SS-V ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-5/40-V ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 MINIMILL-EDU ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-2YT-I POSITIVE FIT
TRT100 VF-2SS-I POSITIVE FIT
TRT100 VF-2SSYT-I POSITIVE FIT
TRT100 VF-4SS-I ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VF-5SS-I ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 DC-2/40 POSITIVE FIT
TRT100 DM-3 POSITIVE FIT
TRT100 DT-3 POSITIVE FIT
TRT100 VF-7SS POSITIVE FIT
TRT100 VF-8SS POSITIVE FIT
TRT100 VM-8 POSITIVE FIT
TRT100 POCKET MILL POSITIVE FIT
TRT100 VM-9 POSITIVE FIT
TRT100 VF-9SS POSITIVE FIT
TRT100 VM-5 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VM-5/50 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT100 VM-6/50 POSITIVE FIT
TRT100 VM-8/50 POSITIVE FIT
TRT100 VM-9/50 POSITIVE FIT
TRT100 VM-3/50 POSITIVE FIT
