The Haas HFL-1313-3 is a fully enclosed 3 kW CNC fiber laser cutting machine with a high-speed autofocus sensor head and a compact footprint. The unit has a manual pull-out type work platform, allowing raw material and finished parts to be loaded and unloaded easily from the front of the machine.

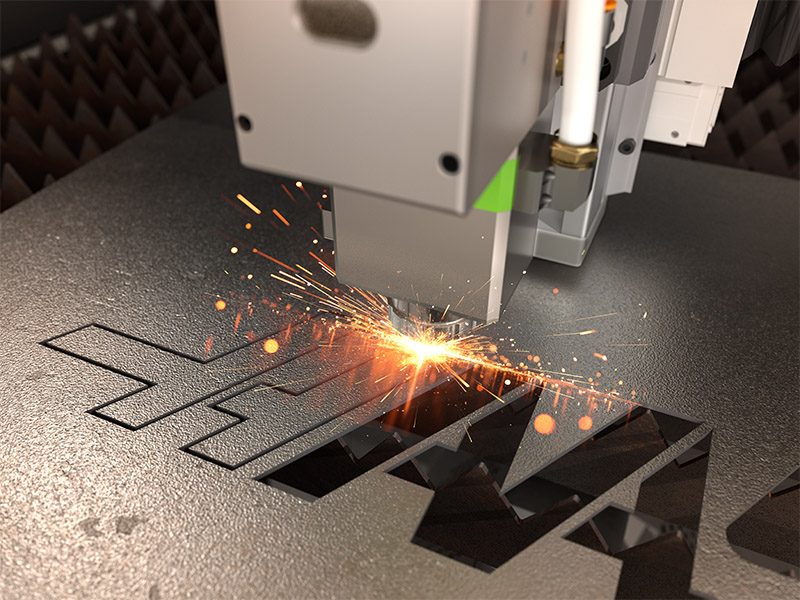

The 3 kW fiber laser cutting head is optimized to provide excellent cut quality and high efficiency, and features automatic focusing to reduce set-up time and increase accuracy. The laser easily cuts a variety of metals, including carbon steel, stainless steel, aluminum alloy, brass, copper, and even titanium alloy.

  • 3 kW fiber laser
  • 51.2" x 51.2" (1300 x 1300 mm) work area

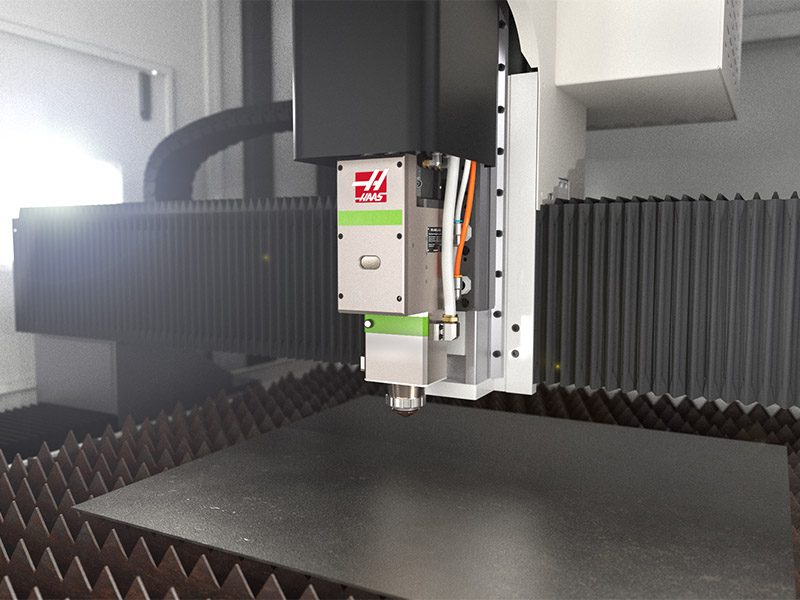

  • High-speed autofocus sensor head
  • Programmable assist gas ports (air, oxygen, nitrogen)
  • Windows-based laser controller w/large touchscreen
  • CypCut laser programming software with nesting capability
  • Full enclosure for safety and protection
  • Heat-isolated machine bed for stability
  • Negative pressure dust removal system

    MATERIAL CUTTING RANGE

Material SAE Metric
Carbon Steel 0.016" - 0.71" 0.4 - 18 mm
Stainless Steel 0.016" - 0.31" 0.4 - 8 mm
Aluminum 0.016" - 0.24" 0.4 - 6 mm

NOTE: Maximum cutting range varies with material thickness, type of assist gas used, part geometry, cutting speeds, and desired cut quality.

COMPACT FIBER LASER CUTTING MACHINE

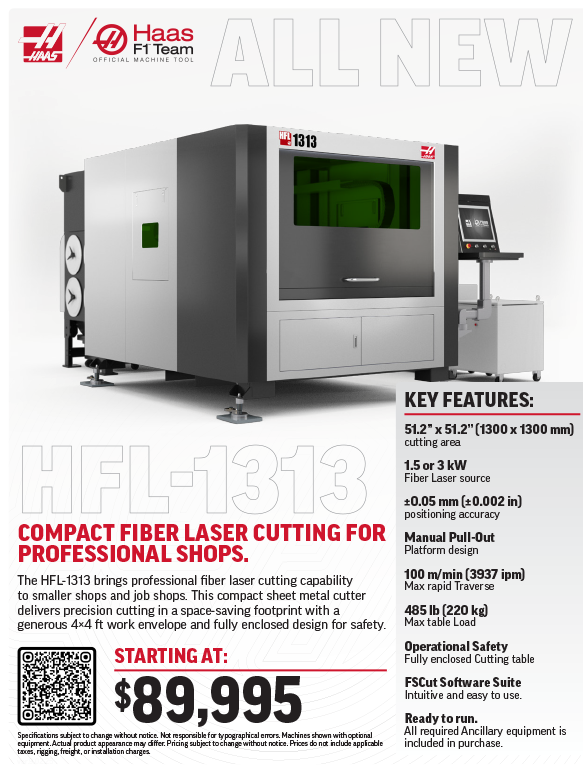

DOWNLOAD BROCHURE

HAAS JOURNAL

    Available to order in North America only, with expected delivery Q2 2026.

    Compare Machines
    STANDARD CONFIGURATION

    LASER

    3 kW Fiber Laser
    High-Speed Sensor Head
    Automatic Focusing Lens
    Multi-Protection Lens
    Drawer-Type Lens Holder
    Dual Water-Cooling Circuits

    WORK PLATFORM

    51.2" x 51.2" (1300 x 1300 mm) Work Area

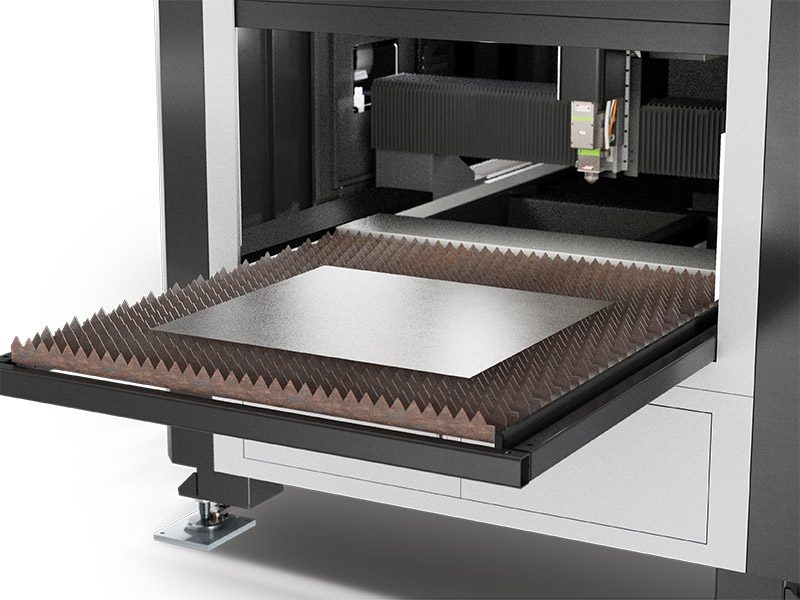

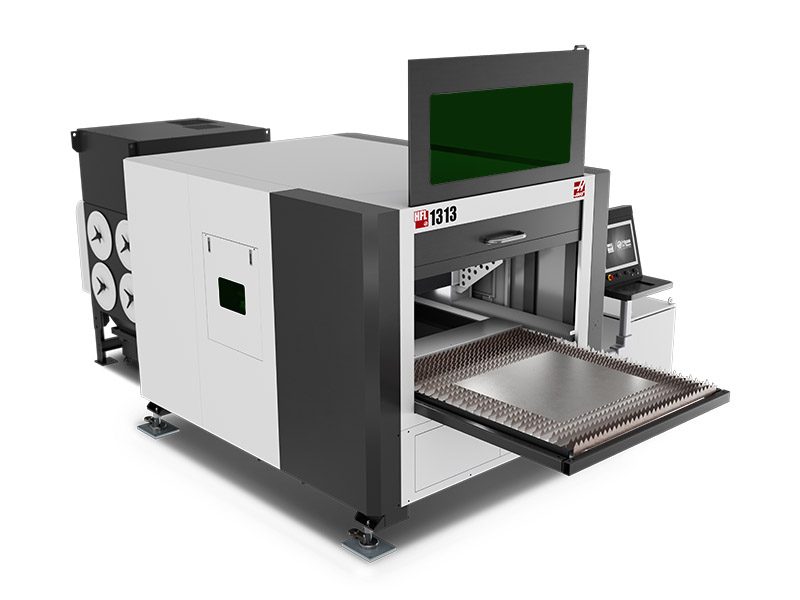

    Manual Pull-Out Type Platform

    CONTROL

    Intelligent CNC Operating System w/Touchscreen
    CypCut Laser Cutting System w/Nesting Capability

    PRODUCT FEATURES

    Multiple Programmable Assist Gas Ports (air, oxygen, nitrogen)
    Negative-Pressure Zonal Dust Removal System
    Sealed Base for Smoke-Free Cutting
    Heavy-Duty Heat-Isolated Bed

    Specification SAE Metric
    Laser Power 3 kW 3 kW
    Work Area (length x width) 51.2" x 51.2" 1300 x 1300 mm
    X-Axis Travel 51.6" 1310 mm
    Y-Axis Travel 51.6"  1310 mm
    Z-Axis Travel 3.9" 100 mm
    X/Y Positioning Accuracy 0.002" ±0.05 mm mm
    X/Y Repeatability 0.0008" ±0.02 mm
    Maximum Speed 3150 ipm 80 m/min
    Maximum Acceleration 1G 1G
    Maximum Load on Table 485 lb 220 kg
    Machine Weight 4123 lb 1870 kg
    Dimensions (length x width x height) 117.5" x 85" x 78.7" 2985 x 2160 x 2000 mm
    Recommended Floor Space for Layout 172.8" x 260.6" 4390 x 6620 mm
    Power (with included transformer) 3-phase 208V or 380V (Delta or Wye) 3-phase 208V or 380V (Delta or Wye)
    Machine FLA 90A @ 208V, 49A @ 380V 90A @ 208V, 49A @ 380V
    Shipping Specifications SAE Metric
    Machine Dimensions 126" x 90.6" x 88.6" 3200 x 2300 x 2250 mm
    Accessories Pallet Dimensions 57.5" x 90.6" x 70.9" 1460 x 2300 x 1800 mm
