HML-1 Manual Lathe




For the best pricing in your area, contact your local Haas Factory Outlet.

Haas Manual Lathe with 14" x 39" max capacity

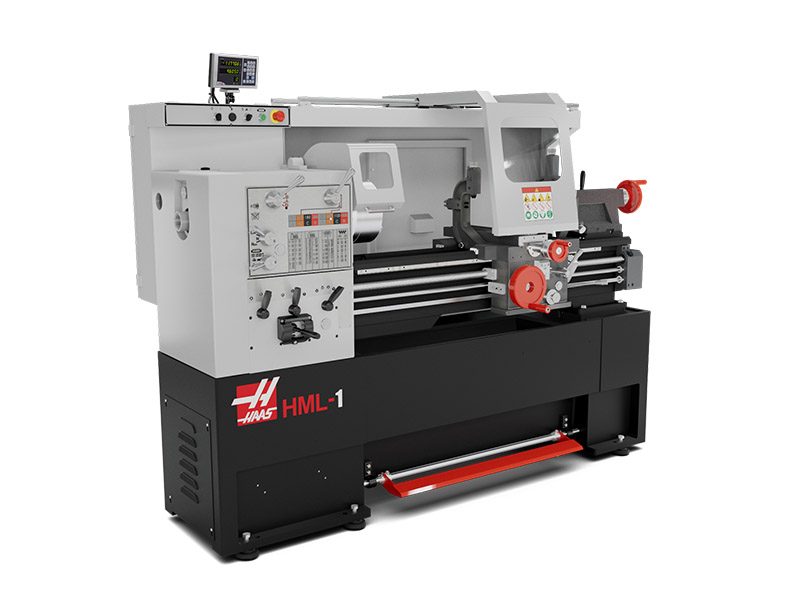

The Haas HML-1 is a traditional-style manual engine lathe with a 14" x 39" (360 x 1000 mm) max capacity and 9" (229 mm) manual chuck.

  • D1-6 nose with MT6 internal taper
  • 9" (229 mm) manual 3-jaw chuck
  • 2000-rpm spindle
  • Digital Readout (DRO)
  • Manual tailstock with MT4 quill
  • 4-way tool post
  • Steady rest
  • Coolant system
  • Includes tool kit and box

Currently available in the US, Canada, and Mexico only.

MANUAL LATHE

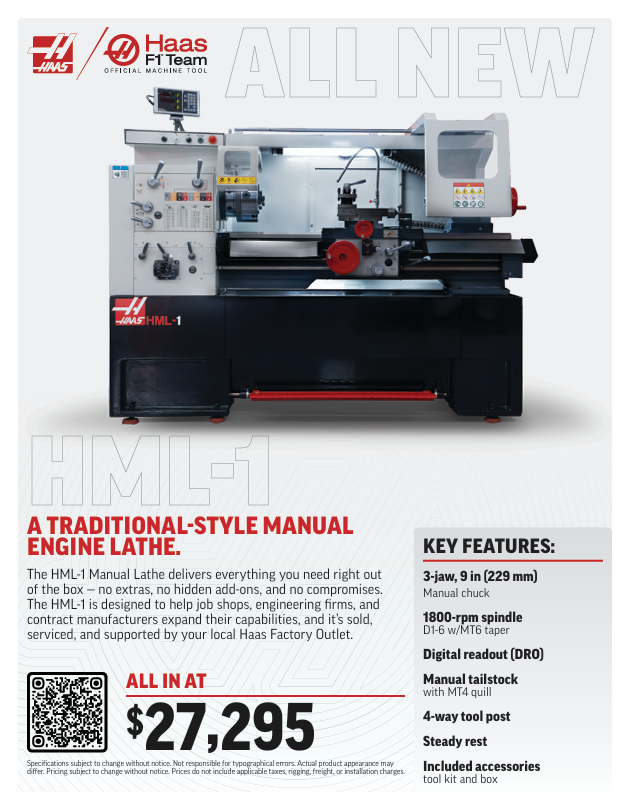

DOWNLOAD BROCHURE

HAAS JOURNAL

    Compare Machines
    STANDARD CONFIGURATION

    SPINDLE

    2000-rpm Spindle, D1-6 w/MT6 Taper
    9" (229 mm) Manual 3-Jaw Chuck

    CHIP & COOLANT MANAGEMENT

    Coolant System with Splash Guard

    CONTROL

    2-Axis Digital Readout

    PRODUCT FEATURES

    Full-Length Splash Guard
    Chuck Safety Guard with Limit Switch
    Lead Screw Cover
    Work Light

    TOOLING & FIXTURING

    4-Way Tool Post
    Steady Rest
    Tailstock w/MT4 Quill

    Capacity Inch Metric
    Height of centers 7.08" 180 mm
    Swing over bed 14.17" 360 mm
    Swing in gap 20.98" 533 mm
    Swing over cross slide 8.27" 210 mm
    Distance between centers 40" 1000 mm
    Width of bed 10.236" 260 mm
    Headstock and Main Spindle Inch Metric
    Spindle nose, internal taper D1-6, MT6 D1-6, MT6
    Spindle bore 2.066"
    52.5
    Chuck, 3-Jaw 9"  229 mm
    Spindle speed
    Gear steps / Range Std. : 8 steps / 70 ~ 2000 R.P.M.
      Opt. : 16 steps / 8P 40 ~ 1000 R.P.M.
    Carriage Inch Metric
    Length on bed / Width of carriage 20.19" / 16.22" 513 / 412 mm
    Cross slide travel 8.6" 220 mm
    Top slide travel 4.92" 125 mm
    Threads and Feeds Inch Metric
    Whitworth threads: Kinds / Range 45 Kinds / 2 ~ 72 T.P.I.
    Metric threads: Kinds / Range 39 Kinds / 0.2 ~ 14 mm
    D.P. threads: Kinds / Range 21 Kinds / 8 ~ 44 D.P.
    M.P. threads: Kinds / Range 18 Kinds / 0.3 ~ 3.5 M.P.
    Longitudinal feeds 0.05 ~ 1.7 (0.002" ~ 0.067")
    Cross feeds 0.025 ~ 0.85 (0.001" ~ 0.034")
    Tailstock Inch Metric
    Quill diameter 2.047" 52 mm
    Quill travel 6" 152 mm
    Taper of center MT4 MT4
    Motor Inch Metric
    Main spindle 5 hp 3.75 kW
    Forced lubrication for headstock 1/4 hp 0.19 kW
    Coolant pump 1/8 hp 0.09 kW
    Electrical Specification Inch Metric
    Input AC Voltage (3 Phase) 220 VAC 220 VAC
    Full Load Amps (3 Phase) 21 A 21 A
    Measurement Inch Metric
    Weight (Net) approx 2976 lb 1350 kg
    Weight (Gross) approx 3241 lb 1470 kg
    Packing size (Length x Width x Height) 89.4" x 44.1" x 74.8" 2270 x 1120 x 900 mm

    TECHNICAL DOCUMENTS

    RELATED PRODUCTS

    Haas Product Warranty - 6 Months

    This product includes a 6-month parts warranty, and support by your local Haas Factory Outlet. On-site installation, training, service labor, and travel charges will apply. Contact your local Haas Factory Outlet.
