CM-1

For the best pricing in your area, contact your local Haas Factory Outlet.

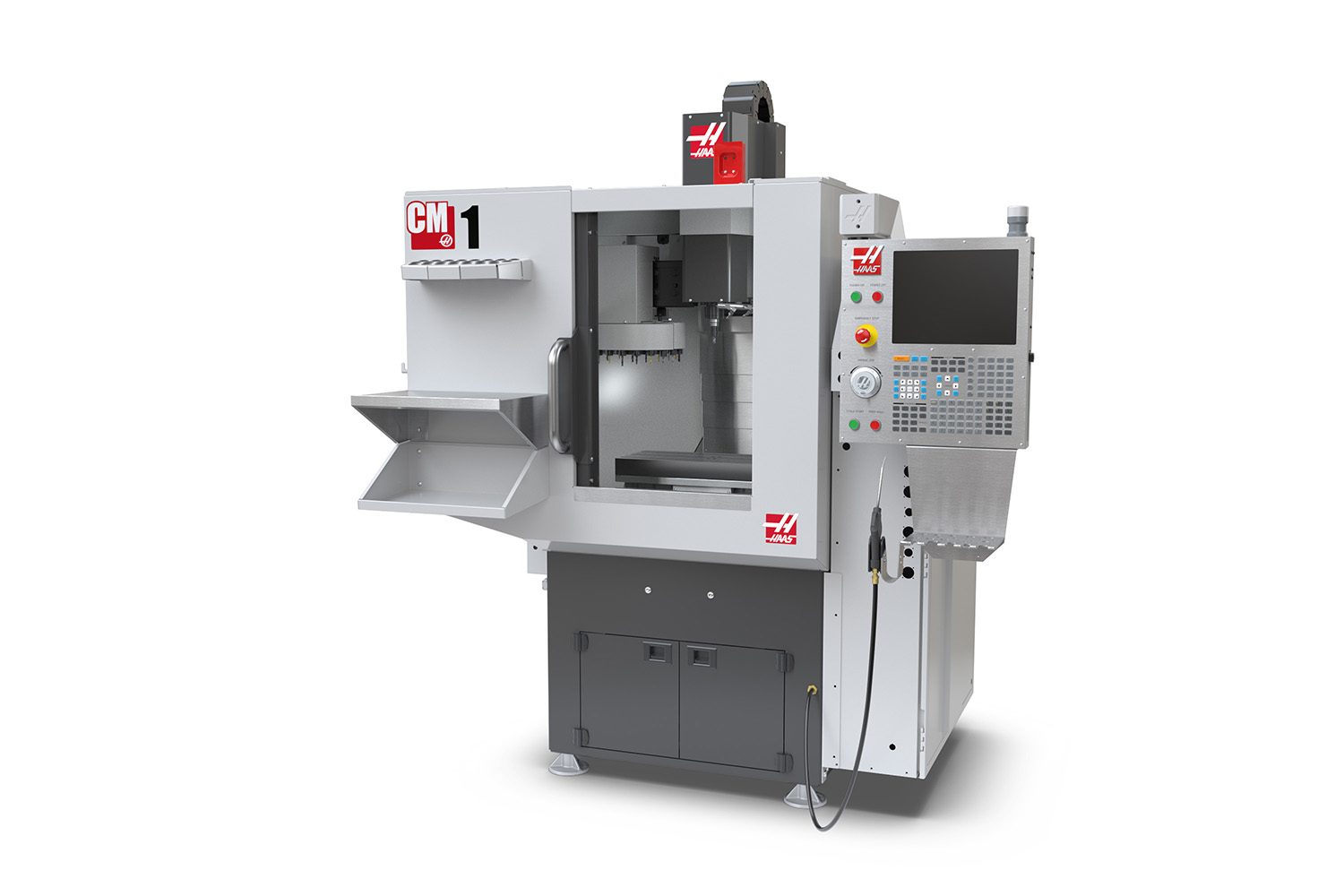

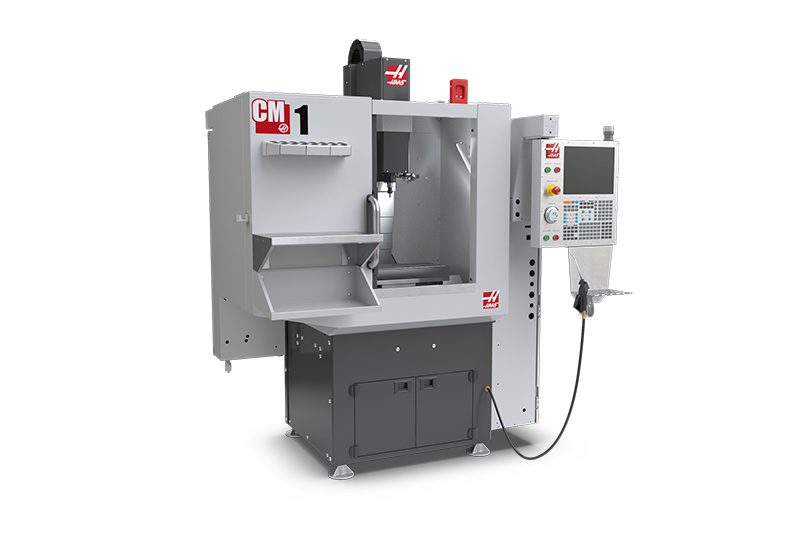

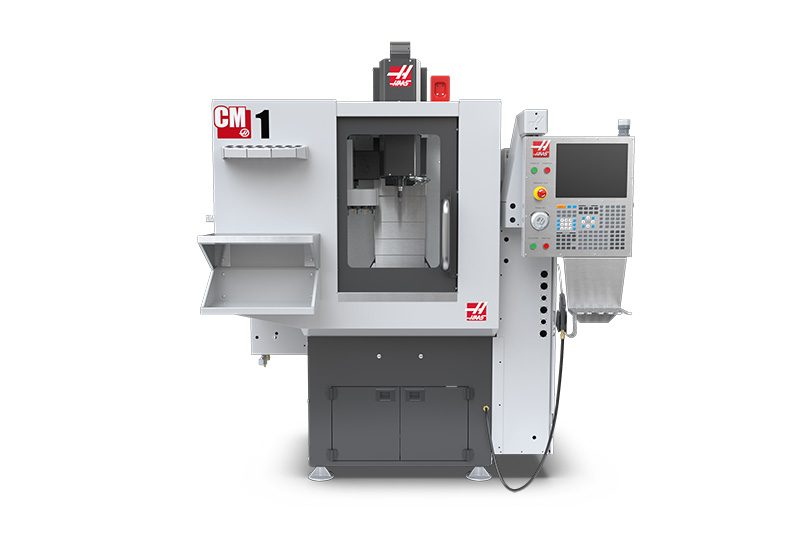

Compact CNC Vertical Mill with 12" x 10" x 14" travels

Small parts manufacturing can pose significant machining challenges for the average job shop. Tiny holes, minute features, extreme accuracies, and fine surface finishes may prove difficult for larger CNC machines.

The CM-1 Compact Mill is a small-footprint, high-accuracy solution for producing and prototyping small, high-precision 2D and 3D parts, such as those found in the communications, aerospace, medical, and dental industries.

Operates on single- or three-phase power
Ultra-compact footprint

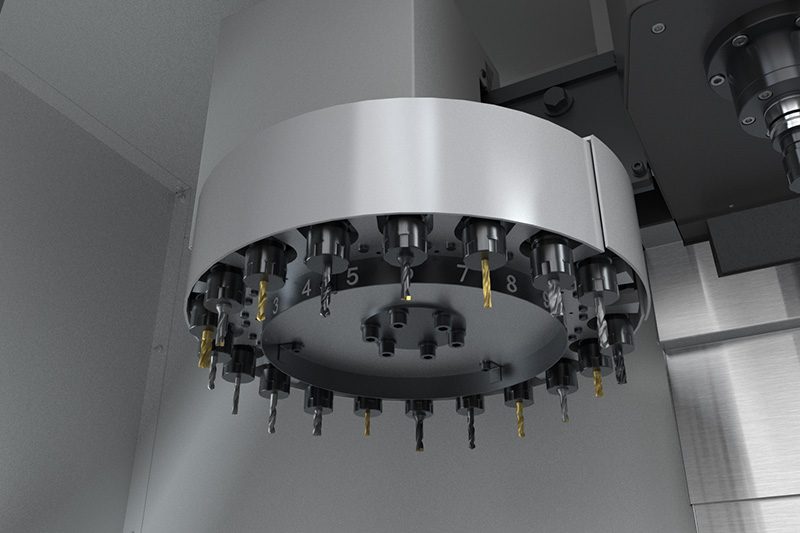

20-pocket tool changer

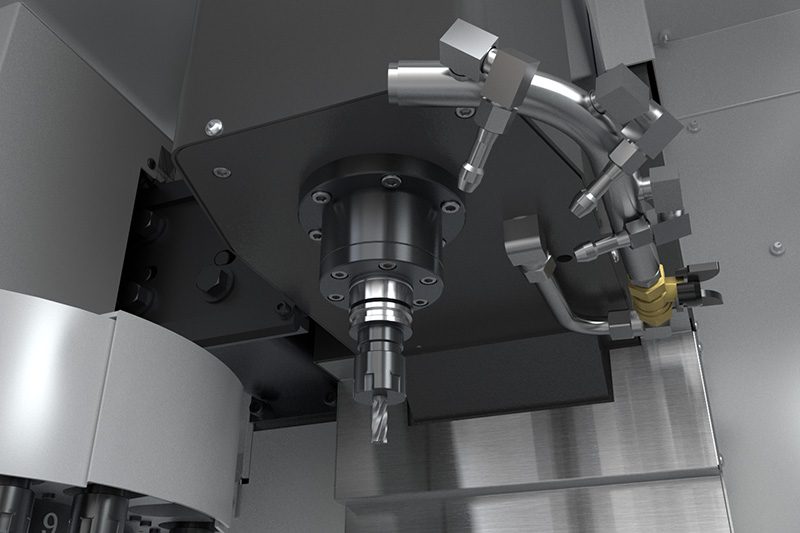

30,000-rpm spindle

{{=tableHeader}}
Model	Serial#	Options

20 Taper
3 Axis
30k RPM
20 Tool Capacity

Compare Machines

BUILD & PRICE

Contact Distributor

Build-&-Price
Specs
Machine Info
Rotary Fit chart

Travels	S.A.E	METRIC
X Axis	12.00 in	305 mm
Y Axis	10.00 in	254 mm
Z Axis	14.00 in	356 mm
Spindle Nose to Table (~ max)	16.6 in	422 mm
Spindle Nose to Table (~ min)	2.6 in	66 mm

Spindle	S.A.E	METRIC
Max Rating	5.0 hp	3.7 kW
Max Speed	30000 rpm	30000 rpm
Max Torque	8.0 ft-lbf @ 3000 rpm	10.8 Nm @ 3000 rpm
Drive System	Direct Speed, Belt Drive	Direct Speed, Belt Drive
Taper	ISO 20	ISO 20
Bearing Lubrication	Air / Oil Injection	Air / Oil Injection
Cooling	Air Cooled	Air Cooled

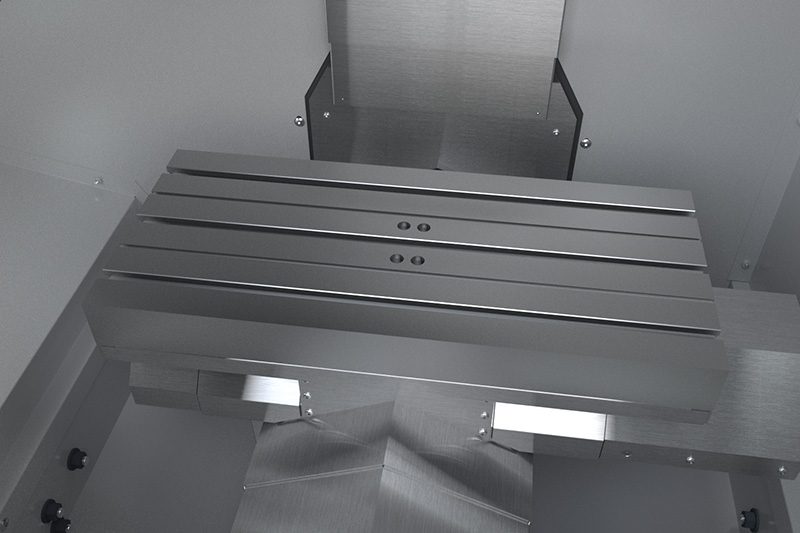

Table	S.A.E	METRIC
Length	22.5 in	572 mm
Width	10.0 in	254 mm
T-Slot Width	0.438 in to 0.440 in	11.13 mm to 11.18 mm
T-Slot Center Distance	3.38 in	86 mm
Number of Std T-Slots	3	3
Max Weight on Table (evenly distributed)	150 lb	68 kg

Feedrates	S.A.E	METRIC
Max Cutting	500 ipm	12.7 m/min
Rapids on X	757 ipm	19.2 m/min
Rapids on Y	757 ipm	19.2 m/min
Rapids on Z	757 ipm	19.2 m/min

Axis Motors	S.A.E	METRIC
Max Thrust X	1149 lbf	5111 N
Max Thrust Y	1149 lbf	5111 N
Max Thrust Z	1149 lbf	5111 N

Tool Changer	S.A.E	METRIC
Type	Carousel	Carousel
Capacity	20	20
Max Tool Diameter (full)**	2.3 in	58 mm
Max Tool Weight	5.0 lb	2.3 kg
Tool-to-Tool (avg)	3.20 s	3.20 s

General	S.A.E	METRIC
Coolant Capacity	13 gal	49 L

Air Requirements	S.A.E	METRIC
Air Required†	1 scfm @ 100 psi	28 L/min @ 4.8 bar
Inline Air Hose	3/8 in	3/8 in
Coupler (Air)	3/8 in	3/8 in
Air Pressure Min	80 psi	5.5 bar

Electrical Specification	S.A.E	METRIC
Spindle Speed	30000 rpm	30000 rpm
Drive System	Direct Speed, Belt Drive	Direct Speed, Belt Drive
Spindle Power	5.0 hp	3.7 kW
Input AC Voltage (1 Phase)	220 VAC	220 VAC
Full Load Amps (1 Phase)	16 A	16 A
Input AC Voltage (3 Phase) - Low	220 VAC	220 VAC
Full Load Amps (3 Phase) - Low	12 A	12 A

Dimensions - Shipping	S.A.E	METRIC
Domestic Pallet	78.0 in x 62.0 in x 92.0 in	199 cm x 157 cm x 234 cm
Export Pallet	78.0 in x 62.0 in x 92.0 in	199 cm x 157 cm x 234 cm
Weight	2200 lb	998.0 kg

NOTE: All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications.

*Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

**Optional tool changers may have a different max tool size than the standard tool changer. Extra-large tools may require two adjacent pockets empty between tools. Click here for toolholder specifications.

ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

† Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.

AVAILABLE OPTIONS

TECHNICAL DOCUMENTS

VIDEOS

CUSTOMER TESTIMONIALS

RELATED PRODUCTS

Standard Features

Available Options

* Not all options are compatible with each other. Some options may require the purchase of additional options, or may include additional options at no charge. Please use our Build-&-Price tool to determine option compatibility, and configure your machine.

TECHNICAL DOCUMENTS

*NOTE: Due to continual design improvements, 3D models and layout drawings may not be accurate to the latest production model.

Videos

3 Easy Ways To Set Tool Offsets Using VPS

You might already know these shortcuts to getting your tool offsets entered more quickly, but if not, Andrew walks you through 3 simple ways to speed things up and save you a few precious minutes during job setup.

Haas Wireless Intuitive Probing System

With the Haas Wireless Intuitive Probing System (WIPS), you can set tool and work offsets in a fraction of the time. No more edge finders or slips of paper under the tool needed.

CM-1 and TRT70 Cutting Demo

The Compact Mill is our small-footprint, high-accuracy solution for prototyping and producing small, high-precision, 2D and 3D parts, like those found in the communications, aerospace, medical, and dental industries. Small enough to fit into most freight elevators, the CM-1 can easily be moved with a pallet jack or equipment dolly.

Display Pictures and Videos on Your Haas Control Using M130

With M130, you can display setup sheets, tool lists, work instructions, and even videos – all within your program. No more taping work instructions to the machine, or hand writing notes telling your operator how to load or inspect a part; put it all in your NC program!

CUSTOMER TESTIMONIALS

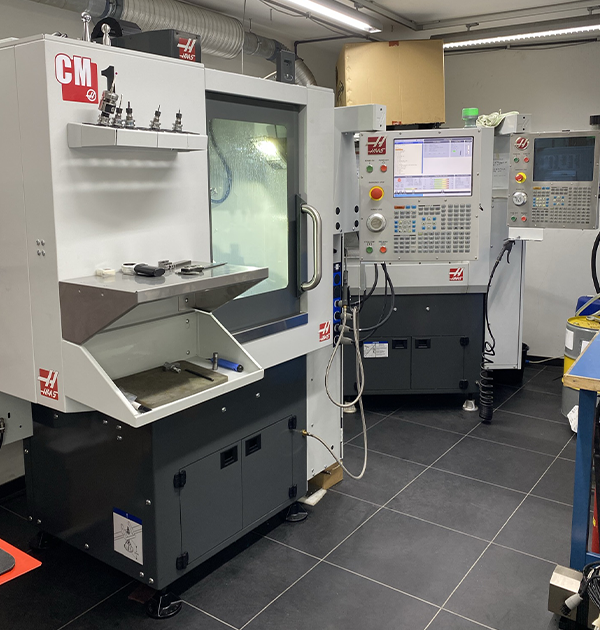

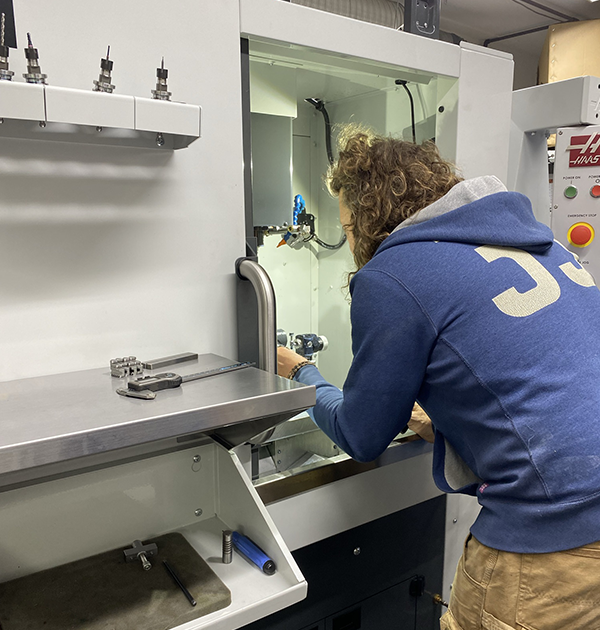

METALART sieraden

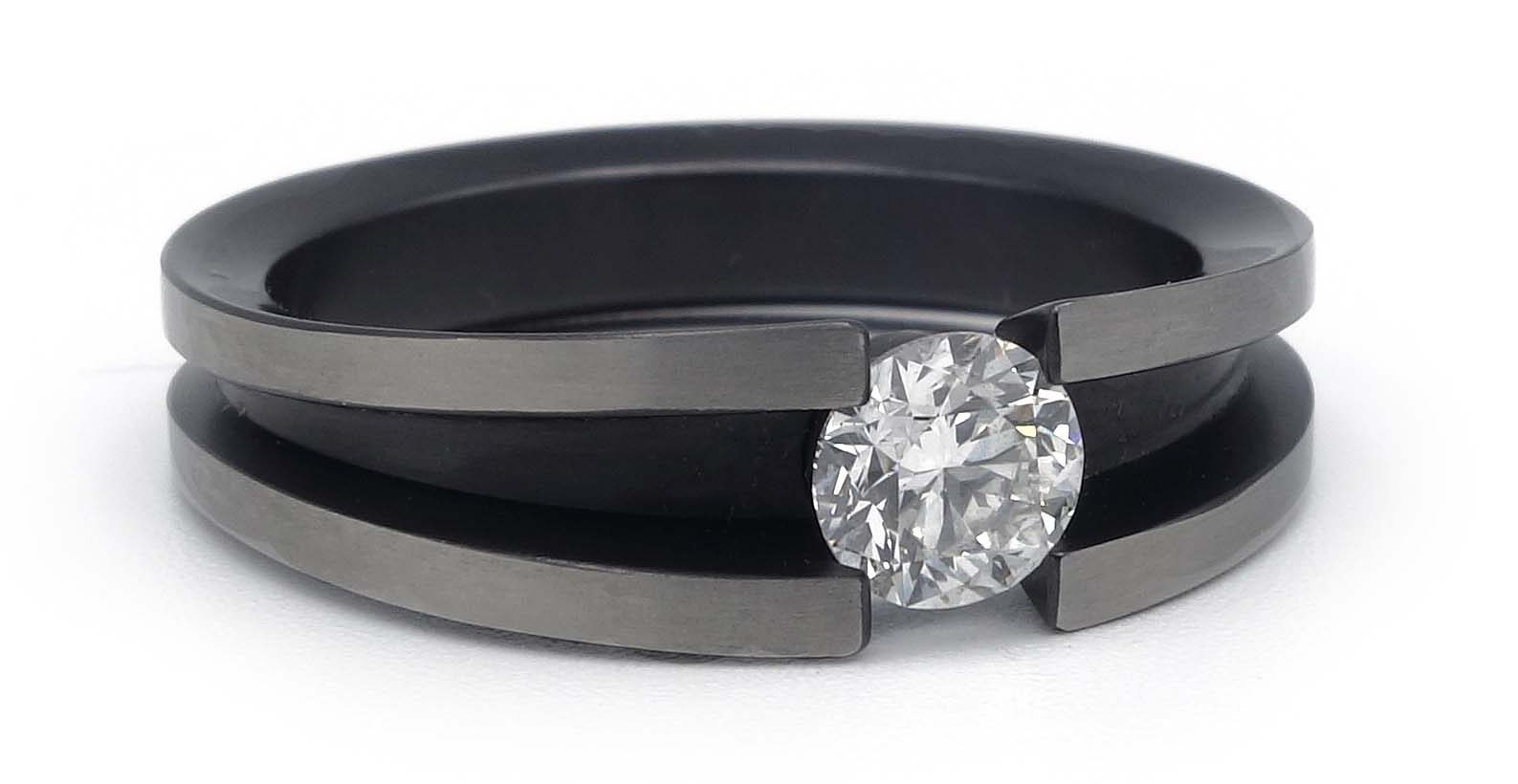

“As a goldsmith who makes jewelry using machining techniques, I’m very satisfied with the arrival of the new Haas CM-1. The software and machine are very well coordinated. Thanks to the Haas CM-1, I am able to make something unique for our customers.”

– Joeri Dijkman, Goldsmith

COMPACT CHUCKER LATHE

CL-1

CNC Chucker Lathe with 1" bar capacity

5C Nose Chuck Size
1.0" Bar Capacity
6k RPM
5 hp Power

Learn More Build & Price

LARGER WORK ENVELOPE

DT-1

CNC Drill/Tap Center with 20" x 16" x 15.5" travels

30 Taper
3 Axis
10k RPM
20+1 Tool Capacity

Learn More Build & Price

COMPACT 40-TAPER

Super Mini Mill

Super-Speed Mini Vertical Mill with 16" x 14" x 15" travels

40 Taper
3 Axis
10k RPM
30+1 Tool Capacity

Learn More Build & Price

HAAS ROTARY	HAAS MACHINE	ROTARY FIT TYPE	WARNING
TRT70	CM-1	POSITIVE FIT
HRT100	CM-1	POSITIVE FIT
