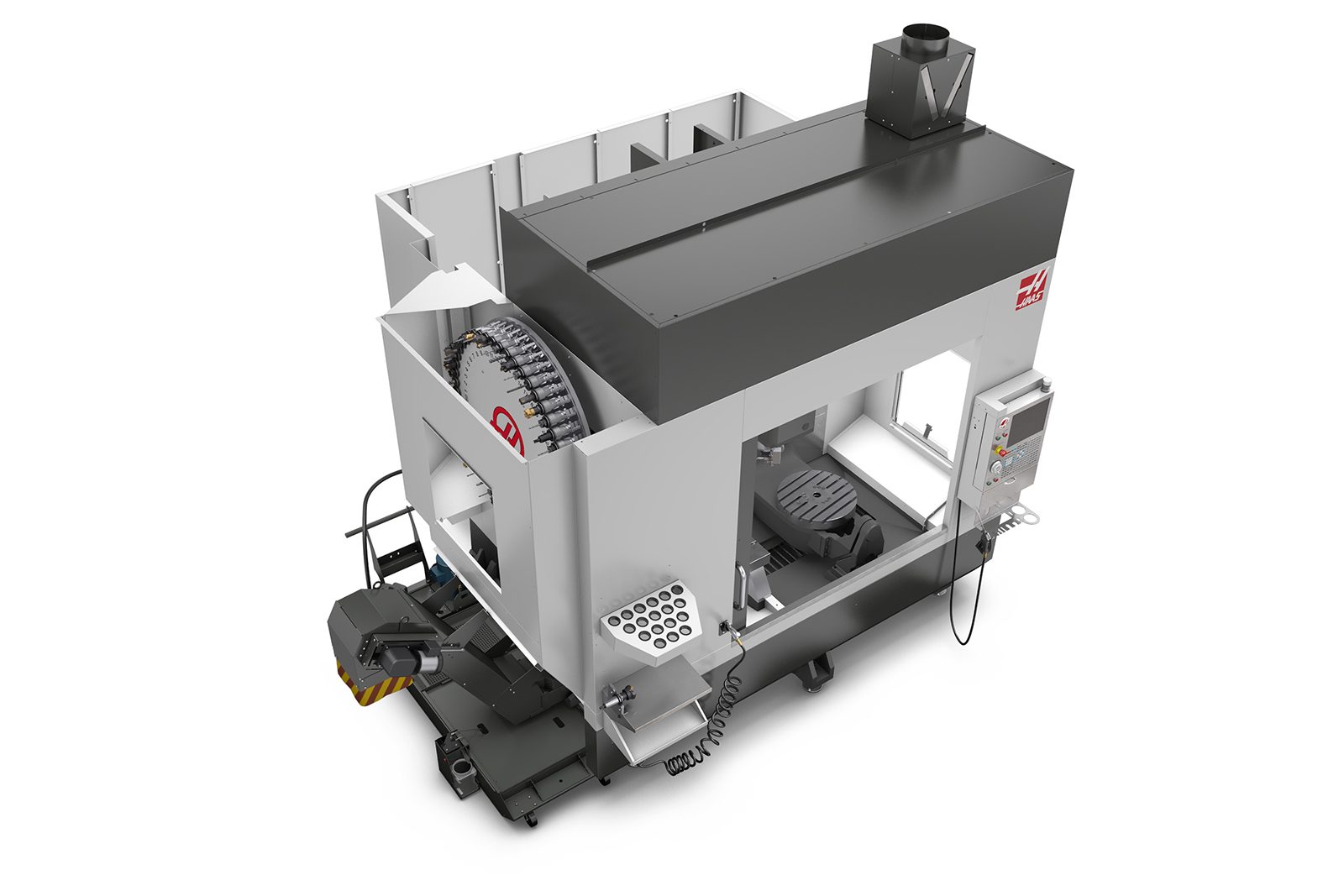

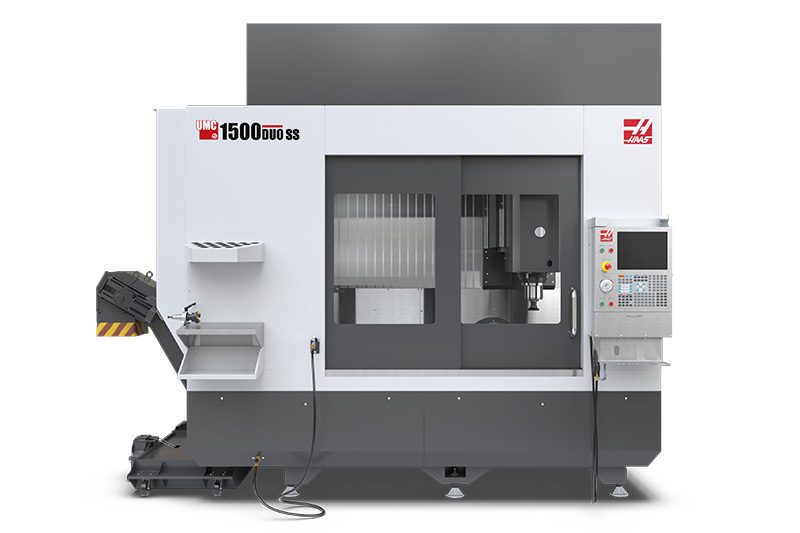

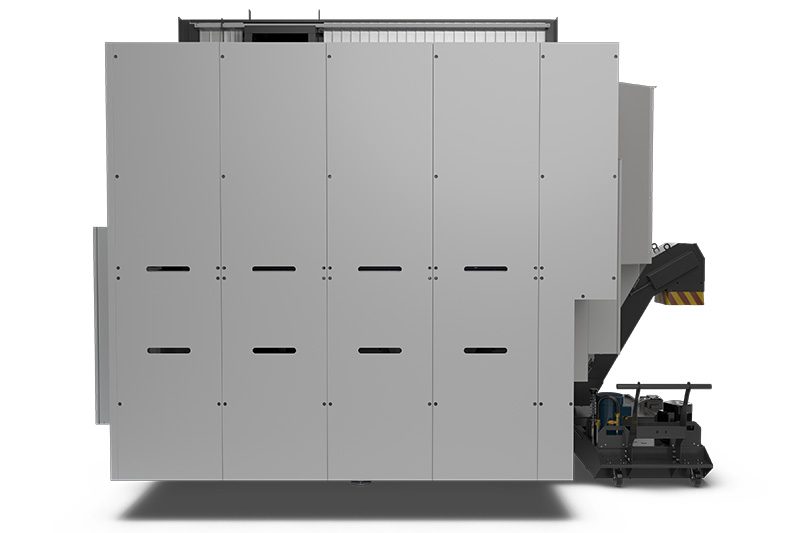

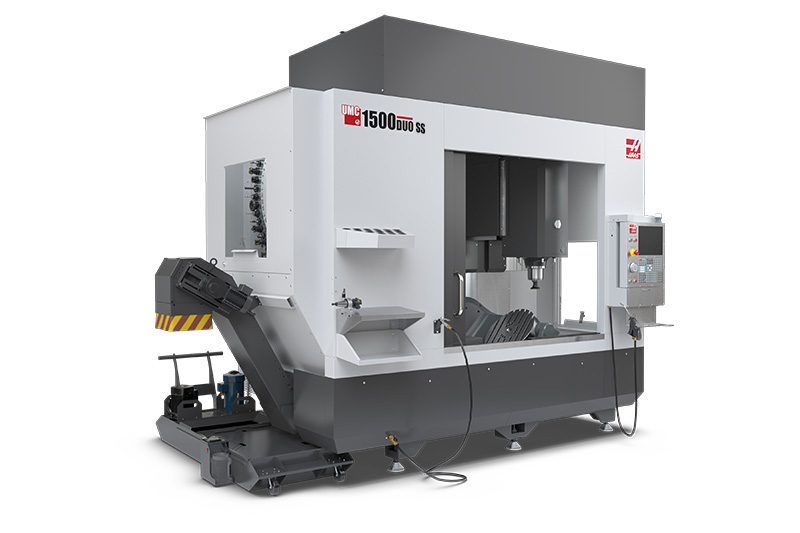

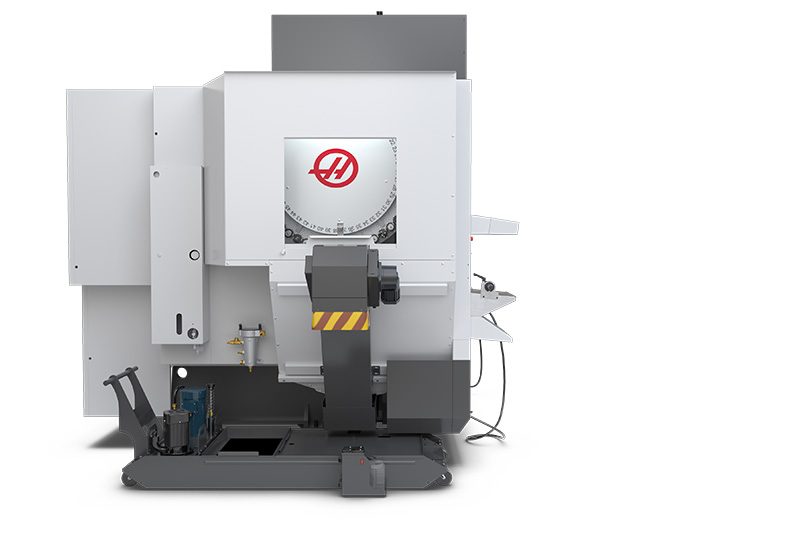

UMC-1500SS-DUO




For the best pricing in your area, contact your local Haas Factory Outlet.

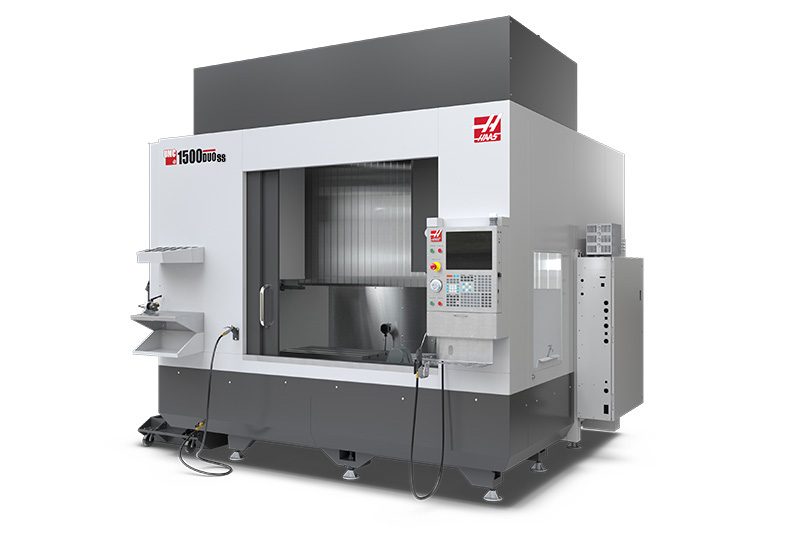

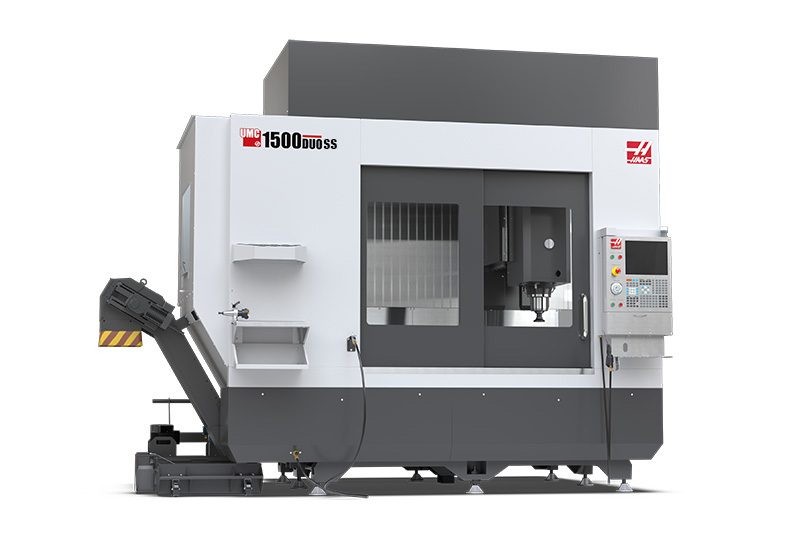

Super-Speed 5-Axis Dual-Station Vertical Machining Center, 60" x 20" x 20"

The Haas UMC-1500SS-DUO is like having two machines in one: a high-speed 5-axis universal machining center, and a versatile 3-axis vertical machining center. We’ve taken our industry-leading UMC-750SS universal machining center, expanded its X-axis travel, and added a stationary 32" x 18" T-slot table next to the dual-axis trunnion.

Use the stationary table to set up workholding for first operations – like cutting dovetails on your 5-axis material – or to machine the 6th side of your completed 5-axis parts. Or, because the stationary table and trunnion platter (at B0) are at the same height, you can fixture parts across both, and use the machine’s full X-axis travel to machine long parts.

  • 5-axis simultaneous machining

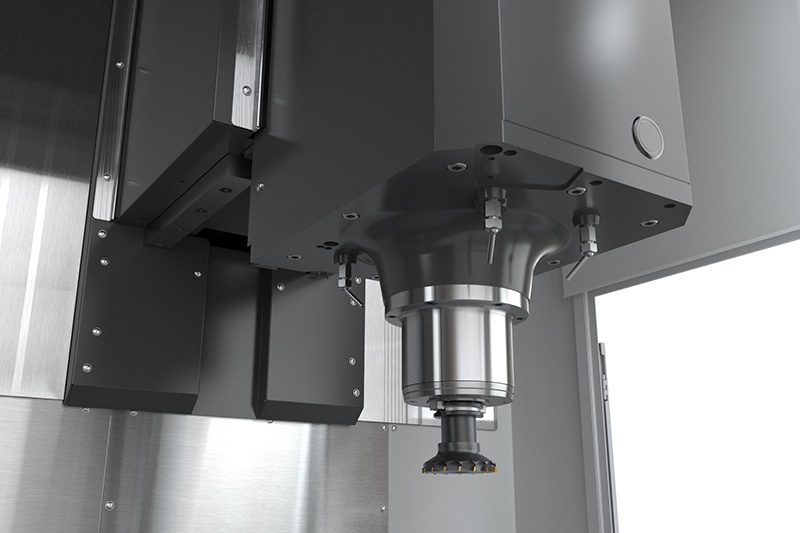

  • Powerful inline direct-drive spindle
  • High-speed dual-axis trunnion table
  • Stationary 32" x 18" (813 mm x 457 mm) T-slot table
  • Includes Wireless Intuitive Probing System
  • 40 Taper
  • 5 Axis
  • 12k RPM
  • 30+1 Tool Capacity
Compare Machines
BUILD & PRICE
Contact Distributor
Travels S.A.E METRIC
X Axis 60.00 in 1524 mm
Y Axis 20.00 in 508 mm
Z Axis 20.00 in 508 mm
Spindle Nose to Platter (~ max) 24.0 in 610 mm
Spindle Nose to Platter (~ min) 4.0 in 102 mm
Spindle S.A.E METRIC
Max Rating 30.0 hp 22.4 kW
Max Speed 12000 rpm 12000 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Taper CT40 | BT40 | HSK-A63 CT40 | BT40 | HSK-A63
Bearing Lubrication Air / Oil Injection Air / Oil Injection
Cooling Liquid Cooled Liquid Cooled
B Axis - Tilt S.A.E METRIC
Travel 120 ° to 35- ° 120 ° to 35- °
Max Speed 170 °/sec 170 °/sec
Torque (Continuous) 2240 ft-lbf 3037 Nm
Brake Torque 2000 ft-lbf 2712 Nm
C Axis - Rotation S.A.E METRIC
Travel 360 ° 360 °
Max Speed 179 °/sec 179 °/sec
Torque (Continuous) 1854 ft-lbf 2514 Nm
Brake Torque 900 ft-lbf 1220 Nm
Max Part Swing 27.0 in 686 mm
Platter S.A.E METRIC
Platter Diameter 19.70 in 500 mm
Max Weight on Platter 660 lb 300.0 kg
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
Number of Std T-Slots 7 7
T-Slot Center Distance 2.48 in 63 mm
Table S.A.E METRIC
Length 32.0 in 813 mm
Width 18.0 in 457 mm
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
T-Slot Center Distance 4.92 in 125 mm
Number of Std T-Slots 3 3
Feedrates S.A.E METRIC
Max Cutting 833 ipm 21.2 m/min
Rapids on X 1200 ipm 30.5 m/min
Rapids on Y 1200 ipm 30.5 m/min
Rapids on Z 1200 ipm 30.5 m/min
Axis Motors S.A.E METRIC
Max Thrust X 2750 lbf 12233 N
Max Thrust Y 2750 lbf 12233 N
Max Thrust Z 3400 lbf 15124 N

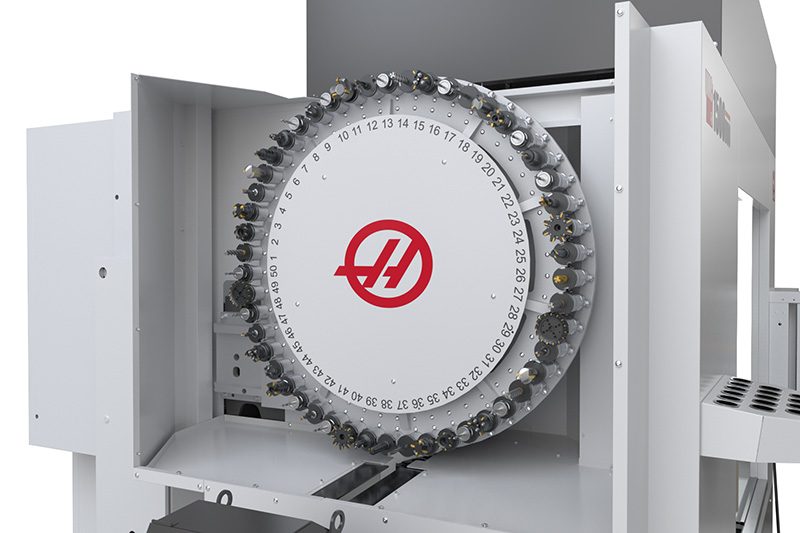

Tool Changer S.A.E METRIC
Type SMTC SMTC
Capacity 30+1 30+1
Max Tool Diameter (full)** 2.5 in 64 mm
Max Tool Diameter, Large (adjacent empty)** 5.0 in 127 mm
Max Tool Length (from gage line) 12.00 in 305 mm
Max Tool Weight 12.0 lb 5.4 kg
Tool-to-Tool (avg) 2.80 s 2.80 s
Chip-to-Chip (avg) 3.60 s 3.60 s
General S.A.E METRIC
Coolant Capacity 55 gal 208 L
Air Requirements S.A.E METRIC
Air Required† 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
Electrical Specification S.A.E METRIC
Spindle Speed 12000 rpm 12000 rpm
Drive System Direct Speed, Belt Drive Direct Speed, Belt Drive
Spindle Power 30.0 hp 22.4 kW
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 70 A 70 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 35 A 35 A
Dimensions - Shipping S.A.E METRIC
Domestic Pallet 188.0 in x 91.0 in x 109.0 in 478 cm x 231 cm x 277 cm
Export Pallet 185.0 in x 91.0 in x 101.0 in 470 cm x 231 cm x 257 cm
Weight 20100 lb 9117.0 kg
Domestic Pallet w/70+1 SMTC 188.0 in x 91.0 in x 125.0 in 478 cm x 231 cm x 318 cm
Weight w/70+1 SMTC 20,120 lb 9,126.0 kg
Export Crate for Sheet Metal 114 in x 69 in x 43 in 290 cm x 175 cm x 109 cm
Weight for Sheet Metal Crate 1400 lb 635 kg

NOTE: All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications.

*Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

**Optional tool changers may have a different max tool size than the standard tool changer. Extra-large tools may require two adjacent pockets empty between tools. Click here for toolholder specifications.

ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

† Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.



Overview


The UMC-1500-DUO* is a versatile dual-station vertical machining center that combines the 5-axis capability of our UMC-750 with a stationary T-slot table for 3-axis work. The machine offers double the X-axis travels of the standard UMC-750, and incorporates the design improvements introduced with the latest UMC models.

The right-side station is the standard integrated 2-axis trunnion rotary table from the UMC-750, and the left station is a stationary 32" x 18" (813 mm x 457 mm) T-slot table.

*The Super Speed UMC-1500SS-DUO is also available.

UMC-1500-DUO features:

  • Dual-station work environment
  • Cycloidal rotary drives
  • Lighter operator door
  • Front-mounted control pendant
  • Easy-access operator convenience features
  • Large side-window
  • Stiff base casting
  • Standard rollaway coolant tank



Dual-Station Work Environment

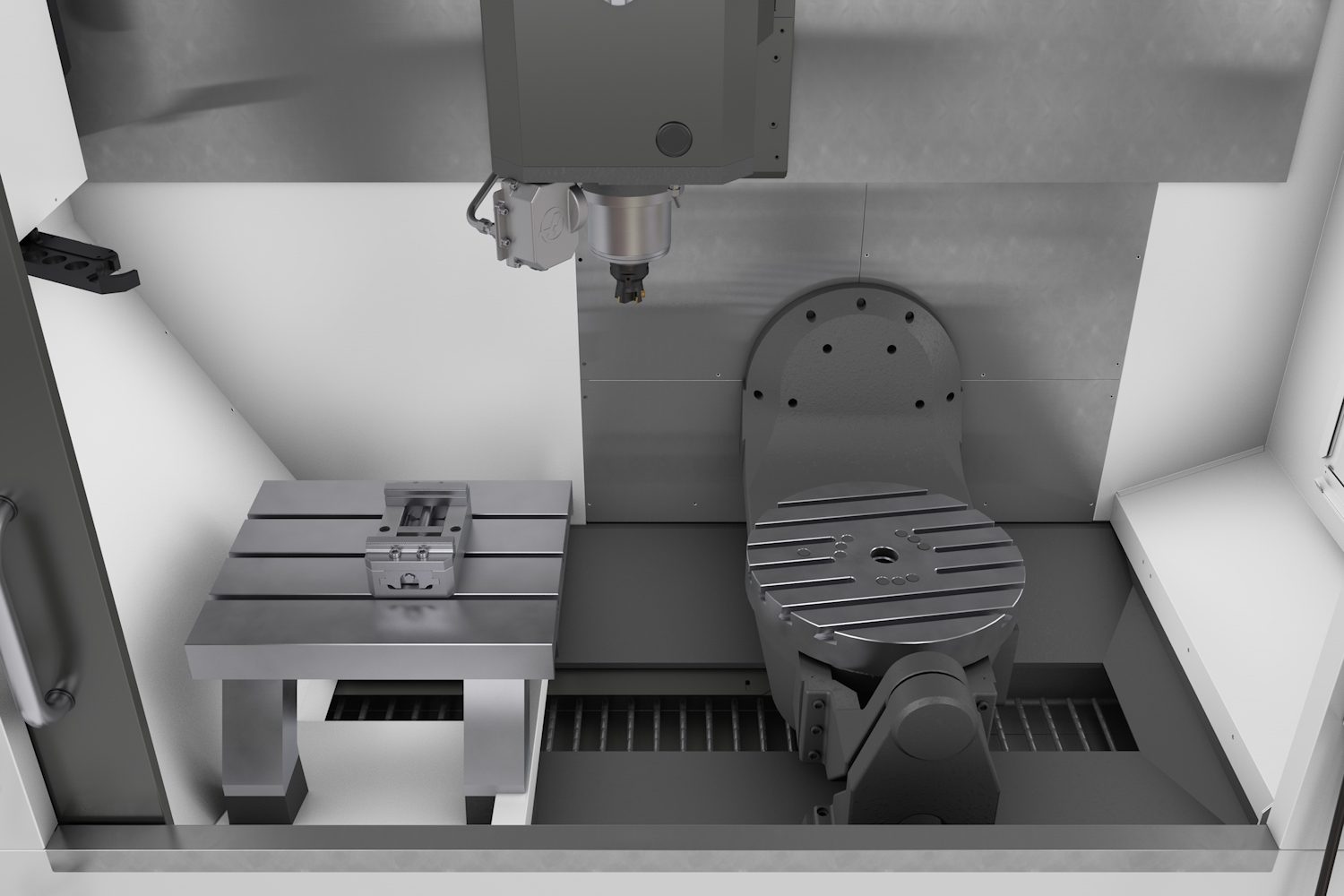

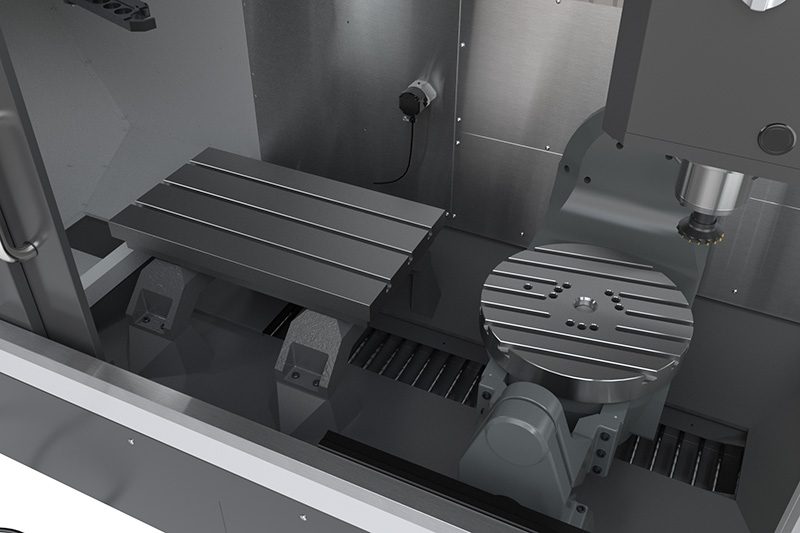

The UMC-1500-DUO features a large 32" x 18" (813 mm x 457 mm) stationary T-slot table on the left that allows rigid setups for heavy material removal operations, using industry-standard table vises. There is enough room on the table to accomodate one or two 6" (152 mm) vises. The stationary table is also perfect for setting up first operations – like cutting dovetails on your 5-axis material – or for machining the 6th side of your completed 5-axis parts

The integrated dual-axis trunnion on the right has a 500 mm (19.7") diameter platter that features standard T-slots and a precision pilot bore for fixturing versatility. The trunnion provides +120 and -35 degrees of tilt and 360 degrees of rotation for high-quality, accurate 3+2 or full 5-axis simultaneous machining work.

Because the stationary table and trunnion platter (at B0) are at the same height, you can fixture parts across both, and use the machine’s full X-axis travel to machine long parts

Cycloidal Rotary Drives

The cycloidal rotary drive system – designed for machine tools and robotics – provides a great combination of speed, accuracy, and durability on both the B and C axes. The rugged design provides long service life, with little or no maintenance, and is especially durable in a crash. The cycloidal rotary drive can be back driven to absorb energy from an impact. The shock-load capacity is 5 times the rated torque of the gearbox, and the entire gearbox is a simple drop-in replacement, should damage occur.

Operator Door Improvements

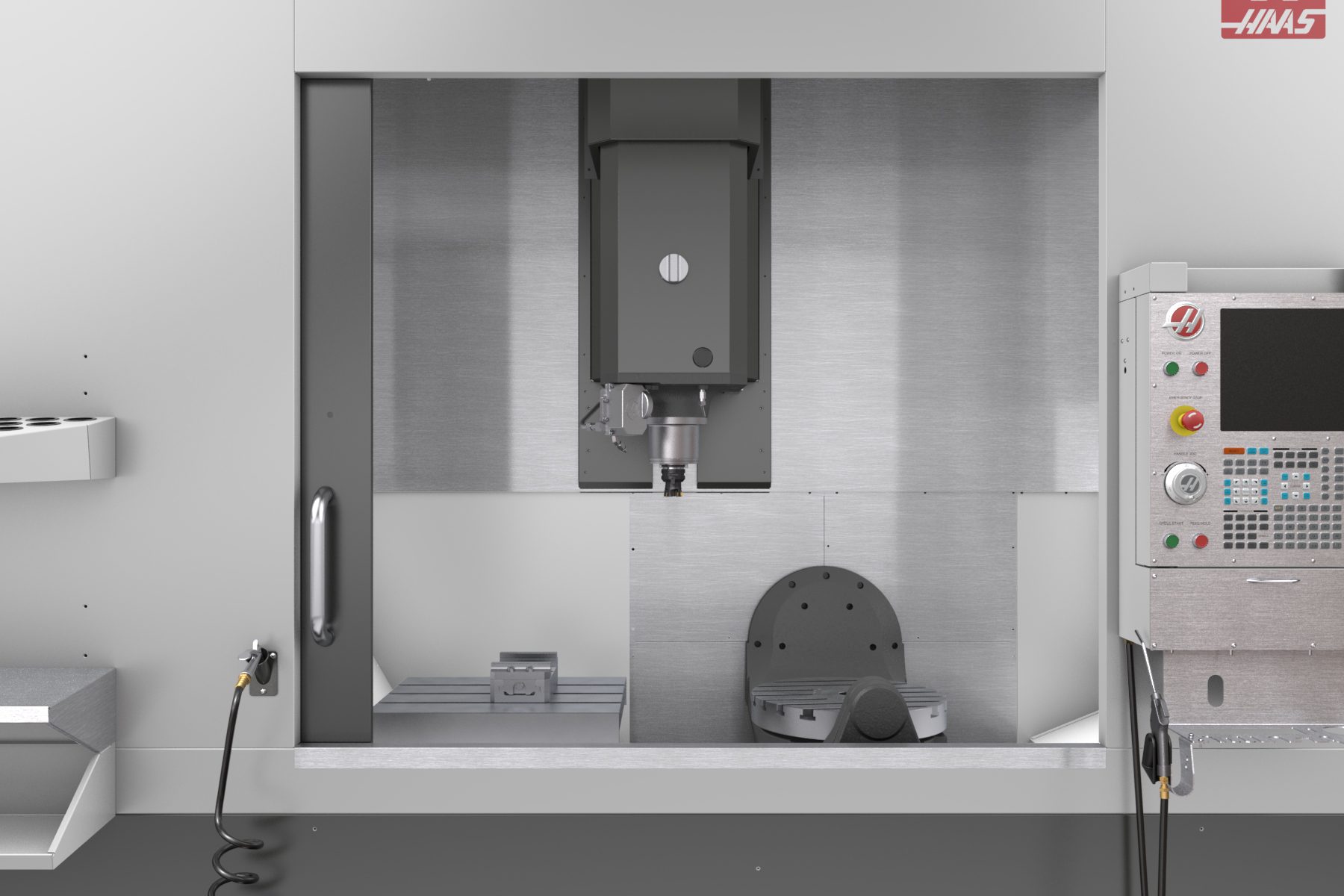

The UMC-1500-DUO door mounts inside the enclosure, which raises the bottom of the enclosure opening, and provides better chip control.

Control Pendant Mount

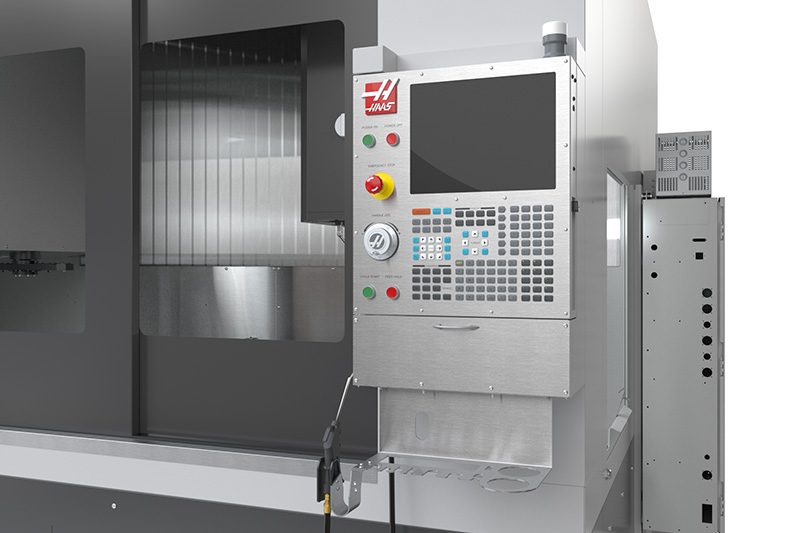

The internal mounting design of the UMC-1500-DUO door allows the control pendant to be mounted to the front of the machine, in an operator-friendly position.

Operator Convenience Features

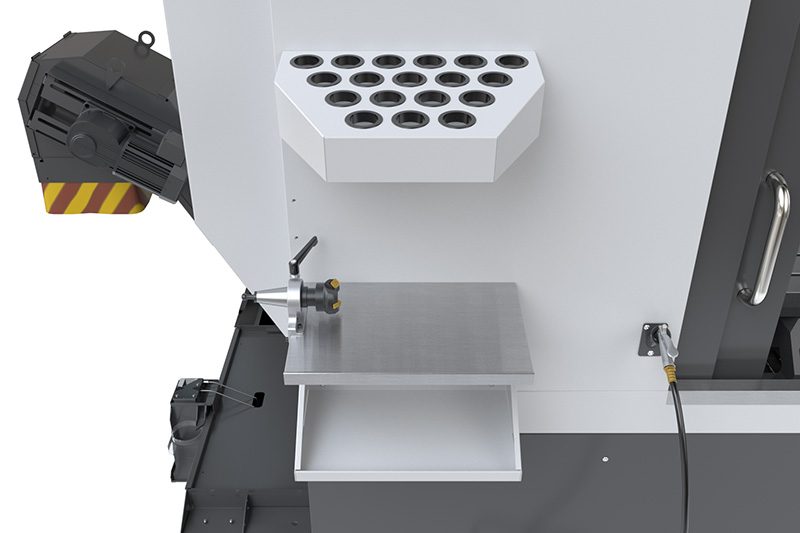

The UMC-1500-DUO’s operator convenience features are mounted to the front of the machine for easy access, including a toolholder storage rack, work table, toolholder vise, storage tray, and washdown hose.

Side-Window Design

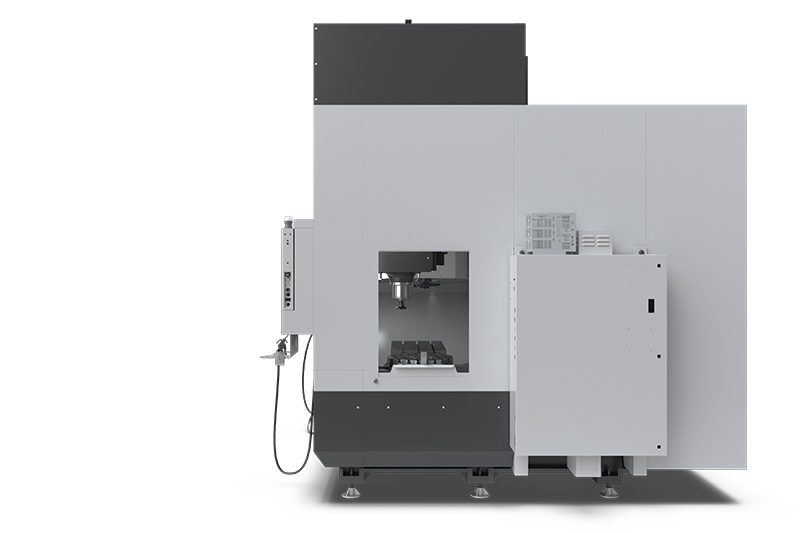

Placing the control pendant in the front of the UMC-1500-DUO allowed us to enlarge the side window and make it slide open. This provides access to the machine’s platter, and also allows a pallet pool or other automation to be added to the machine.

Base Casting and Coolant Tank

The UMC-1500-DUO base casting is stiff and rigid, improving cut performance, and allowing the use of our standard 55-gallon (208 liter) rollaway coolant tank, for easy cleaning and maintenance. An optional 95-gallon (360 liter) coolant tank is also available, and both tanks accept our Oil Skimmer and Coolant Refill options to further enhance productivity.
