UMC-400




For the best pricing in your area, contact your local Haas Factory Outlet.

5-Axis CNC Vertical Machining Center with 17" x 11" x 13" travels

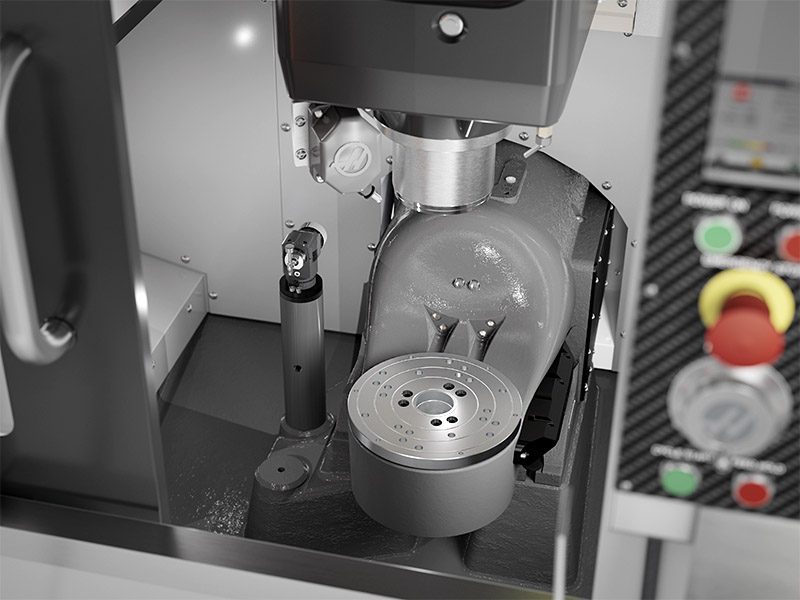

The UMC-400 has a compact footprint and generous travels that make it the perfect fit for smaller shops, or shops doing 5-axis small-part machining.

Using the proven design elements of our existing UMCs, the UMC-400 is sure to be a great performer. Standard features include a 10,000 rpm 40-taper spindle and a 30+1 side-mount tool changer. All this fits into a compact 7 ft x 7 ft (2.1 x 2.1 meter). That’s 25% smaller than the ever-popular UMC-500.

  • 5-axis simultaneous machining
  • Powerful inline direct-drive spindle
  • 30+1 side-mount tool changer
  • Includes Wireless Intuitive Probing System
  • 40 Taper
  • 5 Axis
  • 8.1k RPM
  • 30+1 Tool Capacity

UMC-400 SERIES

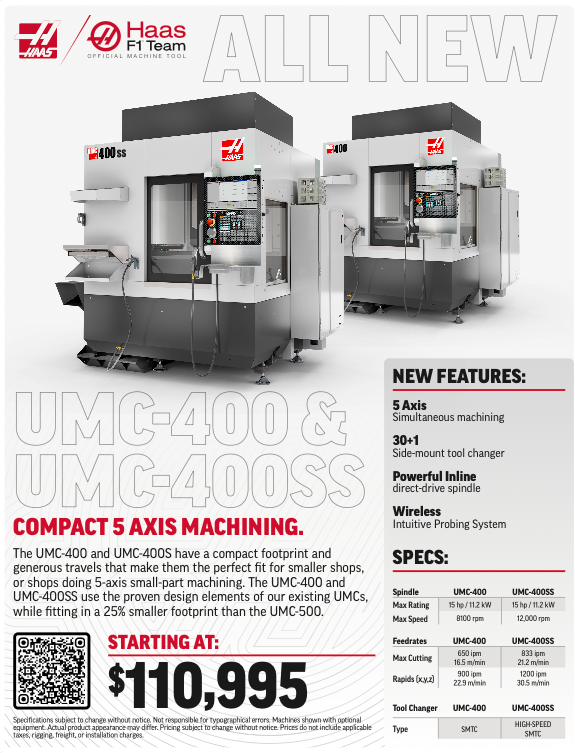

DOWNLOAD BROCHURE

HAAS JOURNAL

    Compare Machines
    BUILD & PRICE
    Contact Distributor
    Travels S.A.E METRIC
    X Axis 17.00 in 432 mm
    Y Axis 11.00 in 279 mm
    Z Axis 13.00 in 330 mm
    Spindle Nose to Platter (~ max) 17.0 in 432 mm
    Spindle Nose to Platter (~ min) 4.0 in 102 mm
    Trunnion S.A.E METRIC
    Platter Diameter 9.10 in 230 mm
    Max Weight on Platter 100 lb 45.4 kg
    Spindle S.A.E METRIC
    Max Rating 15.0 hp 11.2 kW
    Max Speed 8100 rpm 8100 rpm
    Max Torque 46.0 ft-lbf @ 1700 rpm 62.0 Nm @ 1700 rpm
    Drive System Inline Direct-Drive Inline Direct-Drive
    Taper CT or BT 40 CT or BT 40
    Bearing Lubrication Air / Oil Injection Air / Oil Injection
    Cooling Air Cooled Air Cooled

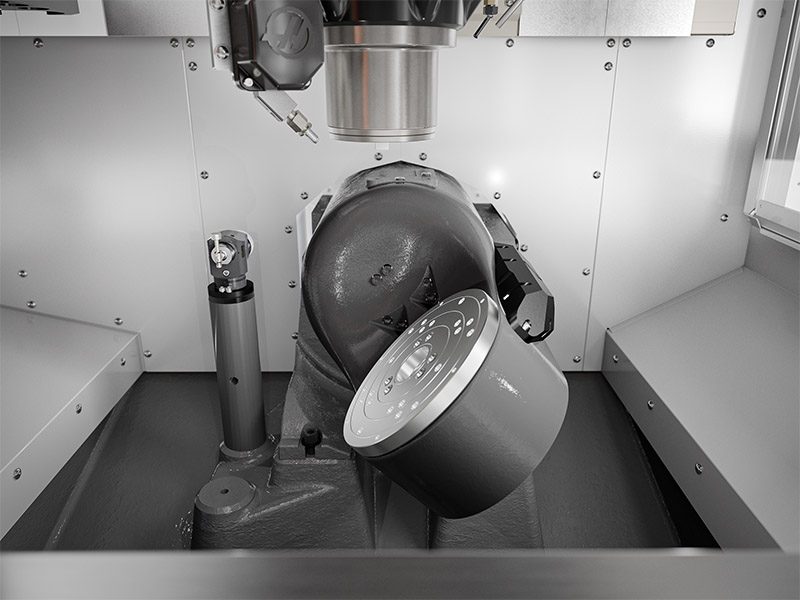

    B Axis - Tilt S.A.E METRIC
    Travel 120 ° to 45- ° 120 ° to 45- °
    Max Speed 80 °/sec 80 °/sec
    Torque (Continuous) 300 ft-lbf 407 Nm
    Brake Torque 425 ft-lbf 576 Nm
    C Axis - Rotation S.A.E METRIC
    Travel 360 ° 360 °
    Max Speed 100 °/sec 100 °/sec
    Torque (Continuous) 210 ft-lbf 285 Nm
    Brake Torque 200 ft-lbf 271 Nm
    Max Part Swing 14.5 in 368 mm
    Feedrates S.A.E METRIC
    Max Cutting 650 ipm 16.5 m/min
    Rapids on X 900 ipm 22.9 m/min
    Rapids on Y 900 ipm 22.9 m/min
    Rapids on Z 900 ipm 22.9 m/min
    Tool Changer S.A.E METRIC
    Type SMTC SMTC
    Capacity 30+1 30+1
    Max Tool Diameter (full)** 2.5 in 64 mm
    Max Tool Diameter, Large (adjacent empty)** 5.0 in 127 mm
    Max Tool Length (from gage line) 7.00 in 178 mm
    Tool-to-Tool (avg) 2.80 s 2.80 s
    Chip-to-Chip (avg) 3.60 s 3.60 s
    General S.A.E METRIC
    Coolant Capacity 45 gal 170 L
    Air Requirements S.A.E METRIC
    Air Required† 4 scfm @ 100 psi 113 L/min @ 6.9 bar
    Inline Air Hose 3/8 in 3/8 in
    Coupler (Air) 3/8 in 3/8 in
    Air Pressure Min 80 psi 5.5 bar
    Electrical Specification S.A.E METRIC
    Spindle Speed 8100 rpm 8100 rpm
    Drive System Inline Direct-Drive Inline Direct-Drive
    Spindle Power 15.0 hp 11.2 kW
    Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
    Full Load Amps (3 Phase) - Low 40 A 40 A
    Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
    Full Load Amps (3 Phase) - High* 20 A 20 A
    Dimensions - Shipping S.A.E METRIC
    Domestic Pallet 102.0 in x 91.5 in x 100.0 in 259 cm x 232 cm x 254 cm
    Export Pallet 102.0 in x 91.5 in x 100.0 in 259 cm x 232 cm x 254 cm
    Weight 7520 lb 3411.0 kg

    NOTE: All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications.

    *Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

    Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

    **Optional tool changers may have a different max tool size than the standard tool changer. Extra-large tools may require two adjacent pockets empty between tools. Click here for toolholder specifications.

    ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

    † Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.
