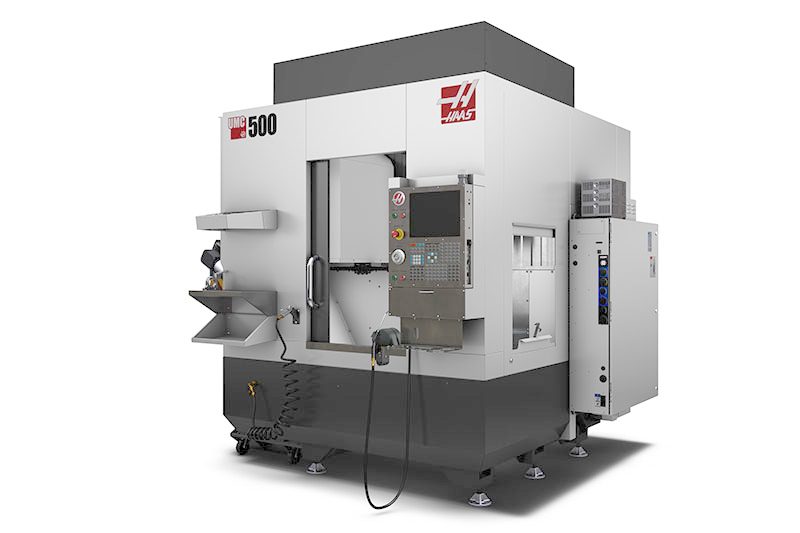

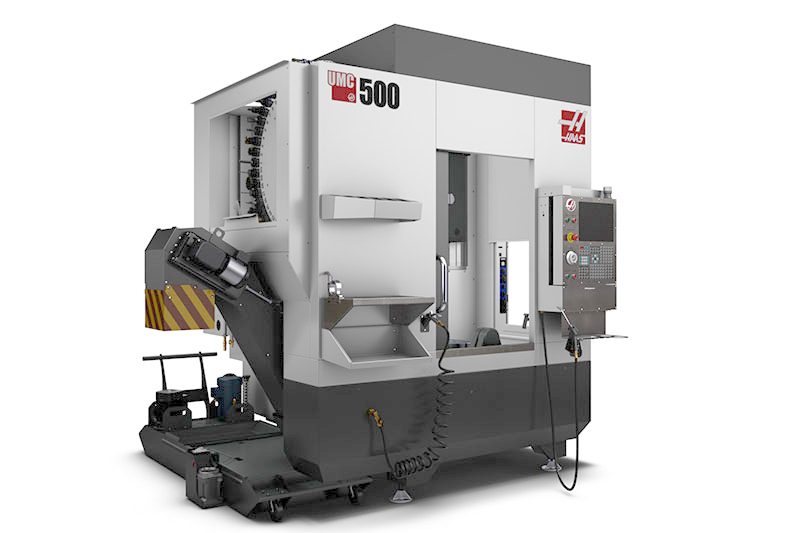

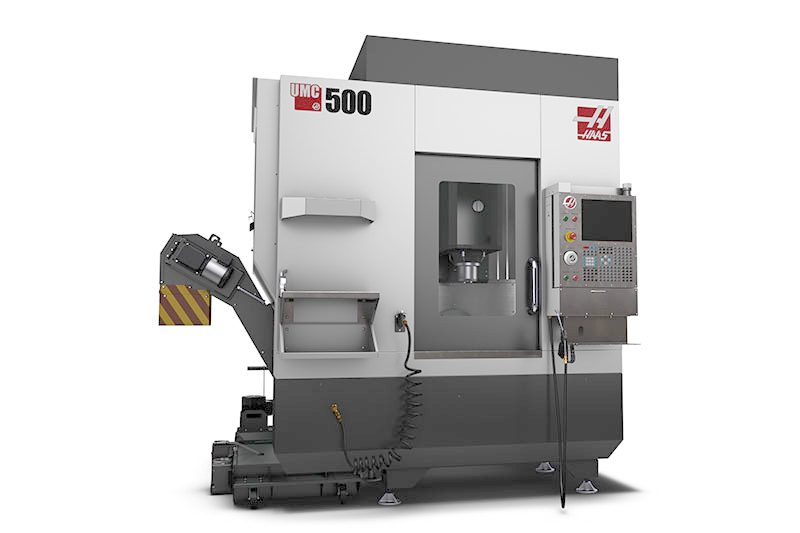

UMC-500

For the best pricing in your area, contact your local Haas Factory Outlet.

5-Axis CNC Vertical Machining Center with 24" x 16" x 16" travels

5-axis machining is an effective means to reduce setups and increase accuracy for multi-sided and complex parts. The shorter travels and compact footprints of the Haas UMC-500 Series Universal Machining Centers make them perfect solutions for 3+2 machining and simultaneous 5-axis machining of smaller parts.

NOTE: The 95-gallon (360 L) coolant tank option requires a hopper-style chip bin to clear the tank and reach the chip conveyor discharge outlet.

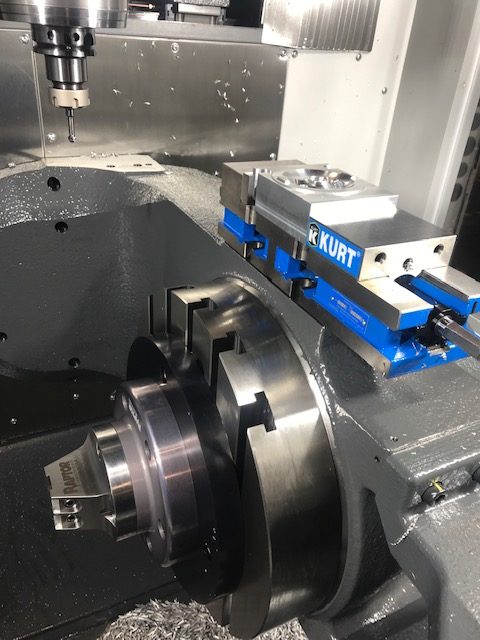

5-axis simultaneous machining

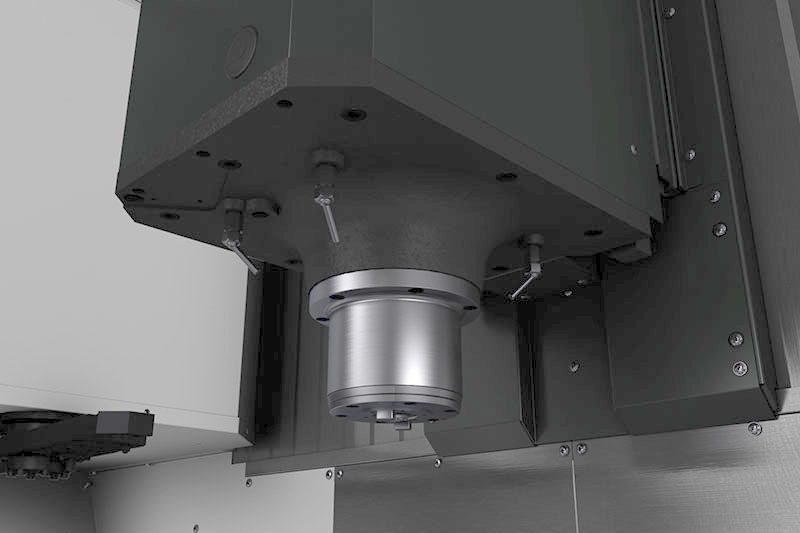

Powerful inline direct-drive spindle

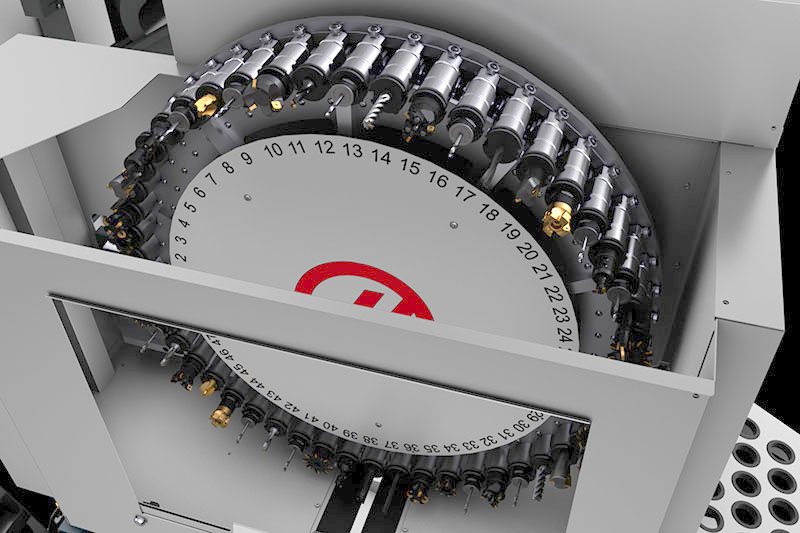

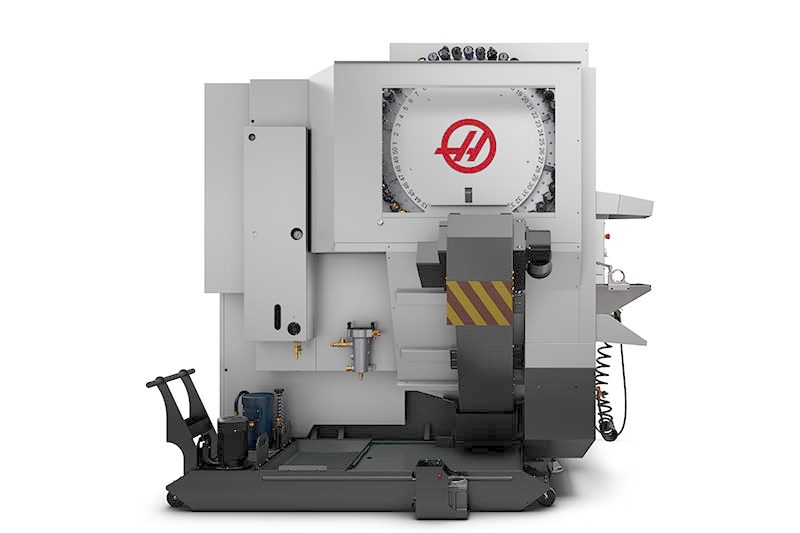

Large capacity side-mount tool changer
Includes Wireless Intuitive Probing System

{{=tableHeader}}
Model	Serial#	Options

40 Taper
5 Axis
8.1k RPM
30+1 Tool Capacity

120+1 Side-Mount Tool Changer

DOWNLOAD BROCHURE

HAAS JOURNAL

Compare Machines

BUILD & PRICE

Contact Distributor

Build-&-Price
Specs
Automation
Details
Machine Info

Travels	S.A.E	METRIC
X Axis	24.00 in	610 mm
Y Axis	16.00 in	406 mm
Z Axis	16.00 in	406 mm
Spindle Nose to Platter (~ max)	20.0 in	508 mm
Spindle Nose to Platter (~ min)	4.0 in	102 mm

Spindle	S.A.E	METRIC
Max Rating	30.0 hp	22.4 kW
Max Speed	8100 rpm	8100 rpm
Max Torque	90.0 ft-lbf @ 2000 rpm	122.0 Nm @ 2000 rpm
Drive System	Inline Direct-Drive	Inline Direct-Drive
Taper	CT40 \| BT40 \| HSK-A63	CT40 \| BT40 \| HSK-A63
Bearing Lubrication	Air / Oil Injection	Air / Oil Injection
Cooling	Liquid Cooled	Liquid Cooled

B Axis - Tilt	S.A.E	METRIC
Travel	120 ° to 35- °	120 ° to 35- °
Max Speed	50 °/sec	50 °/sec
Torque (Continuous)	1854 ft-lbf	2514 Nm
Brake Torque	900 ft-lbf	1220 Nm

C Axis - Rotation	S.A.E	METRIC
Travel	360 °	360 °
Max Speed	50 °/sec	50 °/sec
Torque (Continuous)	1854 ft-lbf	2514 Nm
Brake Torque	900 ft-lbf	1220 Nm
Max Part Swing	18.0 in	457 mm

Platter	S.A.E	METRIC
Platter Diameter	15.70 in	400 mm
Max Weight on Platter	500 lb	226.8 kg
Max Weight on Platter w/Pallet Pool	200 lb	90.7 kg
T-Slot Width	0.626 in to 0.630 in	15.90 mm to 16.00 mm
Number of Std T-Slots	5	5
T-Slot Center Distance	2.48 in	63 mm

Feedrates	S.A.E	METRIC
Max Cutting	650 ipm	16.5 m/min
Rapids on X	900 ipm	22.9 m/min
Rapids on Y	900 ipm	22.9 m/min
Rapids on Z	900 ipm	22.9 m/min

Axis Motors	S.A.E	METRIC
Max Thrust X	3300 lbf	14680 N
Max Thrust Y	3300 lbf	14680 N
Max Thrust Z	4050 lbf	18015 N

Tool Changer	S.A.E	METRIC
Type	SMTC	SMTC
Capacity	30+1	30+1
Max Tool Diameter (full)**	2.5 in	64 mm
Max Tool Diameter, Large (adjacent empty)**	5.0 in	127 mm
Max Tool Length (from gage line)	12.00 in	305 mm
Max Tool Weight	12.0 lb	5.4 kg
Tool-to-Tool (avg)	2.80 s	2.80 s
Chip-to-Chip (avg)	3.60 s	3.60 s

General	S.A.E	METRIC
Coolant Capacity	55 gal	208 L

Air Requirements	S.A.E	METRIC
Air Required†	4 scfm @ 100 psi	113 L/min @ 6.9 bar
Inline Air Hose	3/8 in	3/8 in
Coupler (Air)	3/8 in	3/8 in
Air Pressure Min	80 psi	5.5 bar

Electrical Specification	S.A.E	METRIC
Spindle Speed	8100 rpm	8100 rpm
Drive System	Inline Direct-Drive	Inline Direct-Drive
Spindle Power	30.0 hp	22.4 kW
Input AC Voltage (3 Phase) - Low	220 VAC	220 VAC
Full Load Amps (3 Phase) - Low	70 A	70 A
Input AC Voltage (3 Phase) - High*	440 VAC	440 VAC
Full Load Amps (3 Phase) - High*	35 A	35 A

Dimensions - Shipping	S.A.E	METRIC
Domestic Pallet	128.0 in x 98.0 in x 110.0 in	325 cm x 249 cm x 279 cm
Export Pallet	128.0 in x 92.0 in x 101.0 in	325 cm x 234 cm x 257 cm
Export Crate	128.0 in x 101.0 in x 123.0 in	325 cm x 257 cm x 312 cm
Weight	11900 lb	5400.0 kg
Domestic Pallet w/Conveyor & 70+1 SMTC	128.0 in x 98.0 in x 120.0 in	325 cm x 249 cm x 305 cm
Export Crate w/Conveyor & 70+1 SMTC	128.5 in x 101.0 in x 141.5 in	326 cm x 257 cm x 359 cm
Weight w/Conveyor & 70+1 SMTC	13,320 lb	6,042.0 kg
Domestic Pallet w/Conveyor & 120+1 SMTC	131.0 in x 20.0 in x 108.5 in	333 cm x 51 cm x 276 cm
Weight w/Conveyor & 120+1 SMTC	13,960 lb	6,332.0 kg
Export Pallet w/Conveyor & 120+1 SMTC	133.5 in x 22.5 in x 120.0 in	339 cm x 57 cm x 305 cm

NOTE: All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications.

*Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

**Optional tool changers may have a different max tool size than the standard tool changer. Extra-large tools may require two adjacent pockets empty between tools. Click here for toolholder specifications.

ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

† Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.

Standard Features

* Not all options are compatible with each other. Some options may require the purchase of additional options, or may include additional options at no charge. Please use our Build-&-Price tool to determine option compatibility, and configure your machine.

ANSWERS TO YOUR CONCERNS ABOUT ADDING A HAAS ROBOT: It won’t take up much space, cost a ton of money, or take weeks to integrate.

SPACE EFFICIENT

COST EFFECTIVE

EASY TO INTEGRATE

EASY TO LEARN

10+1 or 20+1 Pallet Pool

Add a pallet pool to your UMC-500 or UMC-500SS to take your production to the next level. With 10 or 20 additional pallets, you can ensure your machine will be running “lights out.”

10-STATION

20-STATION

AUTOMATE YOUR PRODUCTION!

The Haas Automatic Parts Loader is a simple and affordable way to automate part production and boost productivity. It is designed and built exclusively for the UMC-500 and UMC-500SS, and connects directly to the Haas control.

LEARN MORE

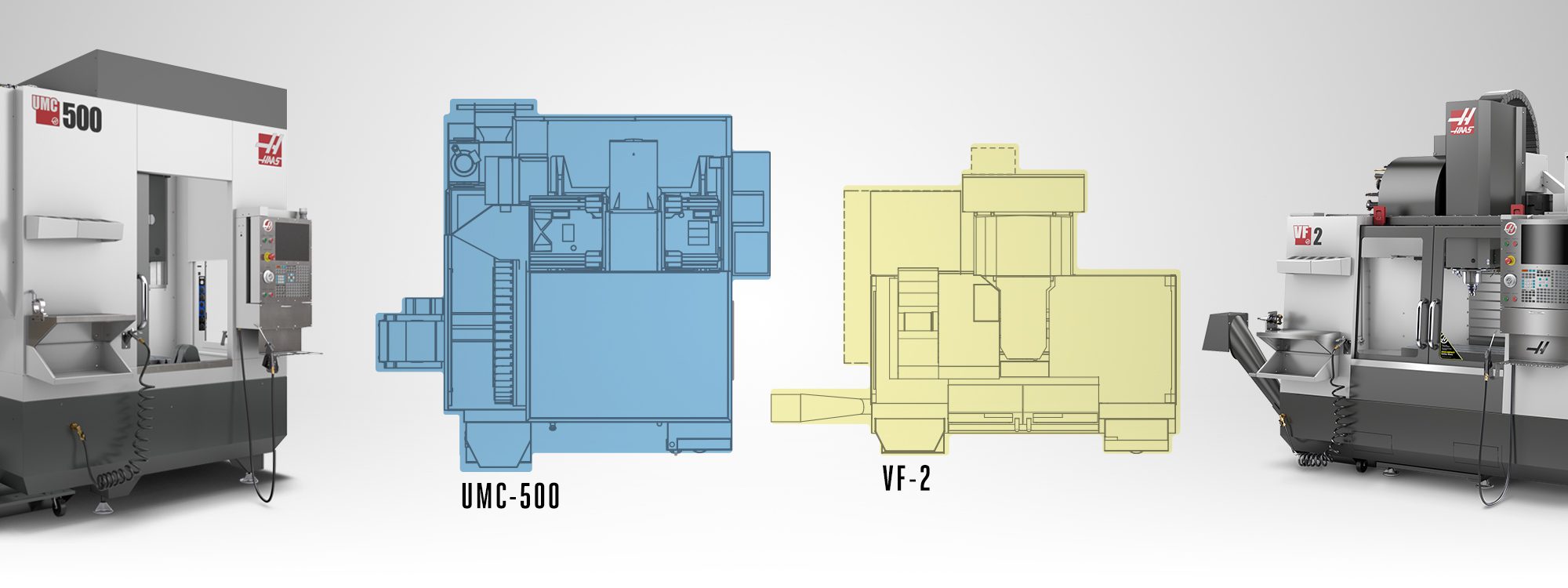

A Top-Down Comparison

Overview

The UMC-500 offers shorter travels and a more compact footprint than the UMC-750, while incorporating the design improvements of the larger UMC-1000.

Universal Machining Center Design Improvements:

Cycloidal Rotary Drives
Lighter Operator Door
Front-Mounted Control Pendant
Easy-Access Operator Convenience Features
Larger Side-Window
Stiffer Base Casting
Standard Rollaway Coolant Tank

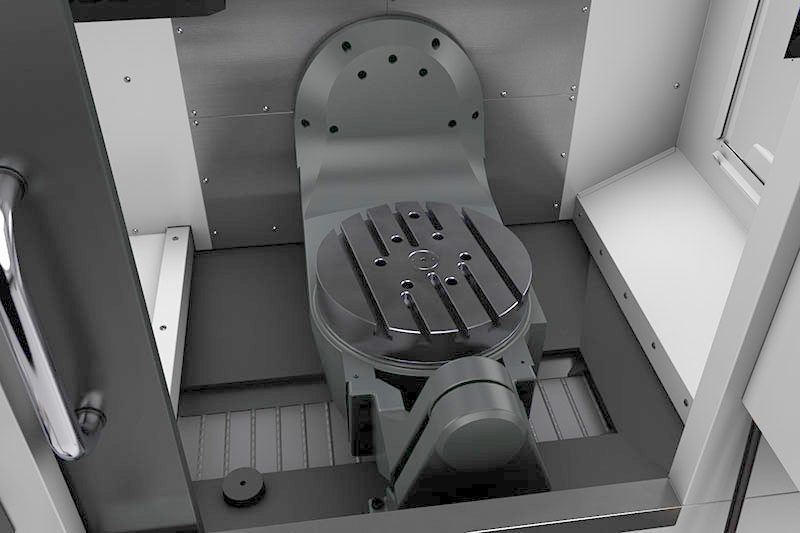

Cycloidal Rotary Drives

The cycloidal rotary drive system – designed for machine tools and robotics – provides a great combination of speed, accuracy, and durability on both the B and C axes. The rugged design provides long service life, with little or no maintenance, and is especially durable in a crash. The cycloidal rotary drive can be back driven to absorb energy from an impact. The shock-load capacity is 5 times the rated torque of the gearbox, and the entire gearbox is a simple drop-in replacement, should damage occur.

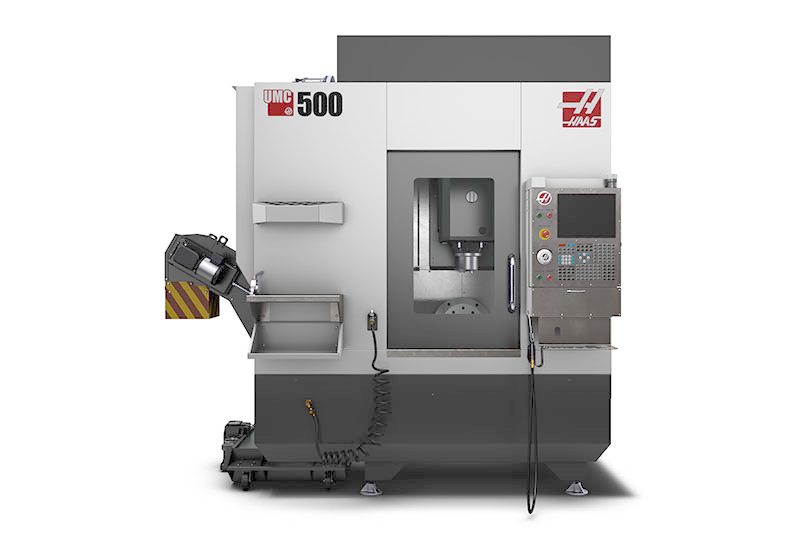

Operator Door Improvements

The UMC-500 door mounts inside the enclosure, which raises the bottom of the enclosure opening, and provides better chip control.

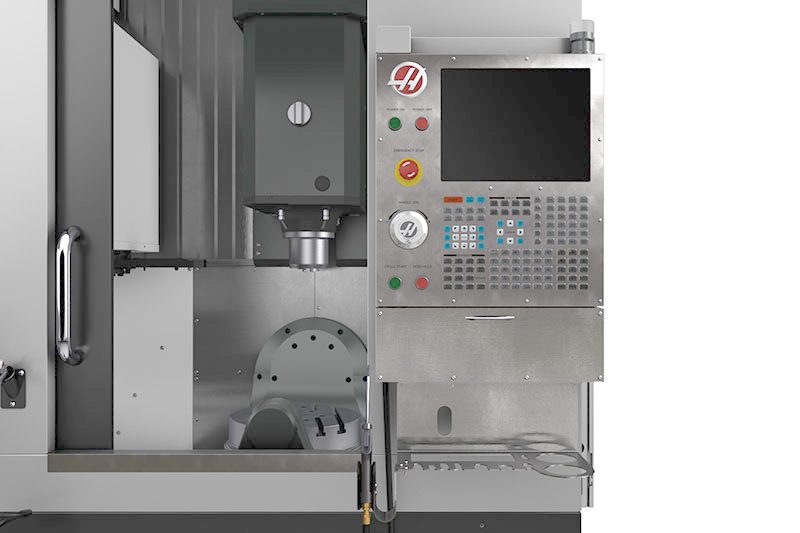

Control Pendant Mount

The internal mounting design of the UMC-500 door allows the control pendant to be mounted to the front of the machine, in an operator-friendly position.

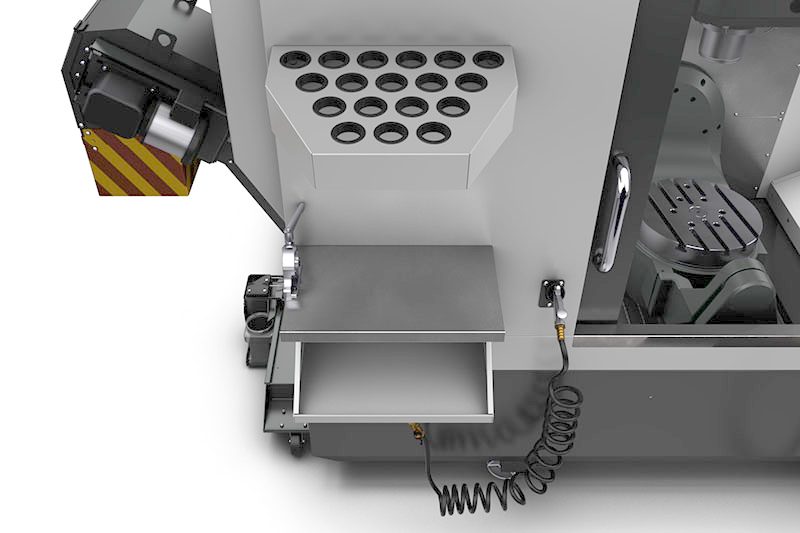

Operator Convenience Features

The UMC-500’s operator convenience features are mounted to the front of the machine for easy access, including a toolholder storage rack, work table, toolholder vise, storage tray, and washdown hose.

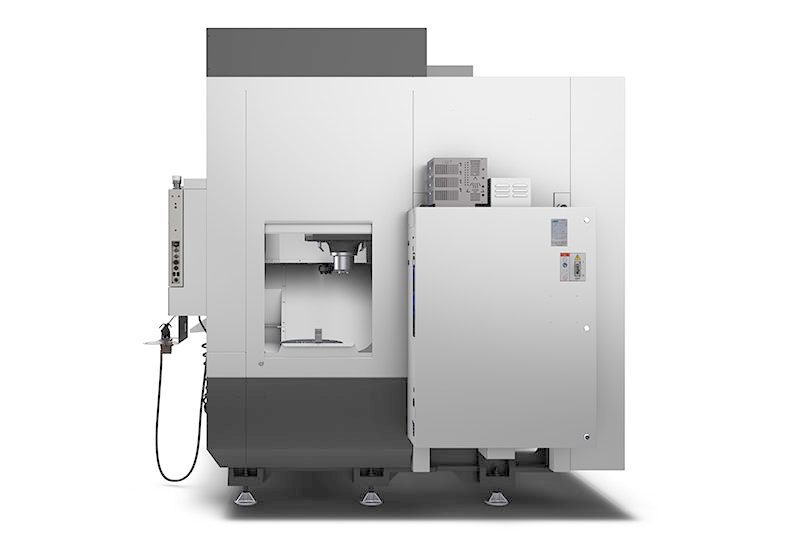

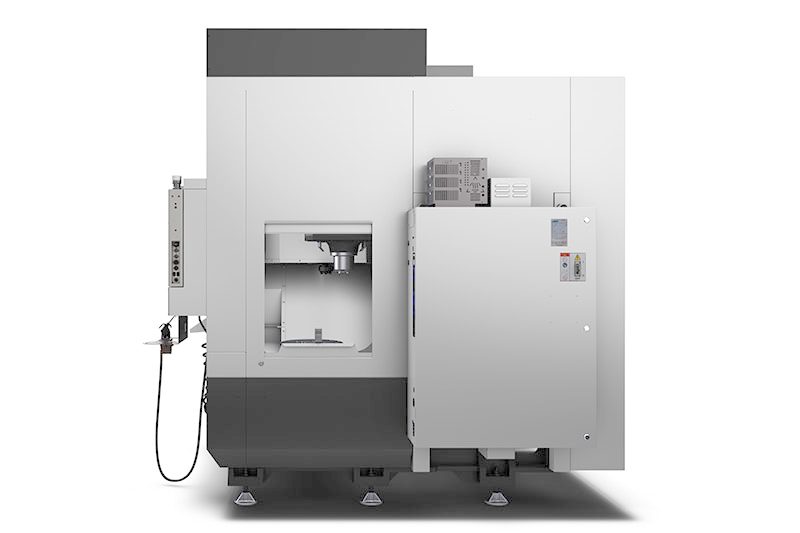

Side-Window Design

Moving the control pendant to the front of the UMC-500 allowed us to enlarge the side window and make it slide open. This provides access to the machine’s platter, and also allows a pallet pool or other automation to be added to the machine.

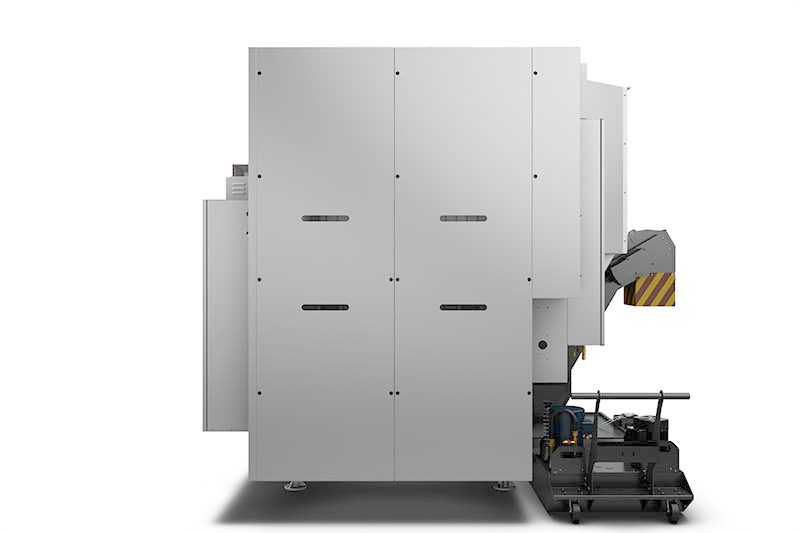

Base Casting and Coolant Tank

The UMC-500 base casting is stiff and compact, improving cut performance, and allowing the use of our standard 55-gallon (208 liter) rollaway coolant tank, for easy cleaning and maintenance. The coolant tank also accepts our Oil Skimmer and Coolant Refill options to further enhance productivity.

AVAILABLE OPTIONS

TECHNICAL DOCUMENTS

VIDEOS

CUSTOMER TESTIMONIALS

10+1 or 20+1 Pallet Pool

Add a pallet pool to your UMC-500 or UMC-500SS to take your production to the next level. With 10 or 20 additional pallets, you can ensure your machine will be running “lights out.”

10-STATION

20-STATION

TECHNICAL DOCUMENTS

*NOTE: Due to continual design improvements, 3D models and layout drawings may not be accurate to the latest production model.

UMC COMPARISON – Work Envelope ≠ Machine Travels

In 5-axis machining, your part and workholding must be able to rotate and tilt within the workspace, allowing you to reach all areas of the part, without interference or collisions. This yields a cylindrical work envelope that is smaller than the machine travels.

DOWNLOAD COMPARISON

HAAS VISE OPTIONS AND CONFIGURATIONS CHART

AIR VISES | HYDRAULIC VISES

VIDEOS

5-Axis vs. 3-Axis Machining

Which machine is right for the job? See what it takes to machine a multisided part on both a 3-axis and 5-axis machine. Jon Nelson walks you through the workholding, tooling, and setups needed for both machining types for cutting complex parts.

UMC-500 Machine Overview

The Haas UMC-500 combines the 5-axis capability of our industry-leading UMC-750, with the design improvements of our larger UMC-1000, to create powerful 5-axis solution with a footprint just slightly larger than a VF-2.
