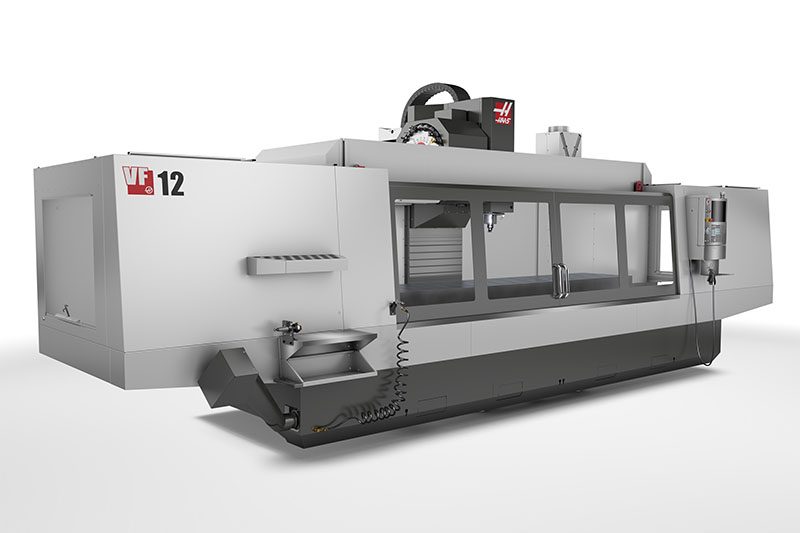

VF-12/40




For the best pricing in your area, contact your local Haas Factory Outlet.

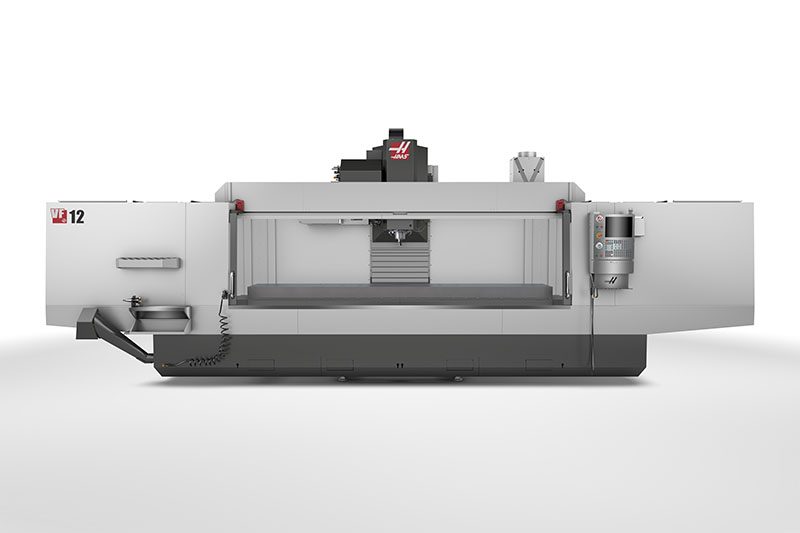

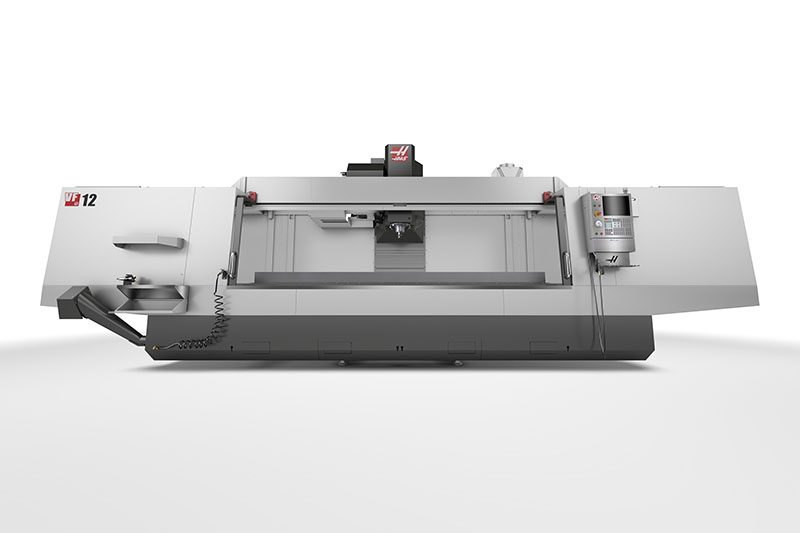

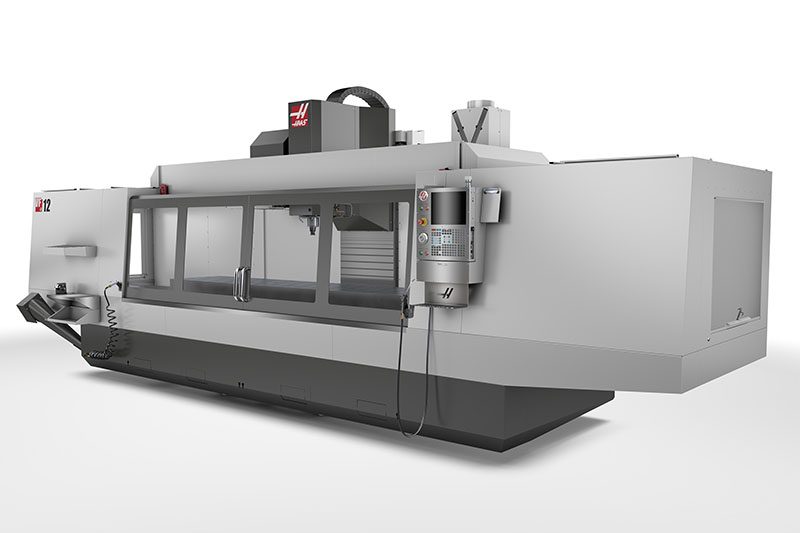

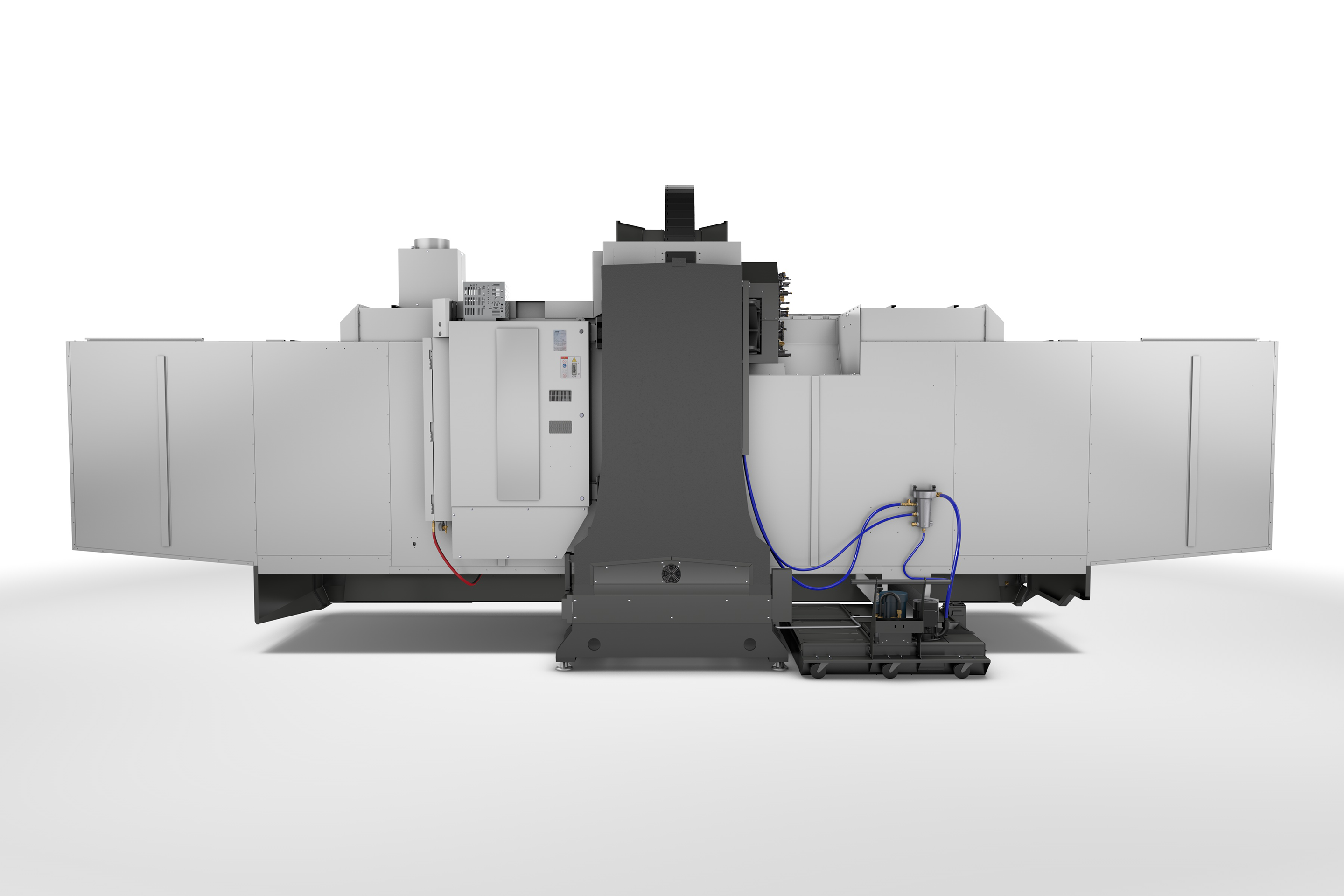

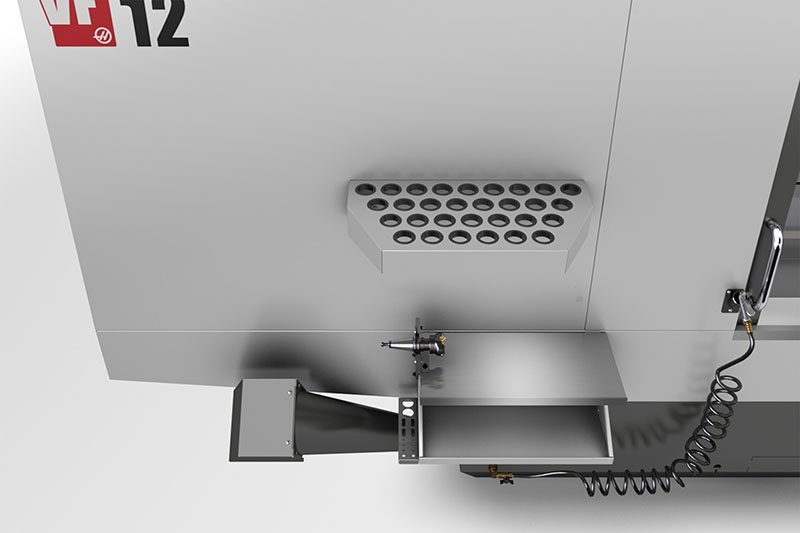

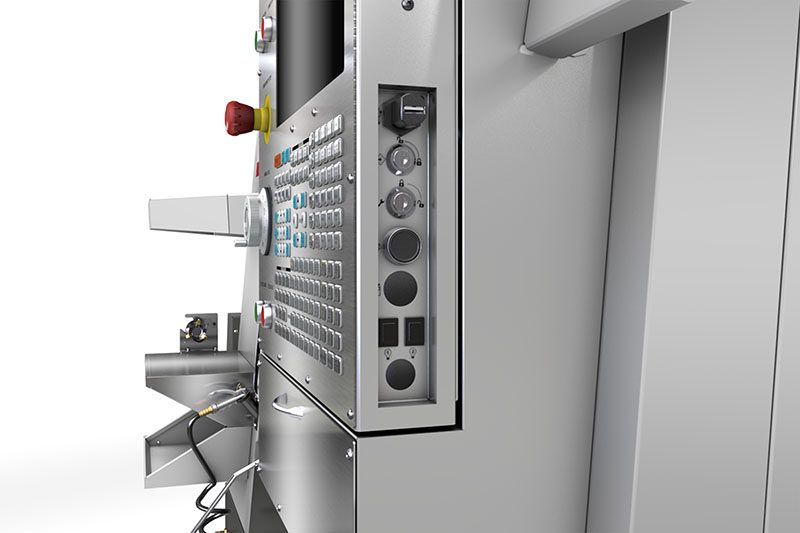

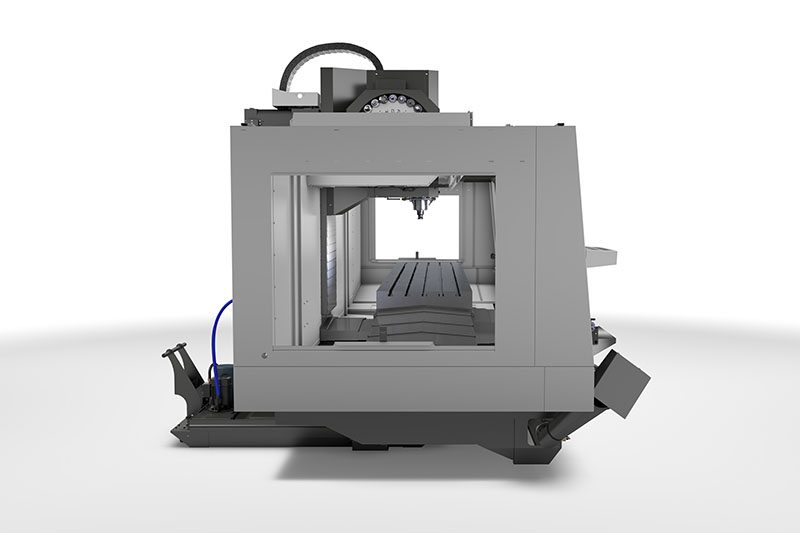

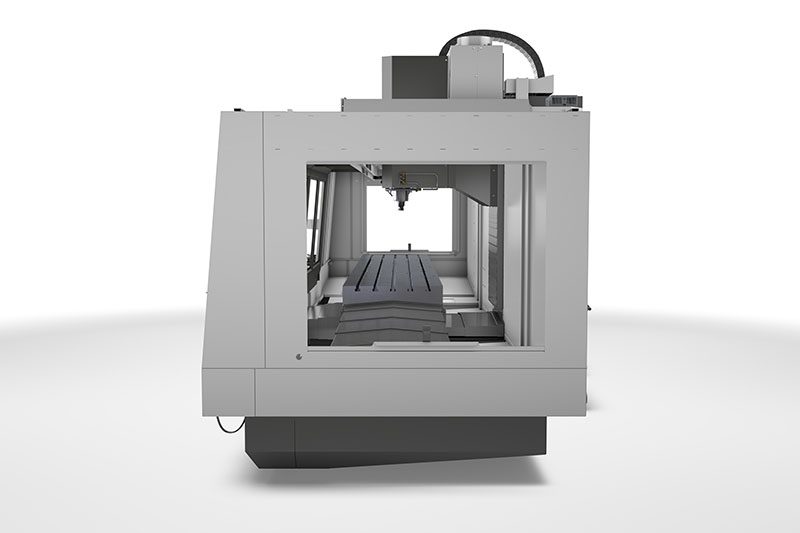

CNC Vertical Mill with 150" x 32" x 30" travels

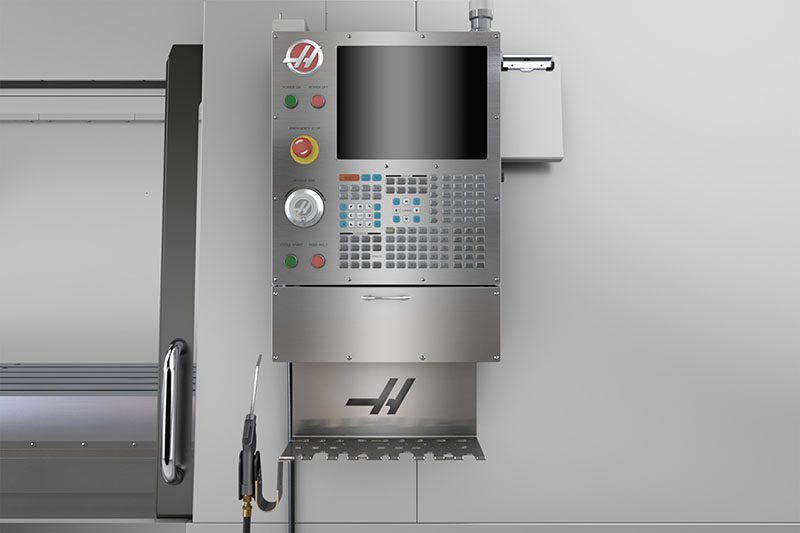

All large-frame models come with an upgraded features package that includes a side-mount tool changer, chip auger, programmable coolant nozzle, and remote jog handle.

  • High-power direct-drive spindles
  • Customizable to your needs
  • Upgraded standard features package
  • 40 Taper
  • 3 Axis
  • 8.1k RPM
  • 30+1 Tool Capacity
Compare Machines
BUILD & PRICE
Contact Distributor
Travels S.A.E METRIC
X Axis 150.00 in 3810 mm
Y Axis 32.00 in 813 mm
Z Axis 30.00 in 762 mm
Spindle Nose to Table (~ max) 34.0 in 864 mm
Spindle Nose to Table (~ min) 4.0 in 102 mm

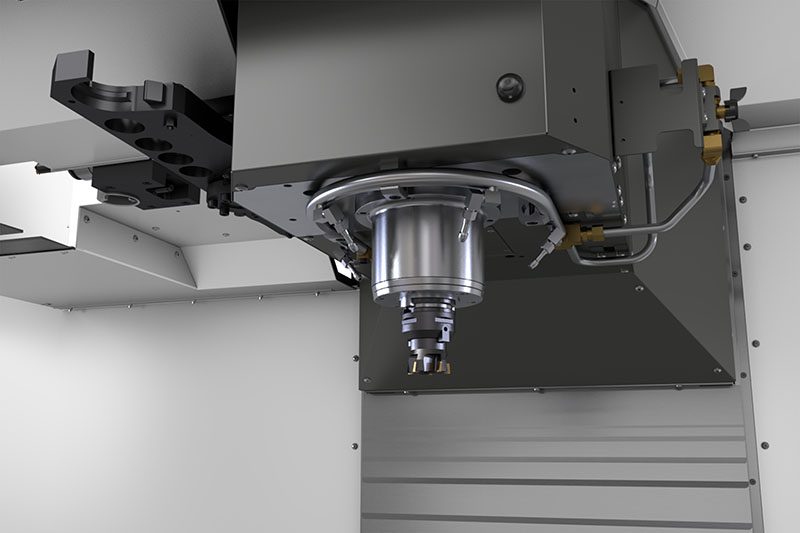

Spindle S.A.E METRIC
Max Rating 30.0 hp 22.4 kW
Max Speed 8100 rpm 8100 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm
Max Torque w/opt Gearbox 250 ft-lbf @ 450 rpm 339 Nm @ 450 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Taper CT40 | BT40 | HSK-A63 CT40 | BT40 | HSK-A63
Bearing Lubrication Air / Oil Injection Air / Oil Injection
Cooling Liquid Cooled Liquid Cooled

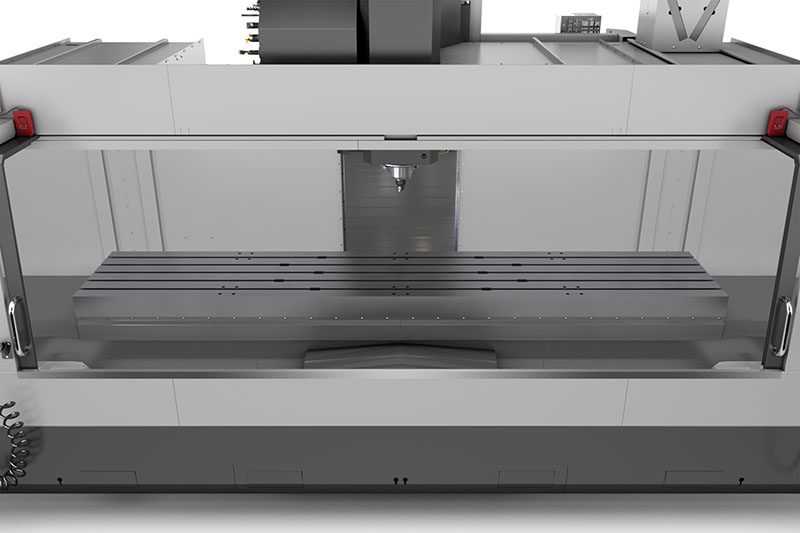

Table S.A.E METRIC
Length 150.0 in 3810 mm
Width 28.0 in 711 mm
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
T-Slot Center Distance 4.92 in 125 mm
Number of Std T-Slots 5 5
Max Weight on Table (evenly distributed) 4000 lb 1814 kg
Feedrates S.A.E METRIC
Max Cutting 360 ipm 9.1 m/min
Rapids on X 360 ipm 9.1 m/min
Rapids on Y 600 ipm 15.2 m/min
Rapids on Z 600 ipm 15.2 m/min
Axis Motors S.A.E METRIC
Max Thrust X 3400 lbf 15124 N
Max Thrust Y 3400 lbf 15124 N
Max Thrust Z 5600 lbf 24910 N

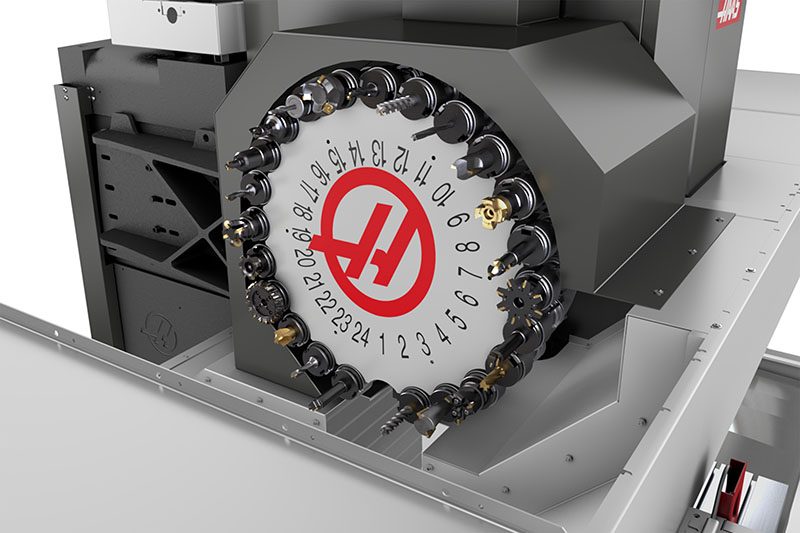

Tool Changer S.A.E METRIC
Type SMTC SMTC
Capacity 30+1 30+1
Max Tool Diameter (full)** 2.5 in 64 mm
Max Tool Diameter, Large (adjacent empty)** 5.0 in 127 mm
Max Tool Diameter, Extra-Large (adjacent empty)** 6.0 in 152 mm
Max Tool Length (from gage line) 16.00 in 406 mm
Max Tool Weight 12.0 lb 5.4 kg
Tool-to-Tool (avg) 2.80 s 2.80 s
Chip-to-Chip (avg) 3.60 s 3.60 s
General S.A.E METRIC
Coolant Capacity 95 gal 360 L
Air Requirements S.A.E METRIC
Air Required† 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
Electrical Specification S.A.E METRIC
Spindle Speed 8100 rpm 8100 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Spindle Power 30.0 hp 22.4 kW
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 70 A 70 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 35 A 35 A
Dimensions - Shipping S.A.E METRIC
Domestic Pallet 343.0 in x 110.0 in x 130.0 in 871 cm x 280 cm x 331 cm
Export Crate 343.0 in x 110.0 in x 134.5 in 871 cm x 280 cm x 342 cm
Weight 36300 lb 16466.0 kg

NOTE: All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications.

*Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

**Optional tool changers may have a different max tool size than the standard tool changer. Extra-large tools may require two adjacent pockets empty between tools. Click here for toolholder specifications.

ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

† Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.



AVAILABLE OPTIONS

TECHNICAL DOCUMENTS

VIDEOS

RELATED PRODUCTS

HAAS ROTARY HAAS MACHINE ROTARY FIT TYPE WARNING
TH450 VF-12/40 POSITIVE FIT
HA2TS VF-12/40 POSITIVE FIT
HA5C VF-12/40 POSITIVE FIT
HA5C2 VF-12/40 POSITIVE FIT
HA5C3 VF-12/40 POSITIVE FIT
HA5C4 VF-12/40 POSITIVE FIT
HA5CS VF-12/40 POSITIVE FIT
HRC160 VF-12/40 POSITIVE FIT
HRC210 VF-12/40 POSITIVE FIT
HRT160 VF-12/40 POSITIVE FIT
HRT160-2 VF-12/40 POSITIVE FIT
HRT160SP VF-12/40 POSITIVE FIT
HRT160SS VF-12/40 POSITIVE FIT
HRT210 VF-12/40 POSITIVE FIT
HRT210-2 VF-12/40 POSITIVE FIT
HRT210M VF-12/40 POSITIVE FIT
HRT210SP VF-12/40 POSITIVE FIT
HRT310 VF-12/40 POSITIVE FIT
HRT310SP VF-12/40 POSITIVE FIT
HRT450 VF-12/40 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HRTA5 VF-12/40 POSITIVE FIT
HRTA6 VF-12/40 POSITIVE FIT
T5C VF-12/40 POSITIVE FIT
T5C2 VF-12/40 POSITIVE FIT
T5C3 VF-12/40 POSITIVE FIT
T5C4 VF-12/40 POSITIVE FIT
TR160 VF-12/40 POSITIVE FIT
TR160-2 VF-12/40 POSITIVE FIT
TR200Y VF-12/40 POSITIVE FIT
TR210 VF-12/40 POSITIVE FIT
TR310 VF-12/40 POSITIVE FIT
TRT100 VF-12/40 POSITIVE FIT
TRT160 VF-12/40 POSITIVE FIT
TRT210 VF-12/40 POSITIVE FIT
TRT70 VF-12/40 POSITIVE FIT
HRT210HT VF-12/40 POSITIVE FIT
TH240 VF-12/40 POSITIVE FIT
HRT210SS VF-12/40 POSITIVE FIT
HA5C-T VF-12/40 POSITIVE FIT
HA5C3-T VF-12/40 POSITIVE FIT
HA5C4-T VF-12/40 POSITIVE FIT
HA5C2-T VF-12/40 POSITIVE FIT
TRT310 VF-12/40 POSITIVE FIT
HRT310SS VF-12/40 POSITIVE FIT
LT350 VF-12/40 POSITIVE FIT
HRT210VM VF-12/40 POSITIVE FIT
LT260 VF-12/40 POSITIVE FIT
HRT200HS VF-12/40 POSITIVE FIT
HQDA5 VF-12/40 POSITIVE FIT
TR500SS VF-12/40 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
