HKM-1-CE Knee Mill




For the best pricing in your area, contact your local Haas Factory Outlet.

Haas Knee Mill with 9" x 49" table

The Haas HKM-1 is a traditional-style knee mill with a 9" x 49" (229 x 1245 mm) table and a 4500-rpm R8 spindle. Includes spindle and table guarding to comply with CE safety regulations.

  • 32.7" x 12" x 16" (831 x 305 x 406 mm) travels
  • Variable-speed 4500-rpm R8 spindle

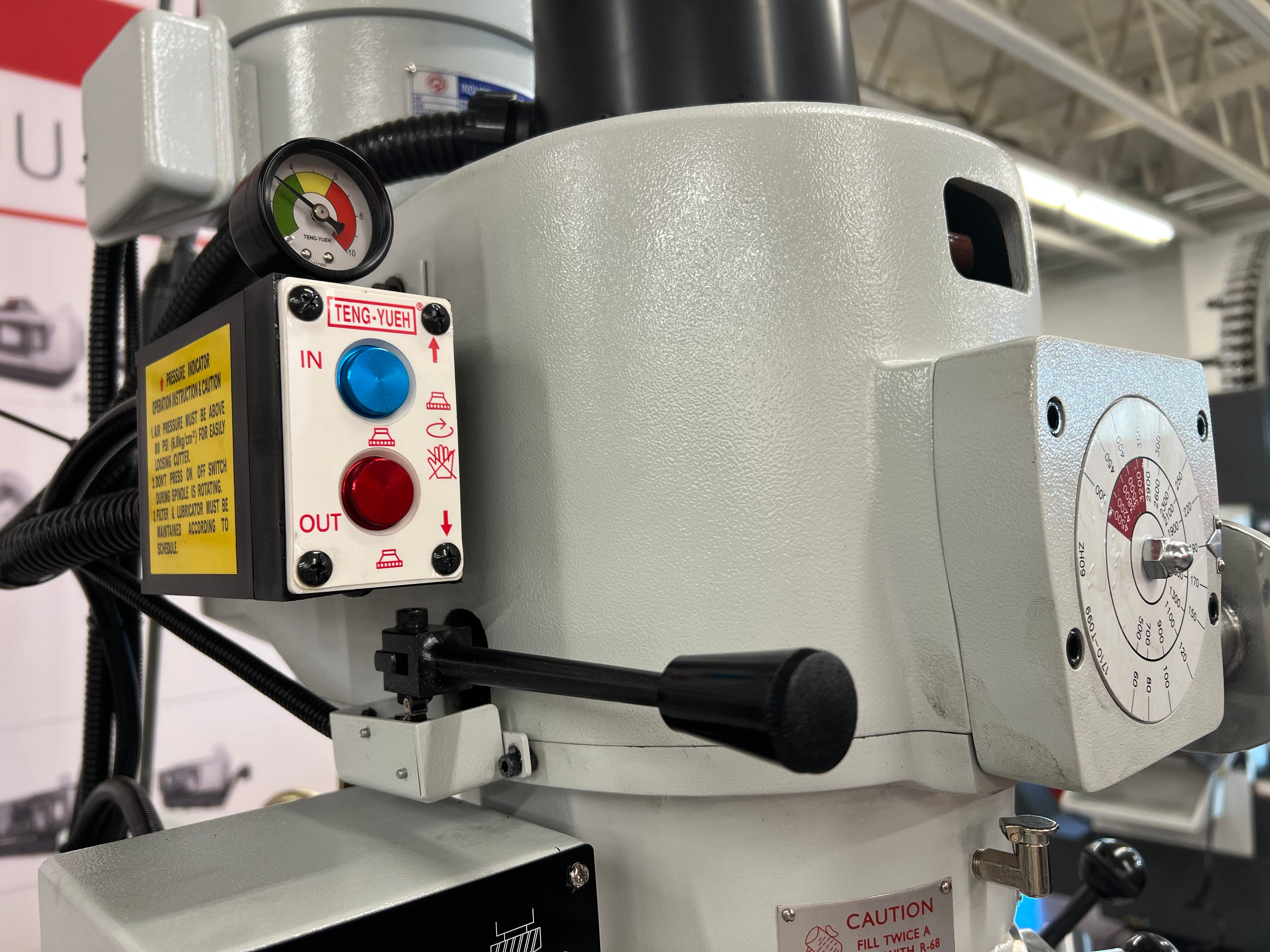

  • Pneumatic power drawbar
  • X-axis power feed w/clutch handles
  • XY DRO
  • Digital quill scale
  • Coolant system w/chip tray
  • Automatic lubrication system
  • CE-compliant safety guarding

HKM-1-CE

DOWNLOAD BROCHURE

HAAS JOURNAL

    Compare Machines
    STANDARD CONFIGURATION

    SPINDLE

    4500-rpm R8 Spindle
    Variable Speed Head with High/Low Gear Ranges

    CHIP & COOLANT MANAGEMENT

    Coolant System with chip tray

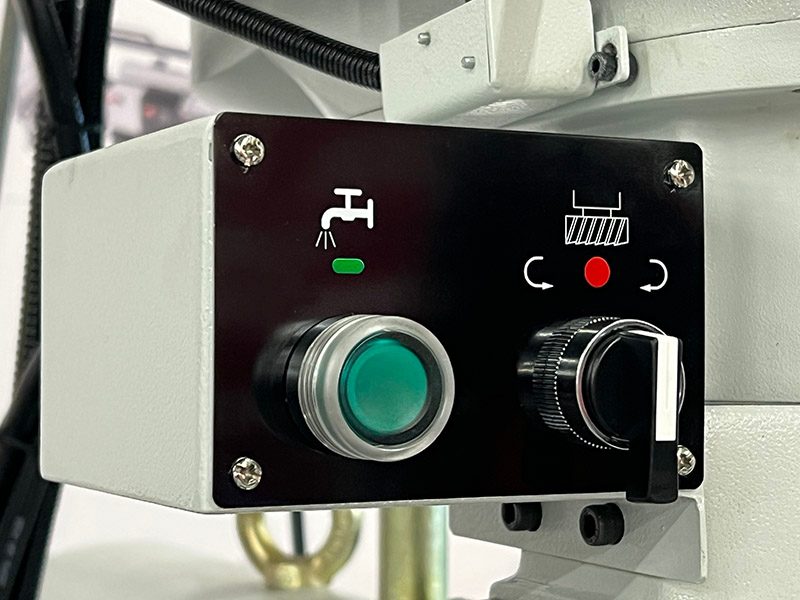

    CONTROL

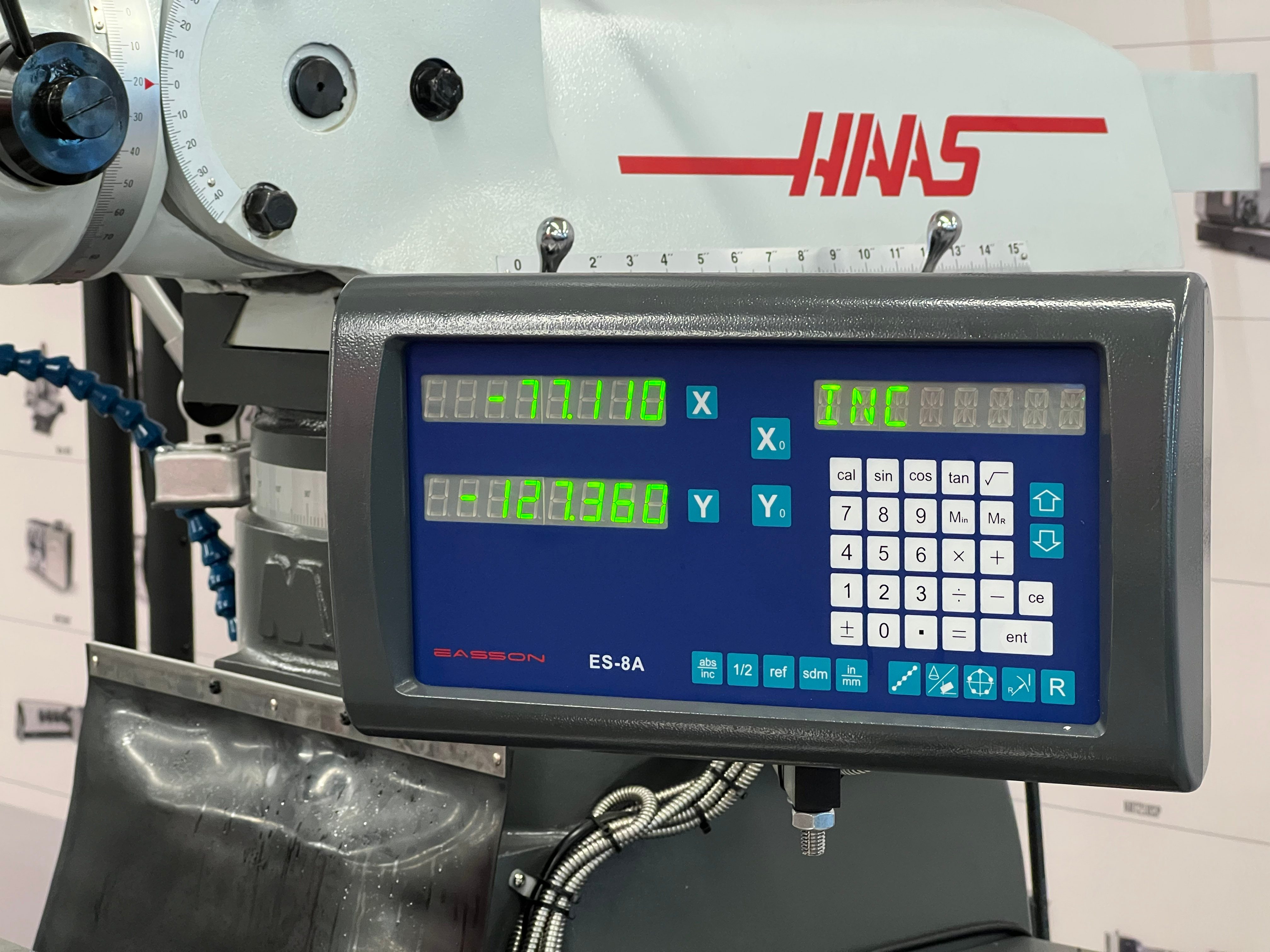

    Digital Readout on X and Y Axis

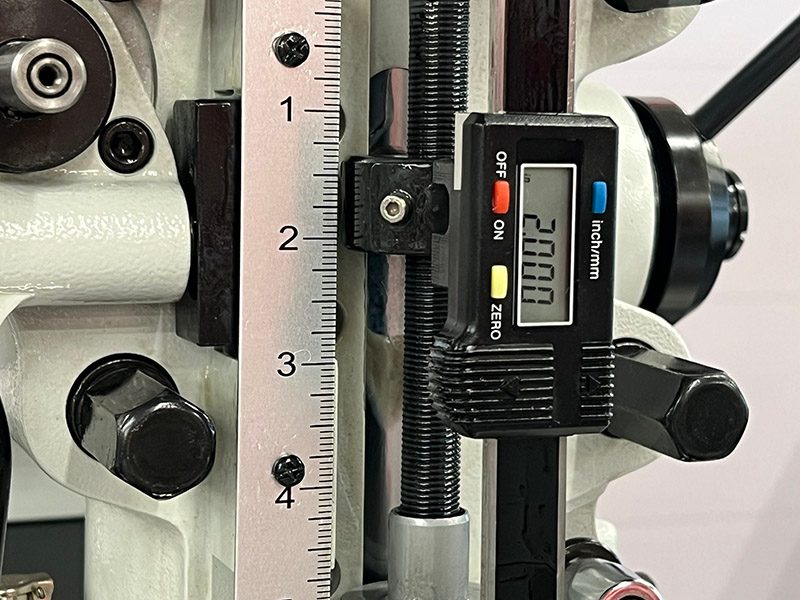

    Digital Quill Scale

    PRODUCT FEATURES

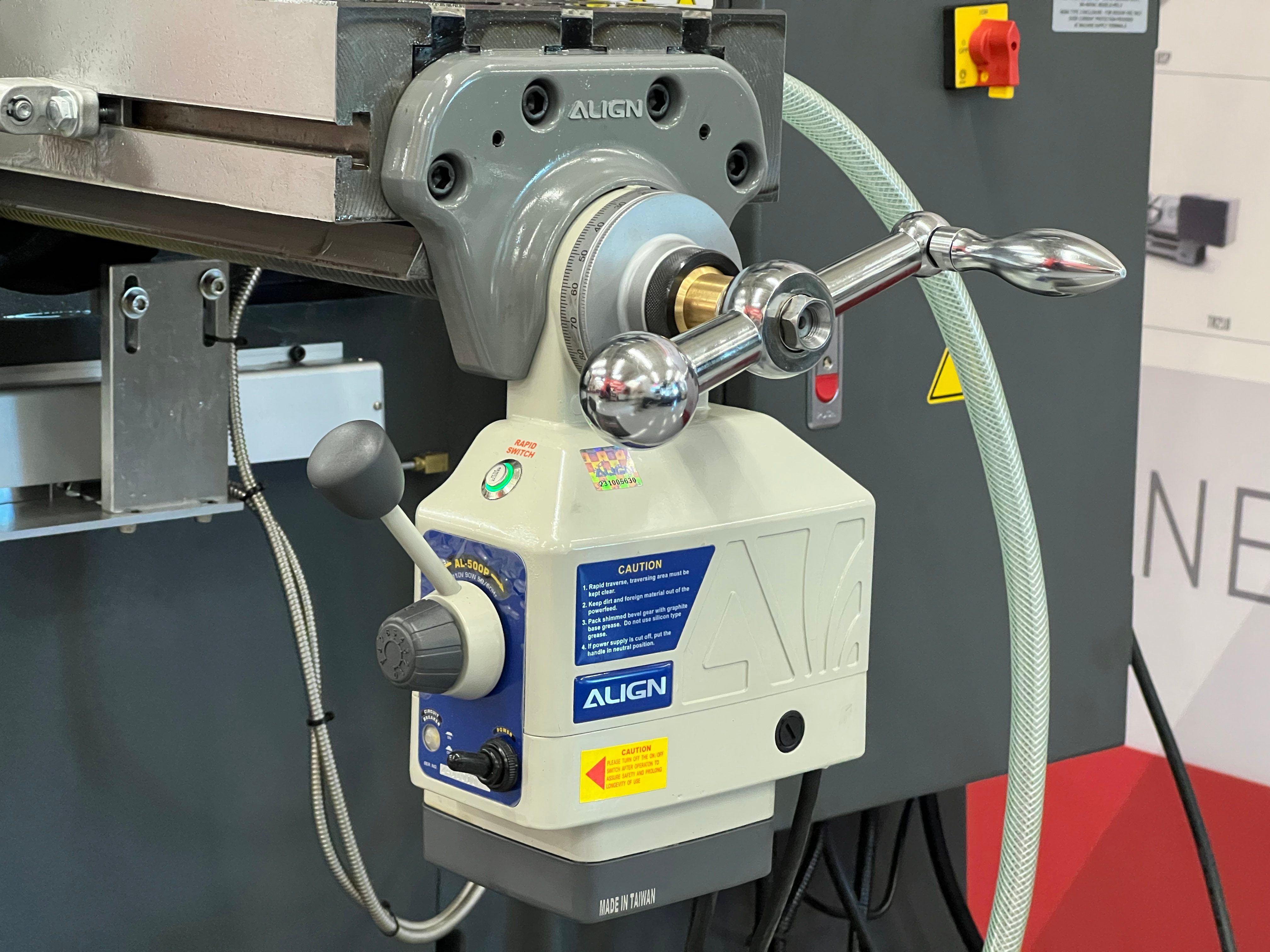

    X-Axis Power Feed w/Clutch Handles

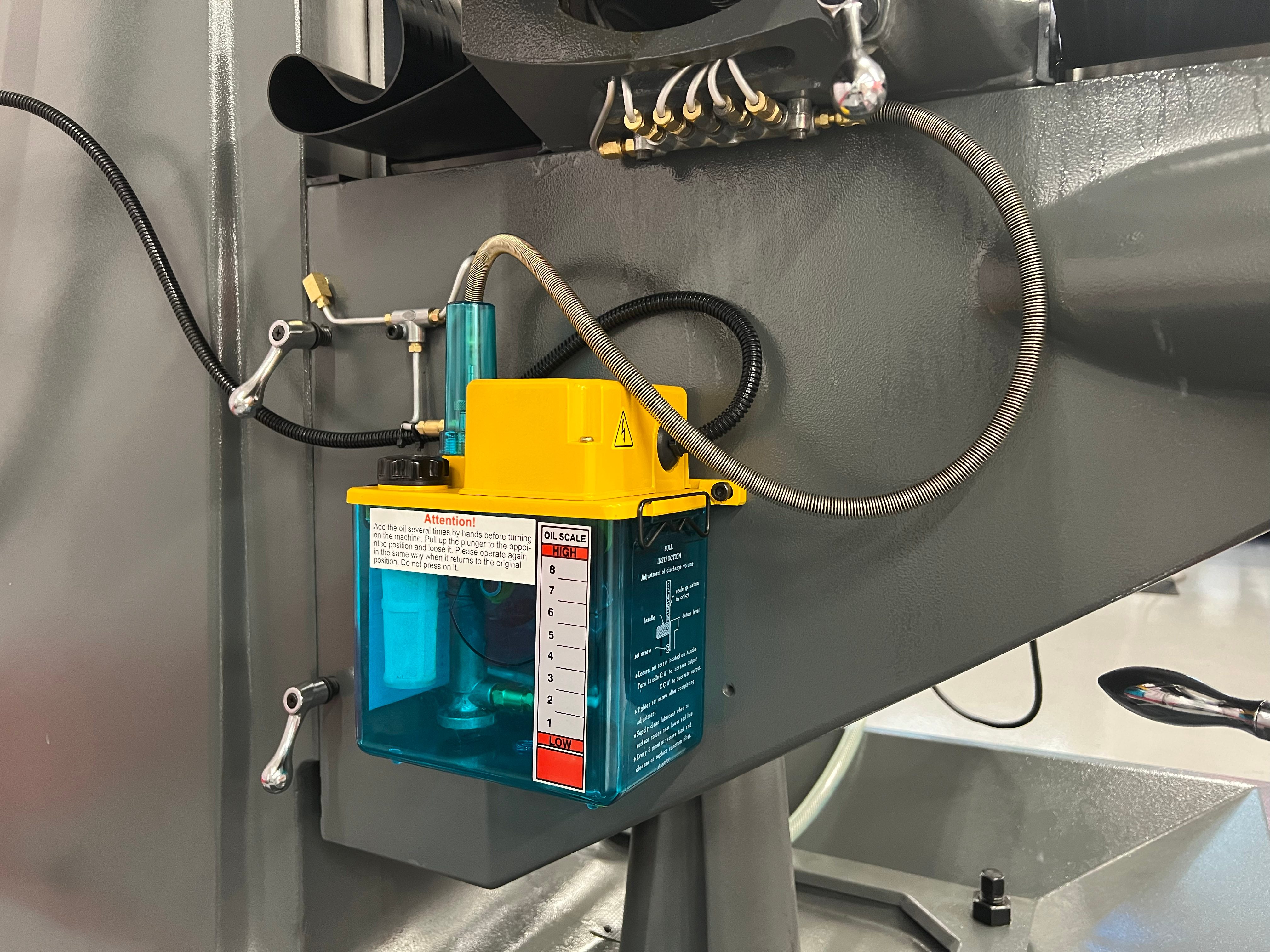

    Automatic Lubrication System
    Pneumatic Power Drawbar

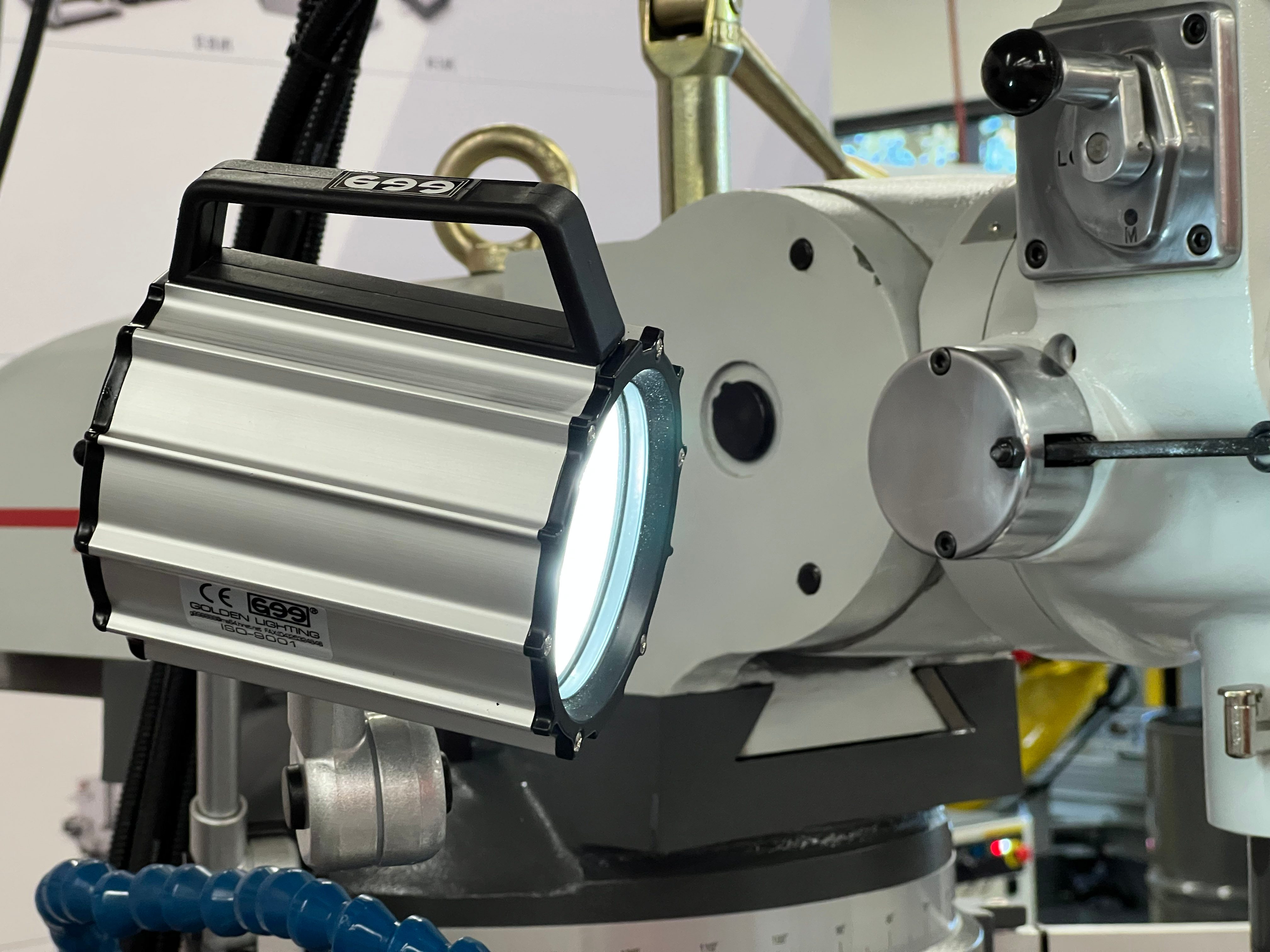

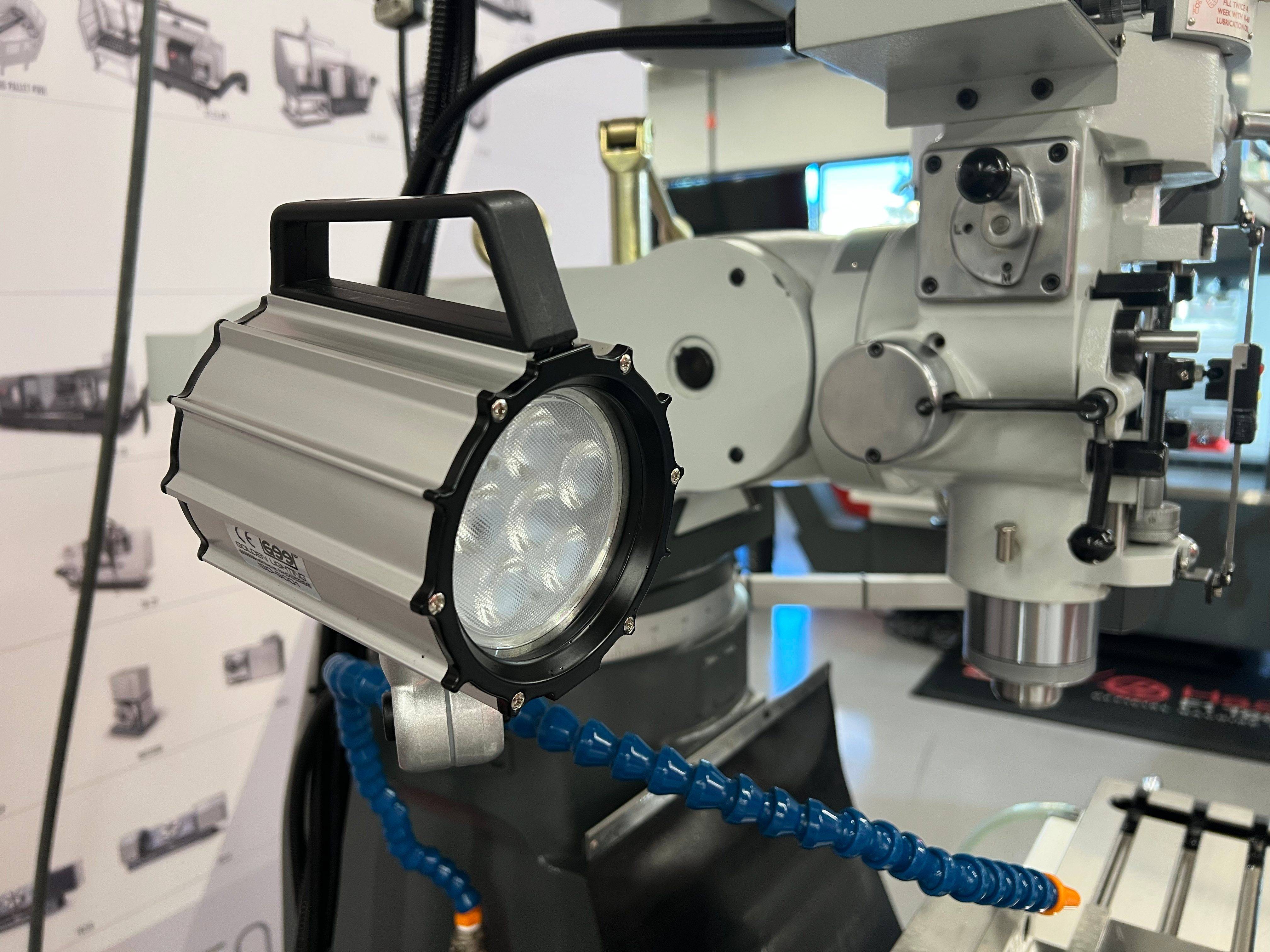

    LED Work Light

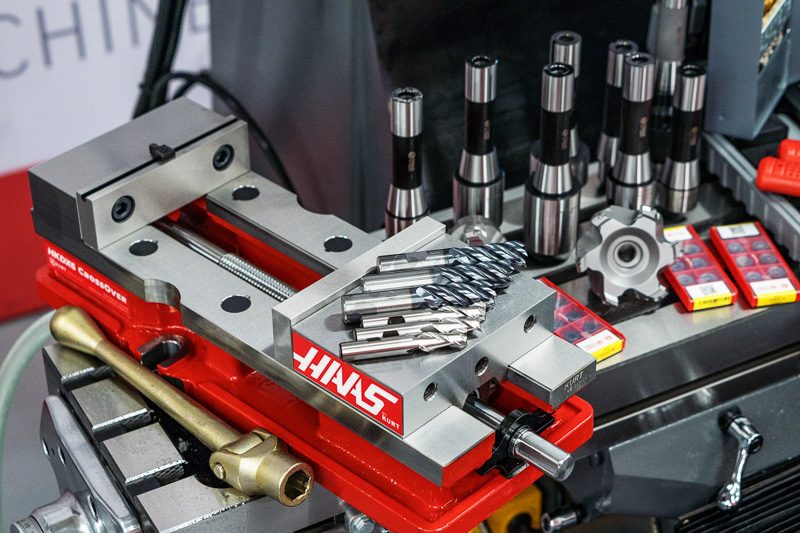

    TOOLING & FIXTURING

    CE-Compliant Table Guard and Spindle Guard

    Specification SAE Metric
    T-Slot Size 3 x 0.63" 3 x 16 mm
    Table Size 9" x 49" 229 x 1245 mm
    Longitudinal Travel (X axis) 32.7"  830 mm
    Cross Travel (Y axis) 12" 305 mm
    Vertical Travel of the Knee (Z axis) 16" 406 mm
    Quill Travel 5" 127 mm
    Quill Feed 0.0016" / 0.003" / 0.006" per rev 0.04 / 0.08 / 0.15 mm per rev
    Ram Travel 15.35" 390 mm
    Spindle Nose to Table 1.34" - 17.32" 34 - 440 mm
    Spindle Centerline to Column 6" - 21.4" 154 - 544 mm
    Turret Swivel 360° 360°
    Head Pivot ±45° ±45°
    Head Tilt ±90° ±90°
    Spindle Taper R8 R8
    Spindle Motor 5 hp 3.7 kW
    Spindle Speed 50-3750 rpm (50Hz) | 60-4500 rpm (60Hz) 50-3750 rpm (50Hz) | 60-4500 rpm (60Hz)
    Max Air Required 145 psi 10 bar
    Min Air Requires 85 psi 5.9 bar
    Weight 2200 lb 998 kg
    Power  3-phase 380V 3-phase 380V
    Full Load Amps (3 Phase)  15 A 15 A
    Shipping Dimensions [L x W x H] 55.5" x 64.5" x 73" 1410 x 1638 x 1854 mm
    Shipping Weight 2240 lb 1016 kg
