VC-400SS




For the best pricing in your area, contact your local Haas Factory Outlet.

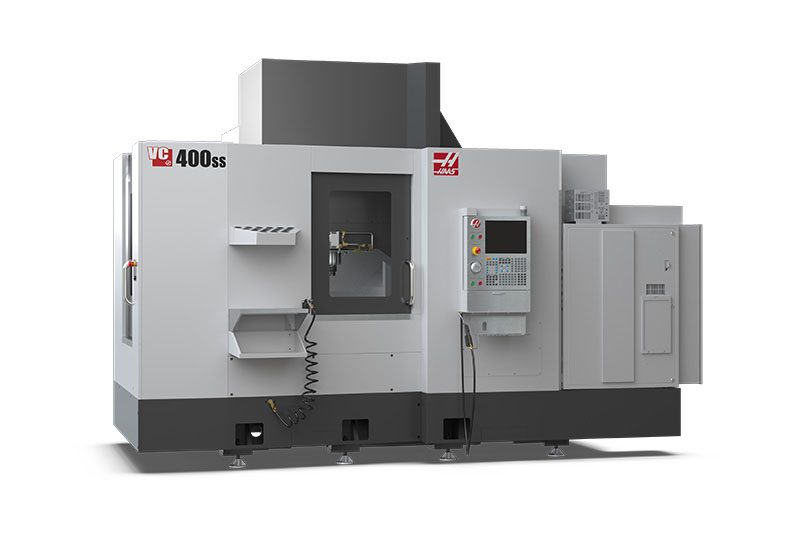

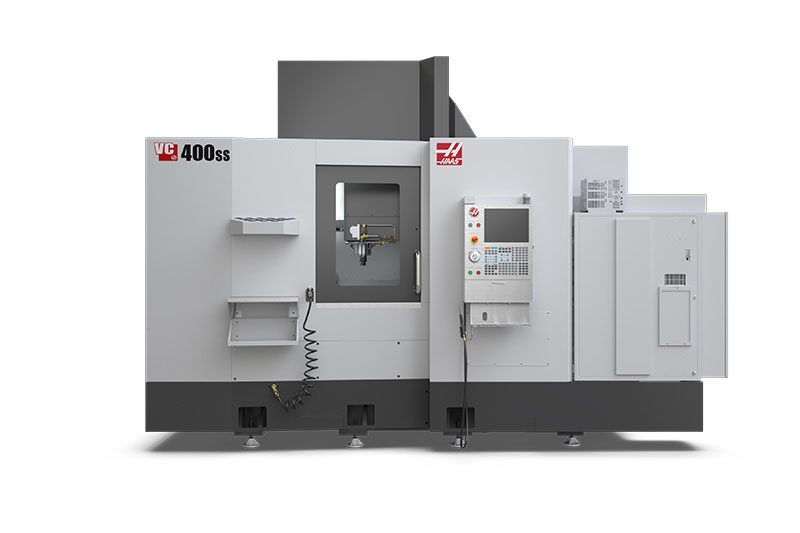

Super-Speed Twin-Pallet VMC with 22" x 16" x 20" (559 x 406 x 508 mm) travels

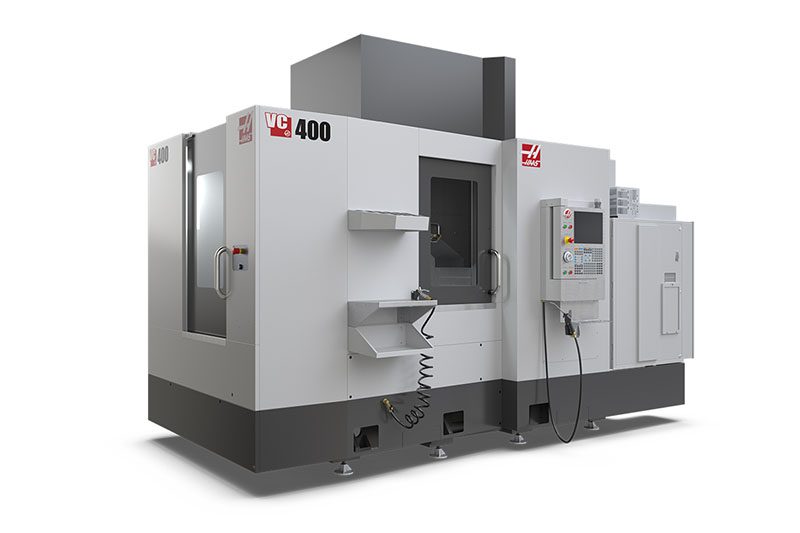

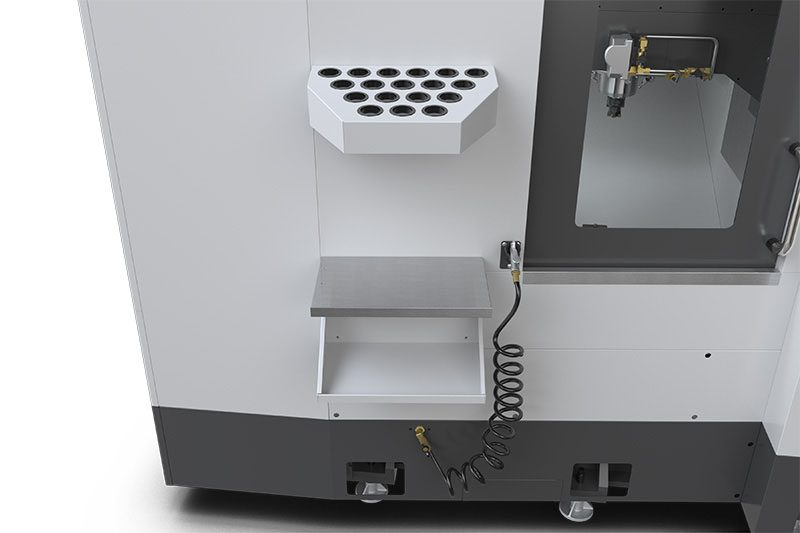

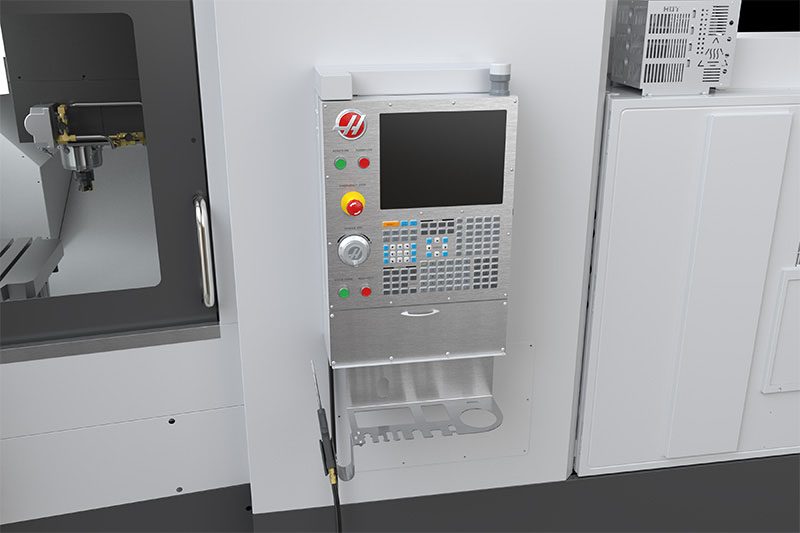

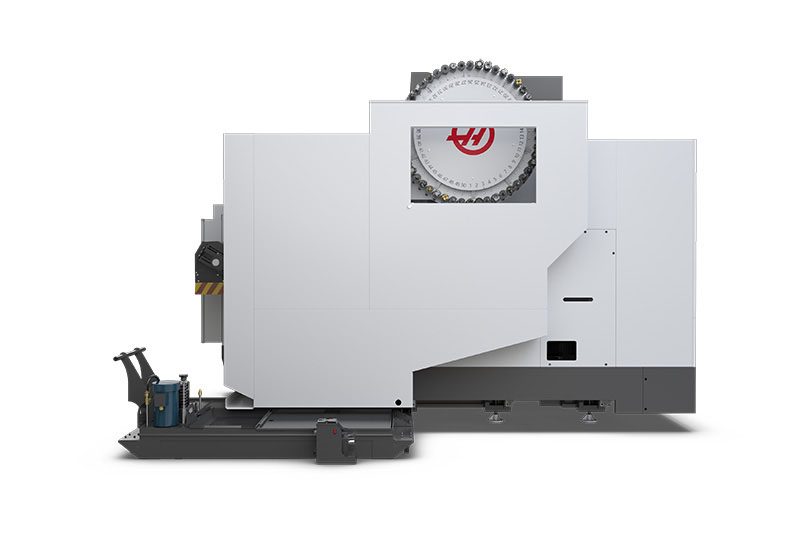

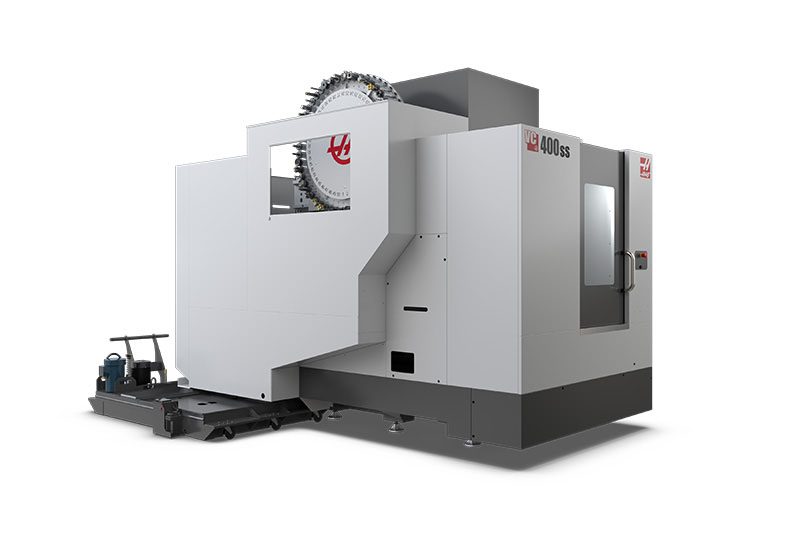

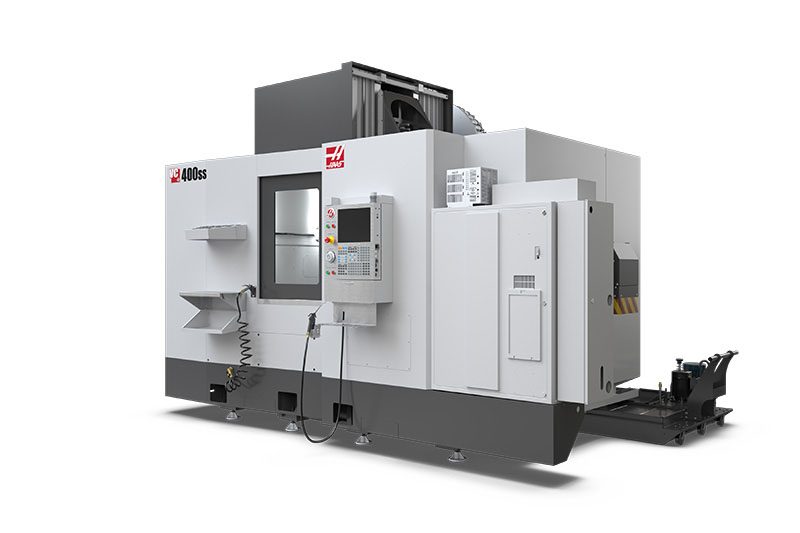

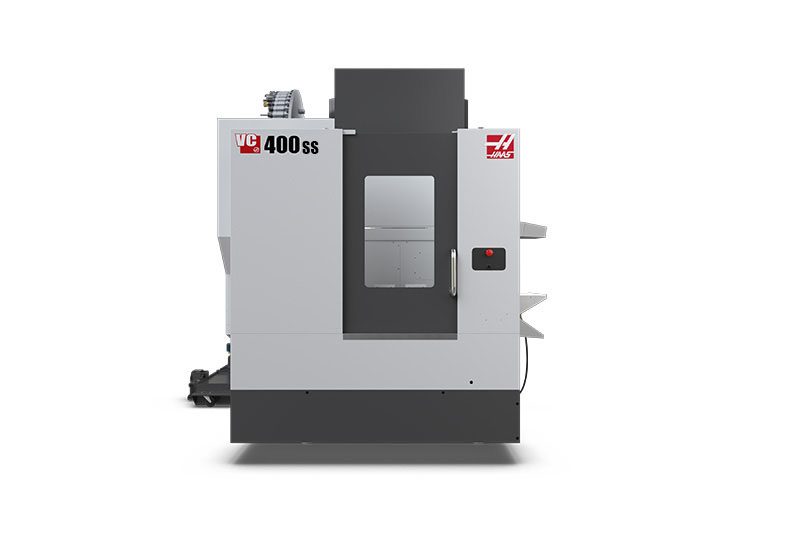

The VC-400SS is the super-speed version of our pallet-changing VC-400 VMC, which combines the versatility of a small VF Series vertical machining center with the pallet-changing ability of our EC-400 HMC. The fully integrated pallet changer allows you to set up jobs on one pallet, while you’re running parts on the other pallet. For additional productivity overnight, simply load up both pallets and push Cycle Start before heading home.

For high-volume work, set up the same job on both pallets, or set up each pallet differently for high-mix, low-volume work. For extended production and true “lights out” capability, a 6-station pallet pool and high-capacity tool changer are available. NOTE: The Pallet Pool requires the optional 50+1 side-mount tool changer.

  • 12,000-rpm inline direct-drive spindle
  • High-speed 30+1 tool side-mount tool changer, with 50+1 available
  • 1200 ipm rapids
  • Built-in pallet changer with 22" x 14.5" T-slot pallets
  • Machine parts on one pallet, while setting up the other
  • Available 6-station pallet pool
  • 40 Taper
  • 3 Axis
  • 12k RPM
  • 30+1 Tool Capacity
Compare Machines
BUILD & PRICE
Contact Distributor
Travels S.A.E METRIC
X Axis 22.00 in 559 mm
Y Axis 16.00 in 406 mm
Z Axis 20.00 in 508 mm
Spindle Nose to Table (~ max) 24.0 in 610 mm
Spindle Nose to Table (~ min) 4.0 in 102 mm
Spindle S.A.E METRIC
Max Rating 30.0 hp 22.4 kW
Max Speed 12000 rpm 12000 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Taper CT40 | BT40 | HSK-A63 CT40 | BT40 | HSK-A63
Bearing Lubrication Air / Oil Injection Air / Oil Injection
Cooling Liquid Cooled Liquid Cooled
Table S.A.E METRIC
Length 22.0 in 559 mm
Width 14.5 in 368 mm
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
T-Slot Center Distance 2.76 in 70 mm
Number of Std T-Slots 3 3
Max Weight on Table (evenly distributed) 880 lb 399 kg
Pallet Changer S.A.E METRIC
Pallet Quantity 2 2
Pallet Length 22.00 in 559 mm
Pallet Width 14.50 in 368 mm
Max Pallet Load 880 lb 399.0 kg
Max Part Diameter 22.5 in 572 mm
Max Part Height 20.0 in 508 mm
Max Pallet Load (w/Pallet Pool) 500 lb 227 kg
Pallet Change Time 15 s 15 s
Feedrates S.A.E METRIC
Max Cutting 833 ipm 21.2 m/min
Rapids on X 1200 ipm 30.5 m/min
Rapids on Y 1200 ipm 30.5 m/min
Rapids on Z 1200 ipm 30.5 m/min
Axis Motors S.A.E METRIC
Max Thrust X 3380 lbf 15035 N
Max Thrust Y 3380 lbf 15035 N
Max Thrust Z 3380 lbf 15035 N
Tool Changer S.A.E METRIC
Type SMTC SMTC
Capacity 30+1 30+1
Max Tool Diameter (full)** 2.5 in 64 mm
Max Tool Diameter, Large (adjacent empty)** 5.0 in 127 mm
Max Tool Length (from gage line) 12.00 in 305 mm
Max Tool Weight 12.0 lb 5.4 kg
Tool-to-Tool (avg) 1.80 s 1.80 s
Chip-to-Chip (avg) 2.40 s 2.40 s
General S.A.E METRIC
Coolant Capacity 95 gal 360 L
Air Requirements S.A.E METRIC
Air Required† 9 scfm @ 100 psi 255 L/min @ 6.9 bar
Inline Air Hose 1/2 in 1/2 in
Coupler (Air) 1/2 in 1/2 in
Air Pressure Min 100 psi 6.9 bar
Electrical Specification S.A.E METRIC
Drive System Inline Direct-Drive Inline Direct-Drive
Spindle Power 30.0 hp 30.0 hp
Dimensions - Shipping S.A.E METRIC
Domestic Pallet 202.0 in x 100.0 in x 124.0 in 513 cm x 254 cm x 315 cm
Export Pallet 181.0 in x 91.5 in x 96.0 in 460 cm x 232 cm x 244 cm
Weight 17520 lb 7947.0 kg

Overview

The VC-400 and VC-400SS vertical machining centers combine the machining capabilities of a VF-1 with an HMC-style pallet changer to provide nearly continuous machining, with virtually no downtime. Load and unload parts on the pallet waiting at the load station, while the spindle is making chips in the work envelope to keep the machine producing parts. You can even set up a new job on one pallet, while your machine is making parts on the other. A dedicated pallet-scheduling table in the Haas control lets you check the status of each pallet.

Specification Comparison (Inch)

  VC-400 VC-400SS VF-1
Axis Travels (X, Y, Z) 22" x 16" x 20" 22" x 16" x 20" 20" x 16" x 20"
Spindle Nose to Table Maximum and Minimum 24.0", 4.0" 24.0", 4.0" 24.0", 4.0"
Rapids (X, Y, Z) 800 in/min 1200 in/min 1000 in/min
Maximum Cutting Feedrate 500 in/min 833 in/min 650 in/min
Spindle Speed (Maximum Optional) 8100 rpm (15,000 rpm) 12,000 rpm (15,000 rpm) 8,100 rpm (30,000 rpm)
Spindle Rating & Drive System 30 hp, Inline Direct-Drive 30 hp, Inline Direct-Drive 30 hp, Inline Direct-Drive
Standard Tool Changer Capacity (Optional) 30+1 (50+1) 30+1 (50+1) 20 (30+1)
Number of Pallets (Optonal Pallet Pool) 2 (6+1) 2 (6+1) N/A
Pallet-to-Pallet Change Time 18 seconds 18 seconds N/A
Maximum Weight on Pallet (Optional Pallet Pool) 880 lb (500 lb) 880 lb (500 lb) 3000 lb

Specification Comparison (Metric)

  VC-400 VC-400SS VF-1
Axis Travels (X, Y, Z) 559 x 406 x 508 mm 559 x 406 x 508 mm 508 x 406 x 508 mm
Spindle Nose to Table Maximum and Minimum 610 mm, 102 mm 610 mm, 102 mm 610 mm, 102 mm
Rapids (X, Y, Z) 20.3 m/min 30.5 m/min 25.4 m/min
Maximum Cutting Feedrate 12.7 m/min 21.2 m/min 16.5 m/min
Spindle Speed (Maximum Optional) 8100 rpm (15,000 rpm) 12,000 rpm (15,000 rpm) 8100 rpm (30,000 rpm)
Spindle Rating & Drive System 22.4 kW, Inline Direct-Drive 22.4 kW, Inline Direct-Drive 22.4 kW, Inline Direct-Drive
Standard Tool Changer Capacity (Optional) 30+1 (50+1) 30+1 (50+1) 20 (30+1)
Number of Pallets (Optional Pallet Pool) 2 (6+1) 2 (6+1) N/A
Pallet-to-Pallet Change Time 18 Seconds 18 Seconds N/A
Maximum Weight on Pallet (Optional Pallet Pool) 399 kg (227 kg) 399 kg (227 kg) 1361 kg

Spindle

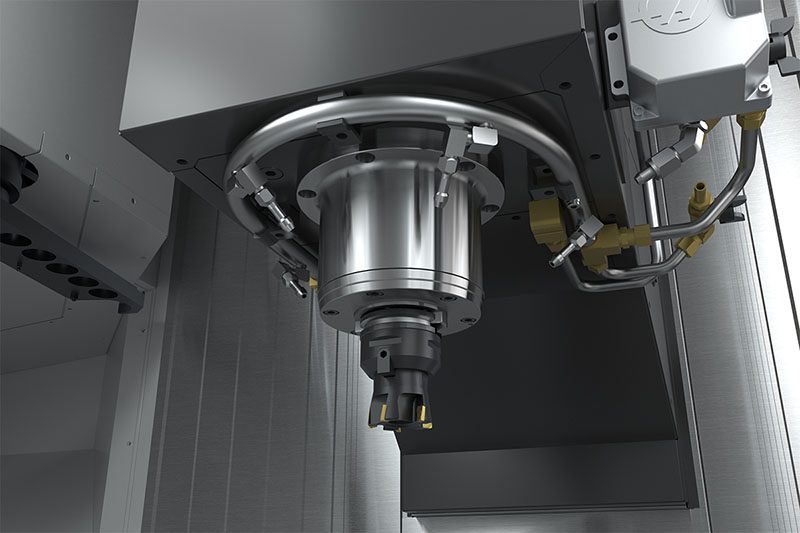

The VC Series machines feature the same powerful, shop-proven, Haas-built spindle that comes standard on most Haas vertical machining centers .

It is a 40-taper, inline direct-drive spindle, coupled directly to the motor to provide excellent surface finishes and greater thermal stability. The inline spindle is available in speeds up to 15,000-rpm, as well as HSK-A63 taper.

  • Liquid-cooled for long hours of reliable operation
  • 17.125" (435 mm) wide-stance Z-axis linear guide separation for solid stability
  • Robust 40 mm Z-axis ballscrew and 35 mm linear guide construction
  • Includes multi-nozzle coolant ring for added coolant delivery coverage
  • Optional Programmable Coolant Nozzle with 34-positions for precise coolant delivery to multiple length cutting tools (shown in image)
  • Optional Through-Spindle Coolant (300 or 1000 psi)
  • Optional Through-Tool Air Blast
  • Optional Pulse-Jet System for tapping and drilling with oil



Pallet Changer

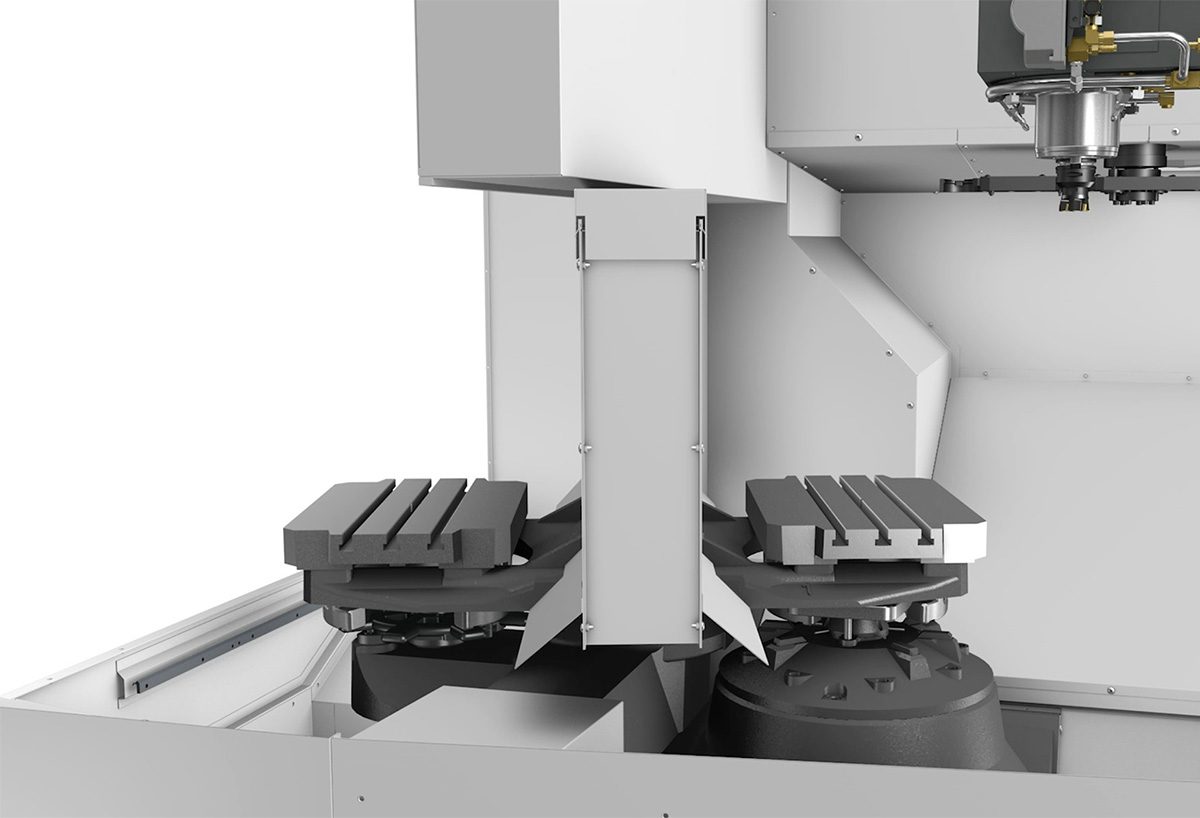

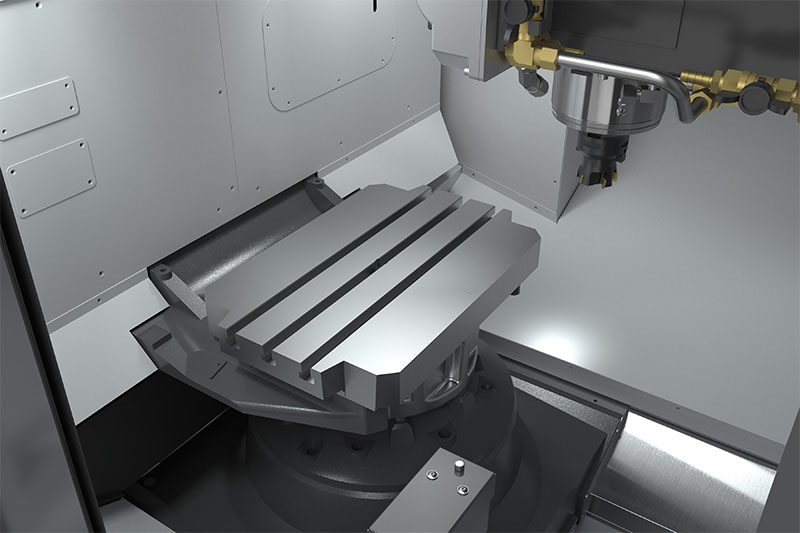

The VC-400 and VC-400SS come standard with a dual-pallet changing system for uninterrupted production. With the mill-style table, you can have two vises side by side on each pallet to run small batch parts, or you can run large parts by setting up one operation on each pallet with multiple vises.

The table features three standard 5/8" (16 mm) T-slots that accept nearly any type of workholding, for fast, easy setups.

  • Table dimensions: 22" x 14.5" (559 x 368 mm)
  • Standard 5/8" (16 mm) T-slots
  • Hydraulic clamping for rigid machining
  • Pallet maximum weight capacity is 880 lb (399 kg) each
  • Pallet Pool maximum weight capacity is 500 lb (227 kg) each

Hydraulic Pallet Clamping

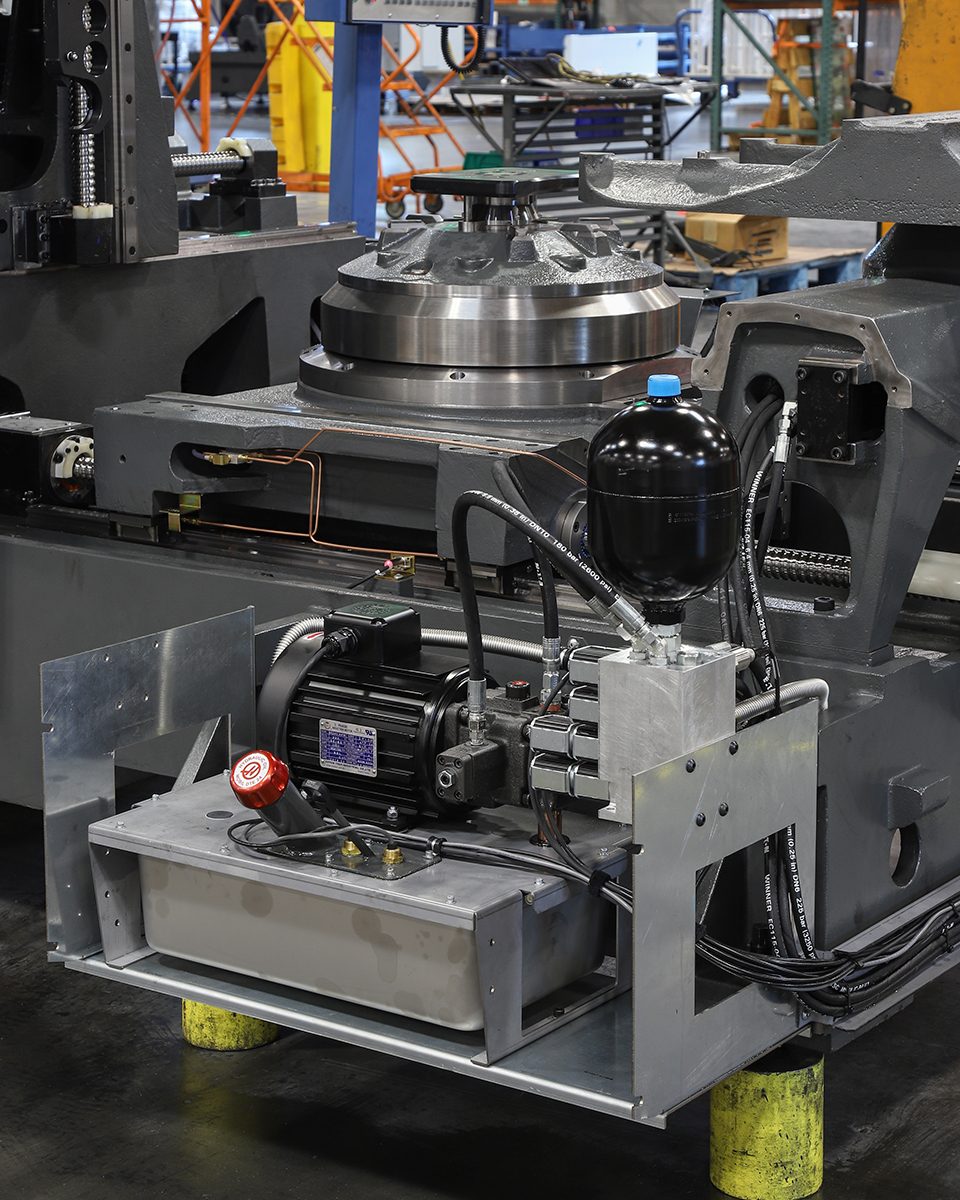

The hydraulic power unit provides power to clamp the pallets to the pallet receiver, as well as raise and lower the pallet-changer mechanism.

Hydraulic clamping ensures repeatable accuracy for every pallet change, and provides high rigidity for heavy machining.

Pallet Pool (Optional)

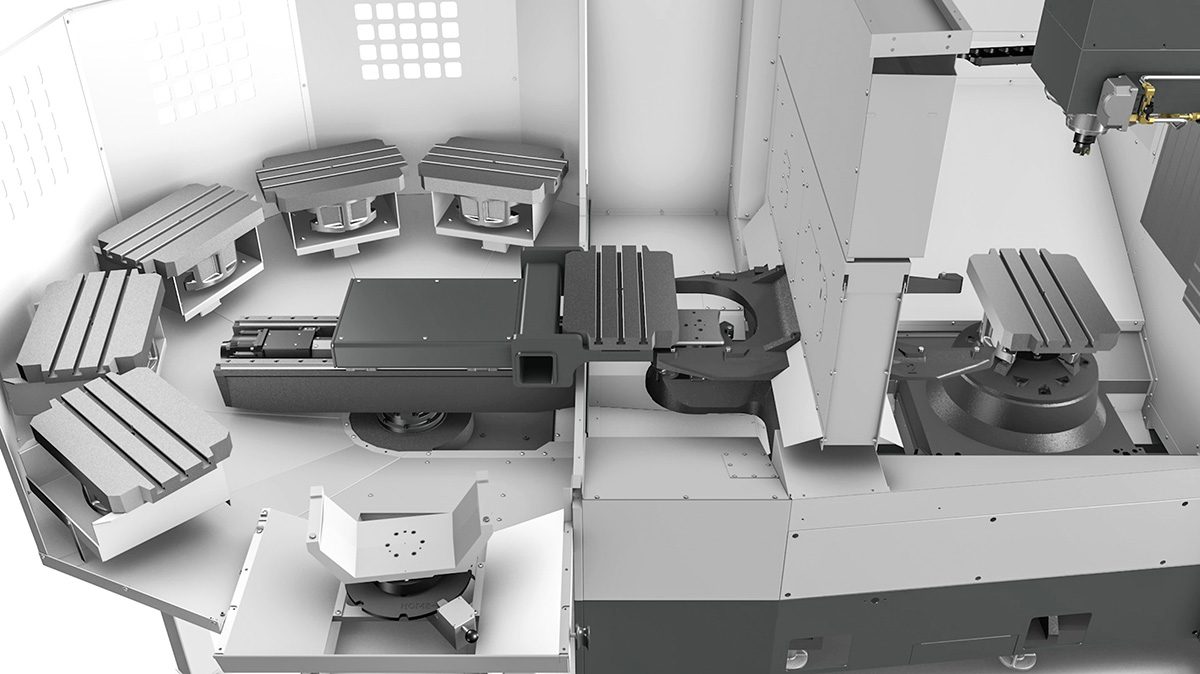

Whether you’re doing high-volume production runs, high-mix/low-volume machining, or just want to run lights-out, our fully integrated pallet pool systems can boost your productivity. The VC Seriec Pallet Pool integrates seamlessly with the Haas control, which includes a simplified Pallet Scheduling Table that allows job scheduling functions from a single dedicated page. You can assign programs to each pallet, and re-start a job in the middle of the process.

  • 6 storage locations + 1 machining station
  • Total of 7 functioning pallets included
  • 22" x 14.5" (559 x 368 mm) pallets
  • Requires the optional 50+1 side-mount tool changer
  • Not compatible with 4th- and 5th-axis options
  • Maximum weight per pallet ,including workholding: 500 lb (227 kg)
  • Not available for field installation



Side-Mount Tool Changer

The VC-400 and VC-400SS come standard with a 30+1 toolside-mount tool changer.

We’ve produced our own tool changers since 1988, with complete integration and functionality in mind. We use our own designs, and wouldn’t have it any other way.

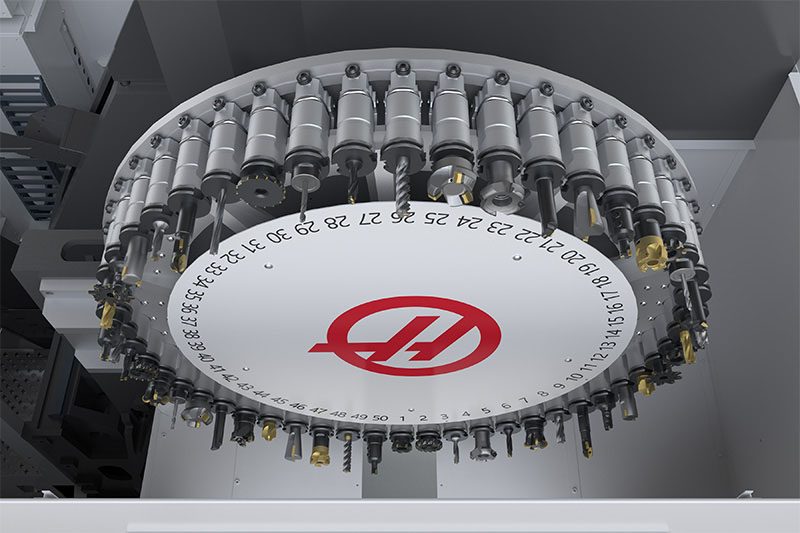

This Haas side-mount tool changer features a servo-driven carousel that allows direct positioning to any tool in the carousel – no more indexing one pocket at a time. Faster positioning reduces cycle times during short machining operations, or when the carousel is not pre-staged for the next tool.

  • Standard 40 taper, 30+1 tools
  • Available for the HSK-A63 Spindle
  • 50+1 side-mount tool changer available (optional)
  • Direct-positioning carousel for super-fast tool staging
  • Fast tool changes shorten cycle times on every tool change
  • Pocket Tool Table in the control allows complete control over the tool changer
  • Identify tools as LARGE to leave adjacent pockets empty
  • Identify tools as HEAVY to slow tool changer motion

Chip Management

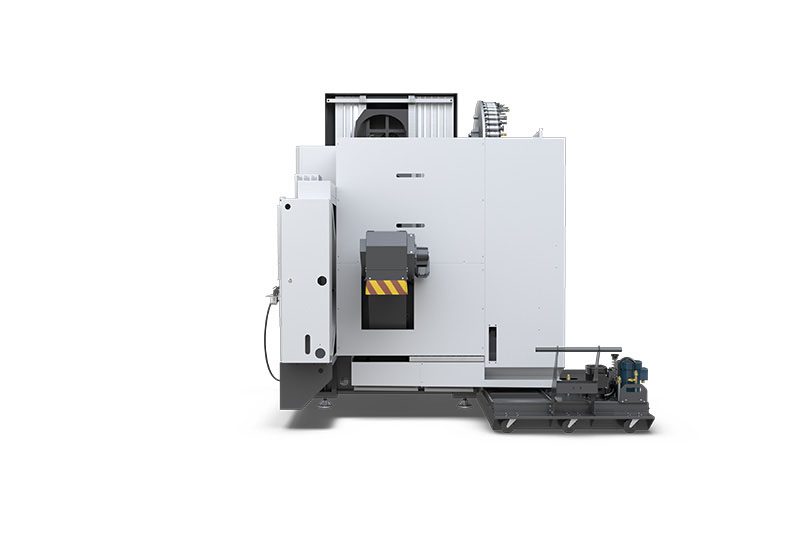

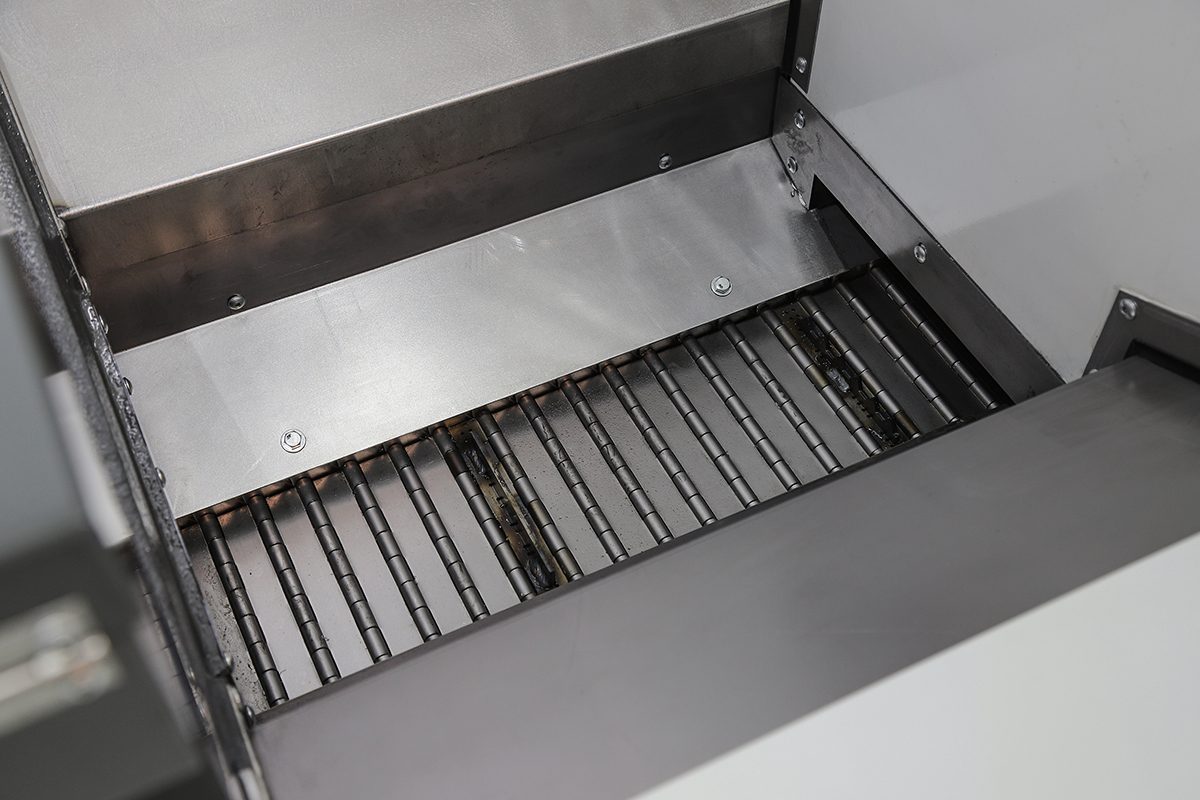

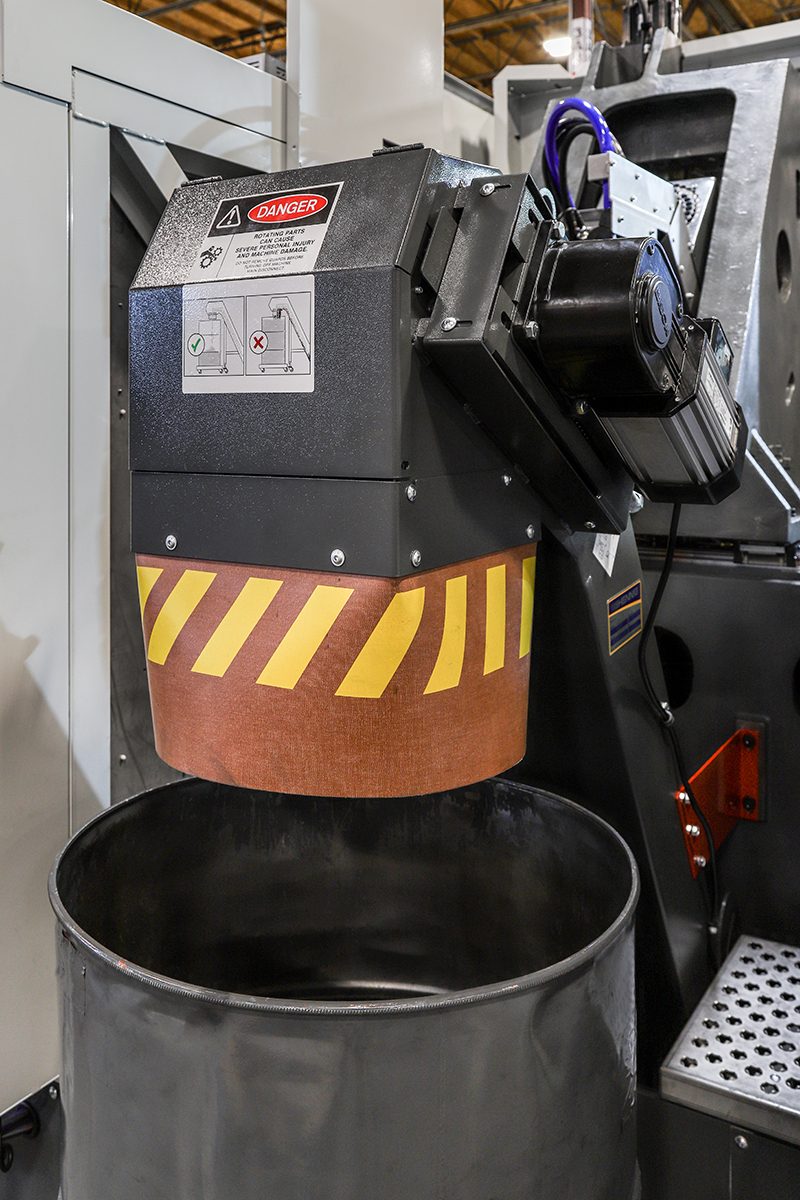

At the heart of the VC-400’s chip management system is a wide belt-type chip conveyor positioned in the center of the machine, directly under the spindle. The steep walls of the interior enclosure easily funnel chips to the conveyor.


The conveyor discharges chips at the height of a full-size industrial barrel. Washdown nozzles mounted in the ceiling are fed by a separate coolant pump, and allow you to direct coolant flow to areas where chips may gather, to further enhance chip evacuation.

Automatic Probe Riser (Optional)

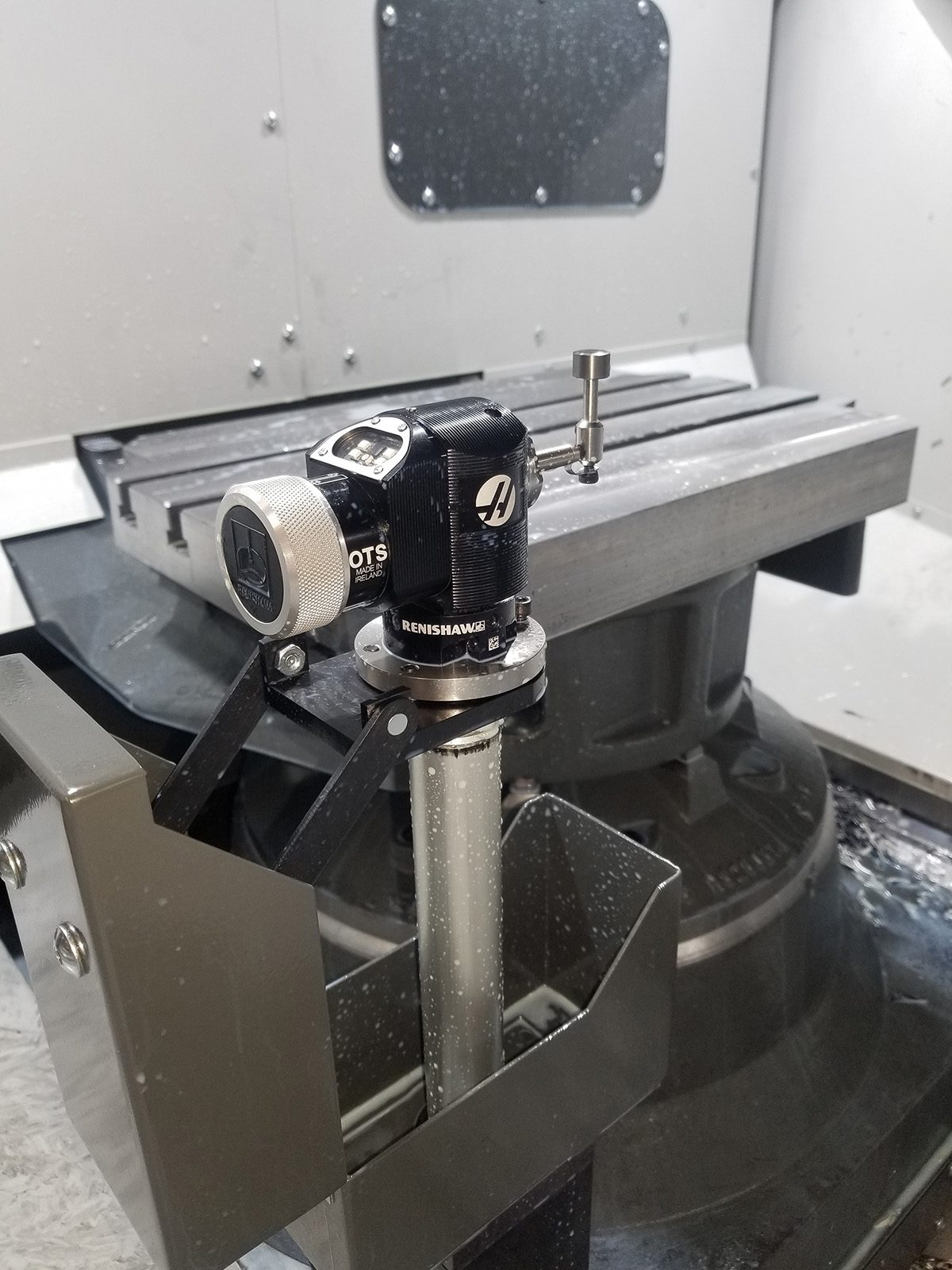

An automatic probe arm stores the tool setting probe in a protective compartment during machining operations. When the tool probe is needed, an M104 code activates the automatic probe arm to lift the probe and lock it into place. When probing is complete, an M105 retracts the probe to its protective compartment.

  • Included with the Wireless Intuitive Probing System (WIPS) Option
  • Programmable with M-codes for in-process tool inspection
  • Dedicated page on the Haas control for manual operation
  • Probe remains free of chips and contamination in the work envelope

Stepped Base and Column

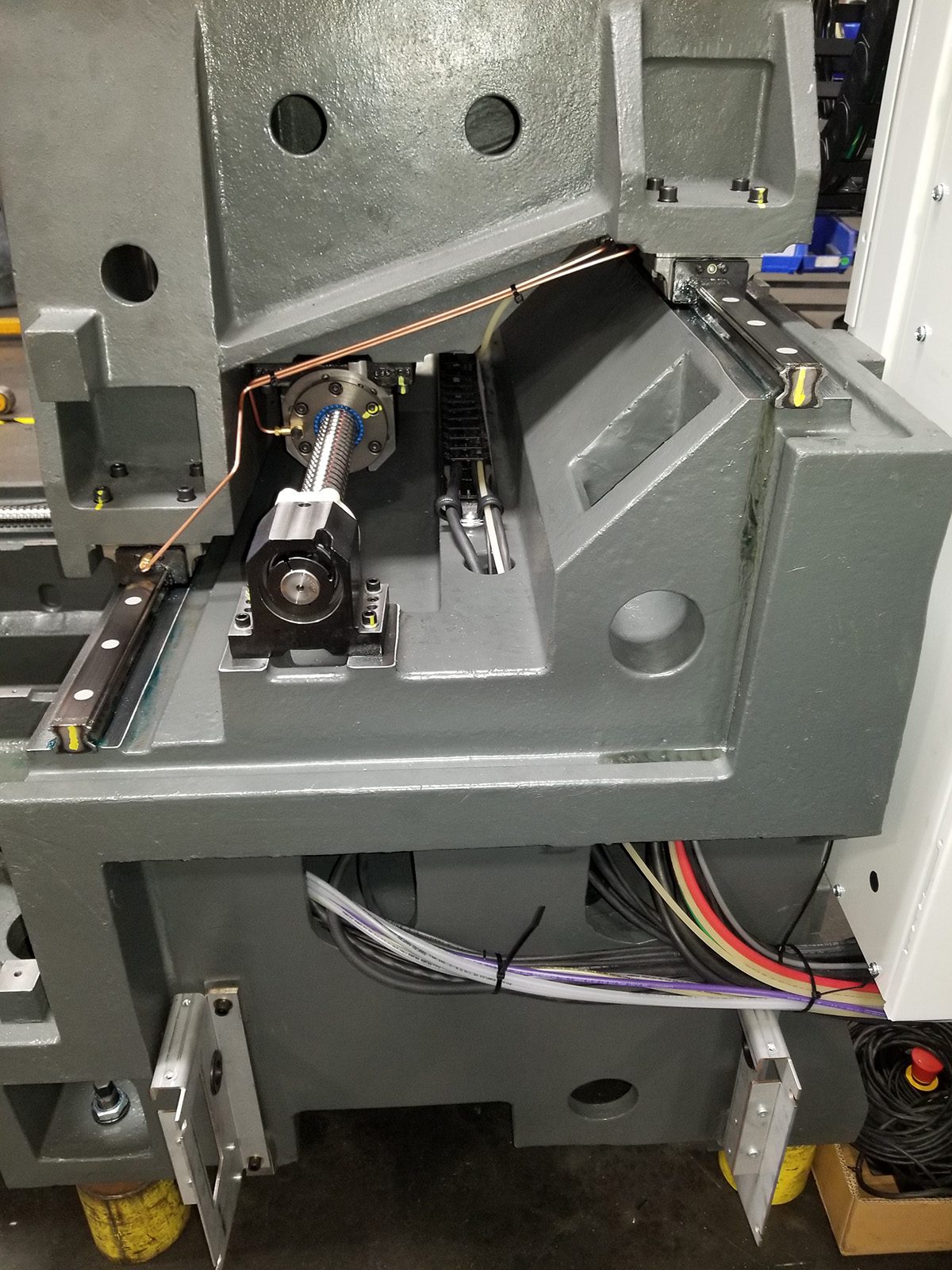

The stepped base and column design of the VC-400/SS, where one X-axis linear guide rail is on a different horizontal plane than the other, increases the rigidity and stability of the spindle-head column assembly. With hydraulic pallet clamping and the stepped base/column design, the machine is very rigid, all the way to the top of travel!

  • 21.5" (546 mm) stepped wide-stance for solid stability on X-axis
  • Large 40 mm diameter ballscrews on all axes
  • Robust 35 mm linear guides on all axes

AVAILABLE OPTIONS

TECHNICAL DOCUMENTS

VIDEOS

RELATED PRODUCTS

NOTE: All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications.

*Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

**Optional tool changers may have a different max tool size than the standard tool changer. Extra-large tools may require two adjacent pockets empty between tools. Click here for toolholder specifications.

ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

† Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.
