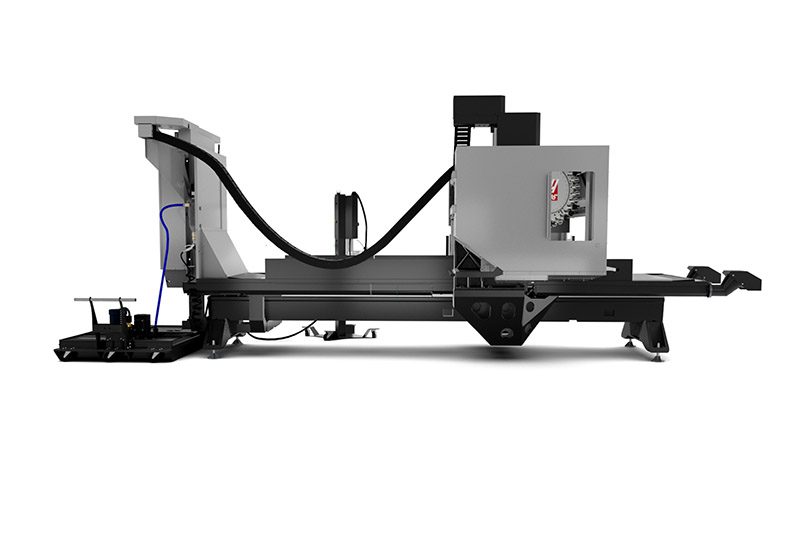

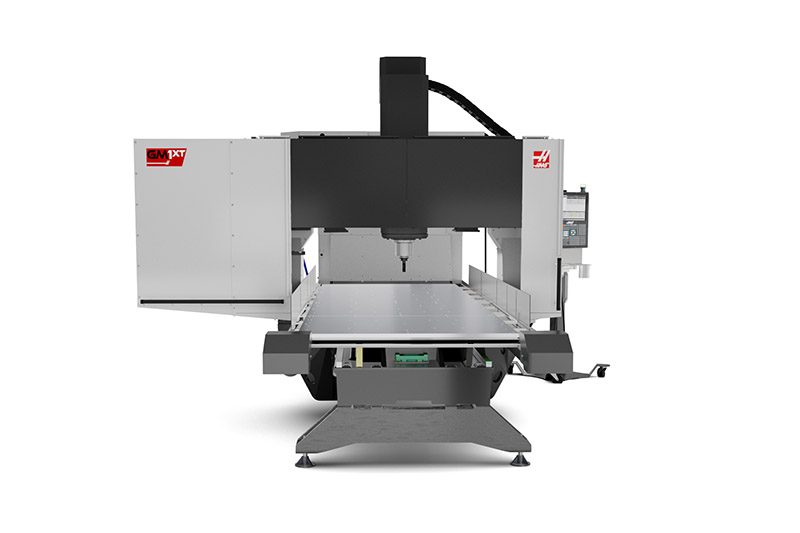

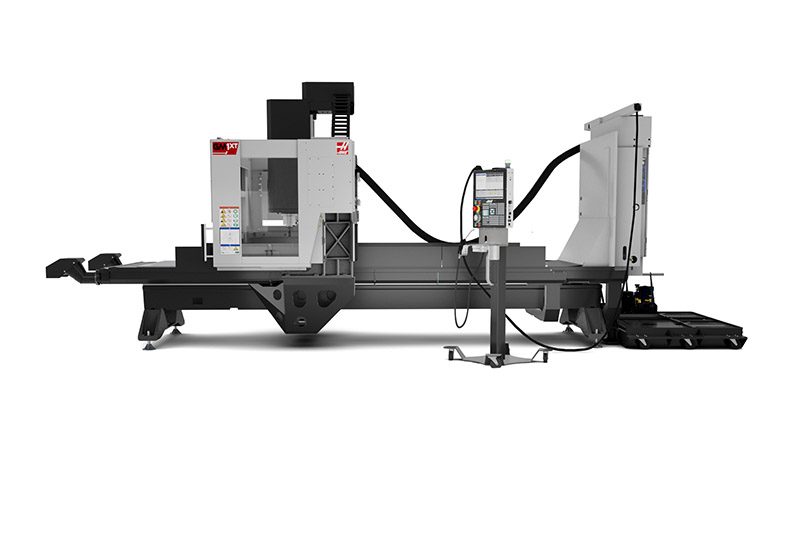

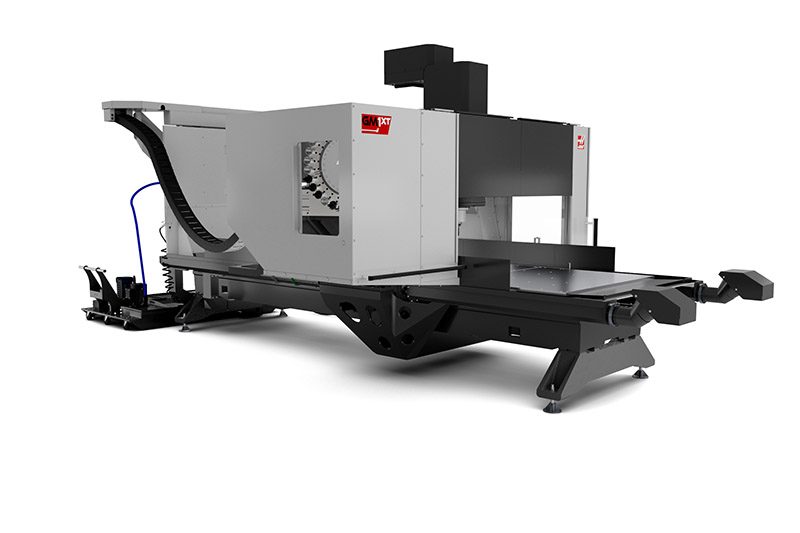

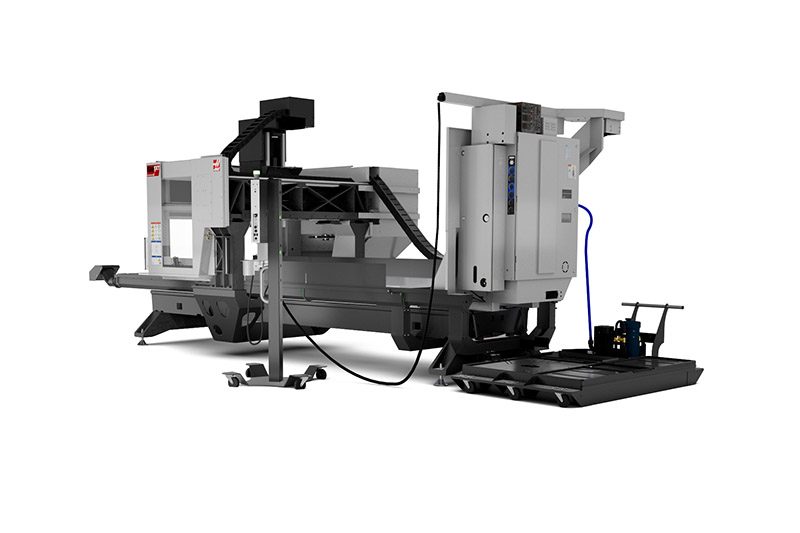

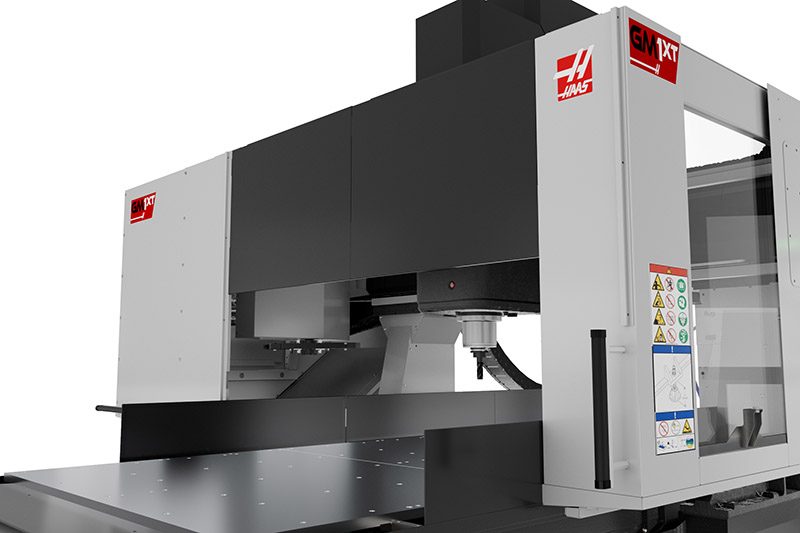

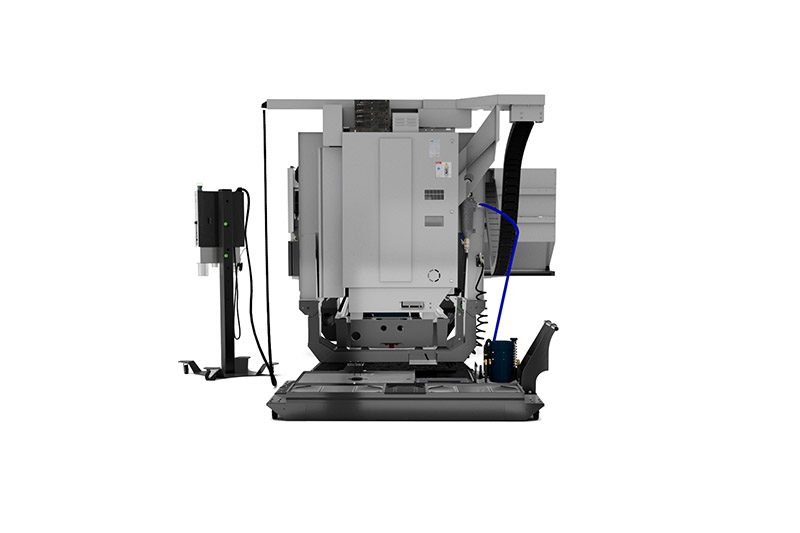

GM-1XT




For the best pricing in your area, contact your local Haas Factory Outlet.

3-Axis CNC Gantry Mill with 142" x 61" x 16" travels

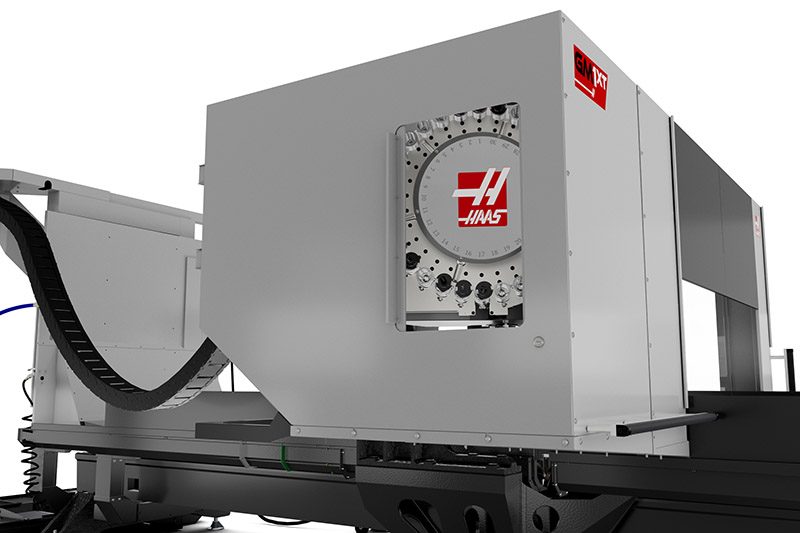

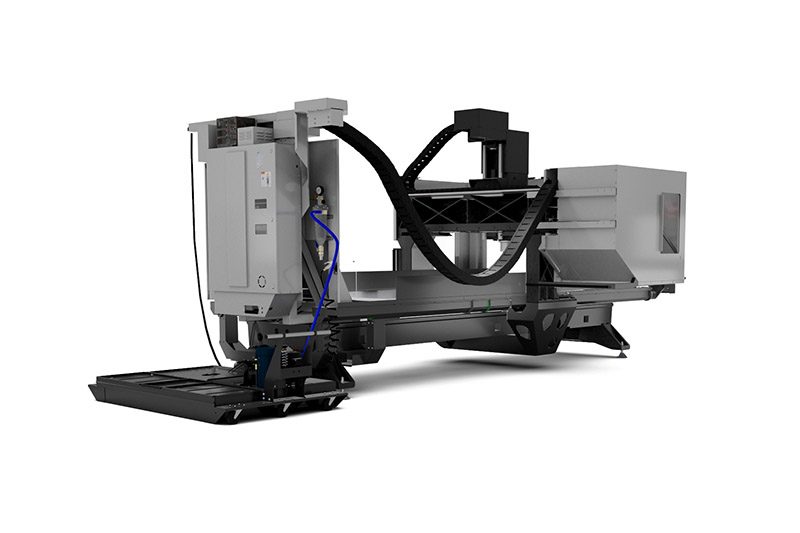

The GM-1XT is an extended version of our 3-axis GM-1 gantry mill, providing 21" (533 mm) more X-axis travel for longer parts, such as airframe components, large plates, and long extrusions. The machine’s rigid cast-iron construction provides a very stable cutting platform, and a 1" (25 mm) thick aluminum table is standard. A traveling guard protects the operator from chips and coolant, and keeps the workspace clean.

  • Robust 40-taper inline direct-drive spindle
  • 62" (1575 mm) between columns for large parts
  • Rigid cast-iron construction
  • Traveling guard for chip and coolant containment
  • 1" (25 mm) thick aluminum table
  • 40 Taper
  • 3 Axis
  • 8.1k RPM
  • 30+1 Tool Capacity

GM-1 SERIES

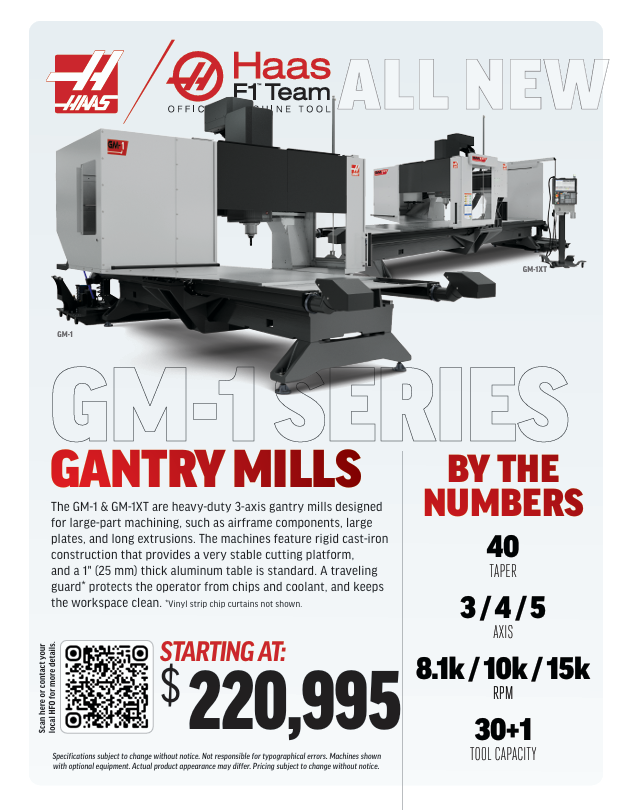

DOWNLOAD BROCHURE

HAAS JOURNAL

    Compare Machines
    BUILD & PRICE
    Contact Distributor
    Travels S.A.E METRIC
    X Axis 142.00 in 3607 mm
    Y Axis 61.00 in 1549 mm
    Z Axis 16.00 in 406 mm
    Spindle Nose to Table (~ max) 18.5 in 470 mm
    Spindle Nose to Table (~ min) 2.5 in 64 mm
    Spindle S.A.E METRIC
    Max Rating 30.0 hp 22.4 kW
    Max Speed 8100 rpm 8100 rpm
    Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm
    Drive System Inline Direct-Drive Inline Direct-Drive
    Taper CT or BT 40 CT or BT 40
    Bearing Lubrication Air / Oil Injection Air / Oil Injection
    Cooling Coolant Jacket Coolant Jacket
    Table S.A.E METRIC
    Length 144.0 in 3658 mm
    Width 53.0 in 1346 mm
    Thickness 1.0 in 25 mm
    Max Weight on Table (evenly distributed) 6000 lb 2722 kg
    Between Columns 62.0 in 1575 mm
    Feedrates S.A.E METRIC
    Max Cutting 800 ipm 20.3 m/min
    Rapids on X 800 ipm 20.3 m/min
    Rapids on Y 2100 ipm 53.3 m/min
    Rapids on Z 1100 ipm 27.9 m/min
    Axis Motors S.A.E METRIC
    Max Thrust X 4498 lbf 20008 N
    Max Thrust Y 1645 lbf 7317 N
    Max Thrust Z 2742 lbf 2197 N
    Tool Changer S.A.E METRIC
    Type SMTC SMTC
    Capacity 30+1 30+1
    Max Tool Diameter (full)** 2.5 in 64 mm
    Max Tool Diameter, Large (adjacent empty)** 3.5 in 89 mm
    Max Tool Length (from gage line) 11.00 in 279 mm
    Max Tool Weight 12.0 lb 5.4 kg
    General S.A.E METRIC
    Coolant Capacity 95 gal 360 L
    Air Requirements S.A.E METRIC
    Air Required† 4 scfm @ 100 psi 113 L/min @ 6.9 bar
    Inline Air Hose 3/8 in 3/8 in
    Coupler (Air) 3/8 in 3/8 in
    Air Pressure Min 80 psi 5.5 bar
    Electrical Specification S.A.E METRIC
    Spindle Speed 8100 rpm 8100 rpm
    Drive System Inline Direct-Drive Inline Direct-Drive
    Spindle Power 30.0 hp 22.4 kW
    Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
    Full Load Amps (3 Phase) - Low 70 A 70 A
    Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
    Full Load Amps (3 Phase) - High* 35 A 35 A
    Dimensions - Shipping S.A.E METRIC
    Export Pallet
